Exhaust and Pillion peg mounts.

Status
Not open for further replies.

GRM 450

Joined
Dec 30, 2008
Messages
985
Country flag
Hello would one of you kind souls please show me a picture of how the muffler and pillion pegs are supposed to mount (Mk3 if it makes a difference) Pleeeease.
I've looked at the manuals and I'm buggered if I can figure it out.

Thank you
Graeme.

Exhaust and Pillion peg mounts.

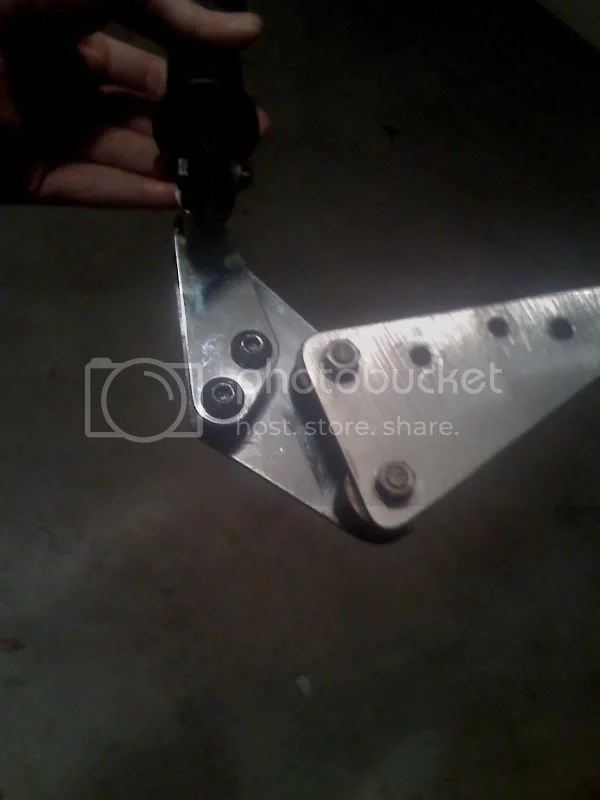

the 2 screws on the left attach to the z-plate... the exhaust attaches to 2 holes on the right

Thank you Pelican you're a champion.
The bracket I have that attaches to the exhaust is different to the bracket on your set up, it has a bend and a cut out piece.
But I can see where it is supposed to go.
Thanks very much for your effort.
Regards Graeme.

I don't think mine is stock... at least the one in the parts book looks different... but yeah, as long as you get the idea... :mrgreen:
