Cylinder head and cylinder Torque check.

Maxim76 · Oct 16, 2019

Thanks. That was my guess. But apparently dealer just keep a look and no torque check !!!!

Maxim76 · Oct 16, 2019

I was following this post as well as i got first check done recently and was surprised that nuts were untouched ...
Chris I sent you a message.

Fast Eddie · Oct 17, 2019

The gasket compresses, effectively leaving the bolts loose and the gasket un clamped.

You need to remedy this situation, otherwise you run a very real risk of blowing the head gasket.

richard-7 · Oct 18, 2019

1st service also includes rocker inspection too. Easy to do while the valve cover is off.

Chris CSTM · Oct 21, 2019

Hi
Thank you for your feedback. I will revert to my dealer and keep you updated.

speirmoor · Mar 17, 2020

richard-7 said:
I'm certain you received this info from me in one of my emails I sent out with manuals. But here it is again.

All of the bolts need to be torqued. The numbers are the order of which you do them. It's confusing because their are two numbers on some of them. Like 1/7. This means you are going to torque it twice. The first time and the seventh time. So on that bolt you torque it to 22ft lbs (30Nm) then the seventh time to 44 ft lbs (60Nm),. Hope this makes sense.
Torque One to Six to 30Nm. Torque Seven to Twelve to 60Nm, then torque thirteen to fifteen to 30Nm
If you get the WEB version of the service manual, the torque specs are wrong. Only the paper version is correct. Above are the correct values.

Can anyone post a copy of the paper version?

BritTwit · Mar 17, 2020

speirmoor said:
Can anyone post a copy of the paper version?

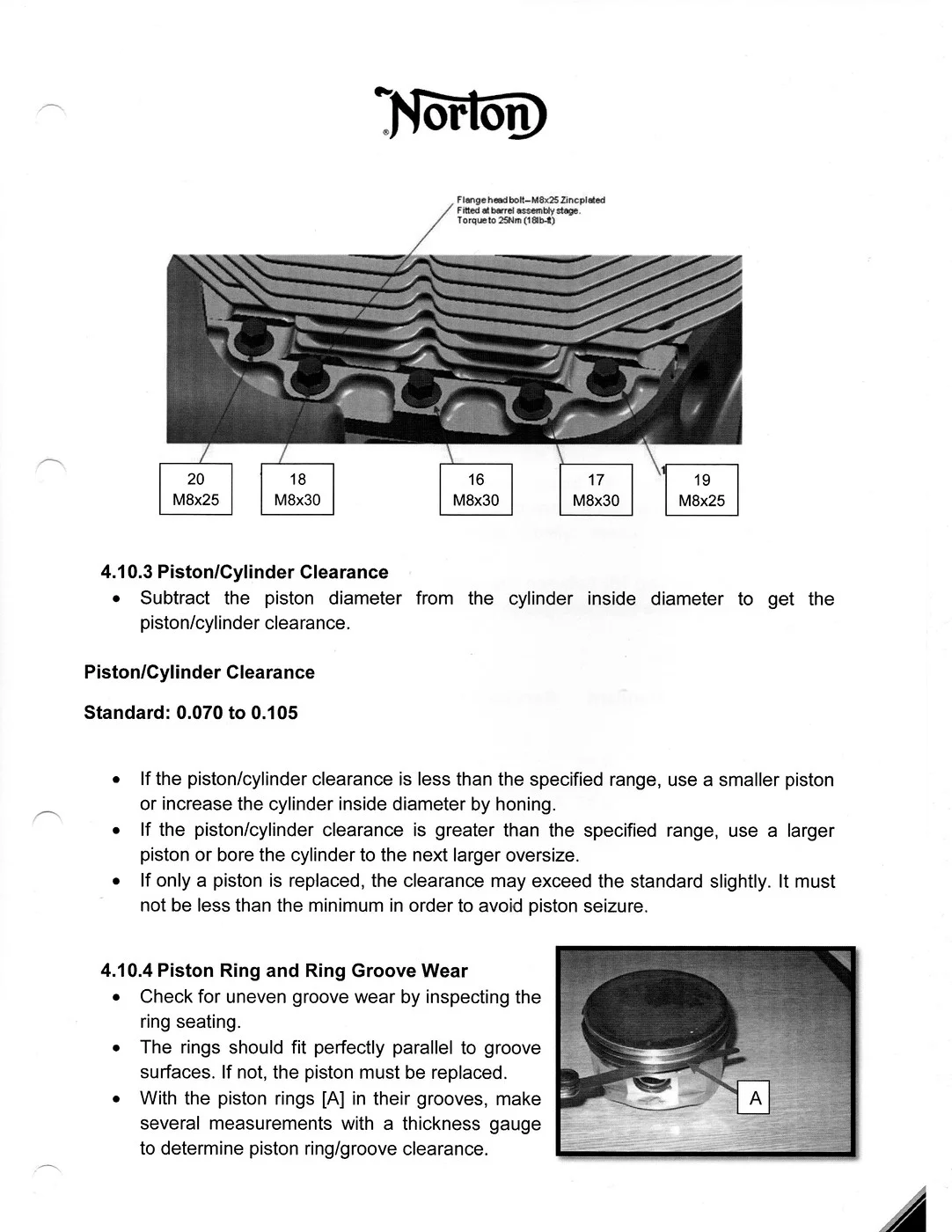

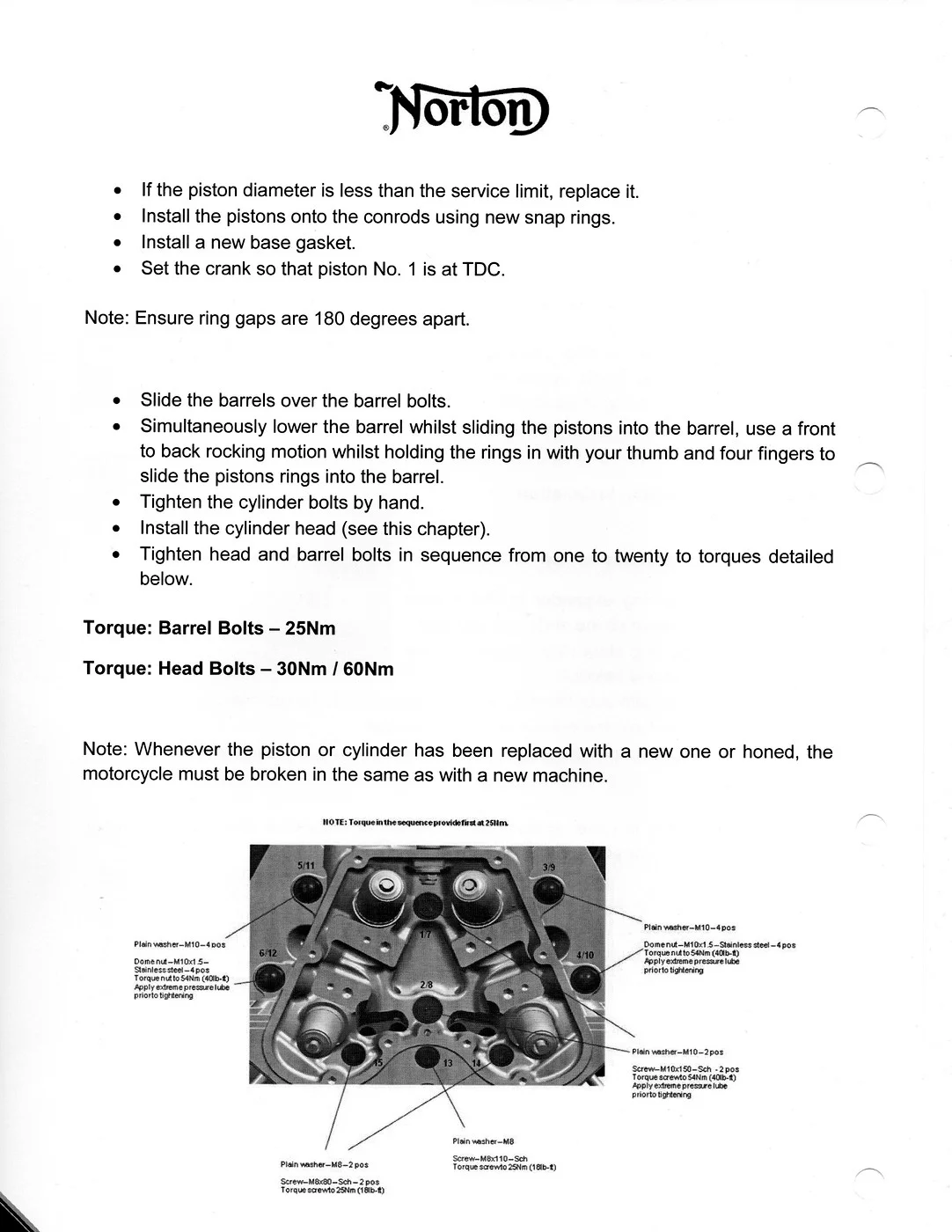

Cylinder head and cylinder Torque check.

Hosted on Fotki

speirmoor · Mar 17, 2020

BritTwit said:
Hosted on Fotki

Hosted on Fotki

Thanks so much.

speirmoor · Mar 17, 2020

I have more Q's
1) Where/How does one apply the "Extreme Pressure Lube"
2) Is the Head Cover Gasket reusable?

BritTwit · Mar 17, 2020

speirmoor said:
I have more Q's
1) Where/How does one apply the "Extreme Pressure Lube"
2) Is the Head Cover Gasket reusable?

1 - This is fastener assembly lube, you can get it online.
2 - Mine was reusable, but I wouldn't reuse it more that once.

speirmoor · Mar 17, 2020

BritTwit said:
1 - This is fastener assembly lube, you can get it online.

With regards to the "How" , Do you remove the fastener completely, coat in lube and torque as recommended?
Only asking as I've never used this before

BritTwit · Mar 17, 2020

speirmoor said:
With regards to the "How" , Do you remove the fastener completely, coat in lube and torque as recommended?
Only asking as I've never used this before

If I were rebuilding the engine and replacing the head I would cover the bolt threads with a light coating.
But if just re-torquing the head, I wouldn't bother.
The fastener lube is designed to eliminate friction between the bolt threads so that the correct tension can be reached in the threads to achieve an accurate final torque.

speirmoor · Mar 17, 2020

BritTwit said:
If I were rebuilding the engine and replacing the head I would cover the bolt threads with a light coating.
But if just re-torquing the head, I wouldn't bother.
The fastener lube is designed to eliminate friction between the bolt threads so that the correct tension can be reached in the threads to achieve an accurate final torque.

Gotcha ,Thanks !

Eljahara · Mar 17, 2020

speirmoor said:
Gotcha ,Thanks !

Do you have the workshop manual?

speirmoor · Mar 17, 2020

Eljahara said:
Do you have the workshop manual?

I have a downloaded version. It says
"Tighten head and barrel bolts in sequence from one to twenty to torques detailed below (shown in detail in this chapter, section: 4.7.7)
Torque: Barrel Bolts – 25Nm
Torque: Head Bolts – 30Nm / 60Nm (Refer to 4.7.7)
Cylinder Head Bolts"

But my downloaded version doesn't have a section 4.7.7 for some reason

Eljahara · Mar 17, 2020

Check section 5.7 onwards, that seems to have the diagrams
