Cam Bushing

Joined
May 16, 2008
Messages
161
Country flag
Hi folks,
Anybody have a way to remove the cam bushing from the left side case?
Tried heat and a couple of other things with no luck. Maybe there is a tool I can use?
Thanks,
Larry

Joined
May 16, 2008
Messages
161
Country flag
Hi folks,
Anybody have a way to remove the cam bushing from the left side case?
Tried heat and a couple of other things with no luck. Maybe there is a tool I can use?
Thanks,
Larry
I should have just left it alone.
Now I have to get it reamed since the bushings are too tight.
anybody know of a shop in the U.S. that can do this and the line boring
I now have to get done?


acadian

VIP MEMBER
Joined
Mar 5, 2010
Messages
1,093
Country flag
You'l have to search around for a shop that has the capability or send the cases out.

A few of us have fabricated jigs for this job but machining equipment and skills are needed. Not sure how you got it out, but a 15/16 tap is a good method.

Last edited:
Joined
May 16, 2008
Messages
161
Country flag
Hey folks,
Does anybody know where I can get the cam bushing reamed ?
I'm in central Fla.


Time Warp

.......back to the 70's.
VIP MEMBER
Joined
Dec 3, 2012
Messages
2,046
Country flag

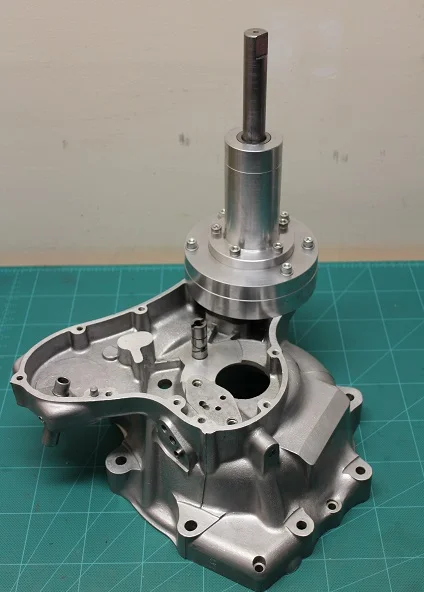

Jim Comstock or Leo Goff might be the only sources in the USA and the situation is little different here so like Acadian I machined my own line reamer.
The same spiral flute reamer was used on swing arm bushes.

I can only hope you got it sorted.

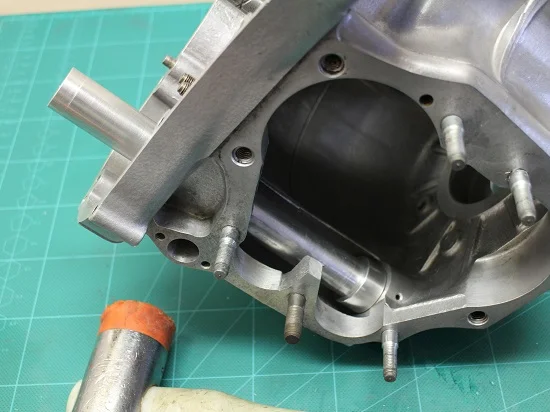

IMG_5769 - Copy.JPG

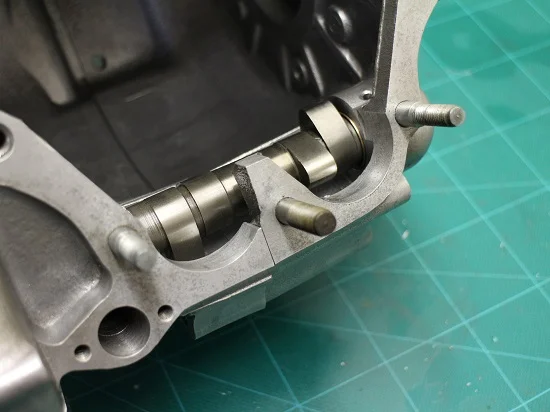

IMG_5782 - Copy.JPG


Time Warp

.......back to the 70's.
VIP MEMBER
Joined
Dec 3, 2012
Messages
2,046
Country flag
I machine the bushes in the mill so they can be collapsed for removal to minimise any drama to the bore.
