Blocking feed line for the chain oiler 73 Roadster

MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,665
Country flag
It looked alot like this, but metal.
I could turn it or control how much. I just left it shut off.
You could put a hose, bolt and clamps.

Mine currently has been brazed closed.

Joined
Oct 28, 2009
Messages
857
Country flag
L.A.B., whenever I see a diagram of the oil circulation on a Norton, I am reminded of the incorrect diagram that appeared in some factory literature. Can you please remind me what document contained that incorrect diagram so I can mark it as incorrect.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
17,085
Country flag
L.A.B., whenever I see a diagram of the oil circulation on a Norton, I am reminded of the incorrect diagram that appeared in some factory literature. Can you please remind me what document contained that incorrect diagram so I can mark it as incorrect.

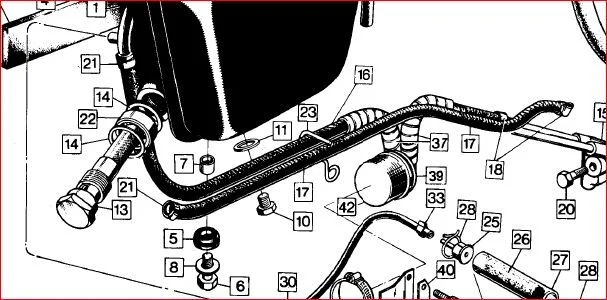

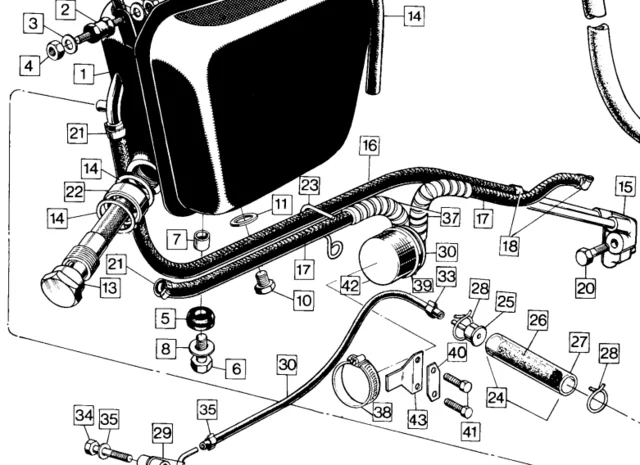

Do you mean the '1972' parts book diagram that shows the oil filter assembly drawn on the wrong feed line?



The oil filter is correctly drawn on the return line, below, although too far forward so the clip '23' is in the wrong position ( '16' and 2x '17' are now on the 'wrong' lines as '17' is the single length) so only the feed line should be drawn in the clip as the return line from the junction block '15' passes through the gearbox opening and then to the filter housing.


If that wasn't it then you/anyone would have to jog my memory.

Joined
Oct 28, 2009
Messages
857
Country flag
Yes, that would be the one. Thanks.
I have a hard copy of this parts book and I will make a note of the error.
Unfortunately there are electronic versions of the 1972 parts book and the error will live on permanently in cyberspace.
