anyone got experience with commando engine in wideline frame with isolastics? if so any photos

Atlas Commando

VIP MEMBER
Joined
Feb 27, 2018
Messages
148
Country flag
As a young man with no mechanical ability and virtually no funds, I acquired a Norton Atlas with a cratered motor and a Commando that had been wrapped around a tree. I drilled 3 extra holes in the back of the Commando primary to get the Commando engine to sit upright, and then just bolted things together. I wish I could recall what I did for a top motor mount, maybe stock Atlas? As expected, the thing was 'thrilling' but it was a buzzing anvil. Tail light bulbs were good for a few hundred miles, and soldered wire connections not much better. I sat the oil tank on a piece of inner tube and it held up, but the gas tank developed a habit of cracking at the seams. If I really rev'd it hard my feet would slide off the pegs. It was a big part of my transportation for about a year, until the Commando engine dropped a rod and holed the cases.
I feel that my Atlas-Commando consolidation doesn't quite measure up to these other efforts.....

Joined
Feb 7, 2010
Messages
4,103
Country flag
All featherlastics are not the same. I have ridden the root beer colored one shown in previous. Handling is excellent. Bike rides smooth like a commando. Note that swing arm does not float with engine like commando. Bike that norton should have built.

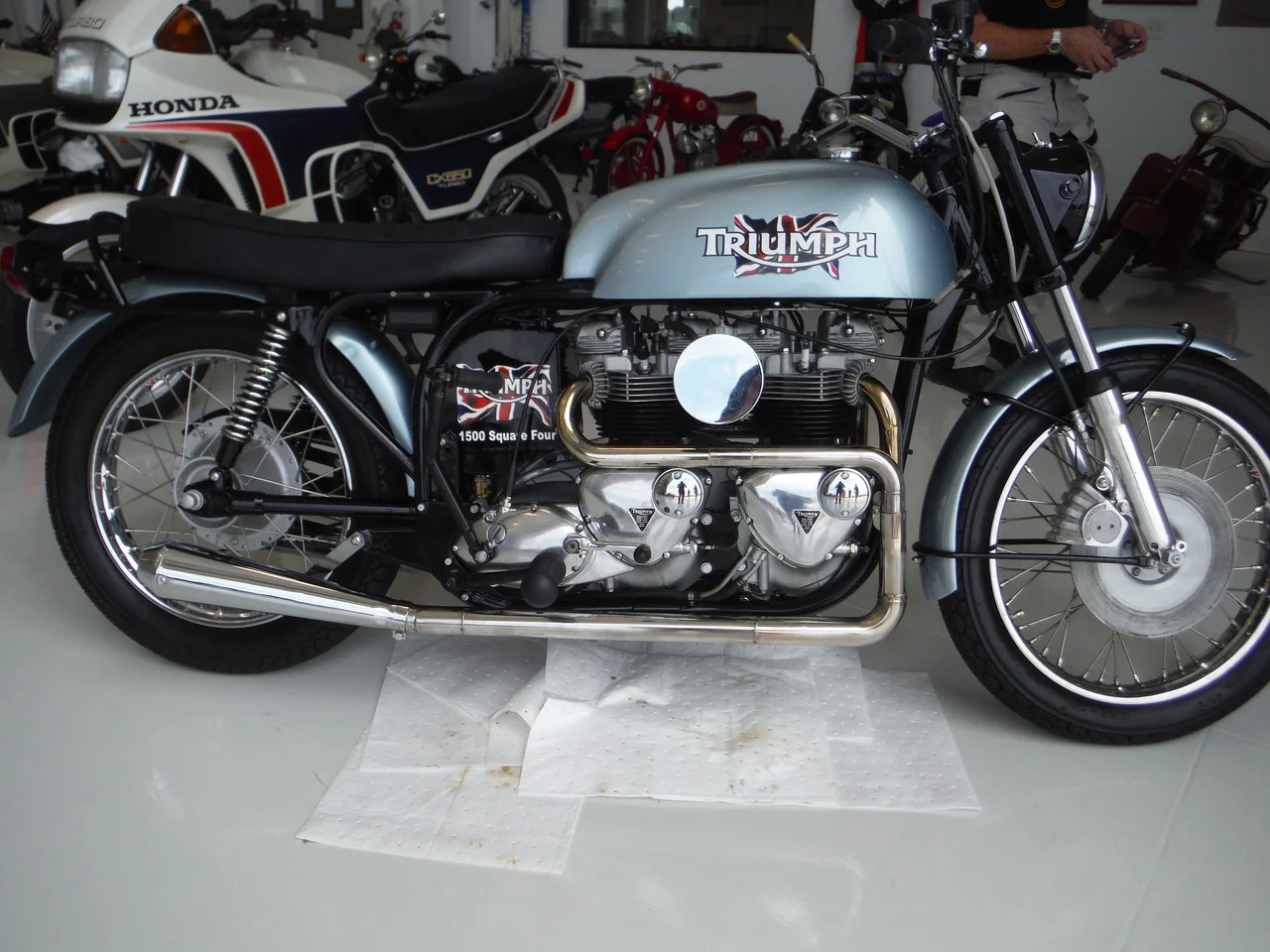

If it works as good as it looks it can't be too bad. Here's another abortion to encourage Norton motors in Norton chassis;

North%20Alabama%20Vintage%20Club%20gathering%20June%205%202021%202021-06-05%20009-X2.jpg


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,976
Country flag
Seem plenty of single engined bikes go well on the strip too.

Also seen plenty blow up...


baz

VIP MEMBER
Joined
May 26, 2010
Messages
2,912
Country flag
If it works as good as it looks it can't be too bad. Here's another abortion to encourage Norton motors in Norton chassis;

North%20Alabama%20Vintage%20Club%20gathering%20June%205%202021%202021-06-05%20009-X2.jpg
Exhaust looks like it's made from a bathroom towel radiator
Very handy


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,976
Country flag
Nice bike. Did Mr Degans make the swing arm longer to keep the wheelbase similar to a Featherbed?

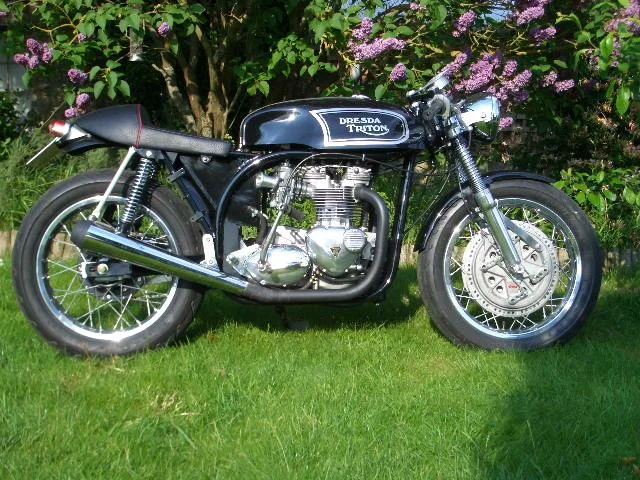

Not exactly. The main geometry was copied from his ‘Dresda’ chassis, which in turn was copied from the Sid Lawton Aermacchi’s that Dave raced.


t ingermanson

VIP MEMBER
Joined
Oct 17, 2018
Messages
204
Country flag
Why do people say that?

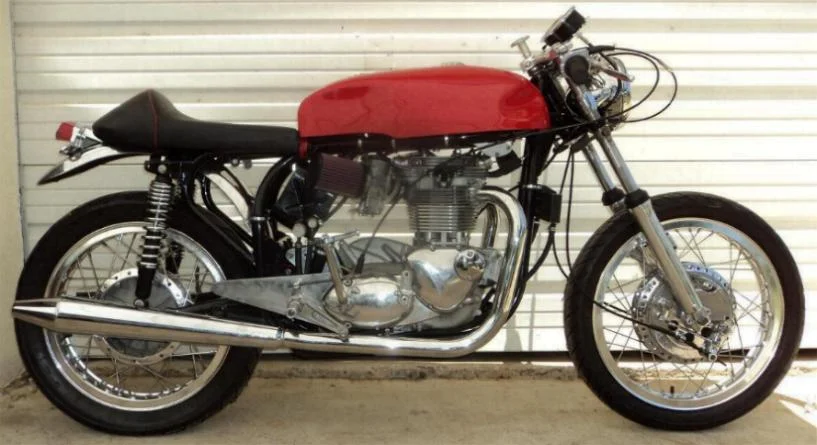

View attachment 80306
If you can fit two items in a single container, the container is too big or the item too small.

If nothing else, the 6-8" gap between the swingarm pivot and the final drive sprocket. Alternately, if that gap is closed, the center of gravity is too far back (but a Suzi 4ls brake certainly helps keep the CG forward! HA!)

Aesthetics are another concern, but are subjective. The handling effects are not subjective.

Please don't take it as a personal attack on your bike, as it's not meant to be. I prefer non-unit motors in non-unit frames for all the above reasons, as well as some squishy "general principle" quasi-logic. It's ok to disagree.

**Back to Isolastics on a Featherbed.**
I'd be quite interested to hear what others have done for a balance factor on Commando motors in a Featherbed, Iso or not. Stock Atlas BF? The JS reciprocating parts seem like a no brainer for a 750, but seem like you get less impact/value the smaller the capacity (Dominator/650 motors). The Featherbed Isolastics seem like a fun engineering exercise, but might make your head hurt for dubious results and/or other problems.


ashman

VIP MEMBER
Joined
Jul 11, 2010
Messages
3,857
Country flag
Balance factor for my Commando motor in a Featherbed frame was done at 72% and works very well for my 850.


robs ss

VIP MEMBER
Joined
Aug 16, 2016
Messages
1,487
Country flag
Some people talk about "balance factor" as if it is some magical way of smoothing the 360 degree twin (or single) when it is actually only trading vertical imbalance for induced horizontal imbalance. (okay - give or take 15 degrees for the "sloping" Commando)
The only "real" way to reduce vibration in these 360 degree twins (or singles) is to reduce the reciprocating mass - the source of the vibration.
Isolastics (which I admire, by the way) are only a way of covering up those vibrations.


grandpaul

VIP MEMBER
Joined
Jan 15, 2008
Messages
11,819
Country flag
3 motorcycles met their end to assemble this piece of, well, I don't have a good name for it, so fill in your own blanks.
How could you know that?

I have built 17 bikes from SCRATCH, 3 of those were Tritons.

Not a SINGLE one of those was built by first disassembling a donor bike (not disassembled by me, anyway)


grandpaul

VIP MEMBER
Joined
Jan 15, 2008
Messages
11,819
Country flag
Some people talk about "balance factor" as if it is some magical way of smoothing the 360 degree twin (or single) when it is actually only trading vertical imbalance for induced horizontal imbalance. (okay - give or take 15 degrees for the "sloping" Commando)
The only "real" way to reduce vibration in these 360 degree twins (or singles) is to reduce the reciprocating mass - the source of the vibration.
Isolastics (which I admire, by the way) are only a way of covering up those vibrations.
I don't think anyone was arguing that balancing the engine to a different factor was a panacea...


t ingermanson

VIP MEMBER
Joined
Oct 17, 2018
Messages
204
Country flag
Some people talk about "balance factor" as if it is some magical way of smoothing the 360 degree twin (or single) when it is actually only trading vertical imbalance for induced horizontal imbalance. (okay - give or take 15 degrees for the "sloping" Commando)
The only "real" way to reduce vibration in these 360 degree twins (or singles) is to reduce the reciprocating mass - the source of the vibration.
Isolastics (which I admire, by the way) are only a way of covering up those vibrations.
Yes. I completely agree. I'll rephrase in an attempt mitigate your concerns.

The reports I've read (including the above linked one) have mentioned a rebalance, but have stopped short of providing a number, and none have included the super light piston/rod sets currently available.

So... when you put all the aftermarket lightweight hoohaws into your Commando lump, the reciprocating weight has changed, so the balance factor has changed, yes? Is it ok to leave the flywheel as is? Change to the stock BF accounting for the new lightweight whirly bits? Treat it as a regular Commando and match for the iso system, if it exists on your Featherbed? Change to match the rigid mounted Atlas? A different one altogether?

Do the lightweight piston/rod sets completely eliminate the "need" for isos on a standard Featherbed with a 750, 850, 920, etc motor?

Since both adding an iso system to a Featherbed, and balance factors are suck-it-and-see scenarios, it might be constructive to the OP (or anyone else contemplating this) to shed a bit of light on this variable. There are smarter people than I who've been messing with this a lot longer than myself, hence the questions.
