Amal Stay up float. Version 1 and 2. Wheres the photo?

You then tune the bike using throttle stops and maybe air screws to match the pressure on both manifolds. This will synchronise the carbs and give a good even idle.

Plus, the slides can be synchronised by lifting them off the throttle stops.

Lots of videos on you tube.

But, search for carb 'manometer' (not nanometer).

Plus, the slides can be synchronised by lifting them off the throttle stops.



But, search for carb 'manometer' (not nanometer).
Ahh. Can't spell it. Definitely not an expert. 🤣🤣🤣🤣

Ahh. Can't spell it. Definitely not an expert. 🤣🤣🤣🤣
OK. Next problem. The mercury manometer is around 30 years old and has lost most of the mercury.

Turns out mercury is almost impossible to buy in NZ now. I may have to find someone working in a lab or a school science teacher.

When I was a kid I remember playing with it.

Maybe that might explain a few things 🤣🤣🤣🤣

I just realised I never finished off this thread.

I never found any mercury so ended up using the balance guages. They belonged to a friend and seem to be high quality with a needle valve which can be adjusted to dampen the needle fluctuations.

I very carefully matched the slide height and cable adjustment on the two carbs. Tuned the airscrew to maximise rpm. On both carbs this turned out to be almost exactly 1 5 turns out. With the motor fully warmed I then adjusted slide heights to a 1000 rpm idle matching the gauge pressure reading. Was very easy in the end.

The idle is now excellent and even at 1000 rpm when warm. I use full choke to start. Starts very well and comes off the choke after about 1 km or so.

Some people like a lower idle around 800 rpm but I prefer a bit higher.

I replaced my original Amals in 1979 the slides were so worn, but 13 years of no troubles with the replacement Amals I went down the PWK road with Jim's jets for my motor but 6 months ago I gone back to my old Amals with a rebuild, new jets and needle etc and unblocked the left Amal pilot jet, the bike is running the best it has ever been, I still have the same plastic floats, have never looked at the float level and the slides have no wear in them even after all the years they been on the Norton and lots of miles on them, don't know why I ever went down the road of different carbs, but I came back to my senses and the Norton runs so much better with the old Amals, but I do replace the jets and needle every couple of years depends on how many miles I clock up. But I have never had any problems with float level or flow except for the dreaded pilot jet blockage, but that was only once in 47+ years.

Ashley

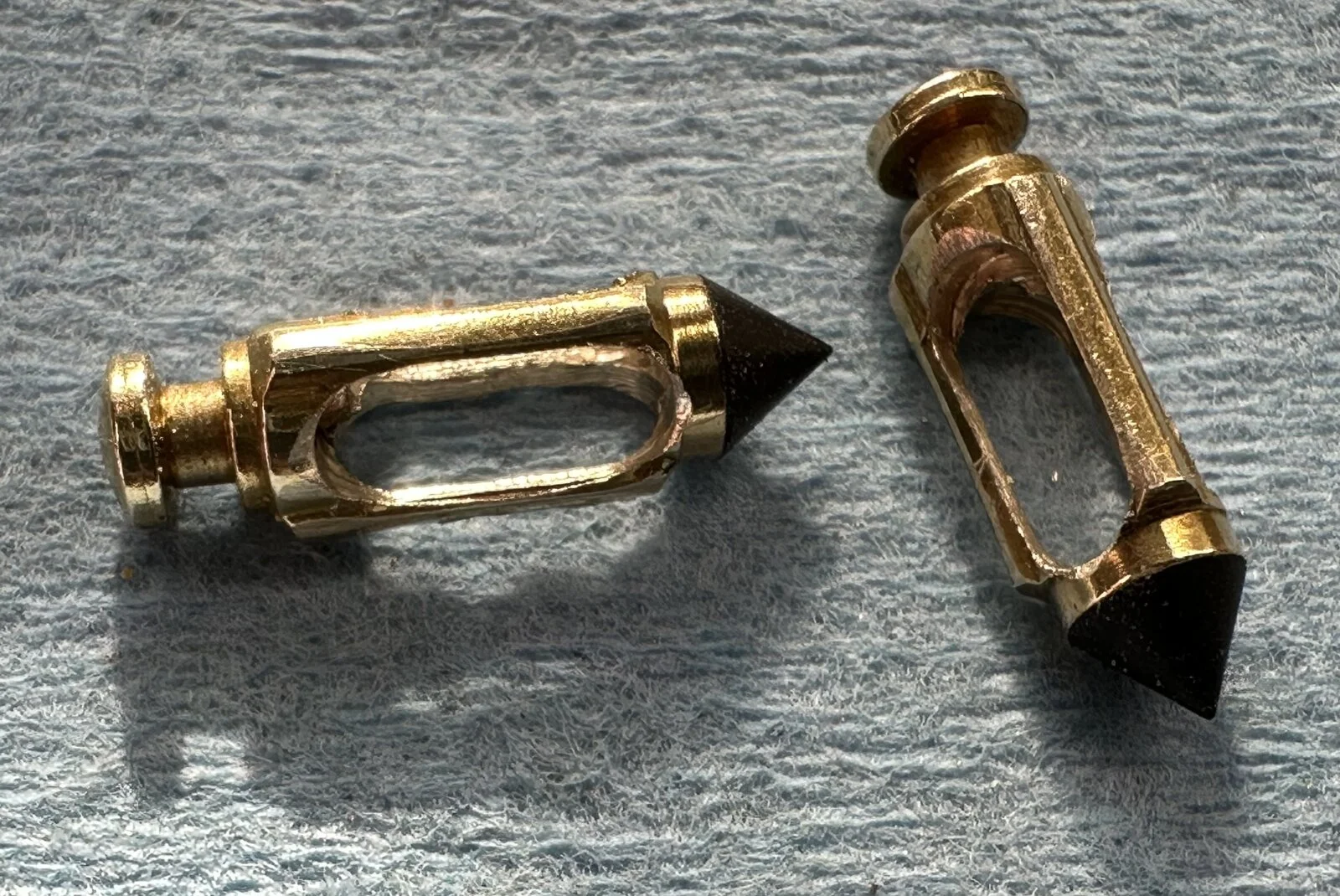

I installed a set of stay-up floats with (alas) brass Viton tip needles…. And fixed the problem of overflowing carbs only to create the problem of self emptying ones.

I evidently suffer from a supreme lack of patience and couldn’t be bothered to await the delivery of the correct aluminum ones….. so I put the horrible brass bobbins on a diet.

Amal Stay up float. Version 1 and 2. Wheres the photo?



Seems to work….
