Amal carb fun facts

L.A.B. · Nov 29, 2017

NortonMKIIA850 said:
I've got the impression over the years that these washers are a bit of a secret, e.g. Andover Norton doesn't list them on the relevant page for my bike, or another one that I just checked at random for a '71 750. And they're not in the parts books that I have. My experience, though, has been that you can get them easily enough if you ask for them, across the counter, over the phone or whatever – and, lo and behold, AN do stock them, but (as far as I've seen) you need the part number. Weird, seeing as they're a genuine Amal part.

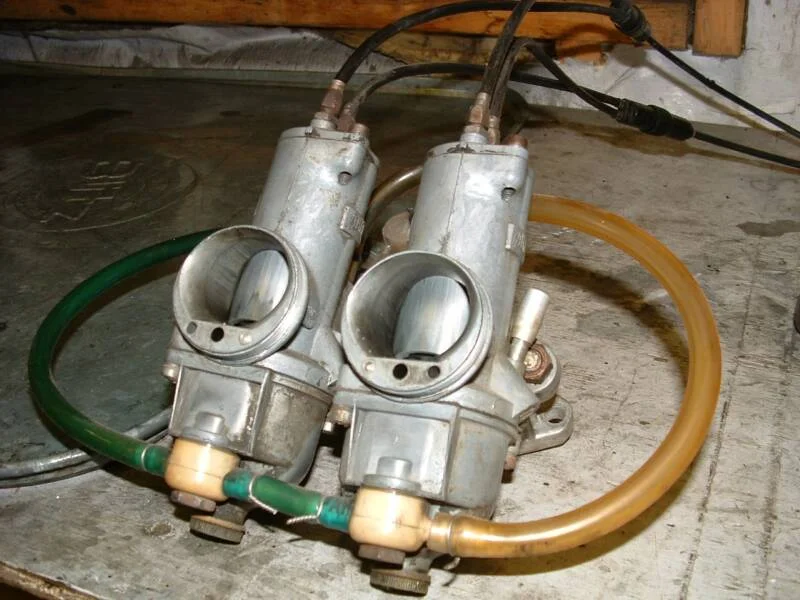

The Amal 13/163 fibre washers were apparently deemed unnecessary because the original Commando carb banjos were made of plastic so seal without the need for washers and is why the fibre washers are not listed in the Commando parts books.

http://www.speedandsport.com/services/tech-library/amal-carburetor-parts-breakdown/

Banjo bolt washer (metal banjos only) 13/163

http://www.hitchcocksmotorcycles.com/partsbooks/pages/4764/900_Series_(28-32mm)

Position 33
For Use With Metal Banjos ONLY -
WASHER, BANJO BOLT
Code: AM/13/163

NortonMKIIA850 · Nov 29, 2017

Interesting – I'm not sure I've ever seen a plastic banjo, but if I have I've probably replaced it with a metal one asap. Thanks for the info.

L.A.B. · Nov 29, 2017

NortonMKIIA850 said:
Interesting – I'm not sure I've ever seen a plastic banjo, but if I have I've probably replaced it with a metal one asap.

Yes, I expect most have been replaced by now.
http://www.rcycle.com/CarbRebuild.html

http://www.groveclassicmotorcycles.co.uk/376097n-amal-single-banjo-nylon-121-p.asp

Commando750 · Nov 30, 2017

http://www.hitchcocksmotorcycles.com/partsbooks/pages/4764/900_Series_(28-32mm)
Position 33
For Use With Metal Banjos ONLY -
WASHER, BANJO BOLT
Code: AM/13/163

So does anyone know where I can get these washers here in the states? I upgraded to the premiums and got rid of my nylon banjos but I have a slight leak, like 2 drops in a week if it sits that long just on the left side-right side is OK but I should probably get a pair.
Thanks in advance.

Nater_Potater · Nov 30, 2017

Commando750 said:
...I have a slight leak, like 2 drops in a week if it sits that long...

Two drops in a WEEK? I'm not even sure how to react to that...

NortonMKIIA850 · Nov 30, 2017

This thread probably has the answer! HTH

Commando750 · Dec 4, 2017

NortonMKIIA850 said:
This thread probably has the answer! HTH

Thank you. Old Britts is sending them onward. Owned the bike since '74 and not used to any leaks, especially petrol, got rid of the chain oiler but other than that it's been pretty much leak-free!
