I know there is a lot of information regarding these already but I can't seem to find anything like this. The starter has failed owing to the 3 plastic rods disintegrating

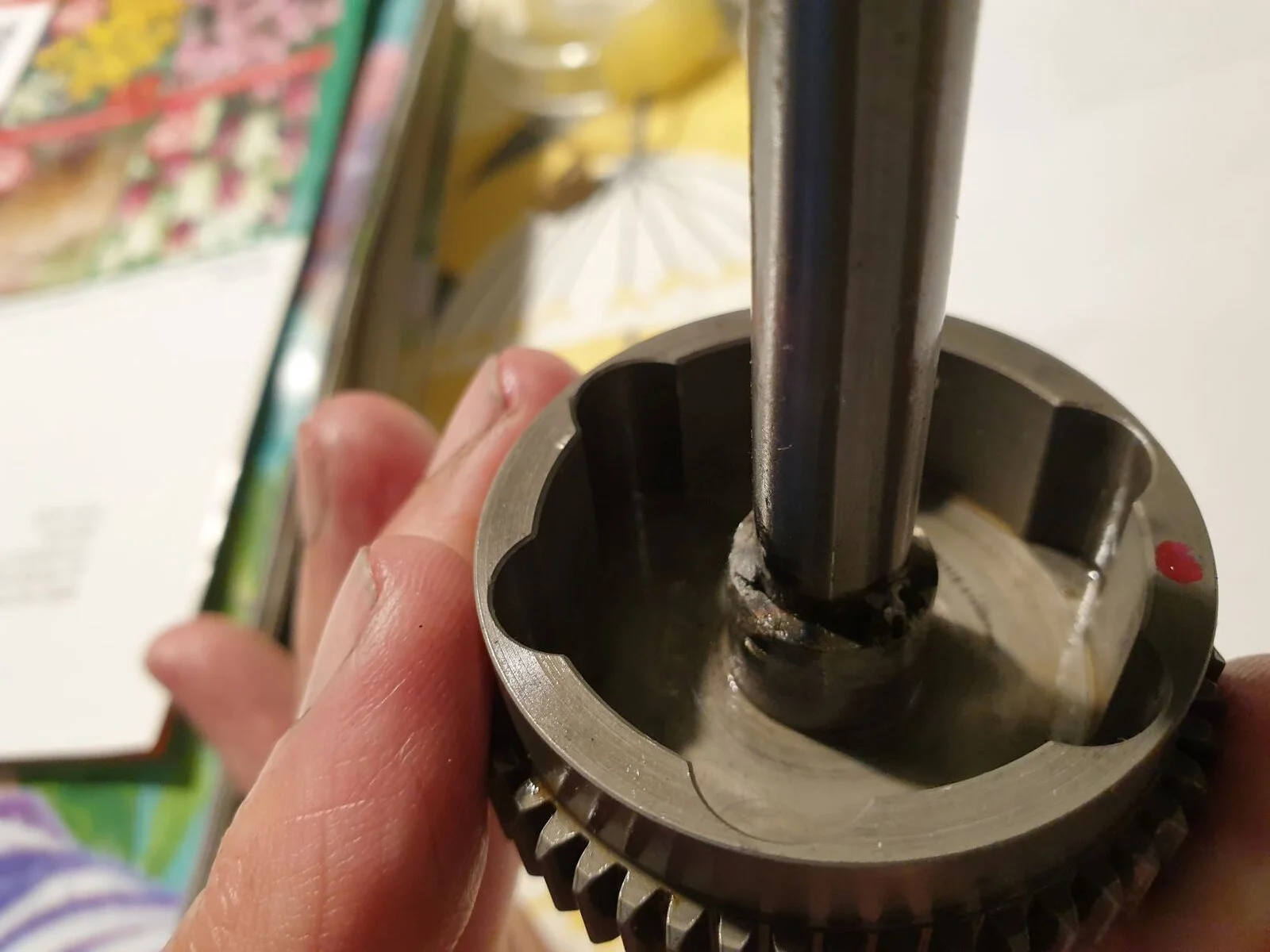

alton starter.jpg
. On inspection there is what appears to be a crude weld holding the shaft into the gear wheel. It has failed, but I'm curious to know its function. It can't be designed to take any force as it is so flimsy. Do you think I could use Loctite 638 retaining compound to secure it. My kit came with 3 spare plastic rods so I could get it going again fairly quickly without having to deal with Alton. The kit came new, but is now out of warranty. It has been great so far. Any help appreciated.


Gilesy

VIP MEMBER
Joined
Aug 27, 2017
Messages
157
Country flag
Yes. but more of a 'tack' than a weld.

Last edited:

cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
2,252
Country flag
It does look pretty poor I have to say. I'd take it somewhere and have it welded properly.

Joined
Nov 17, 2010
Messages
498
Country flag
I presume the weld is to locate the gear in the correct position on the shaft and, as you say, it doesn't transmit any force so the weld isn't under much stress so is strange that it has failed. A little dab of weld would probably be all it needs to fix it.
Those plastic things are like shear pins and designed to break rather than any mechanical damage occur when some sort of overload condition occurs. Mine were fine for ages but broke when the battery got low so that starter was struggling to turn engine over.

RGM sell some Alton spares and do have the plastic things. They also have that shaft but you have to buy the other part that fits on that shaft with it, which makes it quite expensive.



Gilesy

VIP MEMBER
Joined
Aug 27, 2017
Messages
157
Country flag
I presume the weld is to locate the gear in the correct position on the shaft and, as you say, it doesn't transmit any force so the weld isn't under much stress so is strange that it has failed. A little dab of weld would probably be all it needs to fix it.
Those plastic things are like shear pins and designed to break rather than any mechanical damage occur when some sort of overload condition occurs. Mine were fine for ages but broke when the battery got low so that starter was struggling to turn engine over.

RGM sell some Alton spares and do have the plastic things. They also have that shaft but you have to buy the other part that fits on that shaft with it, which makes it quite expensive.

Thanks for that, you have confirmed my suspicions. I think I will use the Loctite, it is amazingly strong in this type of application, certainly stronger than a tack of weld. I will order some more plastic cylinder things, To use 3 or 6, that is the question.
Cheers

Joined
Jan 31, 2010
Messages
2,587
Country flag
"
To use 3 or 6, that is the question.
Cheers"

Isn't it shown in the Alton instructions?

Loctite stronger than a weld? I don't know about that. I've had red loctite fail in simply holding a Norton rear-view mirror onto the OEM Norton mirror mount-unscrewed with vibration.


baz

VIP MEMBER
Joined
May 26, 2010
Messages
3,233
Country flag
"
To use 3 or 6, that is the question.
Cheers"

Isn't it shown in the Alton instructions?

Loctite stronger than a weld? I don't know about that. I've had red loctite fail in simply holding a Norton rear-view mirror onto the OEM Norton mirror mount-unscrewed with vibration.
6 in mine from memory


baz

VIP MEMBER
Joined
May 26, 2010
Messages
3,233
Country flag
Thanks for that, you have confirmed my suspicions. I think I will use the Loctite, it is amazingly strong in this type of application, certainly stronger than a tack of weld. I will order some more plastic cylinder things, To use 3 or 6, that is the question.
Cheers
I'd definitely weld it
But then I'm a welder!
Where in the country are you?

Joined
Nov 17, 2010
Messages
498
Country flag
Thanks for that, you have confirmed my suspicions. I think I will use the Loctite, it is amazingly strong in this type of application, certainly stronger than a tack of weld. I will order some more plastic cylinder things, To use 3 or 6, that is the question.
Cheers
I'd go with welding too.

You should use 3 of those plastic slugs. If something bad happened it's better that they shear rather than destroying something expensive.


Derek Wilson

VIP MEMBER
Joined
Jun 25, 2004
Messages
460
Country flag
I would be contacting Alton for a replacement before doing anything. They are pretty good about warranting this type of thing, especially if it looks like a quality issue.

As an aside, the weld does not take any significant torque, it is there to locate the gear on the shaft. Depending on the fit of the shaft in the gear (it should be tight), it may end up being loaded in bending if it is a loose fit.


Gilesy

VIP MEMBER
Joined
Aug 27, 2017
Messages
157
Country flag
All back together and working OK. I used the Loctite, the weld came apart when I gently tapped the shaft to split the cups. I stuck an intermediate gear shaft into a crankcase as there was a very small amount of play. Some time later I decided to replace it but there was no way it was coming apart even using a lots of heat and brute force, It is there to this day. Anyway thanks for all your suggestions. Sometimes you think you know the answer but it's always good to ask others what they think.
Cheers
Giles
PS Baz, I am in south Devon.

Joined
Jan 4, 2008
Messages
6
Country flag
My tack weld also failed. It really only keeps the shaft from walking out of the gear wheel. I rewelded it and am good to go.

Joined
Feb 21, 2019
Messages
941
Country flag
this might be a late add to the thread, but a year or so ago, i thought i read on the fourm that McMaster-Carr had the same polyurethane rod material that's used in the alton starter assembly. i'm somewhat thinking this is what was called out. does any know the diameter of the alton shear pins - 3/8" or 10mm? since the starter is euro sourced, i would think 10mm. can anyone verify? i used my 3 spares, and need replacements. shipping on the 6 from RGM is a bit crazy here to the U.S.


Joined
Jan 4, 2008
Messages
6
Country flag
"
To use 3 or 6, that is the question.
Cheers"

Isn't it shown in the Alton instructions?

Loctite stronger than a weld? I don't know about that. I've had red loctite fail in simply holding a Norton rear-view mirror onto the OEM Norton mirror mount-unscrewed with vibration.
This is a statement directly from Paul at Alton.

"We fit normally 3 as standard but some « heavy duty » engines require 4, 5 or 6 inserts (hence the 6 slots)."

Joined
Feb 21, 2019
Messages
941
Country flag
can anyone measure the diameter of the poly inserts? are they 3/8" or 10mm diameter?

Joined
Feb 21, 2019
Messages
941
Country flag
They are 10 mm diameter and 12mm long
thanks baz - got to eat crow on this one. i didn't have any spares after my two woodruff key failures, so i bought a section of poly rod and fab'd my own. problem is, i used 3/8" rod (.375 ) whereas should have known better and used 10mm (.3937) - that's a difference in diameter of .0187" and enough of a difference, that i ate through those slightly smaller pieces after about a dozen starts. lesson learned, problem is, i've got to tear into the alton assembly again. this will be my third time, and hopefully the third time's a charm! based on brutis61's post, i might try adding a forth shear pin.

Last edited:
Joined
Jan 31, 2010
Messages
2,587
Country flag
Why would those pins continue to fail? Seems as though there must be some issue that is causing excessive stress on them.
