texasSlick said:
@WZ507 October , 3:40 PM
I see from your pics, the macro model rules. In Hobot's video, the micro model seems to be dominant. Damfino what the real case is. Such dichotomies in scientific data can often be resolved by analysis of the details of the experiments. We are hampered by not having more info on such details. The frame rate of the pics would provide more info to determine the flame propagation speed. It is a simple calculation: flame propagation (ft/sec) = change in distance (ft) across cylinder / frame x frame rate ( frames / sec). Does your reference give this frame rate?
Regarding a sonic front: please note I said a sonic wave originates from the ignition point; creating the environment for atomic collisions to result in combustion.....this does not mean the burn velocity outward from the ignition point is sonic. Mole gas theory assumes the combustion reaction rate can keep pace with the sonic wave, it does not assume nor predict all the fuel combusts at the sonic rate, only that a small probability of atomic collisions occurs at one instant in time which result in a combustion reaction. Mole gas theory is three dimensional; a flame propagation rate is two dimensional. In mole gas theory, fuel combustion rate (burn rate pounds fuel/ sec) is more appropriate than flame speed (ft/sec)
The micro model uses the probability of molecular collision that results in a combustion nuclei. This probability is not fixed, but determined by molecular density, mixture temperature, fuel dispersion, fuel reaction kinetics. In short there is no "fixed" flame speed.
Slick
With respect to hobot's youtube combustion video and determining whether it suggests a micro or macro combustion process, that is a tough one for me to call. First I think we'd need a top view, not a side view, to watch the flame front move away from the point of ignition if we are trying to assign micro vs macro to the process. Second, it appears (to me) that the burn is occurring really late, predominantly when the piston is descending rapidly, which doesn't fit with the real world information I've seen. In a real (not model) engine, effective burning would typically occur evenly across TDC, where we'd expect to see lots of flame action before, at, and just after TDC, with the after burn continuing during piston descent. However this isn't the case in the youtube example where it appears to me that most of the burn occurs with the piston descending. Again, perhaps a top view would clarify much for me. Possibly their chamber needs 35+ deg of lead to accomplish this, as the lag angle may be of significant length and take up most of the time prior to TDC. At any rate it seems to me to be a suspiciously late combustion process. In spite of the video title containing the phrase "Spark Advanced 20 Degrees", maybe they mean it was advanced 20 degrees from some, unknown to us, starting point. Who knows?
To your question regarding the frame rate of the pictorial series, there was none given. However, I think we already have all the information needed to make any determination desired from the pictorial series, because we have the crankshaft angle of each picture, which can also be expressed in time, if we know the engine speed. We don't know the engine speed, but we do know that flame speed remains nearly proportional to piston speed, so we can assign any engine speed we want and know that if the engine speed doubles the flame speed will double, or conversely, if the engine speed is halved, the flame speed is halved. So pick any engine speeds you desire and you can calculate flame speeds therefrom. The flame speeds you come up with should be of the same order of magnitude as those given in the table on page 13 of this thread, since those all assumed a 40 deg effective burn angle.

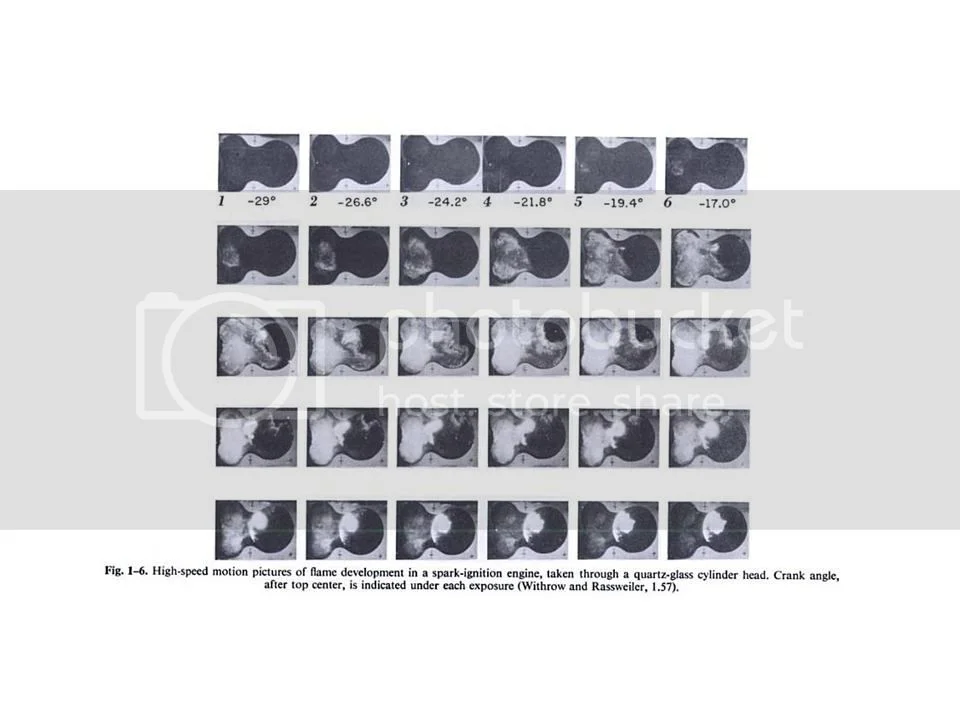

Although only the pictures in the top row of the series are labeled wrt crankshaft angle, each picture differs by 2.4 degrees from it's neighbor. Thus the correct labels for the pictures by row, from left to right would be the following.
Top row, -29.0, -26.6, -24.2, -21.8, -19.4, -17.0
2nd row, -14.6, -12.2, -9.8, -7.4, -5.0, -2.6
3rd row, -0.2, 2.2, 4.6, 7.0, 9.4, 11.8
4th row, 14.2, 16.6, 19.0, 21.4, 23.8, 26.2
5th row, 28.6, 31.0, 33.5, 35.9, 38.3, 40.7
Using the above crank angles, one can see in the pictorial series that by ~ 10 deg ATDC, the flame has traversed somewhere around 90% of the combustion chamber. The youtube video doesn't dovetail nicely with such an image, at least the image in my mind's eye, but perhaps perspective is everything and a top view of the youtube combustion process would set it all right for me.
