850 master cylinder wanted
- Thread starter Head
- Start date
- Joined
- Jan 26, 2021
- Messages
- 169
Folks fitted new resleeve kit , it’s not bled yet , as I press the lever I can hear air coming from piston, anyone got a layout pic of how the assembled theirs I got mine from rgm done the drilling and tapping just little bit confused on how the assembly goes and surly I should not have air coming out through the piston ?,can’t find a video either of someone doing it

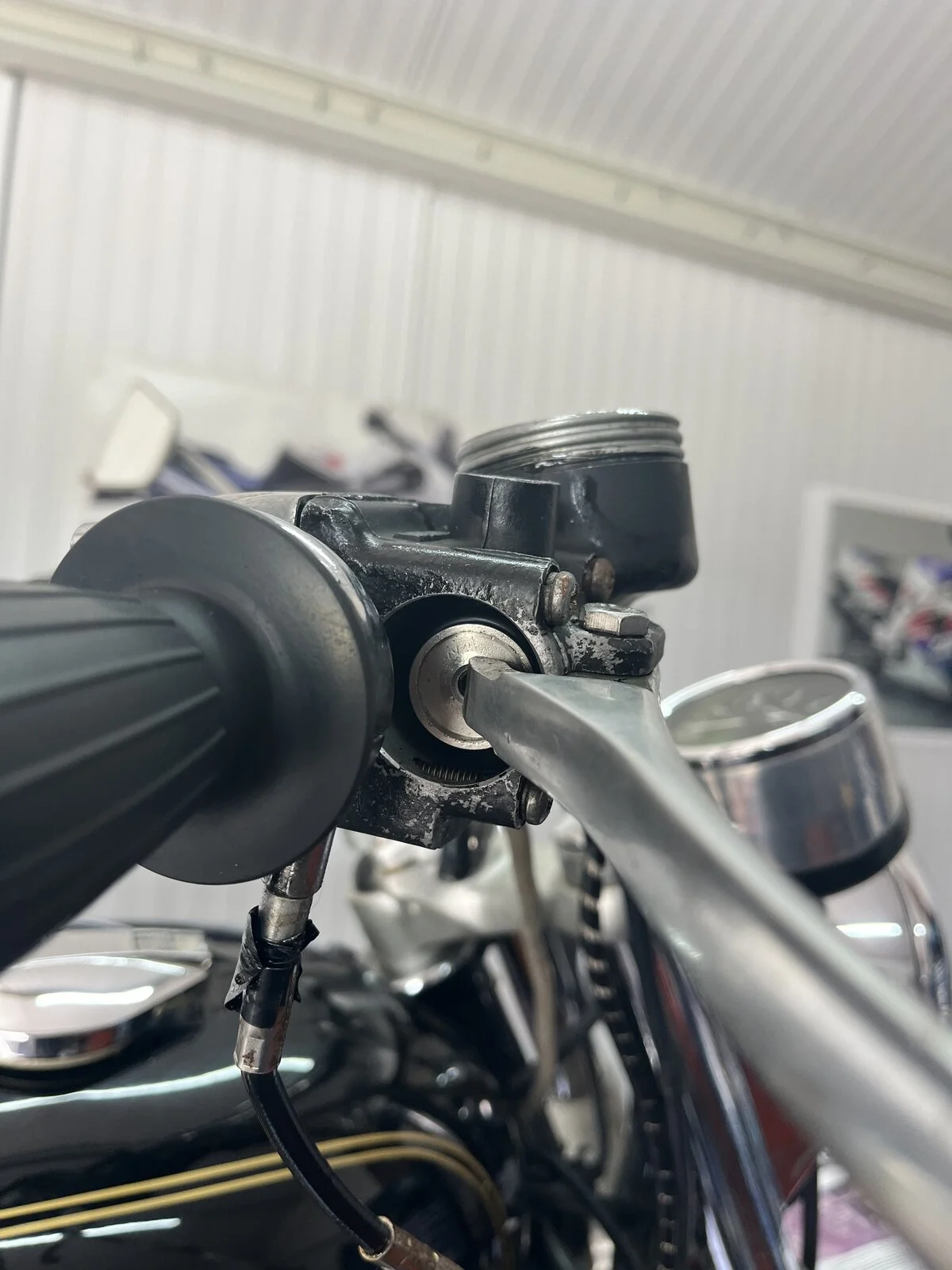

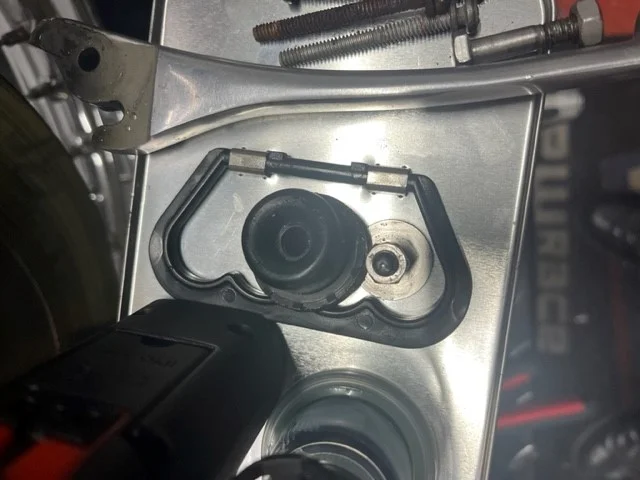

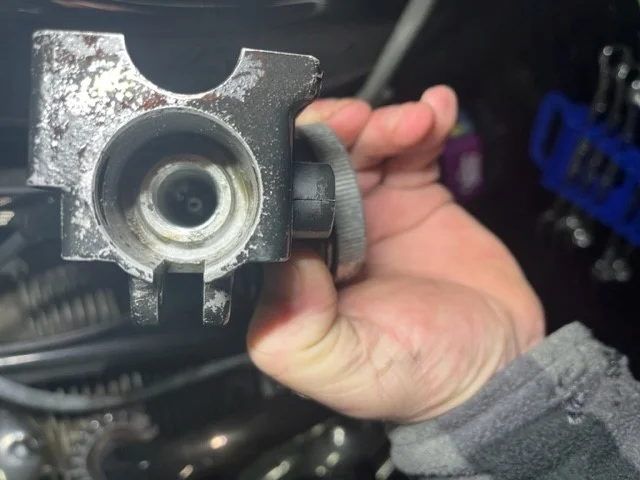

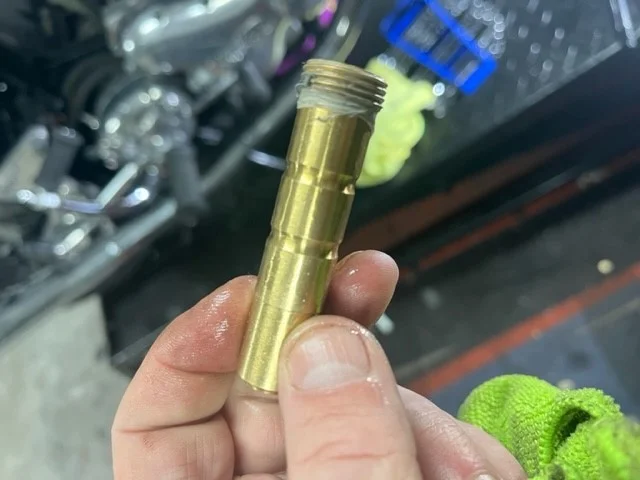

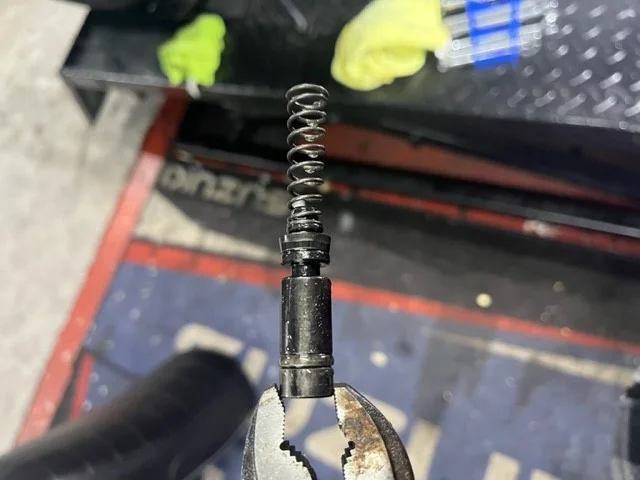

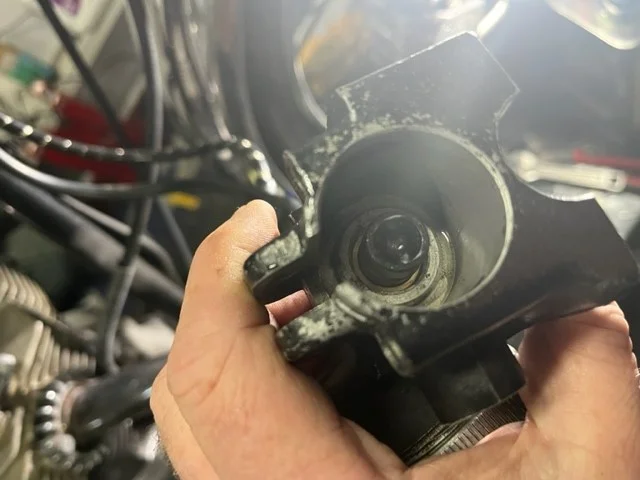

Attachments
- Joined
- Mar 22, 2021
- Messages
- 2,379
These may be some help to you..if you click on the you tube sign it gives you a series of videos on your issue
- Joined
- Nov 20, 2004
- Messages
- 20,468
The reassembly should be the opposite of what your disassembly pictures show.
The sleeve is screwed in, then the piston is inserted as an assembly, then the boot, retaining washer, piston pusher and lever.
The RGM 13mm kit piston is different from the Andover 13mm piston in the video which also has no pusher.
- Joined
- Jan 26, 2021
- Messages
- 169
Thanks mate I did that but I can hear air when I pull the lever and it seems to be coming from the piston ?, I have good bite on lever just worried about air sound as I pull lever
- Joined
- Nov 20, 2004
- Messages
- 20,468
If it isn't air escaping from the boot as it compresses then I don't know what it could be.
If the master cylinder has been filled and bled then there shouldn't be any air in the unit to leak past the piston.
