'74 Commando right side plate

A

AZScott

Joined

Feb 10, 2015

Messages

62

• Aug 9, 2015

• #1

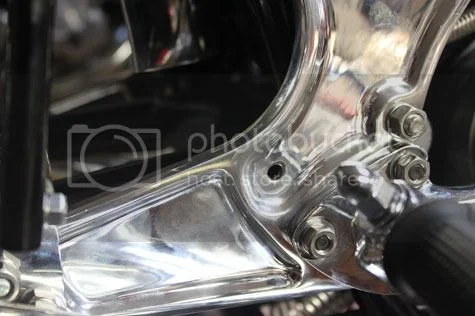

I have a 1/4" hole roughly in the center of the right alum side plate. I can tell by the parts book that it is intended to be on the right side only.

Looking at pictures of other Commandos something appears to be bolted there.
My guess is that it could be a speedo cable hold down attach point, but only a guess.
Can someone tell me the purpose. Thank you.



B

bill

Joined

Jun 1, 2003

Messages

2,146

• Aug 9, 2015

• #2

the zener diode was bolted there . the plate was the heat sink.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,141

• Aug 9, 2015

• #3

Dirt2Oil said:

Click to expand...



A

AZScott

Joined

Feb 10, 2015

Messages

62

• Aug 10, 2015

• #4

Thanks bill & L.A.B. ,.. Makes sence, my bike was set up for electronic ignition.



baz

VIP MEMBER

Joined

May 26, 2010

Messages

7,428

• Aug 10, 2015

• #5

AZScott said:

Thanks bill & L.A.B. ,.. Makes sence, my bike was set up for electronic ignition.

Click to expand...

The ignition makes no difference ,the zener diode is for the charging system only .............baz



A

AZScott

Joined

Feb 10, 2015

Messages

62

• Aug 10, 2015

• #6

Correct.. and I should have said set up for a single phase rectifier-regulator that eliminates both the rectifier and zener diode.
