2016 961 Cafe Racer handle bar grips and bar ends

Andy Stocker

Andy Stocker

Joined
Sep 18, 2019
Messages
10
Country flag
anyone know where i can get these, i slipped over whilst stationary and scratched the bar end,
Took it off but don't know if something has fallen but there is no where to screw it back into.
The bars seem to be 3/4 bars
Can anyone offer any help please
Many thanks

Is this the expander inside the handlebar tube ? Maybe it slipped back up inside the tube ?

Last edited:
There is nothing inside the tube, maybe it fell out, trying to find out where to get a new set

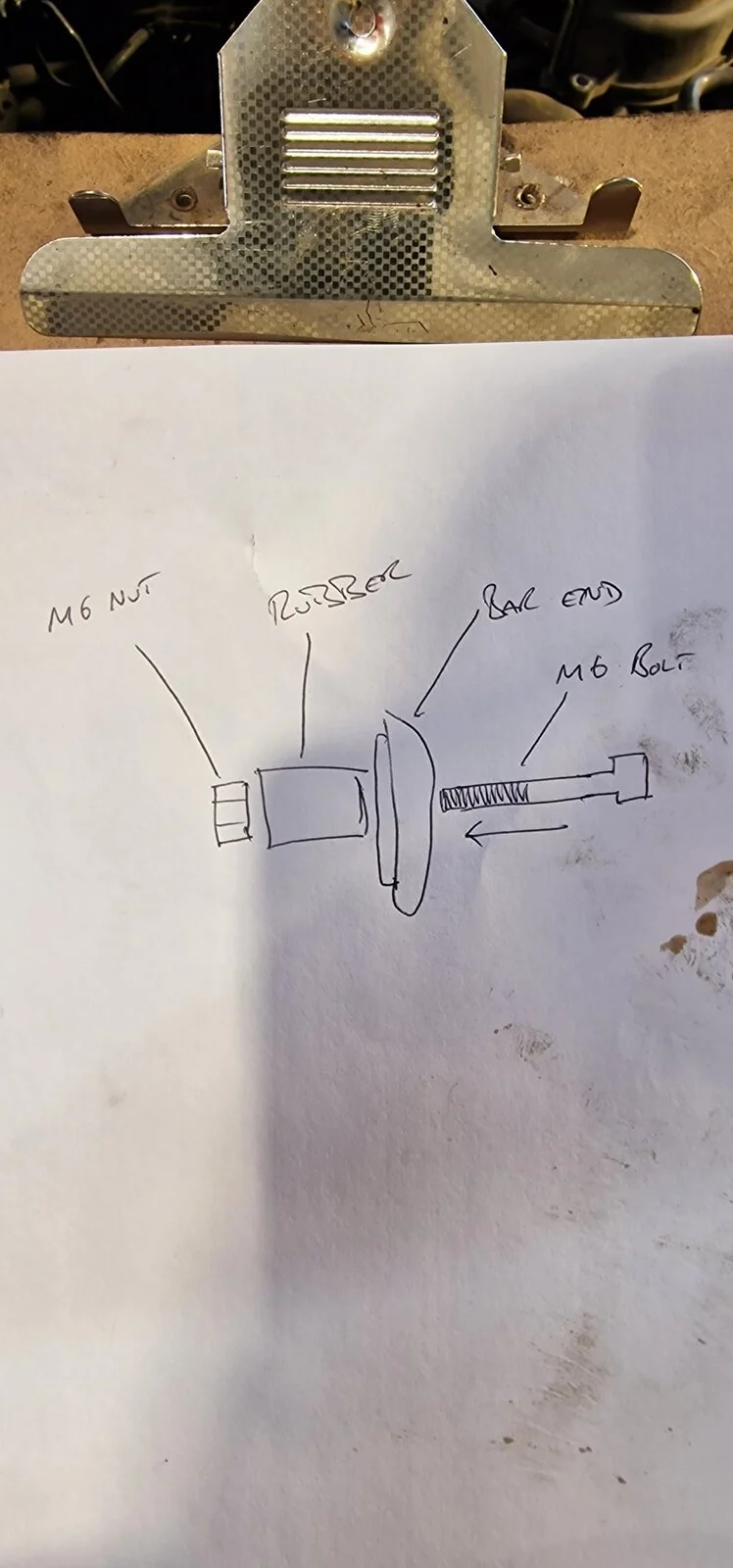

This is all there is to it. You tighten the m6, and the rubber spacer expands in the tube.


Attachments

  • 2016 961 Cafe Racer handle bar grips and bar ends
    136.1 KB · Views: 73
Many thanks, the bit it screws into us nowhere to be seen, trying to source a new one with a bar end to replace my damaged one

It only screws into a nut....as you tighten it up, the rubber spacer expands. How damaged is your old one? If its not horrendous, I could repolish it for you. If they're not polished now, I can polish both so they match.

Stu Bodycote said:
This is all there is to it. You tighten the m6, and the rubber spacer expands in the tube.
Click to expand...
Get rid of the expander and install an E-Z Lok. It requires you to tap your bar ends, but once you red loctite the insert in, it doesn't move, and your bar end won't fall off.

And please don't start the bar ends should be rubber mounted discussion;)

Stu Bodycote said:
It only screws into a nut....as you tighten it up, the rubber spacer expands. How damaged is your old one? If its not horrendous, I could repolish it for you. If they're not polished now, I can polish both so they match.
Click to expand...
Many thanks for the offer, it’s not bad, I have someone dealing with it at the moment
