@cliffa yes, from a visual check, it looks like the hole in the end is the only one that’s different between the #17 and #19 jets, so I think we are safe to assume that’s the only part that is metered.

So you are going to drill the pilot jet through the other side via the adjuster screw hole to save you from taking the carbs off the bike? Nice idea - although swarf will be minimal it would be neat to be able to drive it out with an airline and/or vacuum as you go.

gtiller said:
@cliffa yes, from a visual check, it looks like the hole in the end is the only one that’s different between the #17 and #19 jets, so I think we are safe to assume that’s the only part that is metered.

So you are going to drill the pilot jet through the other side via the adjuster screw hole to save you from taking the carbs off the bike? Nice idea - although swarf will be minimal it would be neat to be able to drive it out with an airline and/or vacuum as you go.
Click to expand...

Yep, that's the plan gtiller. Good idea about the swarf, I actually have a tin of "Air duster" which should do the trick I think. If you have a pilot jet in front of you would it be possible to estimate how deep I need to go from the tip to the side feed holes (to ensure I've drilled out the hole completely)?


Cheers,

cliffa.

To determine if you need to enlarge the idle jet from 17 to 19 do this test. With the bike running turn the mixture screw in making the mixture richer. If screwing it in a half turn or 3/4 turn makes the bike run better then you need to go to the larger idle jet size. If it is no change or worse, enlarging the idle jet will have no effect or worse. Someone has said the increase from 17 to 19 is roughly equivalent to a 3/4 turn in on the mixture screw. These things can be a bit finicky. I put new Premeirs on my Trident. They came with 17 idle jets. Bike wouldn't idle at all at 1 1/2 turns out on the air screw. I gradually turned the air screws in I could hear the idle pickup. They ran best at 1 full turn out. So I thought okay a set of 19's should be really good so I got a set and installed them. Bike wouldn't idle for crap no matter where I set the mixture screws. Put the 17's back in, mixture screws 1 turn out, runs sweet again. Both my 72 and 74 Commando's with Premiers idle well with 17's and the standard 1 and half turns out. Point is you will probably have to experiment with your bike to find what works. They all seem to be a bit different.

Last edited:
It’s been said earlier, the needles to be matched to the spray tube.
The straight spray tube needs the 2 ring needle.
The notched spray tube needs the 4 ring needle.

These are not the clip rings, but identifying rings just below the tip top, above the first clip ring.

Cannot tune a carb with mismatched needles / spray tube.

Last edited:
If you haven't seen this, here's a good read.

http://amalcarb.co.uk/rebuilding-mark-1-concentric-carburetter

Notice down at the pilot it says "The bush has a flow rate, equivalent to 20cc/min."
So why would 17's be fitted an the new??

Notice the needles.
"Needle Markings. (600 and 900 Series Concentrics)
Needles have inscribed rings or letters stamped at the head of the needle above the clip grooves. All needles use a constant diameter down to the head of the tapered section. The taper helps to manage the transition from the Needle jet to the Main Jet and varies according to the type of engine or fuel."

1972 Combat. Setting the new 932 Amal Premier: a nightmare!


Markings Where used Part No:
1 inscribed ring 2 Stoke, 600 Series 622/063
2 inscribed rings or 'U1' 4 Stroke, 600/900 Series 622/124
3 inscribed rings or 'X' 2 Stroke, 900 Series 928/063
4 inscribed rings Norton 850, Triumph 250cc 928/104
5 inscribed rings Triumph T160 622/278
Y Alcohol, 600 Series 622/099
Z Alcohol, 900 Series 928/099

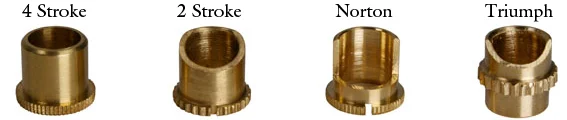

And the spray tubes
Interchangeable Parts
Spray Tubes


1972 Combat. Setting the new 932 Amal Premier: a nightmare!


"As a general rule the most noticeable difference between a 2 Stroke and 4 Stroke carburetter is the spray tube. The brass tube is visible as you look through the carburetter bore. 4 Stroke spray tubes are cut off straight, whereas 2 Stroke spray tubes are cut off at an angle, sloping towards the mounting flange. Some later '850cc Norton Commandos' use a spray tube with a square cutaway step. Triumph Triples use an angled spray tube cutaway from the mid point of the spray tube, rather than right across, as in the 2 stroke version. 2 Stroke and 4 Stroke bodies are not interchangeable and will not run correctly if used on the wrong type of engine."

Notice Norton is only called out on the Notched tube and 4 ring needle. I believe these were only used originally in the Black Box 850's, 2A's and 3's.
They will work in other applications but need to be matched.

The straight or 4 stroke tube was in all others including the Combat, orignally.
What it doesn't say is the 2 ring needle goes with the straight or 4 Stroke spray tube.


The needle may or may not be correct. But it does need to be verified.


HTH.......

MichaelB said:
Notice down at the pilot it says "The bush has a flow rate, equivalent to 20cc/min."
So why would 17's be fitted an the new??
Click to expand...

The Premier pilot jet and old jet bush are sized in thousanths of an inch (17 = 0.017") not flow rate.

Page 2
https://www.accessnorton.com/Norton...-premier-a-nightmare.25006/page-2#post-371061


MichaelB said:
Notice Norton is only called out on the Notched tube and 4 ring needle. I believe these were only used originally in the Black Box 850's, 2A's and 3's.
Click to expand...

The stepped spray tubes and 4 ID ring needles were in fact fitted to all 850s.

Last edited:
The new 932 premier was sent back to Amal because was faulty for me.
Were impossible to set.
To day is arrived the replay from Andover:
“Burlen have tested the returned carburettors. They agree one of them is faulty.”.
They dont say what was faulty.
It should be good to know what.
Ciao
Piero

That was not very helpful of them. We all want to know what the problem was.
Please let us know how the new one works out?

It is very worth while checking these carbs before installation. Two weeks ago I bought a new matched pair of 850 Commando Premiers. Came in the correctly labelled sealed box etc. Sold through British Spares in NZ.

On checking I found one had a 260 main jet. Correct for this model 850. But the other carb had a 200 main jet fitted. I considered the possibility of the 2"0"0 being a miss stamped 2"6"0 so had the size checked with a guage by a friend. It definitely matched the other 200s we had. So wrong straight out of the box.

The rest of the carbs were OK. The 106 needle jets were on the loose side of guage but not as big as 107. The needles,slides and spray tubes were correct. The pilot was a 17 (two band markings) so I will probably change it to a 19 (three band markings) before installation.

The good old "quality control" of British industry continues on ;-)

pierodn said:
Hi All.
My cousin"s Combat is impossible to set with the new 932 18/19 Amal Premier (arrived with 106/230, 17 air pilot, needle in the center; but not with the cutted spray hood).
I have several Commando all with the old carbs overhaulled and the bikes have a good idle and setting and run great.
I think to be able with Amal concentric setting.
This Combat, with old carbs overhaulled runned very well with good idle but my cousin has changed because has broken one flange to tight one manifold.
The bike not only cannot have an idle but when go up with RPM doesnt go down soon and remains high for a while (there is not air leak).
The only way to have a decent (not good) setting is to go with only half turn of the air unscrew from all tight .
With 1 and 1/2 turn of air screw the bike go to 2000 RPM.
The sliders are both syncronized with 5,5 mm of cut open.
Amal says to fit 19 air pilot that will send me; i dont think this is the problem.
I have well cleaned all the air and fuel ways and floats arrived setted like x manual.
I cannot say that Premier are not good, even if i dont like to use, because i have mounted two pair to my friends bikes without problems.
In the meanwhile i will fit two my old 932 overhaulled and i know the bike will run great.
Sugests will be very apreciate.
Thanks.
Piero
Click to expand...

The new Premier was sent back to Andover.
After a ten days they Amal replayed me that one of the carbs was fault.
But they didnt say me what.
Andover will send the new carbs.
Piero
