What front disc, caliper combo? Mk2a 850

Lineslinger

VIP MEMBER
Joined
Feb 26, 2017
Messages
679
Country flag
From CnW

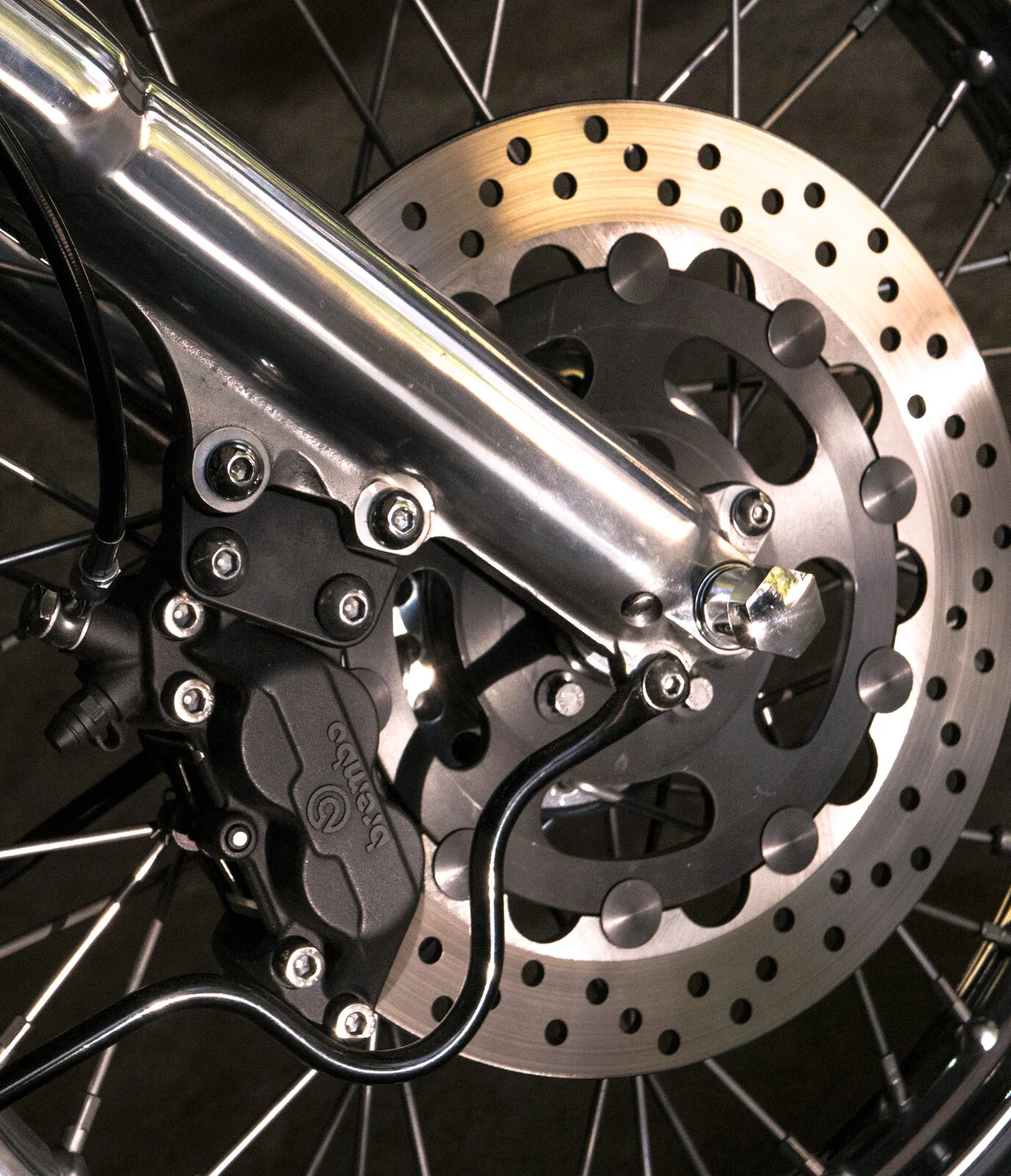

Front brakes-6.jpg


phippsy

VIP MEMBER
Joined
Dec 28, 2013
Messages
59
Country flag

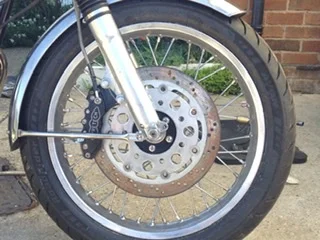

Even neater no ugly brackets


Attachments

  • 93666BAE-E225-441B-B226-855A03E43AA4.jpeg
    39.2 KB · Views: 144
  • Like
Reactions: baz
Joined
May 11, 2020
Messages
92
Country flag
pleased to report that the EBC FA016HH pads are a vast improvement over the LMP123 pads. It now feels like braking happens without making a huge grab of the lever.


NIX

Joined
Oct 9, 2020
Messages
25
Country flag
It's also a matter of keeping the original looks or not. If you don't care and if you have plenty of money you can go crazy. If you wat to keep the original looks and switches, the aforementioned sleeving in combination with a steel braided line already make quite a difference. Haven't tried the ferrodo pads yet. My experience is that many do not know how to get out trapped air. The design of the caliper traps air. Pushing the pistons back some times will help a lot, just as taking it off the fork and keeping it in the right position when you squeeze a piston back. Be aware to keep the opposite one in place. Most of the trapped air in the pump will also come out this way. Another way to get the air out of the pump is to squeeze the handle firmly and let it go back. You can see tiny bubbles coming in the reservoir. Tapping the handle or squeezing the handle for only a milimeter wil get out more air. Repeat this until no more air comes out and the brake is not spongy anymore.


phippsy

VIP MEMBER
Joined
Dec 28, 2013
Messages
59
Country flag
Phippsy, which make is this caliper and which mastercylinder (piston diameter) do you use ?
It’s a pretech easy to find on google they use triumph pads I use an Andover Norton 13mm master cylinder phenomenal braking plenty of feel


phippsy

VIP MEMBER
Joined
Dec 28, 2013
Messages
59
Country flag
Rgm 12” floating disc pretech callipers are made to fit this product

Joined
Dec 23, 2010
Messages
768
Country flag
I've upgraded four Nortons to date using the RGM disc & a Yamaha (Sumitomo) blue spot four piston caliper on my own design of bracket. I chose this caliper because being a monoblock design it's much more compact & the mudguard stay fits in the standard place under the caliper with room to spare. Used in conjunction with a 13mm Nissin M/C as fitted to various Hondas it works very well.
Sorry I can't post a piccy but I'm a bit clueless with tech.


gortnipper

VIP MEMBER
Joined
Nov 11, 2013
Messages
3,981
Country flag
I've upgraded four Nortons to date using the RGM disc & a Yamaha (Sumitomo) blue spot four piston caliper on my own design of bracket. I chose this caliper because being a monoblock design it's much more compact & the mudguard stay fits in the standard place under the caliper with room to spare. Used in conjunction with a 13mm Nissin M/C as fitted to various Hondas it works very well.
Sorry I can't post a piccy but I'm a bit clueless with tech.
Like this?



Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
14,431
Country flag
That’s a good spot Cliffa!

Do you know if they have anti rattle pad retaining springs?

I had a Pretech caliper on my Commando and the braking performance / feel etc was awesome. But the pad rattle (no springs) drove me nuts !


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
1,815
Country flag
That’s a good spot Cliffa!

Do you know if they have anti rattle pad retaining springs?

I had a Pretech caliper on my Commando and the braking performance / feel etc was awesome. But the pad rattle (no springs) drove me nuts !
That's a good point. I had a look on their website and there is no mention of springs, so my guess is no.

Joined
Jan 31, 2010
Messages
2,396
Country flag
Simply changing to the Brembo Master Cyl (CNW), adding Ferodo Pads and an SS brake line will give the street-ridden Norton brakes that feel and stop great. I would not recommend sleeving a MC. Sleeving Amals is fine - they can't hurt you if they fail! ;)


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
1,815
Country flag
I've upgraded four Nortons to date using the RGM disc & a Yamaha (Sumitomo) blue spot four piston caliper on my own design of bracket. I chose this caliper because being a monoblock design it's much more compact & the mudguard stay fits in the standard place under the caliper with room to spare. Used in conjunction with a 13mm Nissin M/C as fitted to various Hondas it works very well.
Sorry I can't post a piccy but I'm a bit clueless with tech.
Posting on behalf of Matchless..

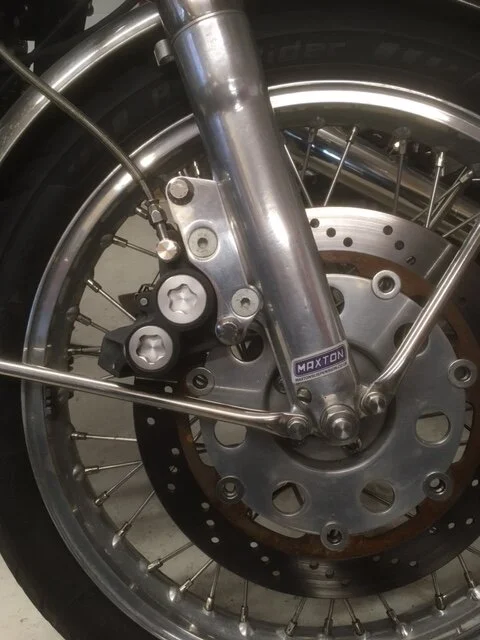

Martyn's caliper bracket.jpg

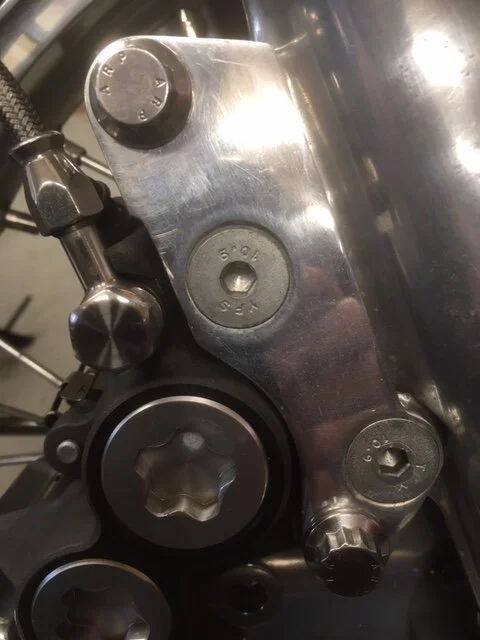

Martyn's caliper bracket_2.jpg


Probably the neatest home made setup I've seen !!

Thanks for sharing.
