Trouble with Lucas Colour Coded Wiring Installation Plan

Raul Silva said:

Good afternoon.

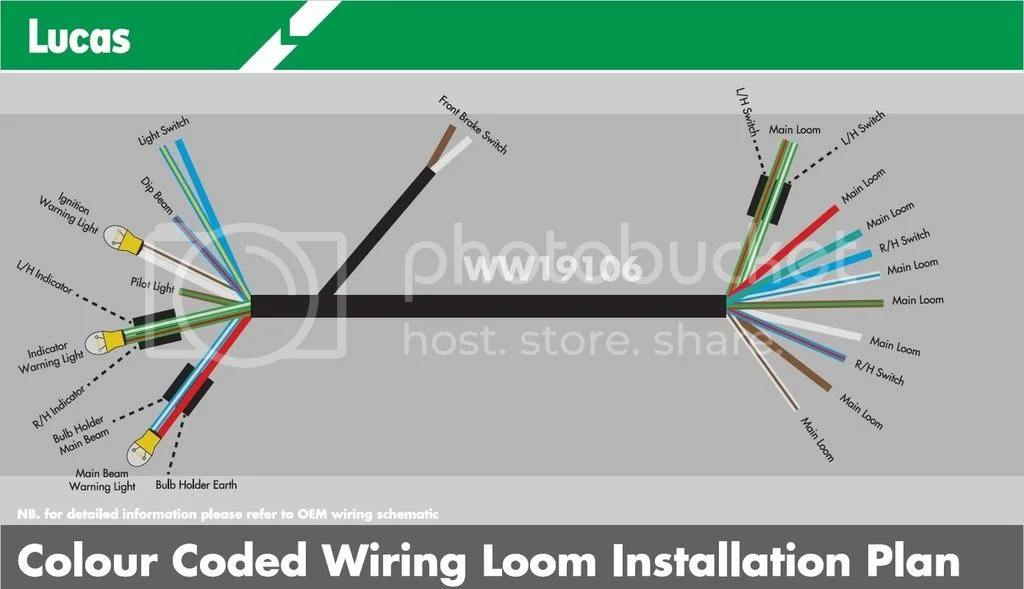

I am working on a 1970 Norton Commando and I ordered a Lucas Wiring Loom Cloth Bound "ww068066" and they sent it to me, but then theey sent along with the wiring, the schematics for the "ww19106" and the colour scheme just doesn't match with the one they sent me... Has this already happen to anyone of you?
Does someone have the schematics for the "ww068066" that I got? I can't find it anywhere.... I can only findd the schematics they sent me for the "ww19106".... but the colours don't match....
Thank you for your help.

Click to expand...

Raul Silva said:

I am working on a 1970 Norton Commando and I ordered a Lucas Wiring Loom Cloth Bound "ww068066" and they sent it to me, but then theey sent along with the wiring, the schematics for the "ww19106" and the colour scheme just doesn't match with the one they sent me...

Click to expand...

54960724 Lucas Headlamp Wiring Harness Norton Commando Lucas WW19106C

Click to expand...

L.A.B. said:

http://www.lucasclassicmotorcycle.com/p ... ml?sa=LU17

54960724 Lucas Headlamp Wiring Harness Norton Commando Lucas WW19106C

Click to expand...

Why did you order what appears to be a '71 - '74 headlamp harness? As a '70 model would normally have a different wiring layout and harness to that used from '71-on?

Click to expand...

B+Bogus said:

Raul Silva said:

Good afternoon.
I am working on a 1970 Norton Commando and I ordered a Lucas Wiring Loom Cloth Bound "ww068066" and they sent it to me, but then theey sent along with the wiring, the schematics for the "ww19106" and the colour scheme just doesn't match with the one they sent me... Has this already happen to anyone of you?
Does someone have the schematics for the "ww068066" that I got? I can't find it anywhere.... I can only findd the schematics they sent me for the "ww19106".... but the colours don't match....
Thank you for your help.

Click to expand...

I can't find any record of WW068066 on the manufacturer's website - where did you get it from?
WW19106 is listed as a 1970-74 Commando headlamp harness (the cloth one is WW19106C). Does this fit with what you were after?

Welcome aboard, BTW :wink:

Click to expand...

L.A.B. said:

Welcome, Raul,

Raul Silva said:

I am working on a 1970 Norton Commando and I ordered a Lucas Wiring Loom Cloth Bound "ww068066" and they sent it to me, but then theey sent along with the wiring, the schematics for the "ww19106" and the colour scheme just doesn't match with the one they sent me...

Click to expand...

Who did you order the harness from, as 068066 would seem to be a Norton part number although that actual part number doesn't appear on the Andover Norton parts list?

In the link below, 068066 is original Lucas number 54960724 which is the '71 - '74 headlamp harness (AN part 068067/BR = braided)

https://www.classicbikespares.com.au/pr ... ess-lucas/

https://andover-norton.co.uk/en/shop-details/17460


According to the Lucas list (link, below) the 54960724 harness is now Wassell-Lucas part WW19106C (C = 'Cloth' braid?), so ww068066 is WW19106. If the wiring diagram doesn't match the harness I can only guess they may have sent you the wrong harness.


http://www.lucasclassicmotorcycle.com/p ... ml?sa=LU17

54960724 Lucas Headlamp Wiring Harness Norton Commando Lucas WW19106C

Click to expand...

Why did you order what appears to be a '71 - '74 headlamp harness? As a '70 model would normally have a different wiring layout and harness to that used from '71-on?

Click to expand...

Raul Silva said:

L.A.B. said:

Why did you order what appears to be a '71 - '74 headlamp harness? As a '70 model would normally have a different wiring layout and harness to that used from '71-on?

Click to expand...

Hello LAB, I ordered it because I have a 74 Commando... I wrote 70 by mistake.
However, if it is the same part, then probably your right an Norville sent me the wrong part...Well, as I told Andy, I'm going to try and figure it out... trial and error... trial and error...

Click to expand...
