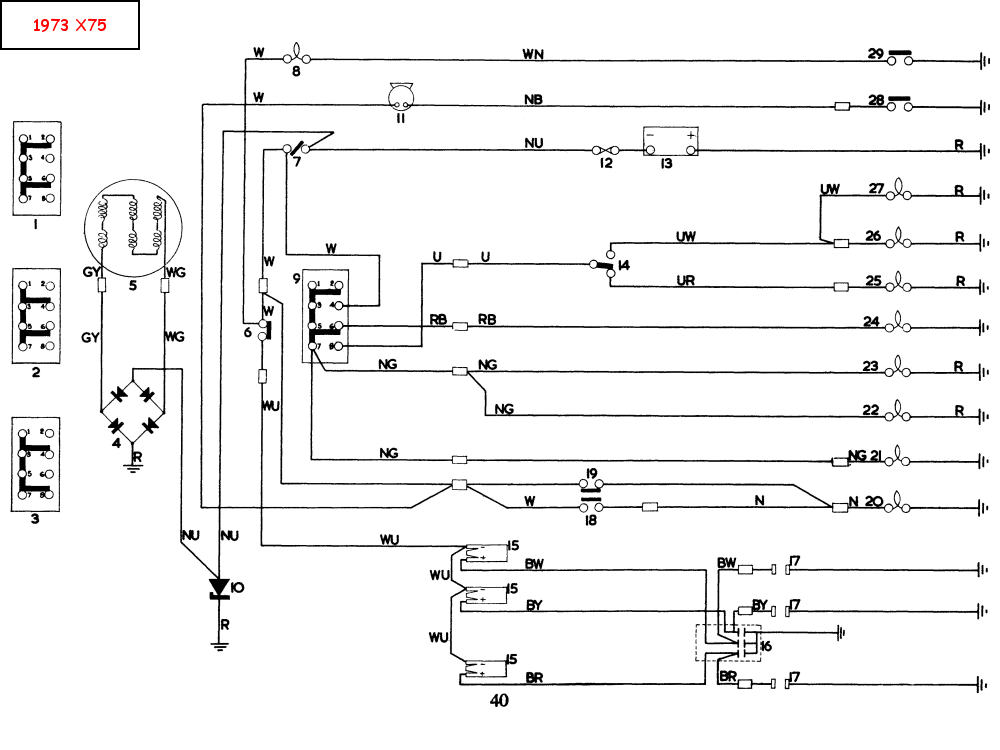

Triumph Hurricane Wiring diagram is there one?

Is there a wiring diagram specific to the Hurricane..... if not, which one of the triples do you use? And another thing with the Hurricane, does the headlight come on when the key is turned on?

TIA

Tim Smith said:

And another thing with the Hurricane, does the headlight come on when the key is turned on?

Click to expand...

No. There wouldn't have been any requirement at the time when motorcyclists generally didn't use daytime headlights.

Thank you very L.A.B. !! I have been fortunate enough to have acquired this machine, had been in storage since the late 80's. Now to sort things out that may or may not be right and get familiar with the machine. One of those odd things is the HD light comes on when the key is on instead of with the switch. As an owner of the 69' model Triple, I know this should not happen. Once again ,,,,, thank you Sir.
