Torque specs for a 77 Triumph

N0rt0nelectr@ · Monday at 3:58 PM

I have a friend who just picked up a 77 Silver Jubilee and he was asking me about torque specs, specifically the axles.
A quick check online didn't help. If there is a list he would be very interested in all of them.
John in Texas

baz · Monday at 4:41 PM

I rarely use a torque wrench
Especially on something like a wheel spindle
Do the rear wheel spindle as tight as you like
Go easy on the front fork bottom as they are known to crack

marshg246 · Monday at 6:58 PM

N0rt0nelectr@ said:
I have a friend who just picked up a 77 Silver Jubilee and he was asking me about torque specs, specifically the axles.
A quick check online didn't help. If there is a list he would be very interested in all of them.
John in Texas

He needs Workshop Manual 99-0983

As with Norton, you must not over-tighten the rear axle. I suppose 50 ft lb is max. I use a 3/8" and pull reasonably hard for a 74-year-old.

daveforty · 2025-01-14T02:24:22-0700

workshop manuals and owners manuals can be downloaded from this website;

Triumph Motorcycle Repair Manuals for Bonneville and others including Tiger, Trident, Daytona, Thunderbird from 1970s 1960s 1950s

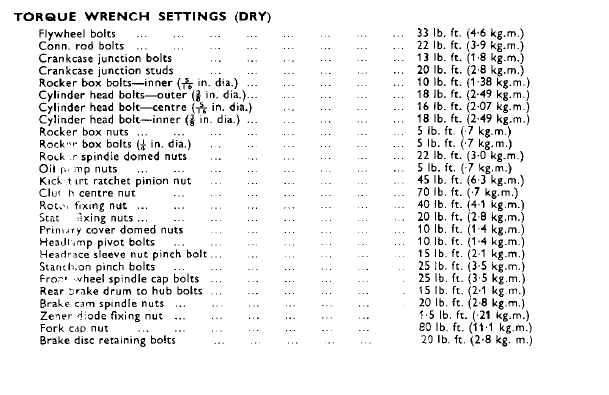

L.A.B. · 2025-01-14T02:43:22-0700

baz said:
Go easy on the front fork bottom as they are known to crack

The torque figure in the early manual (for cap bolts) of 25 lb. ft. is incorrect.
The correct figure for the four cap nuts is 15 lb. ft.

baz · 2025-01-14T03:01:48-0700

L.A.B. said:
The torque figure in the early manual (for cap bolts) of 25 lb. ft. is incorrect.
The correct figure for the four cap nuts is 15 lb. ft.

I think the torque setting for the two chrome dome head nuts on the chain case may also be wrong?
I've seen a few cracked at that point

N0rt0nelectr@ · 2025-01-14T06:59:24-0700

Thank you all for your replays and information. I have passed that along to my friend.
