Top yoke disassembly

Diablouph · Apr 15, 2010

Need help.

'73 850 top yoke. I want to take the shaft off to strip and paint the yoke. I think I see threads on the top of the shaft in the hole. Before I do anything rash, do I :

Unscrew, beat out, heat, and beat out, press out, heat and press out, or try to figure out a way to clean, sand, and paint it with the shaft in?

Appreciate any help.

ML · Apr 15, 2010

Having done this several times, not worth removing it. It can be to harmed in removal it or misaligned it when refitting. Best to leave the shaft as is and clean up around it, mask off and paint. Note that there is a domed black rubber bung that fits into the shaft top. Roll up some paper and stick it in the bar and fork tube clamp holes, keeps paint out and lets the screws fit properly. The yokes will look fine once painted.

Mick

swooshdave · Apr 15, 2010

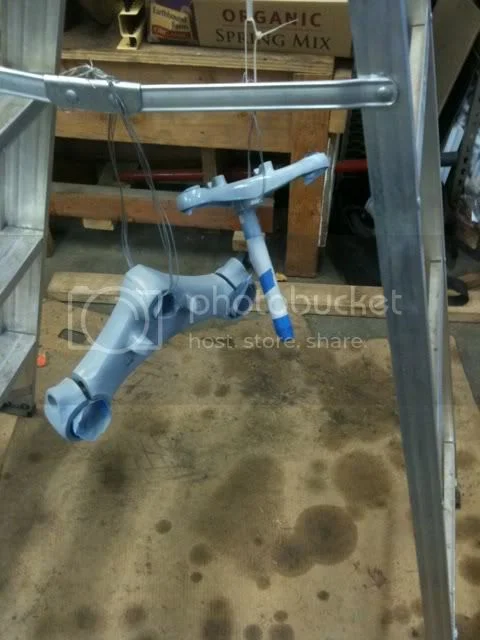

I just masked the shaft and it was fine. Any particular reason you want to separate them?

Diablouph · Apr 15, 2010

I absolutely have a reason for wanting to separate the shaft from the yoke. I’M LAZY.

I figured the best way was to mask, but I had to ask.

Thanks for the help.

swooshdave · Apr 15, 2010

Diablouph said:
I absolutely have a reason for wanting to separate the shaft from the yoke. I’M LAZY.

I figured the best way was to mask, but I had to ask.

Thanks for the help.

The lazy approach (and I should know) is to not do more work than necessary. :mrgreen:

Coco · Apr 16, 2010

swooshdave said:
Diablouph said:

I absolutely have a reason for wanting to separate the shaft from the yoke. I’M LAZY.

I figured the best way was to mask, but I had to ask.

Thanks for the help.

Click to expand...

The lazy approach (and I should know) is to not do more work than necessary. :mrgreen:

I'm a bit lazy but usually do way more work than is required. I must be going about things the wrong way.

speirmoor · Apr 16, 2010

I may do this in the future.What paint are you guys using?

swooshdave · Apr 16, 2010

speirmoor said:
I may do this in the future.What paint are you guys using?

I just used a rattle can.

ChuckW · Apr 16, 2010

Swooshdave,

What color are you using?

Chuck

swooshdave · Apr 16, 2010

ChuckW said:
Swooshdave,

What color are you using?

Chuck

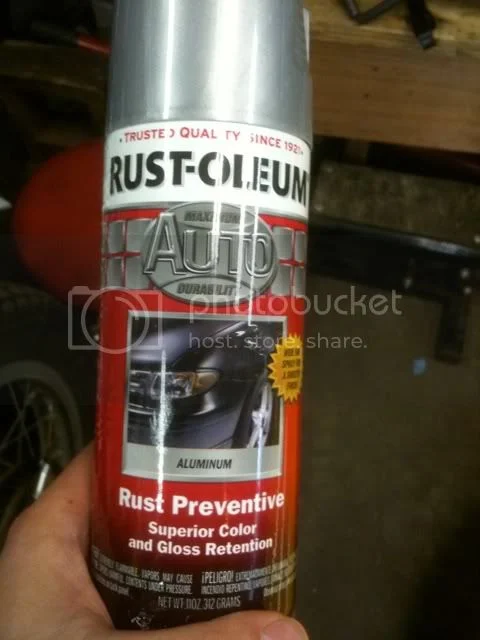

Some sort of aluminum. I used it to paint my Bultaco frames. It looks great. Maybe not original but it looks nice. And you can touch it up unlike powdercoat.

ChuckW · Apr 16, 2010

Very Nice ! !

Foxy · Apr 16, 2010

Gday all, Ive painted my yokes using VHT brake caliper paint. Having the ceramic element in it gives a beautiful gloss like powder coating finish when baked. Used it on my barrels too, mmmm... very happy!
Rgds Foxy

swooshdave · Apr 16, 2010

Foxy said:
Gday all, Ive painted my yokes using VHT brake caliper paint. Having the ceramic element in it gives a beautiful gloss like powder coating finish when baked. Used it on my barrels too, mmmm... very happy!
Rgds Foxy

I bet that's more durable than the paint I'm using.

speirmoor · Apr 16, 2010

swooshdave said:
ChuckW said:

Swooshdave,

What color are you using?

Chuck

Click to expand...

Some sort of aluminum. I used it to paint my Bultaco frames. It looks great. Maybe not original but it looks nice. And you can touch it up unlike powdercoat.

That looks great!

Diablouph · Apr 17, 2010

Thanks for the help, I decided to just tape off and paint.

I still am courious though, is the shaft pressed in or screwed in?

swooshdave · Apr 17, 2010

ChuckW said:
Swooshdave,

What color are you using?

Chuck

ChuckW · Apr 17, 2010

Swoosh, the reason I asked what color it was is because it looked like a lite blue in the first picture you had. Now I see what it realy looks like and it looks great. I wish I did not have mine powder coated. I like yours better and without the saw dust.

How far are you away from finishing the bike? My frame is done, front end on, trans done and mounted, motor getting some work done.

Chuck

swooshdave · Apr 17, 2010

ChuckW said:
Swoosh, the reason I asked what color it was is because it looked like a lite blue in the first picture you had. Now I see what it realy looks like and it looks great. I wish I did not have mine powder coated. I like yours better and without the saw dust.

How far are you away from finishing the bike? My frame is done, front end on, trans done and mounted, motor getting some work done.

Chuck

The blue was the primer. It's actually grey but I didn't color correct.

combat-proddy-build-begins-t4186-120.html#p59822

About this far. I'm waiting for some wheel parts. Then I need to buy some things like coils, regulator, belt drive, chain... Then build the wiring harness. Then then it should start. At least that's the theory.
