THRUST WASHER CAMSHAFT

P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #1

Another question.
When i dismount the camshaft, i did not payed attention to the THRUST WASHER CAMSHAFT Part Number 061086.
Now, i kindly ask to you in which side i must mount the washer.
The problem that i have is if the washer conical side have to must fit ahead to timing chest or to breather.
Thanks.
Ciao.
Piero



B

bwolfie

Joined

Sep 21, 2010

Messages

3,289

• Mar 6, 2013

• #2

conical side away from cam bushing.



P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #3

Sorry,
But i dont understand.
The bushes are two, wich bush, to breather side or to timing side?
Away means "in the other side"? The conical side goes Not in face to bush, behind?
Sorry, but i lost easily me in translation.
Regards.
Ciao.
Pieto



B

bwolfie

Joined

Sep 21, 2010

Messages

3,289

• Mar 6, 2013

• #4

timing side bushing, taper away from it.



B

bill

Joined

Jun 1, 2003

Messages

2,151

• Mar 6, 2013

• #5

it go's on timing side with flat side to bushing.



P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #6

Perfect thank you very much I understand thanks all your patience.
Pieo



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,415

• Mar 6, 2013

• #7

Piero,

Watch your engine restoration DVD?

(disc 2, from 19 minutes) Mick explains about camshaft bushes and thrust washers.



DogT

VIP MEMBER

Joined

Jan 20, 2009

Messages

7,394

• Mar 6, 2013

• #8

This may help.

http://www.oldbritts.com/cam_bush.html

Dave
69S



P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #9

L.A.B. said:

Piero,

Watch your engine restoration DVD?

(disc 2, from 19 minutes) Mick Explains about camshaft bushes and thrust washers.

Click to expand...

Dear
Es,
As always you are in right, but i have seen many time and heard, but is not clear the side and not so easy for me to translate sure.
Thanks.
Regards.
Ciao.
Pieto



P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #10

DogT said:

This may help.

http://www.oldbritts.com/cam_bush.html

Dave
69S

Click to expand...

Very very interesting, i learned another couple of things.
But is not written how goes the conical/flat side mount of the bush.
But: i have two news from Andover 065425: can in the future fit them on 750 crank case valves 1972 year with scrolled cam?
Thanks Dave.
Ciao.
Piero



DogT

VIP MEMBER

Joined

Jan 20, 2009

Messages

7,394

• Mar 6, 2013

• #11

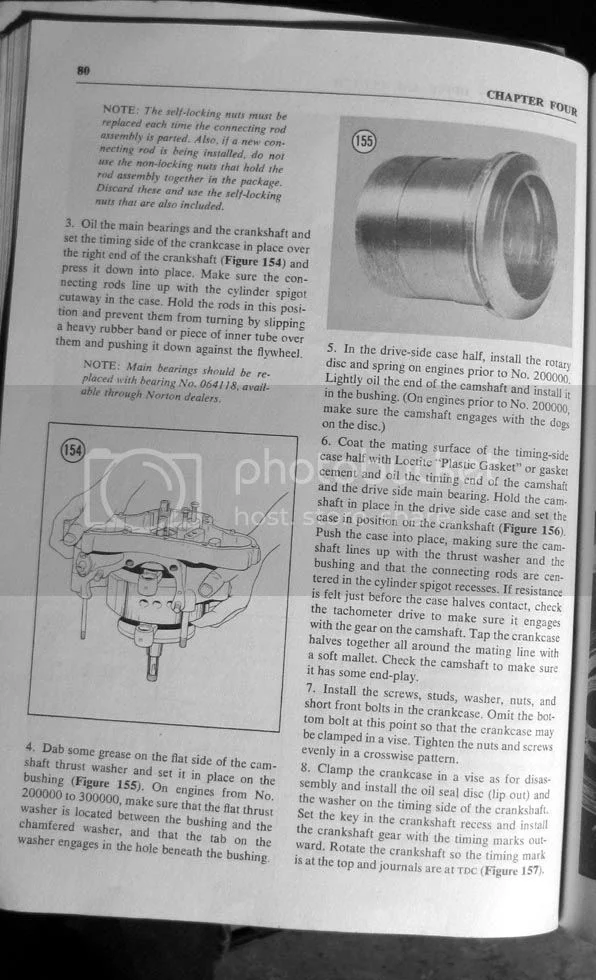

Here, paragraph 4 and figure 155. Note engine numbers.

Dave



P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #12

DogT said:

Here, paragraph 4 and figure 155. Note engine numbers.

Dave

Click to expand...

Fantastic, thanks.
But, what is the "chamfered washer".
Cio.
Pieto



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,415

• Mar 6, 2013

• #13

pierodn said:

L.A.B. said:

Piero,

Watch your engine restoration DVD?

(disc 2, from 19 minutes) Mick Explains about camshaft bushes and thrust washers.

Click to expand...

Dear
Es,
As always you are in right, but i have seen many time and heard, but is not clear the side and not so easy for me to translate sure.
Thanks.
Regards.
Ciao.
Pieto

Click to expand...

Mick fits the 061086 chamfered thrust washer onto the camshaft at precisely 19:07 explaining that: "....it [the camshaft] has the hardened steel washer on, with the chamfer towards the [tacho. drive] gear."



P

pierodn

Joined

Nov 10, 2012

Messages

3,154

• Mar 6, 2013

• #14

Well,
Now i mean that the thrust washer camshaft and the chamfered washer is the same.
Sorry, but i need time to learn.
Thanks.
Ciao.
Piero



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,415

• Mar 6, 2013

• #15

pierodn said:

,
Now i mean that the thrust washer camshaft and the chamfered washer is the same.

Click to expand...

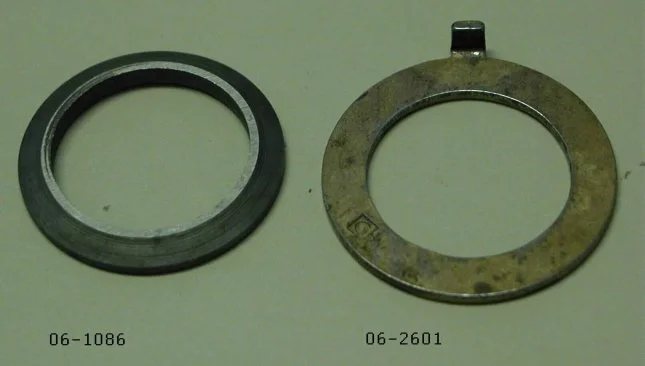

The 061086 thrust washer is the hardened steel washer, it is chamfered on one side, the other thrust washer 062601 is not chamfered.

http://www.oldbritts.com/cam_bush.html



DogT

VIP MEMBER

Joined

Jan 20, 2009

Messages

7,394

• Mar 6, 2013

• #16

chamfer, taper, conical, sort of the same but slightly different meanings. It would be nice if everyone called things just as they are in the parts book. I'm guilty too.

Dave
