Straight Commando kickstart

Joined
Nov 16, 2021
Messages
1
Country flag
Hi folks, due to the rearset position on my Seeley Commando I could do with a straight folding Kickstart, preferably longer for a better swing. Is there one off another Norton, or even another make that would suit? The spline diameter seems different on alternative AMC ones I've looked at


ashman

VIP MEMBER
Joined
Jul 11, 2010
Messages
4,083
Country flag
RGM folding kicker make life a lot easier and it stays tight on the spline have had mine for over 10 years now and folds away from the back of the leg.


robs ss

VIP MEMBER
Joined
Aug 16, 2016
Messages
1,767
Country flag
Quite a popular solution to similar problems…

You! You! - I can't believe it! ...you're actually recommending a kickstart!

(okay - who are you? - and what have you done with Nigel?)

;);)


Onder

VIP MEMBER
Joined
May 11, 2010
Messages
3,172
Country flag
I went and tried the T160 type quite a while ago. But it doesn't play with my rearsets and TTI. So back to the MkIII type.
Yes, would like a longer lever...

Joined
May 7, 2005
Messages
5,604
Country flag

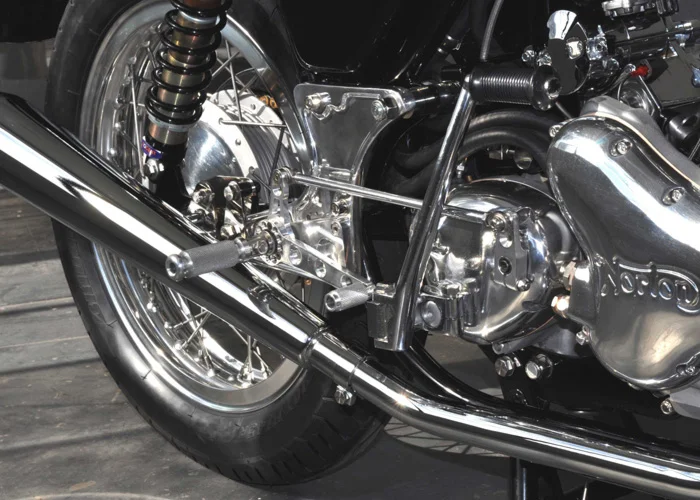

The RGM lever works with my rearsets but only because I made them to suit, on a Commando you need to move the footrest and gear lever further back than the normal rearsets to clear it. The NYC rearsets do this straight out of the tin.



BERT

VIP MEMBER
Joined
Nov 23, 2020
Messages
319
Country flag
The RGM lever works with my rearsets but only because I made them to suit, on a Commando you need to move the footrest and gear lever further back than the normal rearsets to clear it. The NYC rearsets do this straight out of the tin.

Could we have a full size shot of that beauty the kick start lever is attached to?

Joined
May 7, 2005
Messages
5,604
Country flag
Could we have a full size shot of that beauty the kick start lever is attached to?
Not my bike, its an NYC bike so head off to their website.


Joined
Oct 28, 2009
Messages
857
Country flag
If I understand your requirements and was in your shoes, I would take a stock Norton kickstart lever and straighten, bend, lengthen, and modify it until it is exactly what you need. There is nothing magical about the steel in a kickstart lever.
Then if you want to make it look nice, get it chromed.
If you have the tools and skills, or buddies with tools and skills, the cost would be about the same as buying a kickstart that probably won't be exactly what you want anyway.


NORTSTER1974

VIP MEMBER
Joined
Aug 17, 2015
Messages
120
Country flag

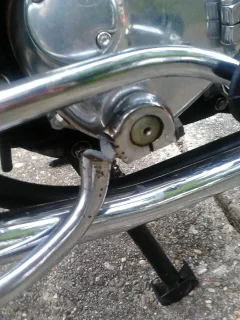

I personally wouldn't waste my time doing all that with a factory kickstart lever. The pic is after a rebuild with the original "74" lever. WTF? I guess it finally broke.
Went with the RGM and an Alton. I guess I could have built from the remains, but it was a lot easier to buy new shit.


Attachments

  • Kickstart.jpg
    115.1 KB · Views: 30

robs ss

VIP MEMBER
Joined
Aug 16, 2016
Messages
1,767
Country flag
Have the long and straight and folding aforementioned RGM lever on 2 bikes and love them.
I'm fairly sure I wouldn't be successfully kicking, as I am, with the short, rigid stock unit.
Go for RGM!
Cheers
Link pivot.JPG

Joined
Oct 28, 2009
Messages
857
Country flag
The way I read the thread, the RGM kickstarter was not an option for the original poster. Maybe I missed something.
I have RGM kickstarters on a couple of my Commandos.
They have their place, but IMHO are a little over-rated.
They don't work with some rear sets.
They don't have a spring or detent to retain the swivel part in the retracted position.
The ones I have were machined so the swivel did not stop at 90 degrees. I had to do some tig brazing to fix this.
After a few years of kicking, the pivot hole/bolt fit is getting sloppy cause there isn't enough metal around the holes to keep them from going egg-shaped.
The leverage is nice, but the stroke can be excessive. Sometimes when I jump hard on them, at the bottom of the stroke my knee begins to invert. That never happens on a stock kickstarter.


robs ss

VIP MEMBER
Joined
Aug 16, 2016
Messages
1,767
Country flag
The way I read the thread, the RGM kickstarter was not an option for the original poster. Maybe I missed something.
I have RGM kickstarters on a couple of my Commandos.
They have their place, but IMHO are a little over-rated.
They don't work with some rear sets.
They don't have a spring or detent to retain the swivel part in the retracted position.
The ones I have were machined so the swivel did not stop at 90 degrees. I had to do some tig brazing to fix this.
After a few years of kicking, the pivot hole/bolt fit is getting sloppy cause there isn't enough metal around the holes to keep them from going egg-shaped.
The leverage is nice, but the stroke can be excessive. Sometimes when I jump hard on them, at the bottom of the stroke my knee begins to invert. That never happens on a stock kickstarter.
I see that @Onder & @marinatlas said it wouldn't work for them (#5 and #7) but I can't see anything from the OP to that end.
I do know they won't fit on a Mk3.
Anyway - I like them - you don't. Different strokes for different folks!

Joined
May 7, 2005
Messages
5,604
Country flag
Its a Seeley frame so none of us with Commando frames know if the RGM will fit other than knowing on a Commando the rearsets need moving back a bit further. This may or may not be significant to a Seeley framed bike.


robs ss

VIP MEMBER
Joined
Aug 16, 2016
Messages
1,767
Country flag
Look at my photo in #12 - if that works - anything can (I nearly said "for Christ's sake!")

Joined
Aug 30, 2006
Messages
536
Country flag

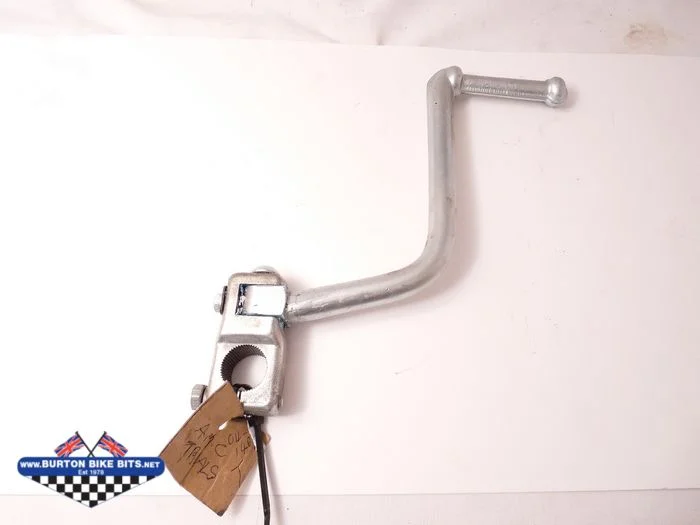

With a little heat, you can bend a kick in any shape you want.
It can also be made longer.
Mine started life as an Atlas kick.



I like simplicity.
Kommando's setup sure looks nice and shiny, but I won't even begin counting the parts involved..


ZFD

Joined
Jan 23, 2010
Messages
662
Country flag
That broken kickstart, supposedly "original", looks like one of the Taiwanese copies that are cast, not forged (hence much cheaper!). A forged kickstart arm may bend (well, try!) but I have yet to see one that actually brakes off. Did see a lot of those imitation ones broken into two, though.
Since the original kickstart arm is a forging it can be modified if heated up correctly. Our Andover Norvil (beware of imitations) Proddy Racer kickstarts are, as in the day in Thruxton, made from original Kickstart forgings modified by a blacksmith, then chromed.

Last edited:
