Starting 71 rebuild

starting to think about the reassembly of the complete bike.
I would like some ideas on how to proceed on this ?
what major parts should go together in what order first?
this bike is completely stripped down to the bare frame.

All I did was put the engine and gearbox in the cradle, on its side on a soft surface on the floor. (with the front Isolastic mount removed)
Lowered the frame over it, front Iso installed then both Iso fasteners and up on the bench.
That's a pretty big lump quickly.

Did mine the same way, in the extra bedroom. Put it on a small lift and finished the bike in there. Then rolled it down the hallway without the handlebars on, thru the kitchen and down the stairs to the backyard. Everyone thought I was crazy as the hardwood floors had just been refinished, didn't put a scratch in them.

starting to think about the reassembly of the complete bike.
I would like some ideas on how to proceed on this ?
what major parts should go together in what order first?
this bike is completely stripped down to the bare frame.
Go to the older threads with completed projects, and "rewind".

I personally get to rolling chassis first, then transmission, then power unit with cylinders & pistons installed, then the head, then the primary.

I'm 63 and I can still handle the power unit along with no fuss (well, I still could before the broken leg, might be a bit of fuss now)

I pretty much did it that way. I put the engine+head in whole with front ISO and an extra pair of hands, primary later.


If I was alone, I would pretty much do it the Norton OEM way - engine+head+priimary+cradle+tranny as one lump.


It's very easy that way, and the frame is very light and easy to lay over the whole assembly. No chips scratches or dings.

more done .

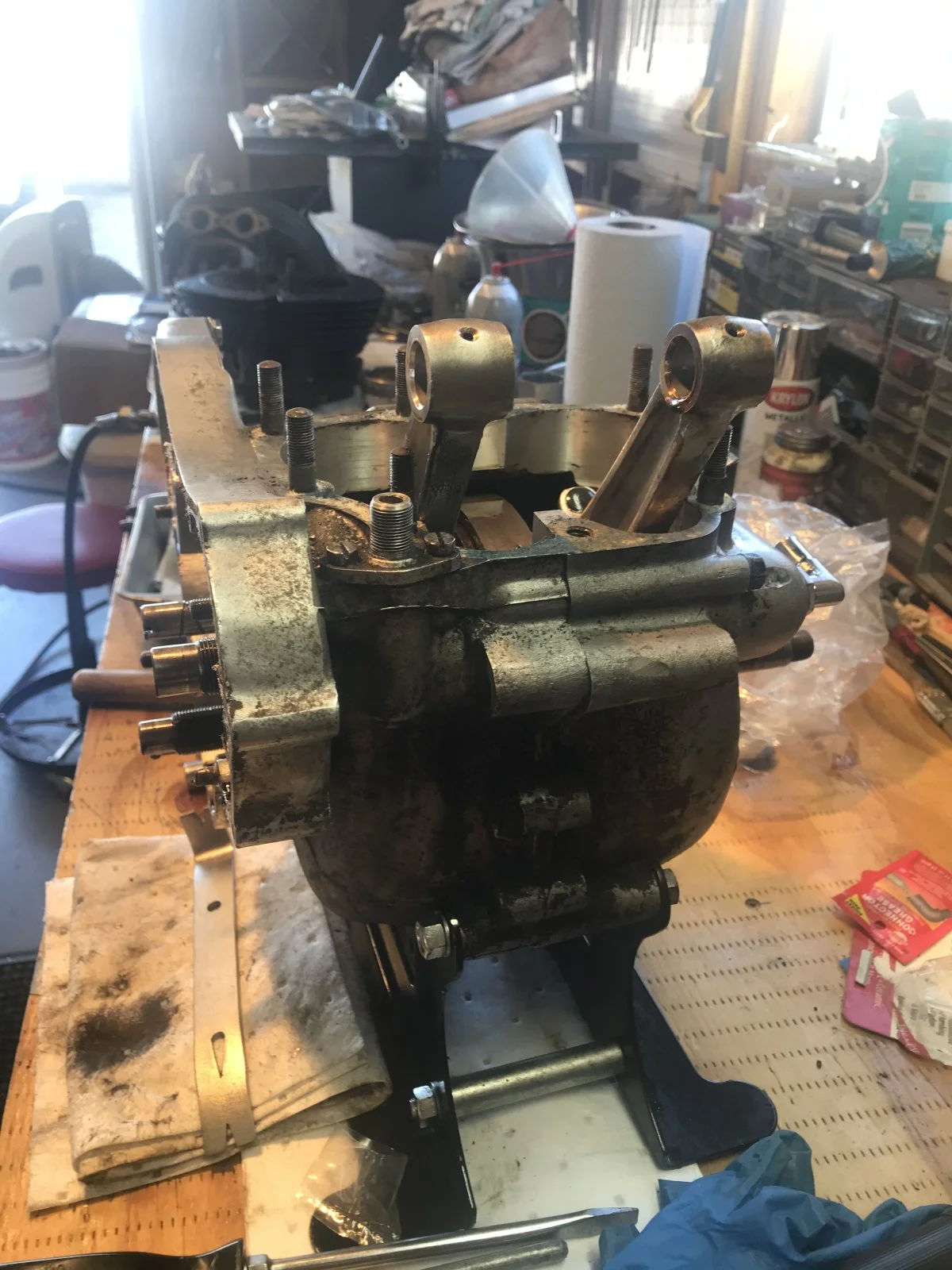

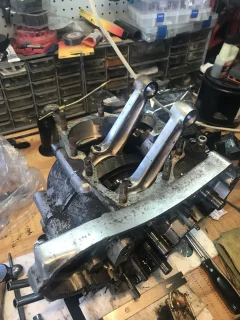

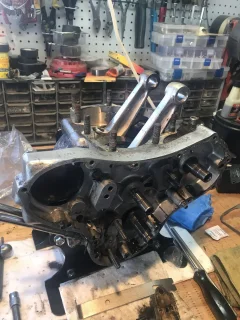

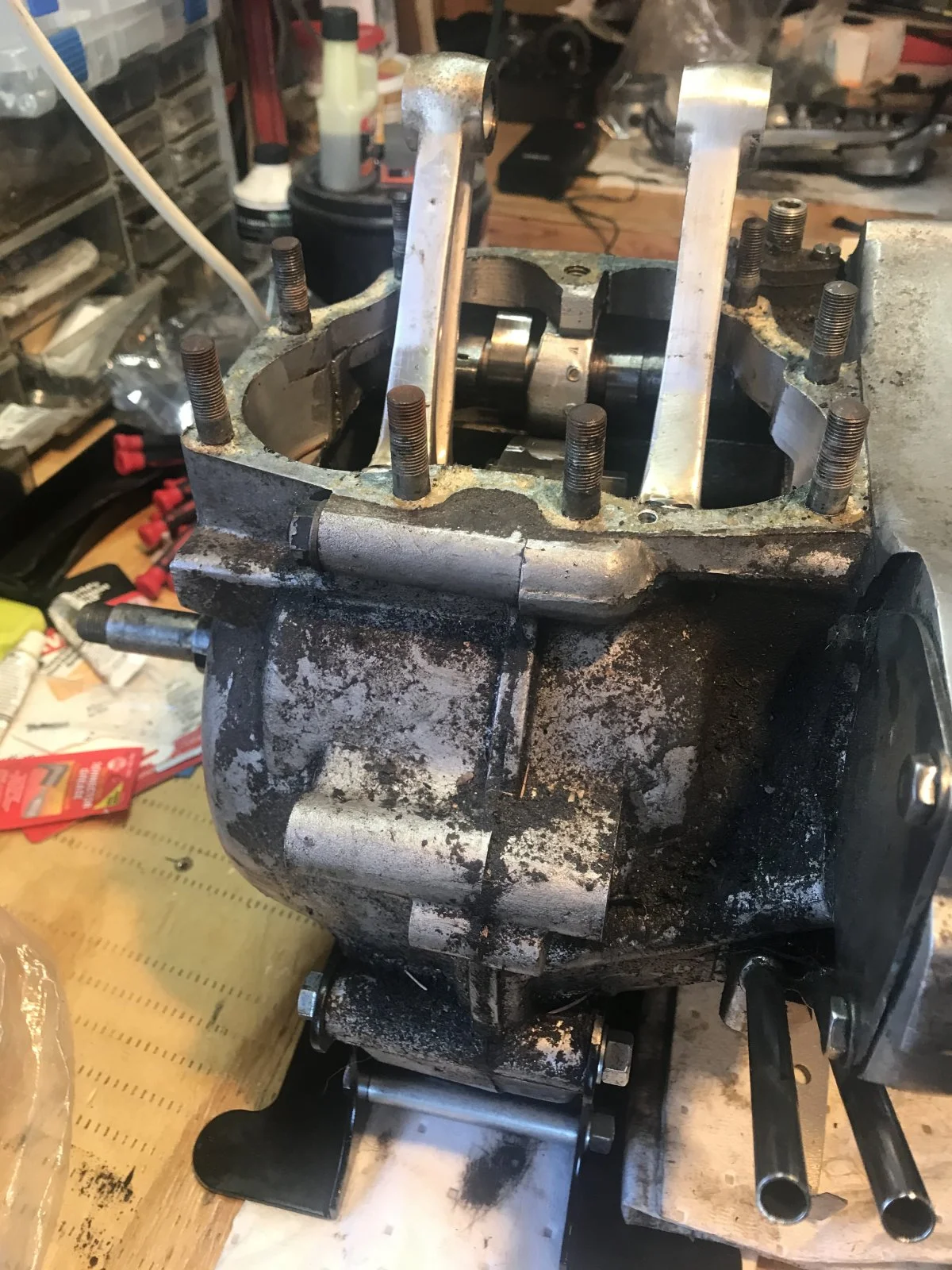

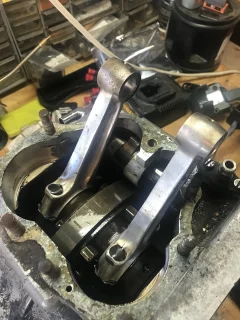

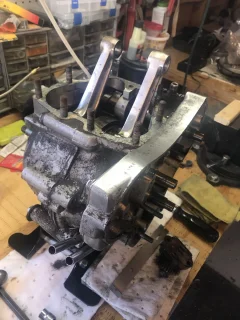

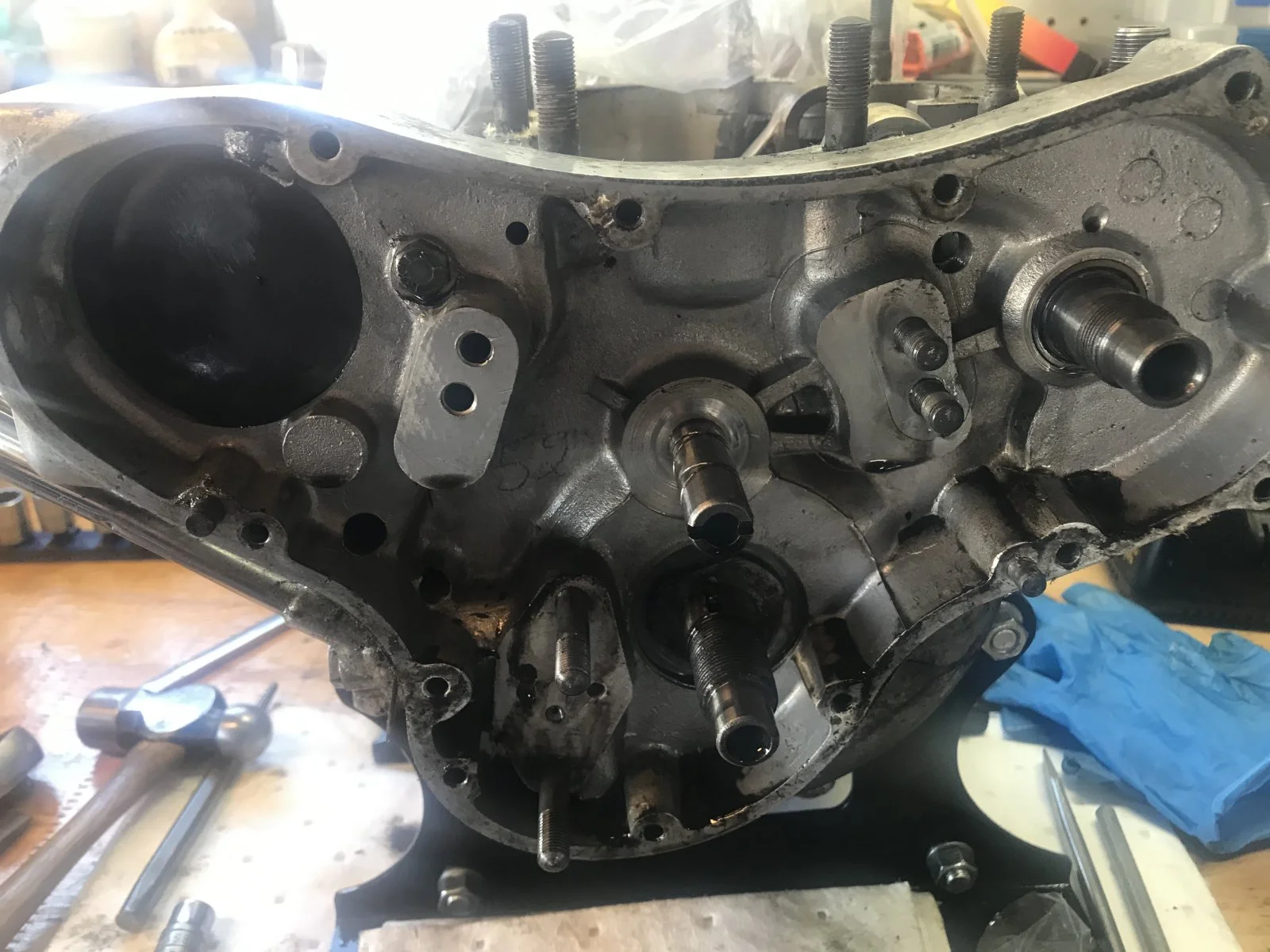

transmission and engine apart . Some parts vapor blasted .

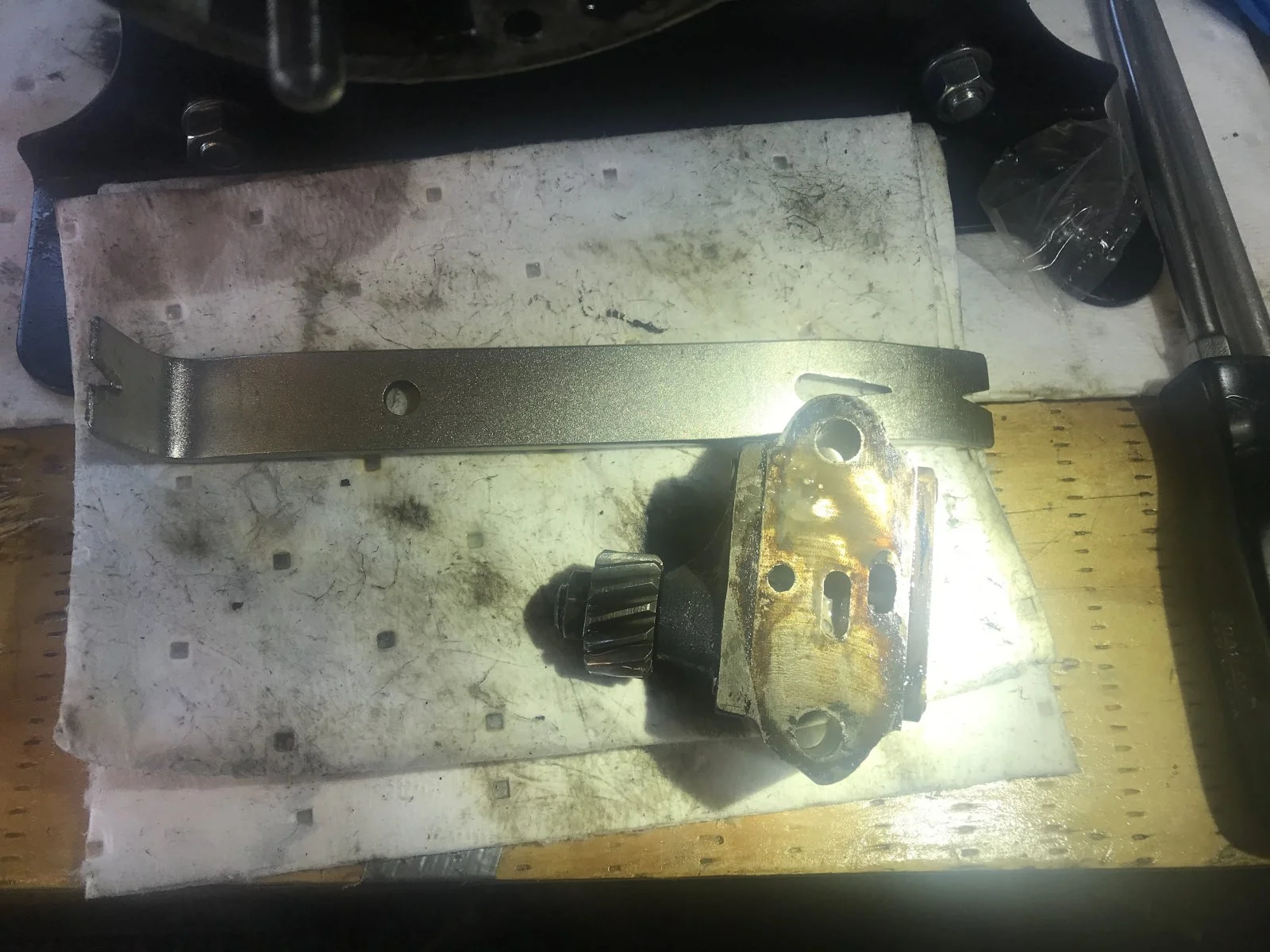

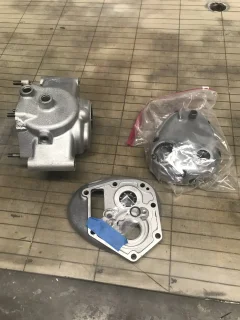

trans parts are here now .
need to order engine parts after the case is split


Attachments

  • Starting 71 rebuild
    297.2 KB · Views: 317
  • Starting 71 rebuild
    268.7 KB · Views: 312
  • Starting 71 rebuild
    271.6 KB · Views: 307
  • Starting 71 rebuild
    368.2 KB · Views: 297
  • Starting 71 rebuild
    343.1 KB · Views: 290
  • Starting 71 rebuild
    379.9 KB · Views: 278
  • Starting 71 rebuild
    335.9 KB · Views: 273
  • Starting 71 rebuild
    290.3 KB · Views: 268
  • Starting 71 rebuild
    238.5 KB · Views: 263
  • Starting 71 rebuild
    341.7 KB · Views: 284
More pics


Attachments

  • Starting 71 rebuild
    313.1 KB · Views: 280
  • Starting 71 rebuild
    288.1 KB · Views: 303
  • Starting 71 rebuild
    276.3 KB · Views: 284
  • Starting 71 rebuild
    339.1 KB · Views: 330
I pretty much did it that way. I put the engine+head in whole with front ISO and an extra pair of hands, primary later.


If I was alone, I would pretty much do it the Norton OEM way - engine+head+priimary+cradle+tranny as one lump.

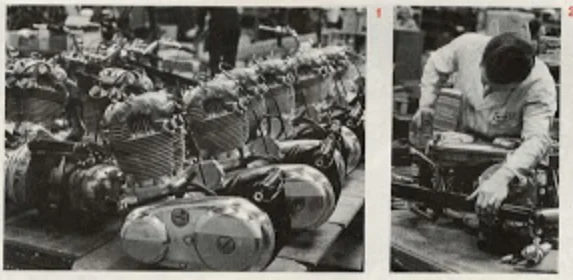

View attachment 21995
I started to wonder how they get the get the swingarm installed, then realized you just install the left side welch plug and install from the right side...

How did the cam lobes and follower faces look? DO NOT MIX THEM UP, and make sure they go back in facing the exact same way.

SERVICE SHOP , need to get some machining done.
any suggestions where to send ?

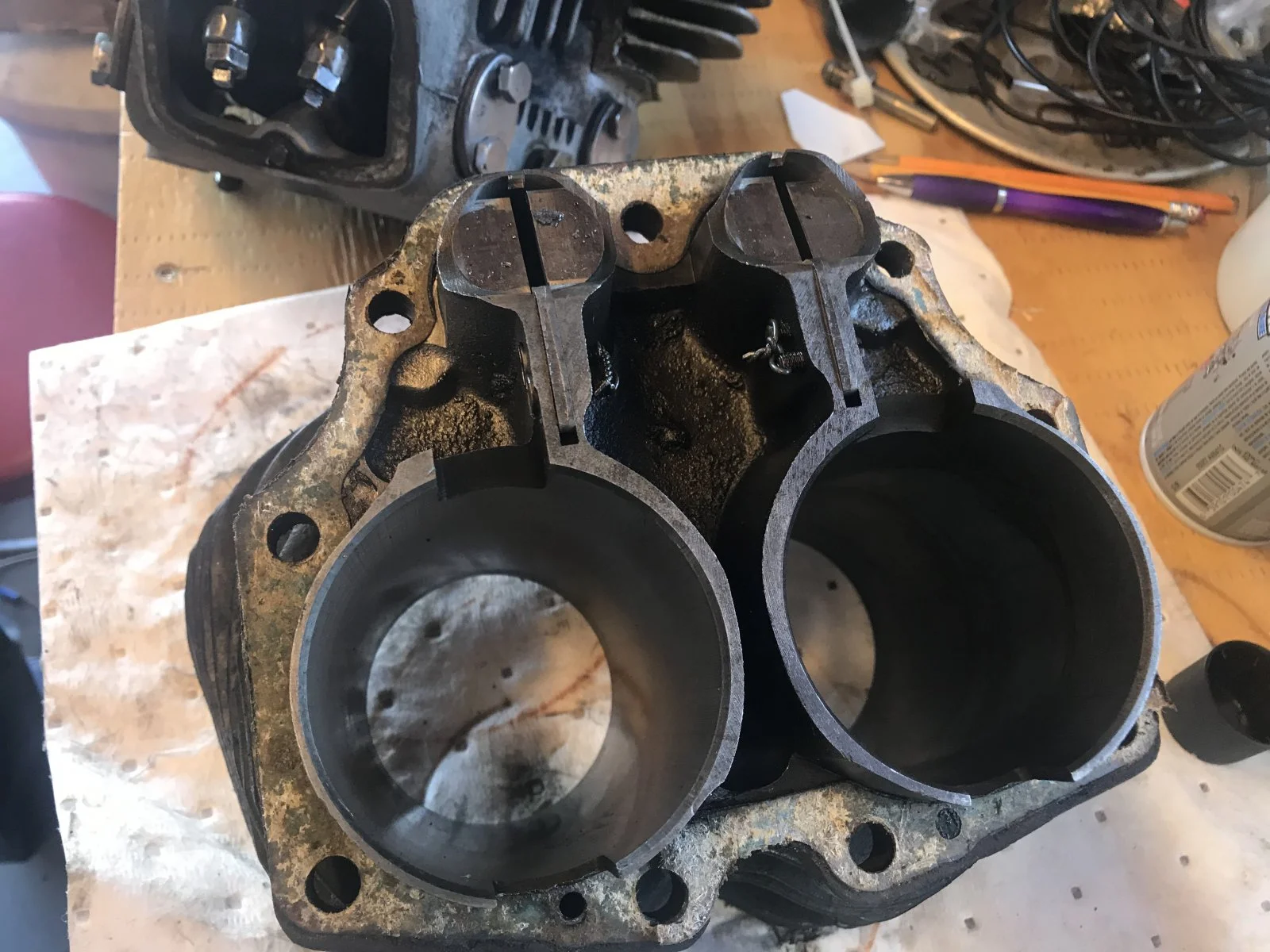

my cylinders are stock but one has a score in it.

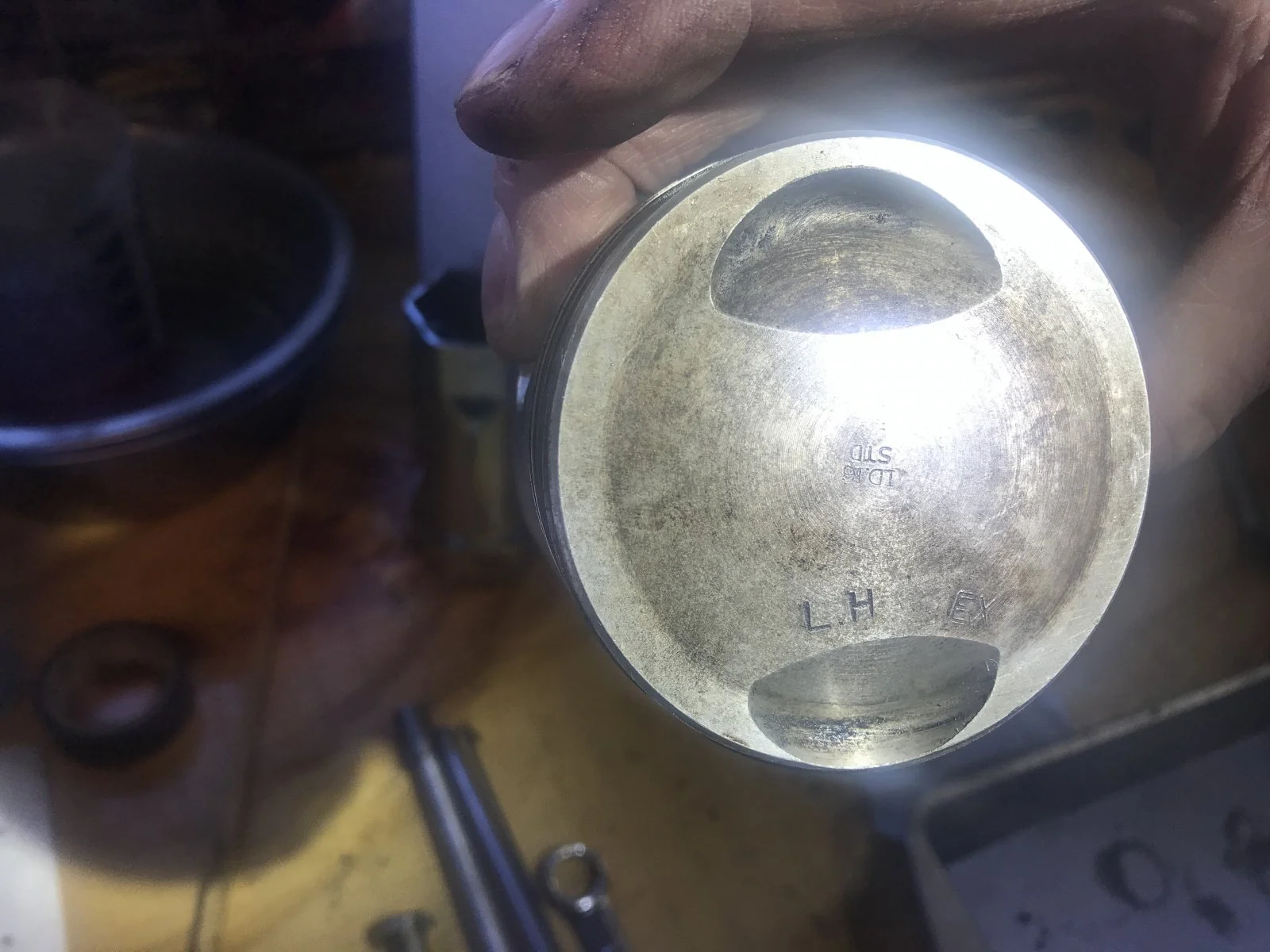

need to go oversize , also need the pistons

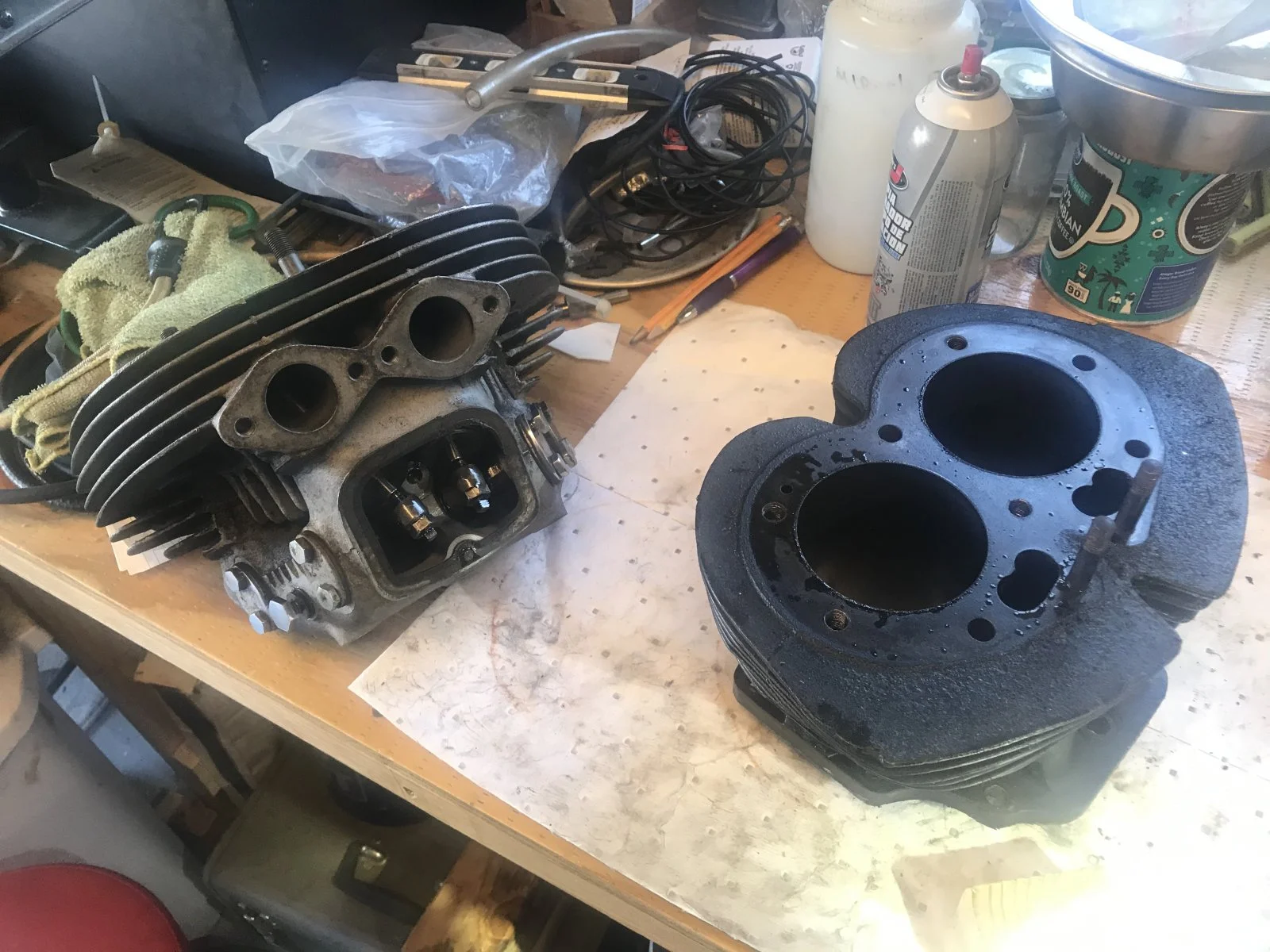

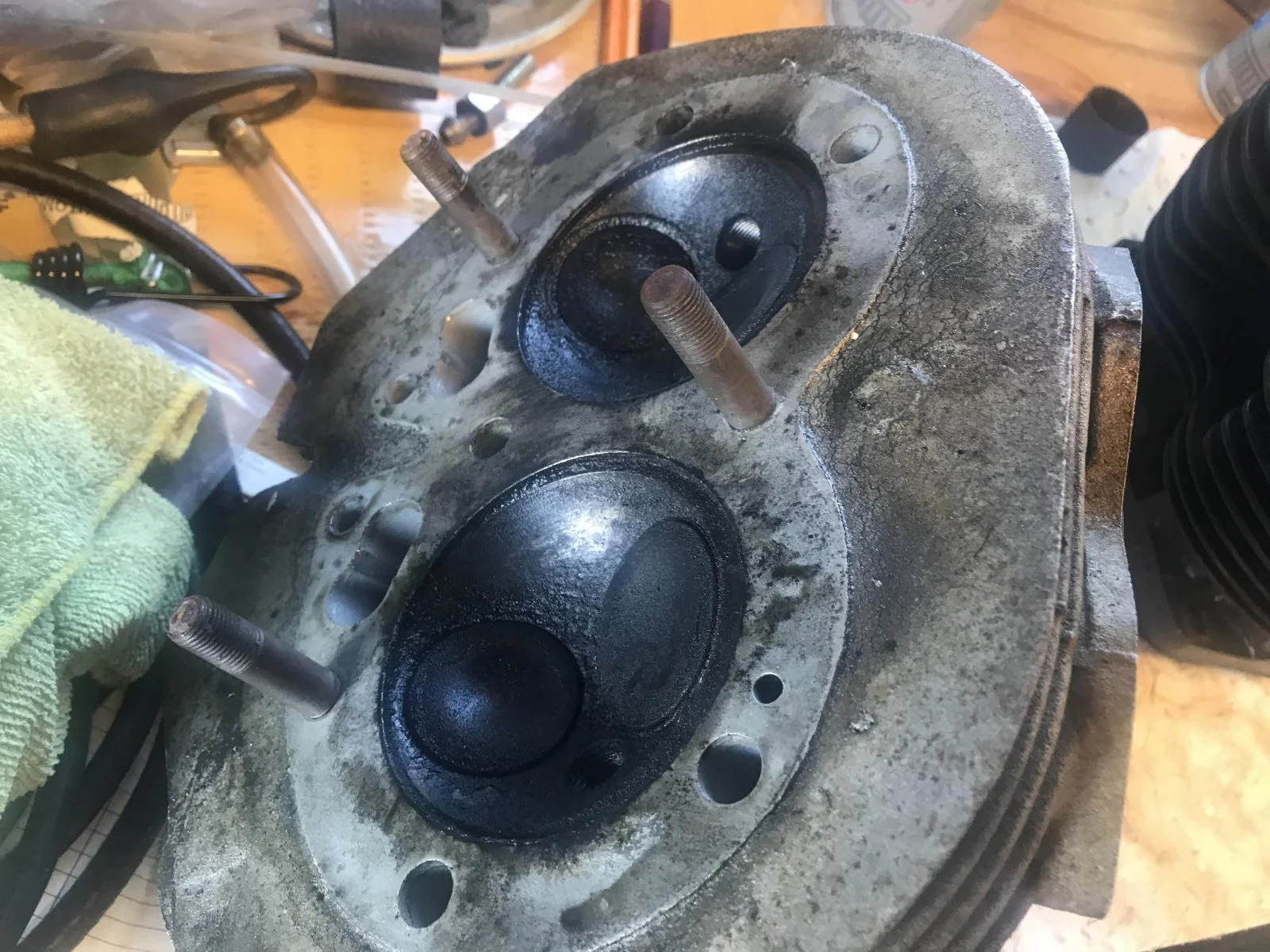

the head needs the valves done.



getting cylinders bored and head rebuilt now , hope to have back next week .
most parts have been replaced , chromed , powdercoated , painted and vapor blasted now .
should be ready for assembly in another few weeks .
nice to have clean parts to work with .

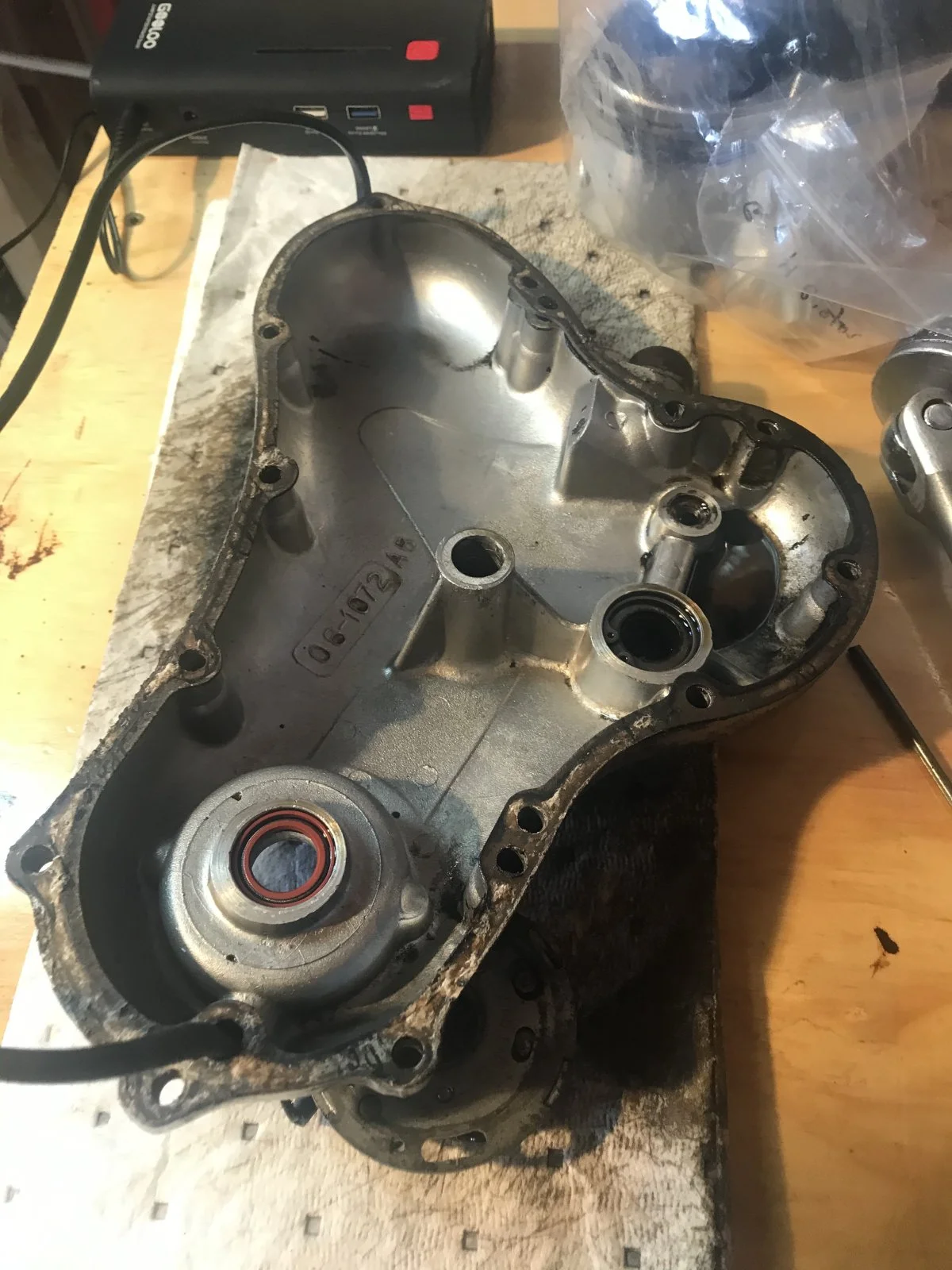

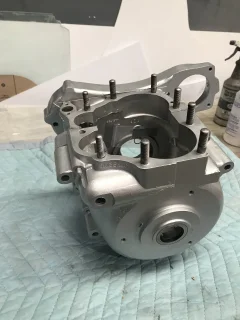

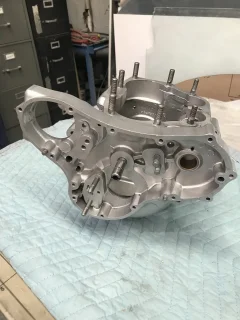

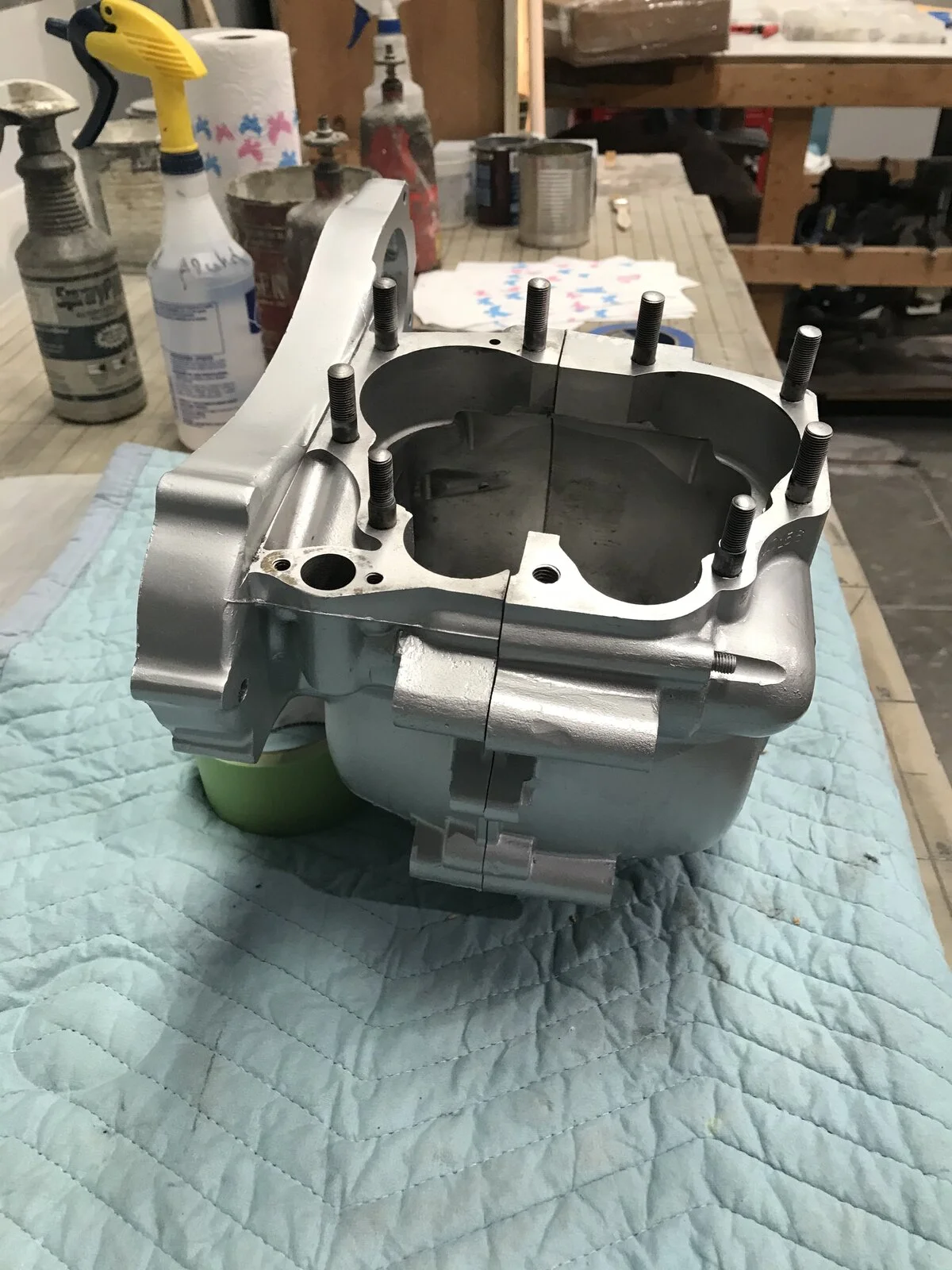

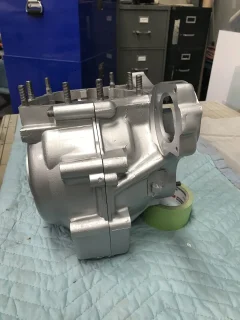

cases were vapour blasted .
guess I will have keep riding the victory and Harley for awhile , and that’s ok .
