Seat fixings

Joined
Apr 23, 2021
Messages
68
Country flag
Would somebody please post a photo of the seat fixings. Mine was like this when I bought it, I'm guessing some sort of captive nut? Size?



Looks pretty flimsy..


MAK

VIP MEMBER
Joined
Mar 15, 2018
Messages
303
Country flag
Would somebody please post a photo of the seat fixings. Mine was like this when I bought it, I'm guessing some sort of captive nut? Size?



Looks pretty flimsy..

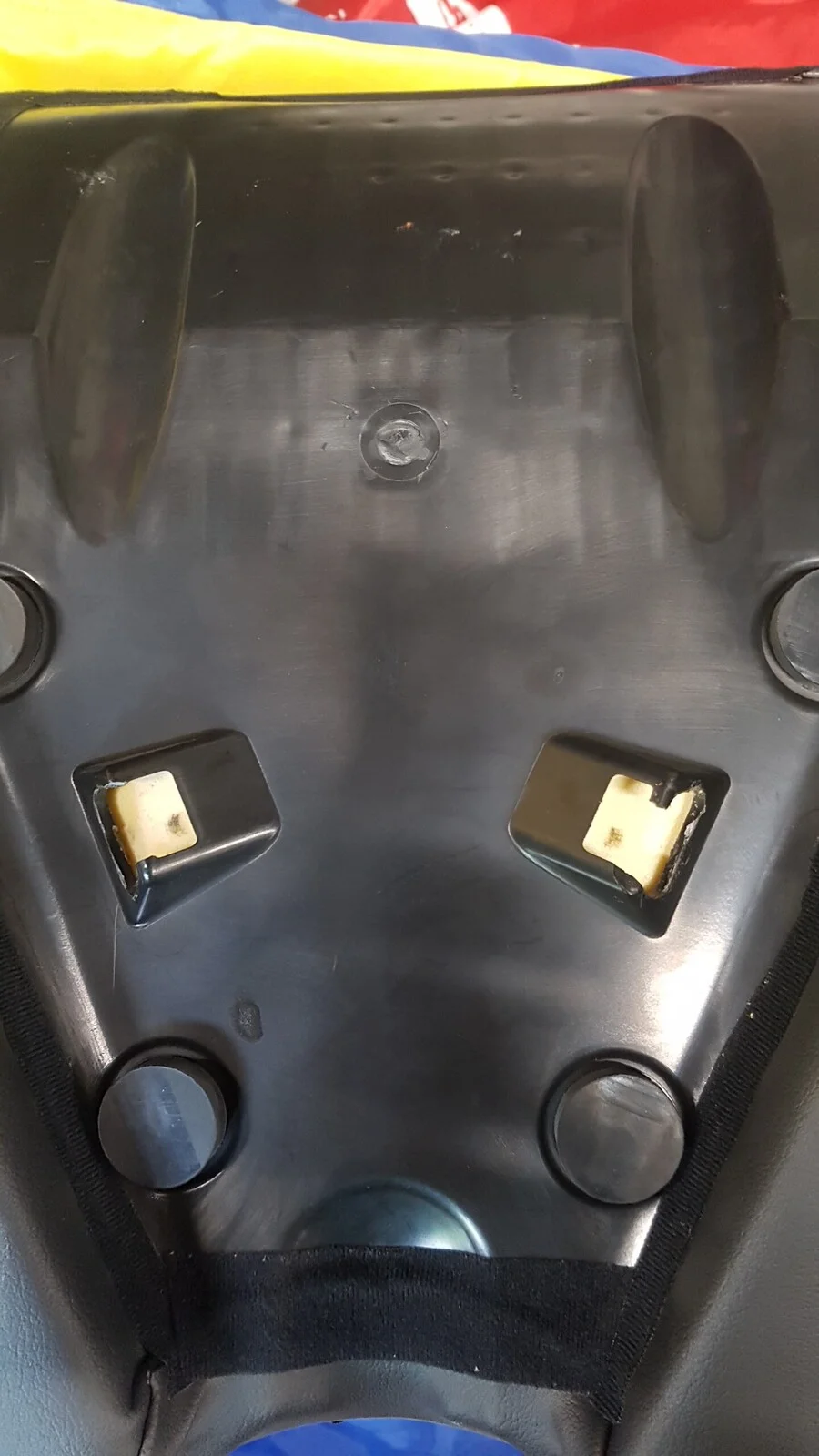

This seat has broken mounts.
The captive nuts have no where to attach.
Mine is much the same now,trying to figure out a better mounting solution.


ntst8

VIP MEMBER
Joined
Feb 14, 2004
Messages
1,443
Country flag
Mine still has the mounts but the bolts kept falling out and I’ve stopped replacing them.
All seems quite secure wile riding and it is unlikely that anyone will know to or want to lift off the seat while you are parked.

Joined
Jan 16, 2015
Messages
4,018
Country flag
Mine still has the mounts but the bolts kept falling out and I’ve stopped replacing them.
All seems quite secure wile riding and it is unlikely that anyone will know to or want to lift off the seat while you are parked.

Joined
Jan 16, 2015
Messages
4,018
Country flag
Would somebody please post a photo of the seat fixings. Mine was like this when I bought it, I'm guessing some sort of captive nut? Size?



Looks pretty flimsy...

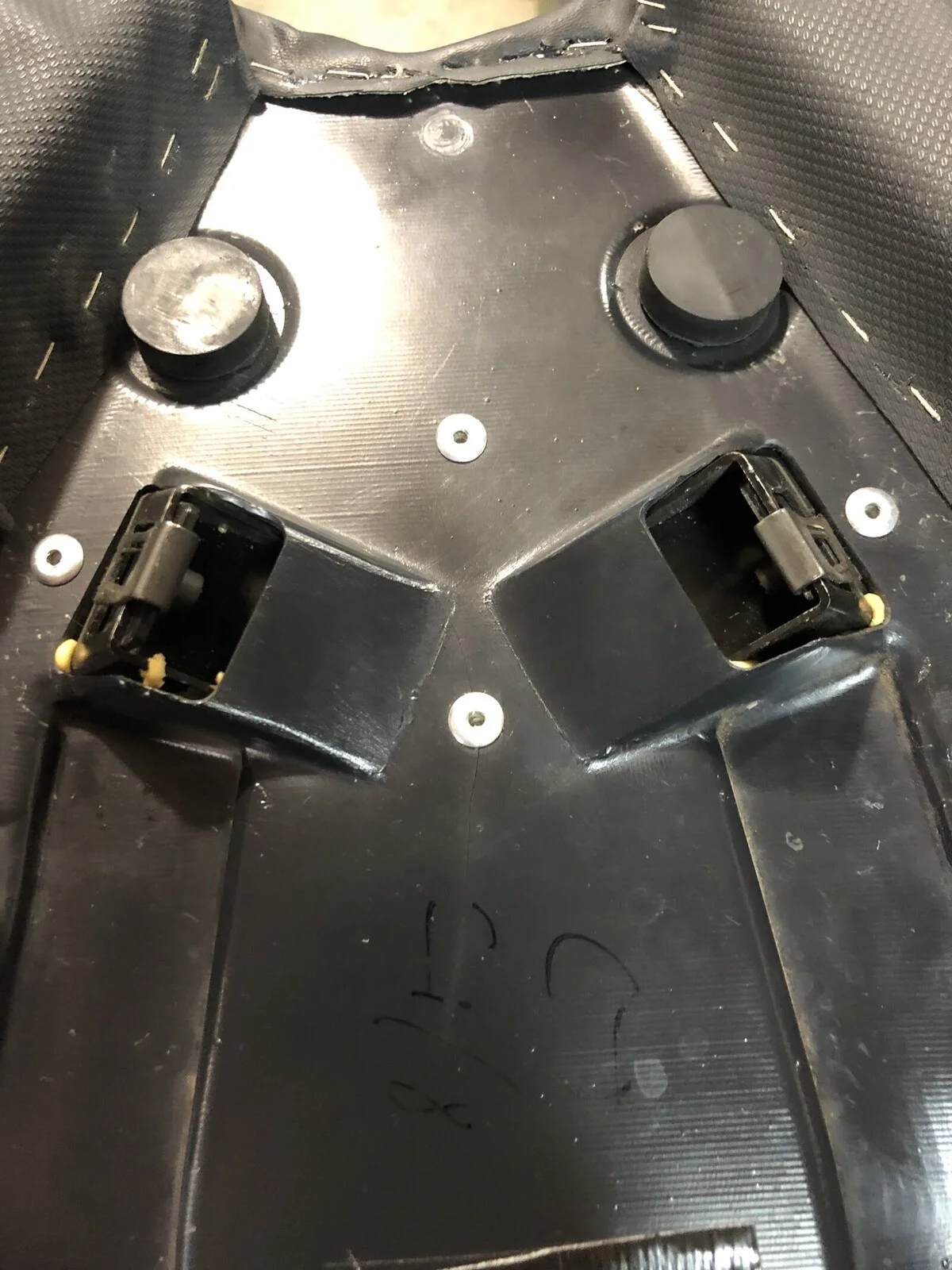

If you had an older model , mine is a late 2014 you would see what Norton changed. There is a metal framework that is riveted to the seat pan. And they used a much tougher pan material as well . The change probably came after 2016 , not sure though. I will post a picture of mine. I also know this because I bought a seat with the Norton logo sewn in , and this is when I saw how they cheapened the seat construction . Because the bolts may fall out , owners tend to overtighten the bolts and crack off the plastic .

Joined
Jan 18, 2018
Messages
634
Country flag

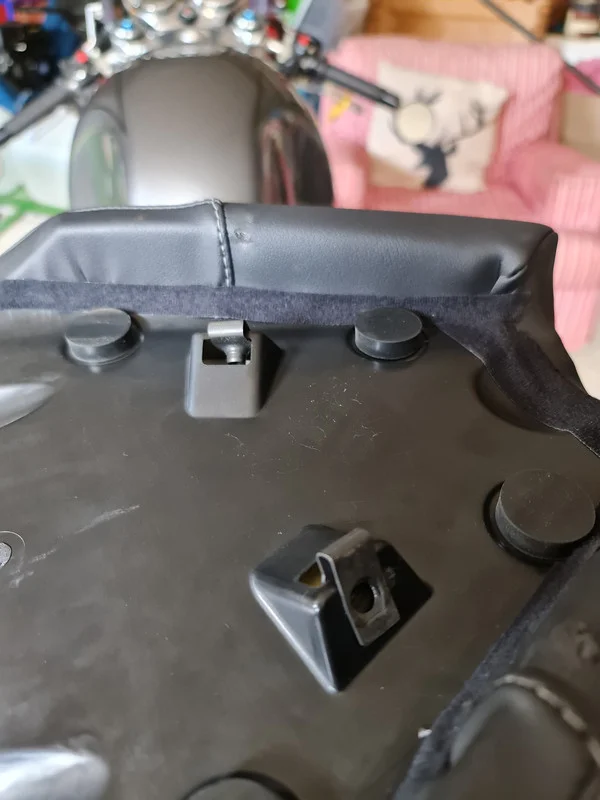

My 2018 model had the same issue. Thankfully it was under warranty so Rob Jameson kindly posted one to me after I sent him pictures. He said that a batch were like that and that someone in house had been over jealous trimming the mounting pieces when fitting the metal clips. My new one still looks a bit flimsy on these fixings to be honest, not the best of designs for a seat fixing.



Last edited:
Joined
Jan 16, 2015
Messages
4,018
Country flag
If you had an older model , mine is a late 2014 you would see what Norton changed. There is a metal framework that is riveted to the seat pan. And they used a much tougher pan material as well . The change probably came after 2016 , not sure though. I will post a picture of mine. I also know this because I bought a seat with the Norton logo sewn in , and this is when I saw how they cheapened the seat construction . Because the bolts may fall out , owners tend to overtighten the bolts and crack off the plastic .
My guess they saved money going with the clips and plastic. Even the seat pan material was stronger .


Last edited:

Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
15,764
Country flag
I never knew early bikes were like that. That’s a way superior design. Clearly the only reason for the design change was cost.

I bet the bean counter responsible never factored in the increased warranty cost of replacing broken plastic seat bases though !

Last edited:

Clive

VIP MEMBER
Joined
Jun 9, 2017
Messages
801
Country flag
The little plastic locating bar for the captive nut breaks. So I filled it with chemical metal then sat the saddle in position with one screw and carefully used a long drill through the frame bolt lug into the chemical metal, roughed up a M6 rivnut and bonded it into the hole.

I would like to make an alu. assembly rivetted to the underside then drill in as above and tap. On my little Kwaka there are 2 lugs at the back then one M6 accessible from the front of the saddle. Simple yet completely solid. Clever these Japanese......

Joined
Apr 23, 2021
Messages
68
Country flag
If you had an older model , mine is a late 2014 you would see what Norton changed. There is a metal framework that is riveted to the seat pan. And they used a much tougher pan material as well . The change probably came after 2016 , not sure though. I will post a picture of mine. I also know this because I bought a seat with the Norton logo sewn in , and this is when I saw how they cheapened the seat construction . Because the bolts may fall out , owners tend to overtighten the bolts and crack off the plastic .
That's very poor construction, it's difficult to comprehend some of these decisions... Start of the slippery slope. :(

Joined
Apr 23, 2021
Messages
68
Country flag
My 2018 model had the same issue. Thankfully it was under warranty so Rob Jameson kindly posted one to me after I sent him pictures. He said that a batch were like that and that someone in house had been over jealous trimming the mounting pieces when fitting the metal clips. My new one still looks a bit flimsy on these fixings to be honest, not the best of designs for a seat fixing.


Thanks for the picture, it's good to know what it's supposed to look like.. certainly not as good as Tony's earlier seat pan.

Joined
Apr 23, 2021
Messages
68
Country flag
Mine still has the mounts but the bolts kept falling out and I’ve stopped replacing them.
All seems quite secure wile riding and it is unlikely that anyone will know to or want to lift off the seat while you are parked.
I actually didn't notice it wasn't secured to the frame until I tried to take it off, took me ages to figure it out!

Joined
Apr 23, 2021
Messages
68
Country flag
My guess they saved money going with the clips and plastic. Even the seat pan material was stronger .

As Fast Eddie says, far superior design, must have cost them in the long run..
