I'd be most grateful if anyone here would be kind enough to let me know if there are any issues with fitting an S Type oil tank into a Roadster? In other words, whether it's simply a question of swapping the two or if you need to change other bits around as well.
S Type Oil Tank In A Roadster?
- Thread starter Paddy_SP
- Start date
- Status
The side panels are different and so is the battery tray, the ignition key is on the left side panel rather than on the rear air filter plate - which is integral on the s-type oil tank. The side panels are also more triangular and stick further up and forward on the frame. The oil feed unions and hoses are different. You will probably have to drill a hole in the rear top frame plate to accomodate the right side panel top mount as it cannot mount on the tank like the Roadster one. Why do you want to change the tank?
- Joined
- Nov 4, 2007
- Messages
- 1,414
Hi, all copy ,but is fitting an S type oil tank is not just a matter of the tank and the tray , or are the side panels necessary ?
DogT
VIP MEMBER
- Joined
- Jan 20, 2009
- Messages
- 7,394

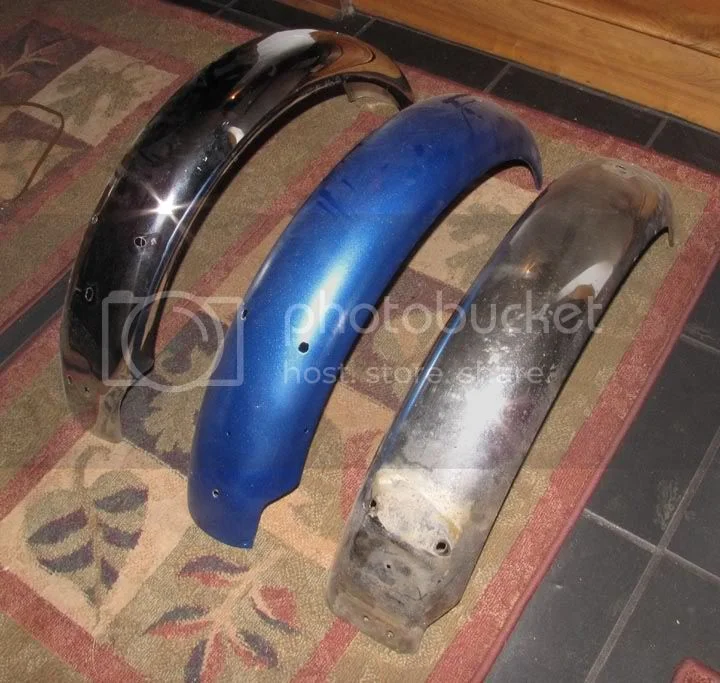

There are 2 types of rear mudguards. Pretty sure the very early ones mount with a bracket between the shock top bolts like mine and the other the guard mounts on a plate attached to the rear large tube web. The mounting holes are in different places and one has a flat spot and the other not. Here's a picture of both of them. I've seen both brackets available, but the mudguards, good luck. Andover may have one.

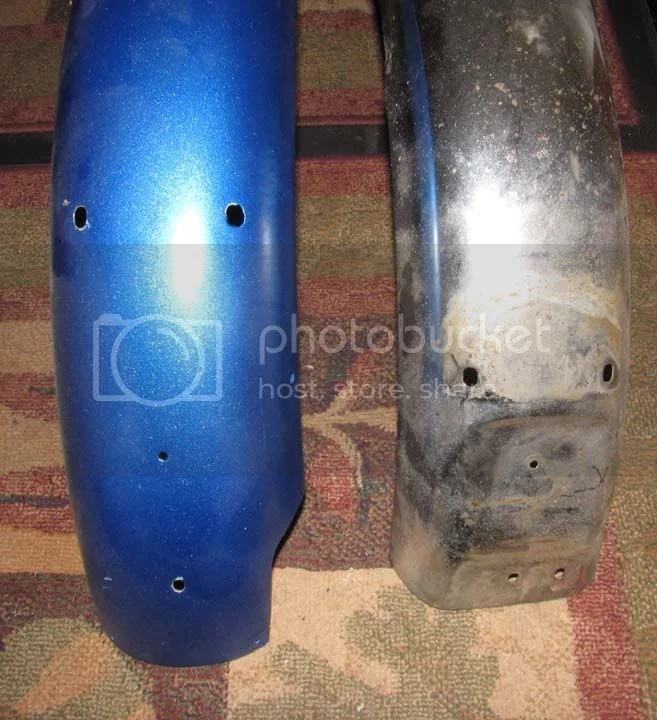

And here's compared to the 71 which I put on mine after drilling the mounting holes, my original (in blue) was pretty damaged. The other one with the flat spot has been sold.
The 2 S type are also more of a C section and the 71 a D section so it's got a bit of a flat spot on the outside curve.
And here's compared to the 71 which I put on mine after drilling the mounting holes, my original (in blue) was pretty damaged. The other one with the flat spot has been sold.
The 2 S type are also more of a C section and the 71 a D section so it's got a bit of a flat spot on the outside curve.
Many thanks for the helpful photos! It would be really helpful if there was a list of all the S Type parts that were different from the Roadster & Fastbacks. I've got about eight different official 750/850 parts books, and none of them even mention the S Type.
- Joined
- Nov 20, 2004
- Messages
- 20,416
Paddy_SP said:I've got about eight different official 750/850 parts books, and none of them even mention the S Type.
http://bigdcycle.com/tempbooks/nor/1969_1970.pdf
('S' pdf p.40).
DogT
VIP MEMBER
- Joined
- Jan 20, 2009
- Messages
- 7,394
Good luck figuring out that S supplement. There's still some stuff missing or hard to figure. But it's a good start. Notice the supplement has page numbers to reference the part numbers, that helps some. PM me if you need help or recommendations, I've got about everything on the S which is the same as the 70 Roadster except for the pipes. Like I've never seen a parts diagram of the oil tank/battery tray.
L.A.B. said:Paddy_SP said:I've got about eight different official 750/850 parts books, and none of them even mention the S Type.
http://bigdcycle.com/tempbooks/nor/1969_1970.pdf
('S' pdf p.40).
Many thanks - I've got the genuine Norton version of that, but neither the pdf nor the official parts list show any diagrams, so it's really hard to work out exactly what's what!
