plugs for MK3 handlebar switches

Joined
Oct 28, 2014
Messages
1,996
Country flag
I have a MK3 switch box from the right side. The terminals are a small plastic plug, one with 4 wires and one with 2 wires. These have been cut off. I need replacement plugs. Otherwise I have to use Japanese bullets, both male and female. Not a big job but I would rather stay stock. I could use an old switch, cut off the plugs and splice them onto what I have. Anybody have a questionable switchbox with good wires/plugs? Any ideas?

Also...
Although not absolutely essential, each Mk3 (2, 4, and 6-pin) connector would have had a spring clip, 06-6139 that prevents the two plug sections from separating.
plugs for MK3 handlebar switches

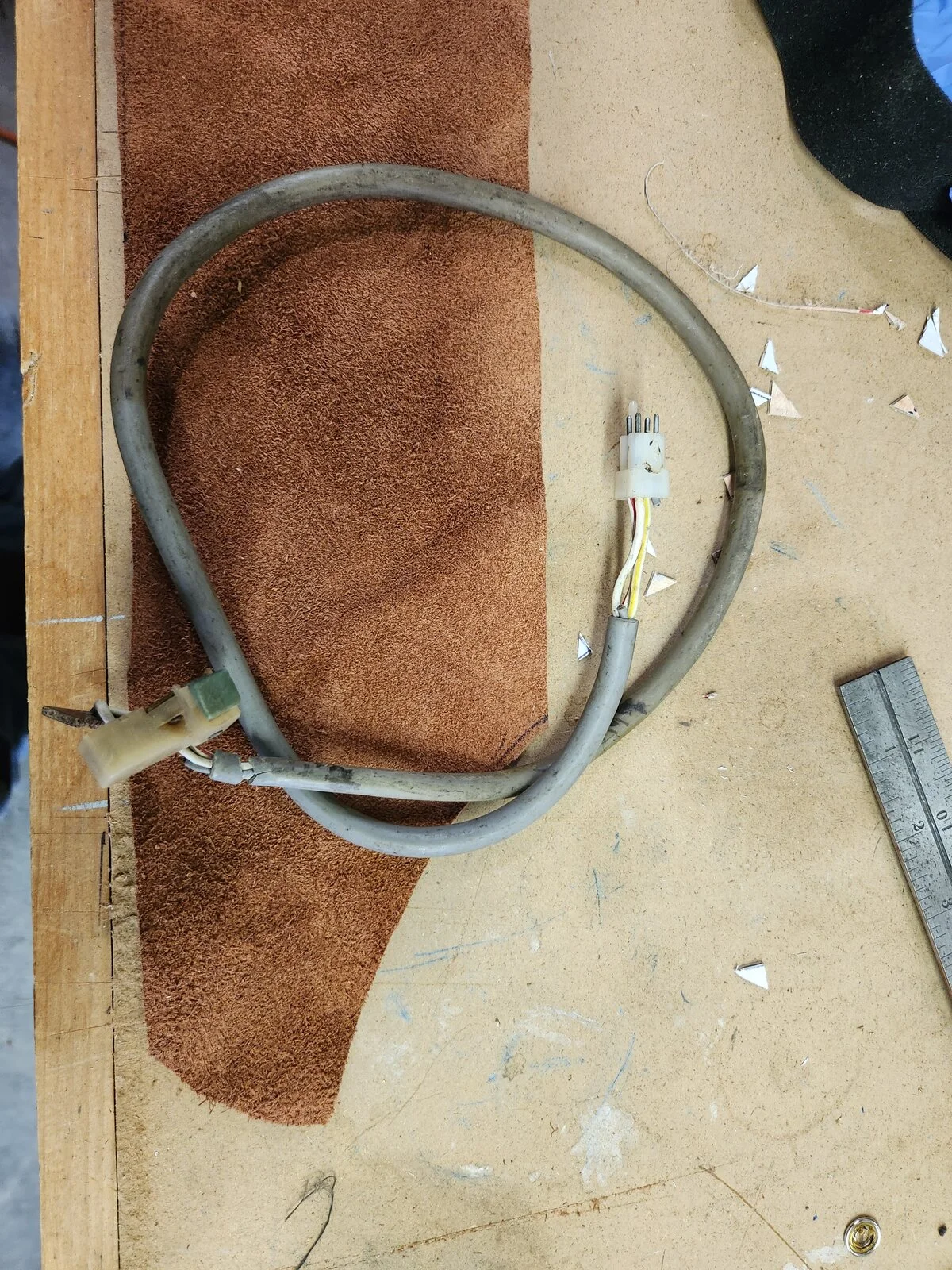

A few years ago I bought a box full of Mark III switch gear in hopes to use them to to make a couple of good ones.
when they arrived they were pretty fucked up and ended up just a bag full of parts. I have sent some parts to other members and one member wanted this and never followed up so it was still in my basement this morning. I think it's a starter button but may be a horn buton??? I'll look in the shop and see what's left. It might be easier and neater to get new connectors like LAB suggested.


Attachments

  • plugs for MK3 handlebar switches
    541.5 KB · Views: 113
A few years ago I bought a box full of Mark III switch gear in hopes to use them to to make a couple of good ones.
when they arrived they were pretty fucked up and ended up just a bag full of parts. I have sent some parts to other members and one member wanted this and never followed up so it was still in my basement this morning. I think it's a starter button but may be a horn buton??? I'll look in the shop and see what's left. It might be easier and neater to get new connectors like LAB suggested.
Thanks for the offer but I see the gray wire has been cut so it's useless. I am going to call BRITISH WIRING on Monday for the new bits.

Thanks for the offer but I see the gray wire has been cut so it's useless.

Some Mk3 R/H switch harnesses have the grey feed (connecting to a harness white at the plug) to the starter button switch soldered connection.
Others have the grey cut back and the feed is then via a (white) jumper wire from the kill switch soldered terminal on the mica board so it probably isn't useless.

(It would appear to be nothing to do with it being a "Canadian model" as suggested because grey isn't a 'lighting' wire)
Why the difference? I don't know.
Edit:
The grey wire also isn't on the Mk3 wiring diagram as that shows the previously mentioned white connection between the kill switch and the starter switch.
