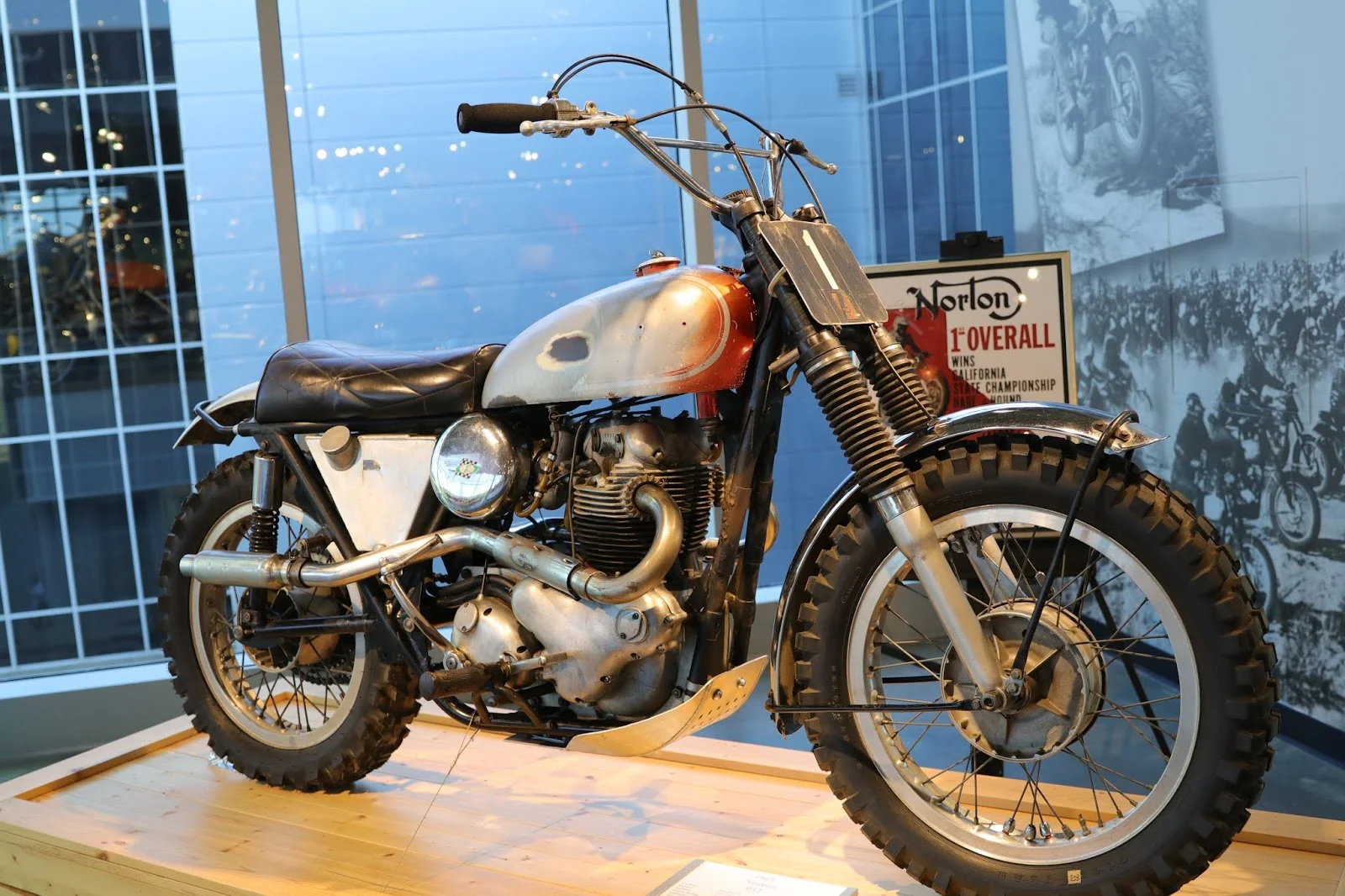

p11 frame

can any one direct me on where to find 1967 p11 frame specs and dimensions ;ours was a little cut up at some point and would like to rebuild to original specs.

NOPE , but ifits been ' Desert Sleded ' there may be some justification & reward for LEAVING IT ' Comp Set up ' . Lotta old bikesve been tuned & dialed in . nicely .
just because its not stock dont mean it aint better . If done well .

dieselfumes said:

can any one direct me on where to find 1967 p11 frame specs and dimensions ;ours was a little cut up at some point and would like to rebuild to original specs.

Click to expand...

The first question which springs to mind is, can you obtain Reynolds 531 tubing for the repair? You need to find a stockist.

Second question, do you have the facilities for braze welding the joints using the appropriate jigs etc.? Home restorers usually don't and you should contact a frame builder.
A frame builder in the UK may be able to help out.

I think your best option in the US is to obtain a replacement frame, either complete or partially damaged. They do turn up from time to time.

If you need some frame checking measurements or dimensions, I am be able to help out. For complete details, I suggest you become a member of the AJS/M Owners Club.
They have the works drawing on file and may be willing to release a copy.

You can find out tubing dimensions yourself using a vernier caliper and an ultrasonic thickness gauge (remove paint first).

- Knut
