Norton 961 Highway Pegs

Joined
Jan 16, 2015
Messages
3,162
Country flag

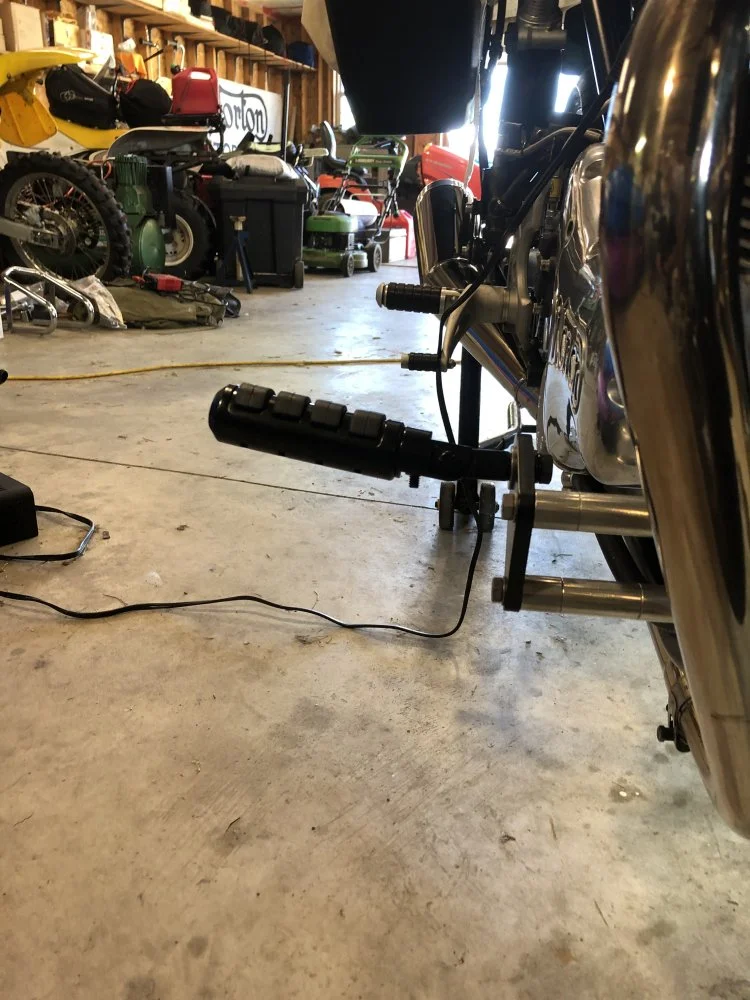

Here is my latest project for touring . I may start a new thread so it is easier to find . We discussed my legs cramping up on the long runs when I was at Cootes. And the highway pegs seem to be the best solution for it.

Joined
Jan 16, 2015
Messages
3,162
Country flag

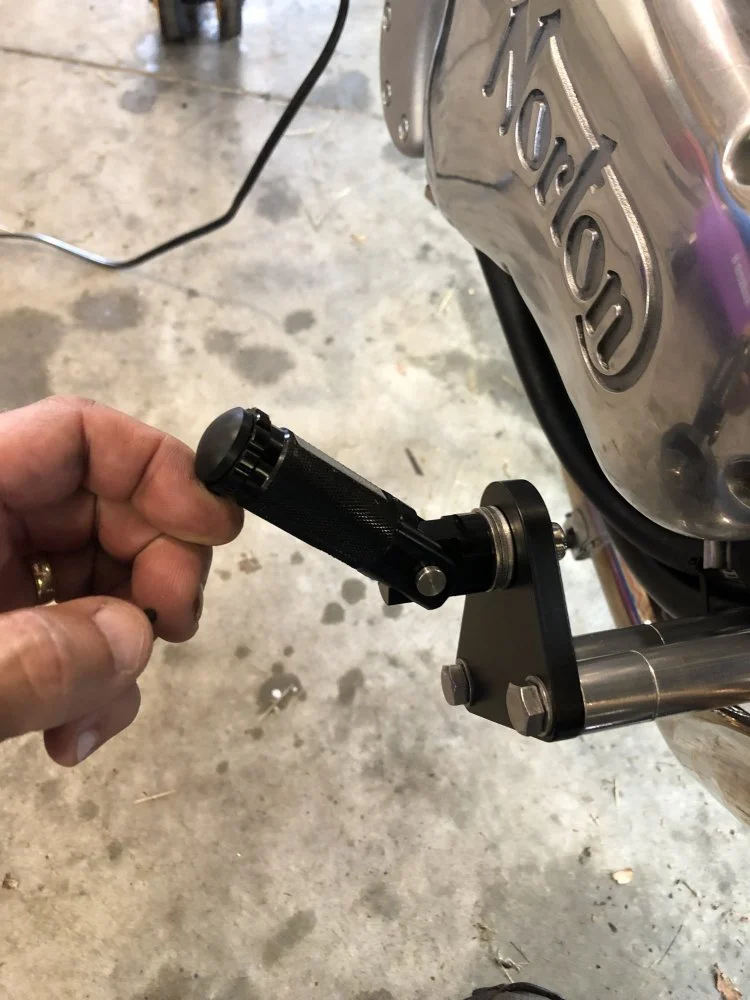

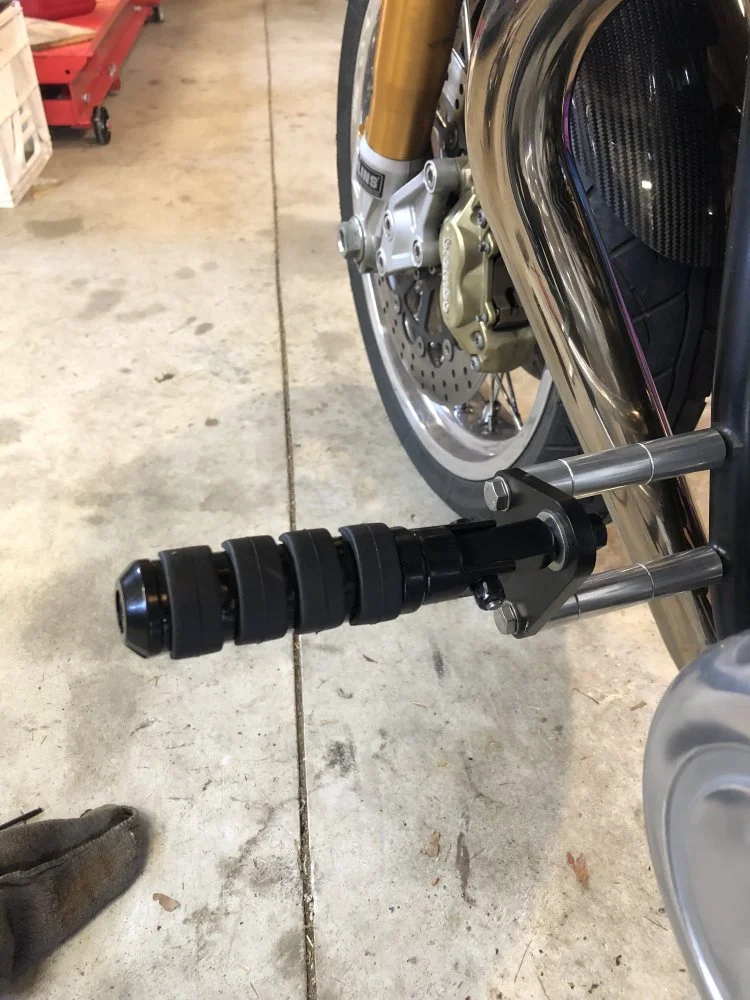

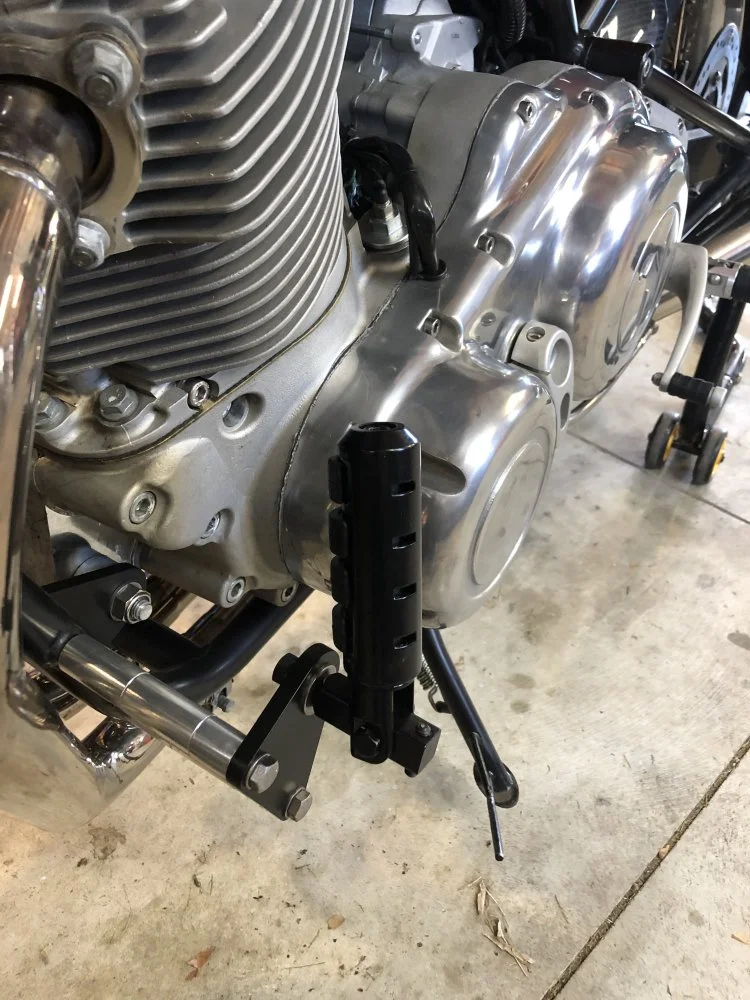

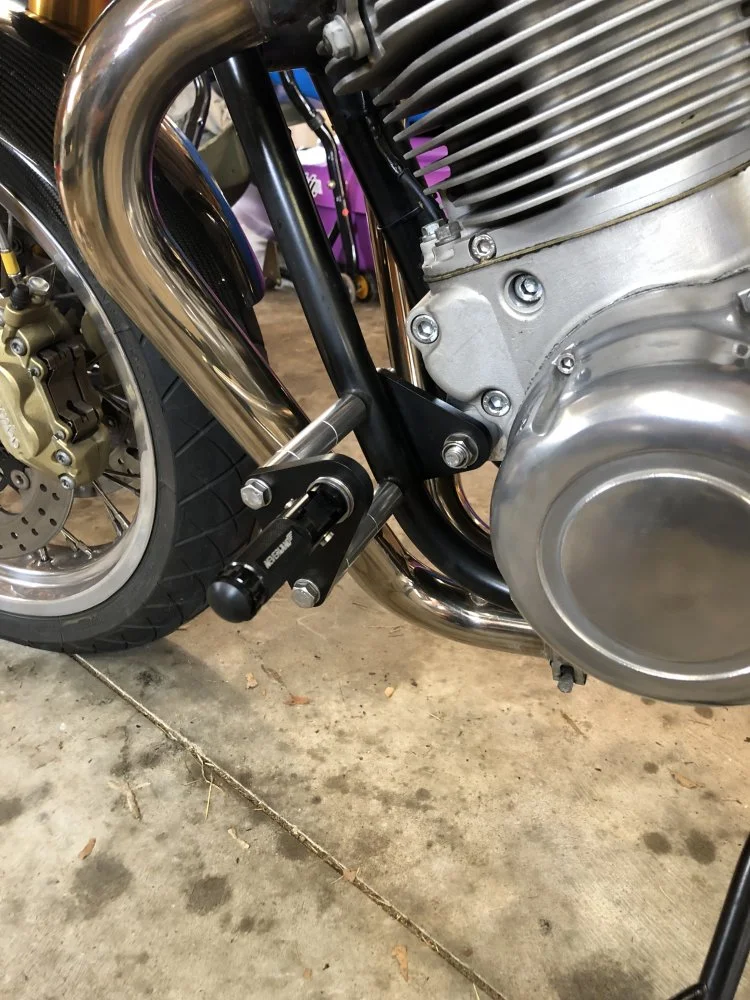

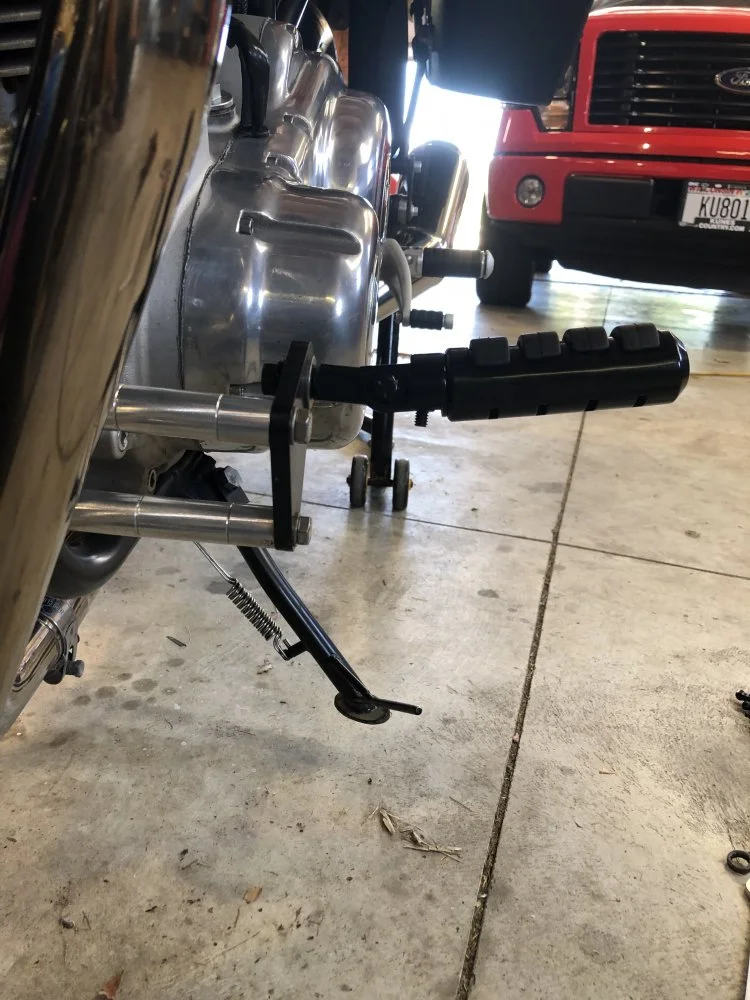

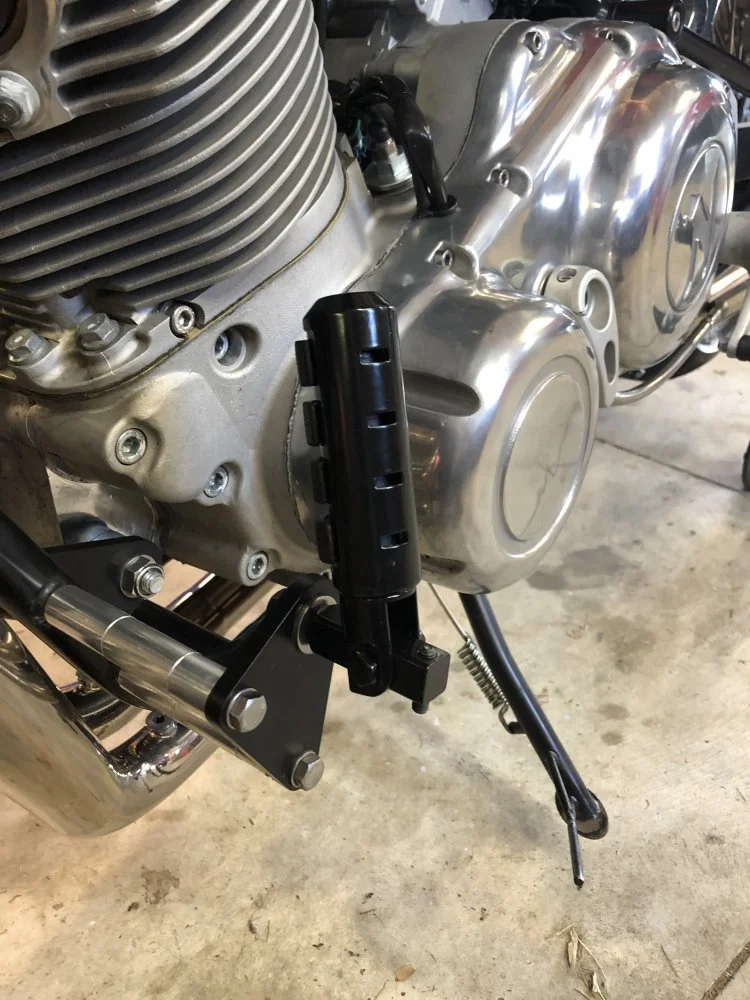

I am using Norton factory motor mount plates which work perfect for the job !

Joined
Jan 16, 2015
Messages
3,162
Country flag

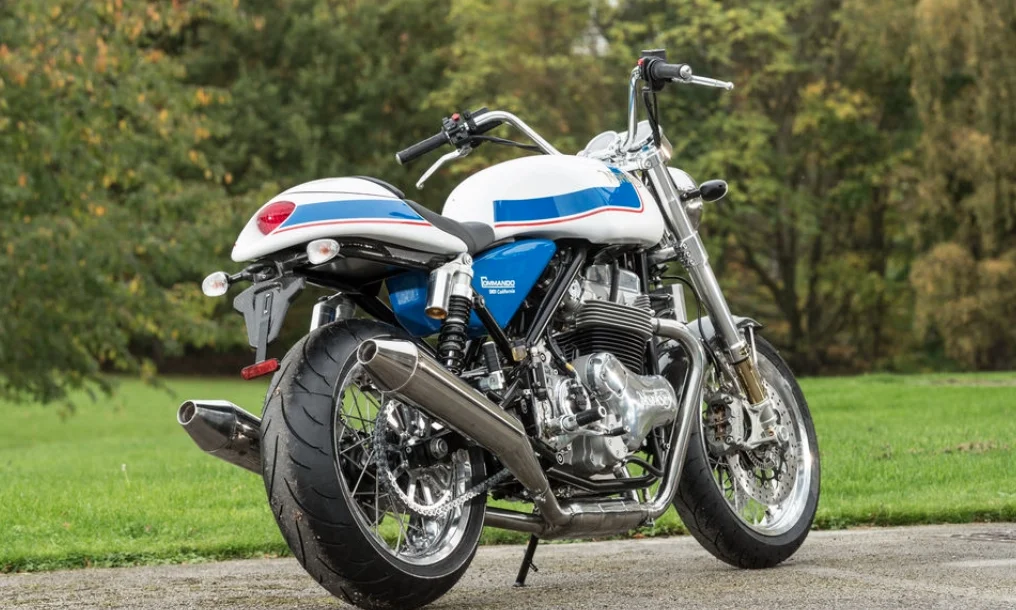

Hey ! Maybe Norton will like my idea so much that they will use it on the 961 California , and give it that real cruiser attitude ? This would be perfect with the California high bars.


BLIGHTYBRIT/SF

VIP MEMBER
Joined
Feb 28, 2016
Messages
975
Country flag
Very innovative Tony,look like there ment to be there & also look like they double up as “crash bars”

Joined
Jan 16, 2015
Messages
3,162
Country flag
Thanks Richard , I'd hate to fall on these it would cause lots of damage .


Bluedog 55

VIP MEMBER
Joined
Aug 3, 2015
Messages
114
Country flag
Nice work, I quiet often get cramped with my dodgy knee, did you just get the mounts from Norton direct? And did you buy the stainless bolt covers off the shelf or make them up yourself?

Joined
Jan 16, 2015
Messages
3,162
Country flag
The black motor mount plates are from Norton and the rest is off the shelf parts. Do you want a list of what parts you need to do this ? I can post it soon.

Joined
Sep 30, 2018
Messages
152
Country flag
The black motor mount plates are from Norton and the rest is off the shelf parts. Do you want a list of what parts you need to do this ? I can post it soon.
Hey TonyA,
Yeah could list a list of parts needed. Looks pretty simple. I've been try to figure a way to lower the pegs. My rt knee is shot. It keeps me off the bike more than I like.
I did the ROK bar riser. Works pretty well. 7/8" up & 1 1/8" with no other mods. That is the most I could get without extending stuff.

Joined
Jan 16, 2015
Messages
3,162
Country flag
(qty. 4) 8mm x 1.25 pitch x 170mm length hex bolts , 18-8 stainless mount bolt
(qty. 4) Flat washers 8mm ID small to go under long bolt heads.
(qty. 4) 100 mm length aluminum spacers 5/16" ID (8mm) x 3/4" OD (19mm) - Or some combination of spacers equaling 100mm per bolt
(qty. 4) 8mm x 1.25 pitch flange nuts serrated 18-8 stainless - you can use the Norton OEM nuts already on it , I wanted to double jam nut it.
(qty. 2) Norton OEM Front Motor Mount plates p/n 6070017_R1
(qty. 2) Folding footrests of your choice available on Ebay or Amazon - I used Neverland Brand which are good quality and come with bolts.
(qty. 4) Flat washers 8mm ID to cover the large holes in the motor mount plates that the footrests will bolt to.

Last edited:
Joined
Jan 5, 2014
Messages
2,480
Country flag
BRILLIANT!! Tony. You've saved many a knee. Now....anybody using a bar end cruise control??? Bad knees, carpal tunnel. At least I have a hard ass so the seats fine for now.

Joined
Sep 30, 2018
Messages
152
Country flag
(qty. 4) 8mm x 1.25 pitch x 170mm length hex bolts , 18-8 stainless mount bolt
(qty. 4) Flat washers 8mm ID small to go under long bolt heads.
(qty. 4) 100 mm length aluminum spacers 5/16" ID (8mm) x 3/4" OD (19mm) - Or some combination of spacers equaling 100mm per bolt
(qty. 4) 8mm x 1.25 pitch flange nuts serrated 18-8 stainless - you can use the Norton OEM nuts already on it , I wanted to double jam nut it.
(qty. 2) Norton OEM Front Motor Mount plates p/n 6070017_R1
(qty. 2) Folding footrests of your choice available on Ebay or Amazon - I used Neverland Brand which are good quality and come with bolts.
(qty. 4) Flat washers 8mm ID to cover the large holes in the motor mount plates that the footrests will bolt to.
Thanks Tony!

Joined
Jan 5, 2014
Messages
2,480
Country flag
It just keeps getting better. And I thought Jesse James and Orange County Choppers were cool. (not really into the theme bike scene)
