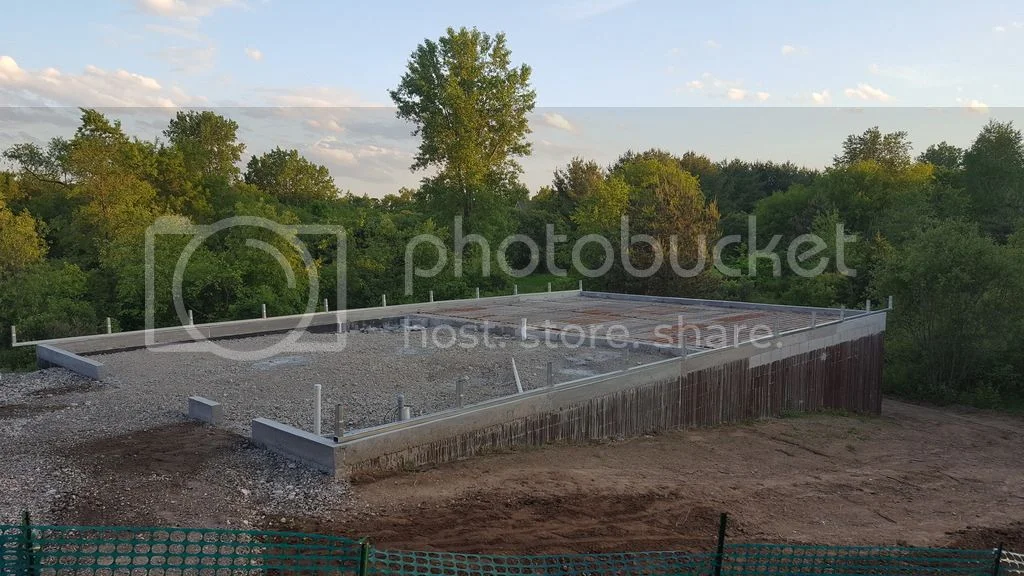

New workshop build, 30' x 50' with a basement!

Of course you'll need to properly slope the backfill away from the upper walls once complete, perhaps with a layer of moisture barrier, to promote fast runoff of any surface flow, rather than percolation into your walls and footings.

What Wolfie has built is essentially a gravity wall. A gravity wall relies on its own mass to counteract the force of the fill against it. The hollow block wall has virtually no mass and would have failed without any additional water pressure load. A gravity wall must have a width at the bottom of between ½ and 1/3 the height of the wall. So if that wall is 10’ high it would have to be about 4’ + wide at the bottom with the width of the wall reducing as it gets closer to the top, ie at 5’ from the top it would need to be 2’+ wide. And if constructed with concrete blocks would have to be core filled with concrete to have enough mass.
The wall at 10’ high is supporting fill that has an angle of repose of 2 to 1. (When you add hydrostatic loads there is no angle of repose because water flows level so the force exerted goes up dramatically) So at that, the volume of fill is a triangular prism 20’ long x 10’ high (x 1/2 because it is a triangle) x 30’ which is the width of his shed giving a total volume of 3000 feet cubed. That volume of fill would have a mass of about 120 tons (plus any hydrostatic load) which can never be counteracted by a wall having a mass of bugger all.
Concrete blocks when used for retaining are designed as cantilever walls. A cantilever wall has a wide footing with the blockwork built at the outer edge of the footing to form an L shaped solid unit. Reinforcing steel runs across the footing width and bends at 90 degrees up into the wall which after core filling the blocks is carried out. What stops the cantilever wall from overturning or sliding is that the wall is designed so that the downward pressure exerted by the fill onto the footing, is more than the sideways pressure exerted by the fill.
ando

McCanns have a plant down the road from me at Littleport. They leave them (middle picture, top row) by the side of the road...

Some thought and consulting went into this wall. It turned out to be a compounding of delays and weather. There is a sizable footing, re-bar sticking out of it, about 1/4 of the cores were re-bared and filled etc... I had also braced the wall and all was good for over 2 weeks, no change. As you can see in the pictures, only 2 feet of the back-fill has let go once the wall fell, so not the full load of back fill weight on it. I am certain the over 2 inches of rain did it in. I have been running into delays left and right, and if the slab would have been in place no water would have collected in the up hill side and this would haven't happened.

The new plan once I can get this mess cleaned up is to use Insulated wall forms with a 10" core. Both end walls pinned with re-bar at each course, re-bar throughout horizontally and vertically pinned into the footing. The finished side will be sheeted with pressure treated ply and further temporary bracing. Then add 5 yards of 5000 psi concrete, embed some steel in the top of the wall and weld the basement ceiling panels to it. Once the welding is done, then I will finish the back fill. I am also going to add a temporary drain in the bottom center of the new wall to relieve any water that makes it in.

Now to wait until spring.....

Things are thawing out and things are slowly happening. I sourced materials for the mid wall and had them delivered. Also cleared room for a bobcat to get in and around. My friend with the bobcat will be here in a week or two weather dependent. We will get this mess cleaned up and rebuilt and move on to finishing this project.

Winter having a last hoorah!
New workshop build, 30' x 50' with a basement!


New wall....60,000 pounds of interlocking goodness.
New workshop build, 30' x 50' with a basement!


Ready for bobcat
New workshop build, 30' x 50' with a basement!
