My What Am I Getting Myself Into Combat Build Thread

TomU said:

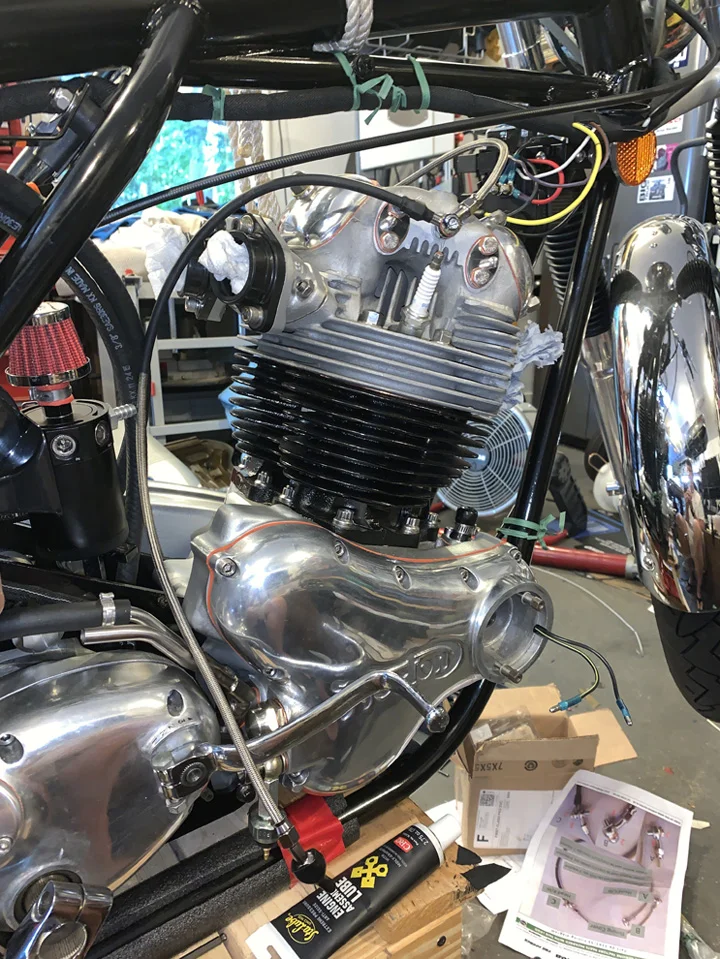

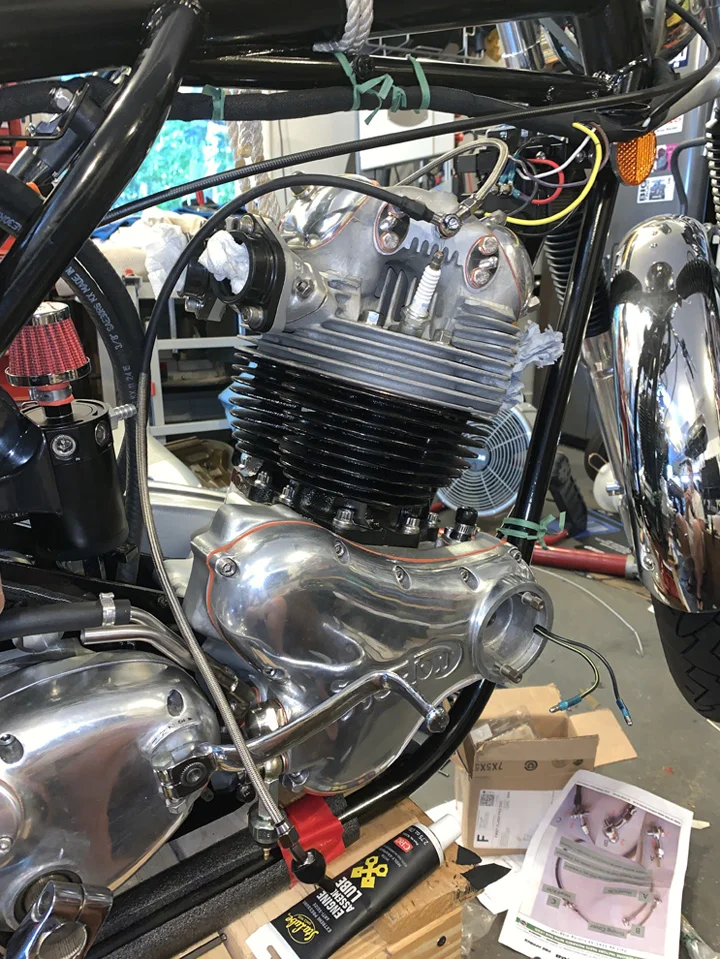

They are too long IMO. Maybe that's the way they are supposed to be, but IMO - too long
Click to expand...

1, You have the lower line inverted (the straight banjo normally goes at the lower end). The upper end is angled too low (see my previous picture).
2, You haven't fed it through the cradle.

Doesn’t look too long to me to be honest, route it up from the head so it has a nice radius down through the middle of the carbs and through the cradle, then loop down and back up to the engine as mentioned by LAB.

As others have already said, you don’t want it running tight against anything, so long loose radiuses are needed.

In your pic it’s just draped approximately in place, routing it properly will consume a lot of length.

TomU said:
They are too long IMO. Maybe that's the way they are supposed to be, but IMO - too long

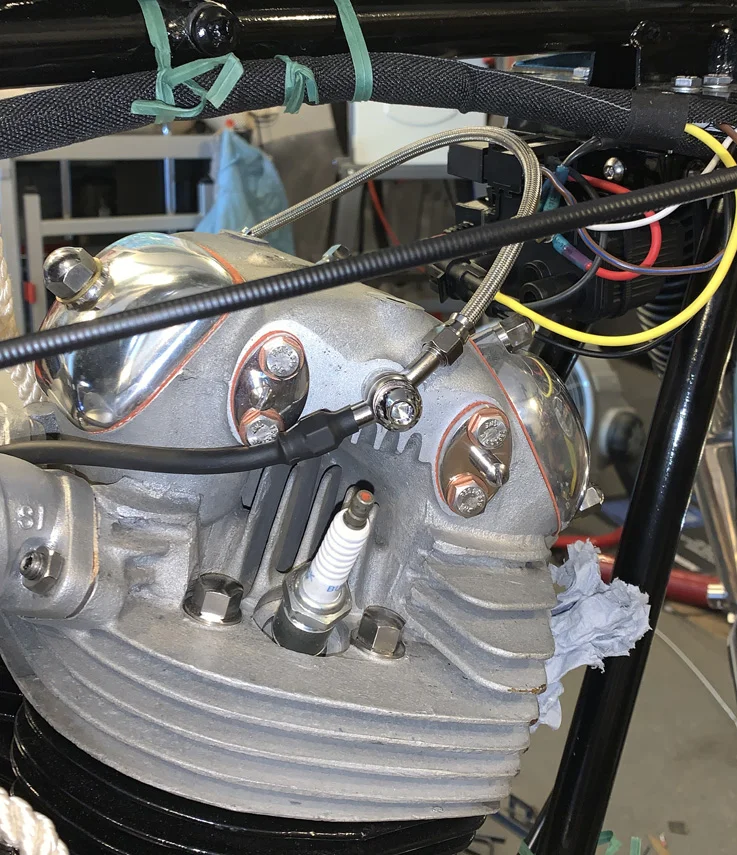

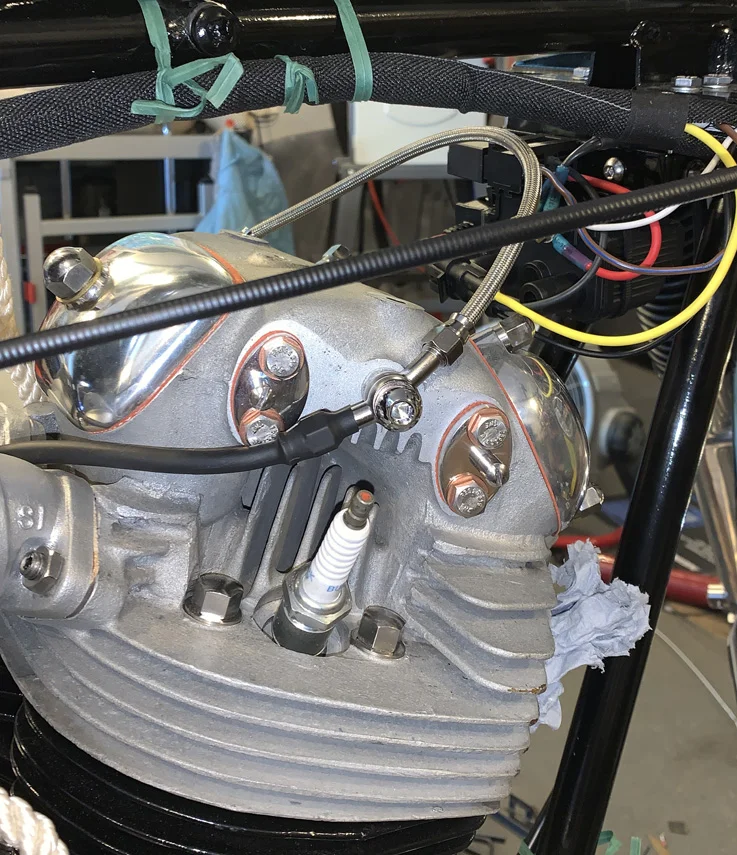

View attachment 98535

View attachment 98536
Click to expand...

They are just right when installed as intended by the manufacturer.

To me, they are too short!!!!! I wish they were longer so I could install like on a Triumph - up the backbone, across the top and down. I hate that they not only go between the carbs but in the nook between the carbs, but then it is a Norton.

TomU said:
Now on to the rocker oil feed. So i got the nice stainless feed from AN

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

And then i notice it's the same one as described in this thread

www.accessnorton.com

Venhill Stainless Rocker Oil Line Too Long (2011)

I bought this premium Venhill rocker arm oil line recently to upgrade from the plastic line and have to say that I'm not at all happy with it. It is well made but waaaaaaaaay too long and has cheap looking plated hardware. If I had not already installed it on the motor, I would return it to the...
www.accessnorton.com www.accessnorton.com

It's definitely too long (across the head as well as down to the crankcase), got the double banjo feed, and uses chrome bolts. Don't like any of that.

So my choices are:

1) Go with it as-is (can the feed at least be moved to the drive side vs the timing side?)
2) Cut the hose and reattach the fittings (with plenty of chances to screw it up)
3) Cut the hose and use a double banjo fitting (at $60 US :oops:)

90 degree Double Banjo #3 Hose End, 3/8 inch (10mm) - Pegasus Auto Racing Supplies

This 90 degree double banjo #3 hose end fitting is designed to work with our -3 PTFE Lined Stainless Braided Hose. It is a great way to connect two brake lines to a single master cylinder outlet.
www.pegasusautoracing.com www.pegasusautoracing.com

4) Build a complete new set from scratch and try to sell the unused Venhill set
5) Go with the RGM set (think this is a better design, it feeds both rockers simultaneously)

www.rgmnorton.co.uk

BRAIDED STAINLESS COMMANDO ROCKER OIL FEED COMPLETE INC, BOLTS & WASHERS

075561S RGM NORTON ROCKER OIL FEED COMPLETE
www.rgmnorton.co.uk

6) Remove and drill out the rocker spindle




I probably should have gone with 6 from the get go, but did not know at the time. Now, it would mean removing the spindle and shipping it out and reinstalling it. And i'd still need to build a line from the crankcase to the head. So, i'm leaning between 3 and 4.
Click to expand...

Bring it to me, I'll give you what I pay AN for them.

L.A.B. said:
Not if you check the dates.
The old thread was linked in this thread.
Click to expand...

OK, even more confusing. I just know that I posted in what I thought was the old thread and found it here. Regardless of any linking, there are two threads active right now talking about this oil line subject. Glad it's not confusing to others, but it is to me.

marshg246 said:
OK, even more confusing. I just know that I posted in what I thought was the old thread and found it here.
Click to expand...

You must have got your threads crossed as what you posted in the old 2011 thread is still there...
https://www.accessnorton.com/Norton...ocker-oil-line-too-long-2011.9649/post-591049


marshg246 said:
Regardless of any linking, there are two threads active right now talking about this oil line subject.
Click to expand...
...thus you brought that old thread back to life by replying and why now there are two.

L.A.B. said:
1, You have the lower line inverted (the straight banjo normally goes at the lower end). The upper end is angled too low (see my previous picture).
2, You haven't fed it through the cradle.
Click to expand...

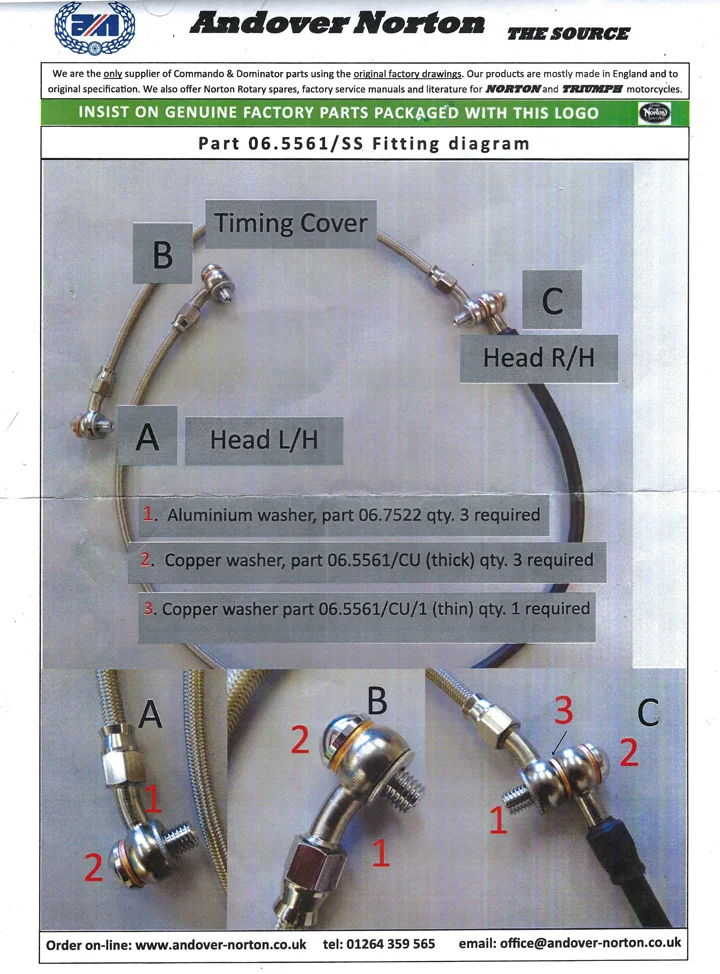

1. I installed it per the instructions

My What Am I Getting Myself Into Combat Build Thread


2. There's a lot of slack regardless

I think i'll move on to something else and let this one simmer

L.A.B. said:
You must have got your threads crossed as what you posted in the old 2011 thread is still there...
https://www.accessnorton.com/Norton...ocker-oil-line-too-long-2011.9649/post-591049



...thus you brought that old thread back to life by replying and why now there are two.
Click to expand...
OK, so I didn't search for it, it was at the top of the list with new beside it. I did miss that the last post was very old - never would have posted if I saw. This is why I asked Jerry to LOCK old threads - I'll ask again. It's good that you put the year in the subject but they are often resurrected and followed. Anyway, I deleted my post there - sure would be nice if the thread wasn't there if there no need for it.

L.A.B. said:
The line with the straight banjo and the sheathing goes at the lower end in my opinion so what AN shows in that picture is wrong or at least not the best way to fit it.
Click to expand...
You are probably right. Regardless, I don't like the double banjo there. I'm contimplating either replacing with the dual banjo or going with the RGM piece (which is a better design IMO). I would think a tee fitting that splits the oil feed between the rockers is a better design that a serial route. Or am i being anal?

marshg246 said:
OK, so I didn't search for it, it was at the top of the list with new beside it. I did miss that the last post was very old - never would have posted if I saw. This is why I asked Jerry to LOCK old threads - I'll ask again. It's good that you put the year in the subject but they are often resurrected and followed. Anyway, I deleted my post there - sure would be nice if the thread wasn't there if there no need for it.
Click to expand...
Personally, i think it's good to have the ability to update old threads if the info is still relevent. I'd rather have all the info on one thread than scattered amongst a bunch of threads. But that's me

TomU said:
You are probably right. Regardless, I don't like the double banjo there. I'm contimplating either replacing with the dual banjo or going with the RGM piece (which is a better design IMO). I would think a tee fitting that splits the oil feed between the rockers is a better design that a serial route. Or am i being anal?
Click to expand...
I had the same thoughts so I went for the RGM version.

But I do think we’re both being anal !!

marshg246 said:
OK, so I didn't search for it, it was at the top of the list with new beside it.
Click to expand...

Well, it could only have been your reply that brought the old thread back to life and to the top of page 1 as your reply was the only recent post so that was the 'new' post.
Now you have deleted the post the thread has gone back to 2011.

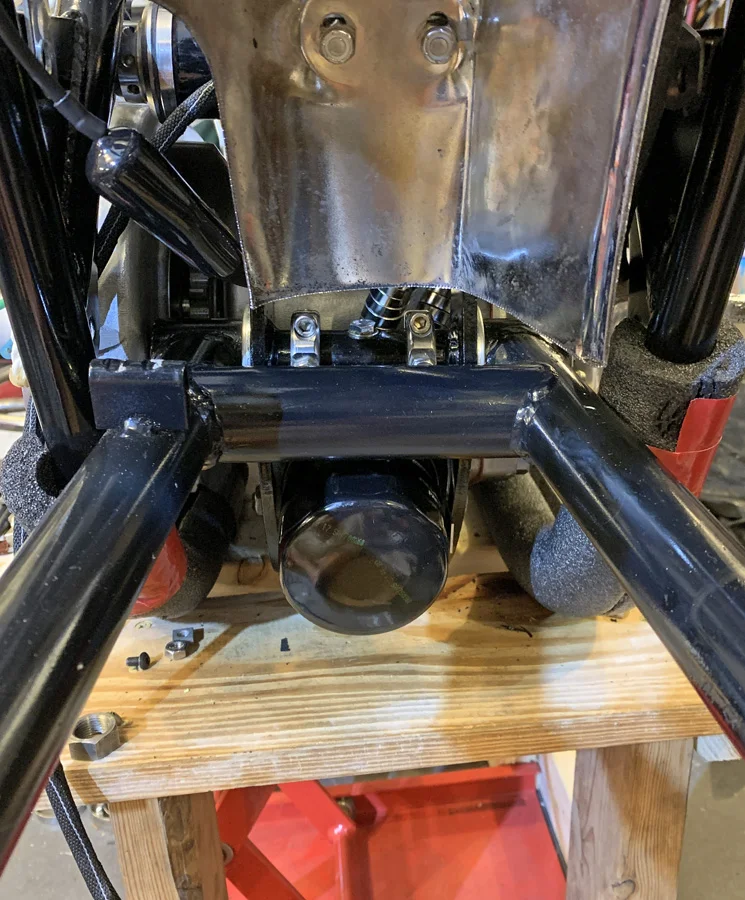

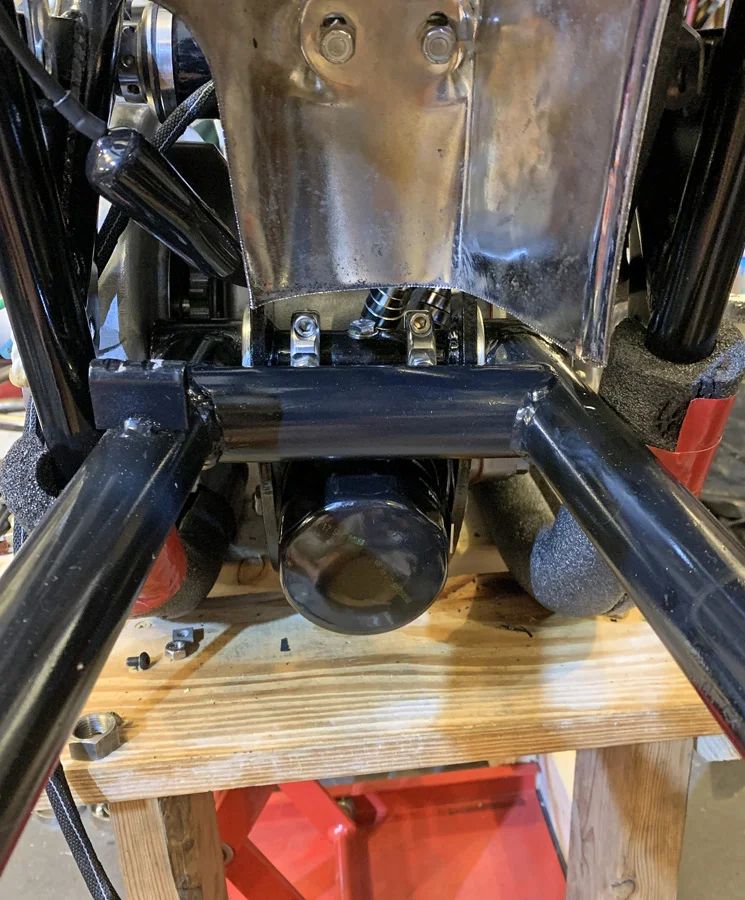

Waiting for parts to build an oil feed from scratch, i attached an external oil filter

My What Am I Getting Myself Into Combat Build Thread

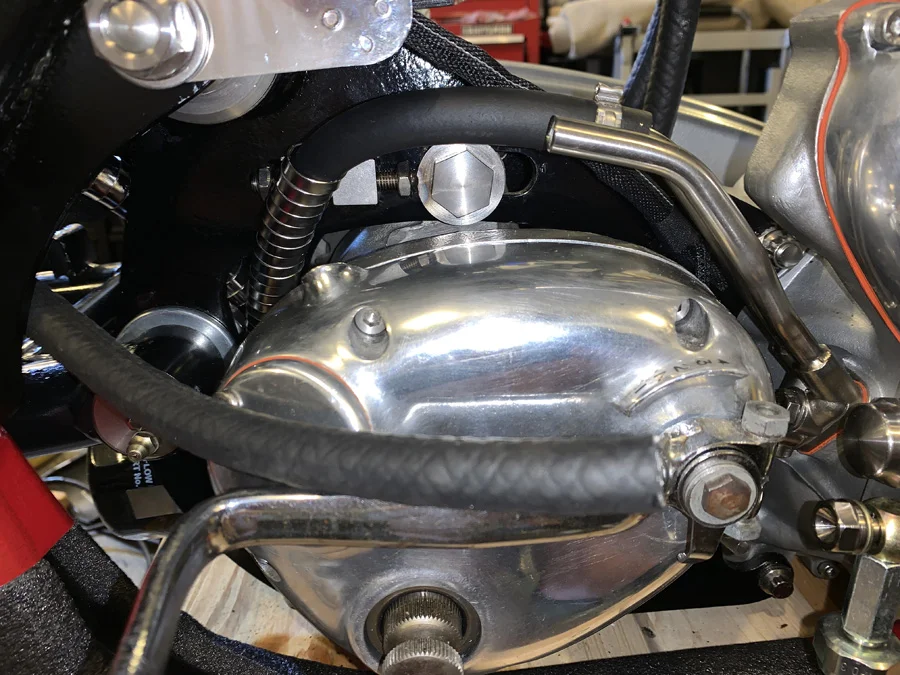

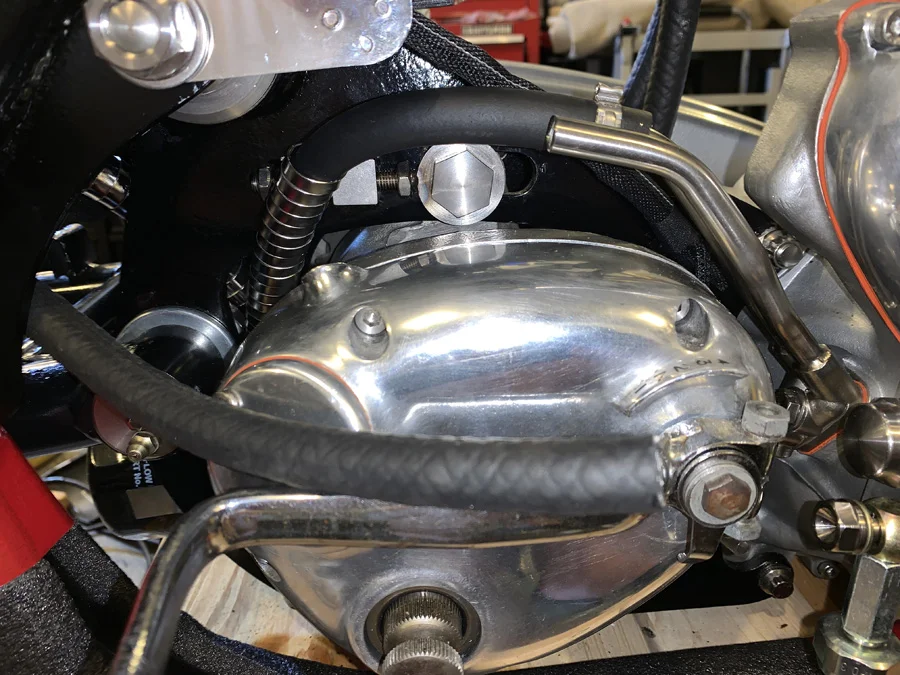

Not happy about the oil return protecto sleeve tho. May replace it with something a little more flexible and less abrasive.

My What Am I Getting Myself Into Combat Build Thread

TomU said:
Waiting for parts to build an oil feed from scratch, i attached an external oil filter

View attachment 98757

Not happy about the oil return protecto sleeve tho. May replace it with something a little more flexible and less abrasive.

View attachment 98758
Click to expand...

Get the original type protector from AN (or me) - those spring types like you have are crap. Did I read it right that you have two oil filters?

It has the stock in-tank screen as well, and this is the sleeve that came with the filter kit from AN, except in stainless :cool:

That's weird:

https://andover-norton.co.uk/en/shop-details/16069/protector-sleeve-oil-pipes

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

I've bought several of those kits and never had a spring. Wassell sells the springs and they are not worth using so I shell out for AN. What's the part number of what you bought?
