My 850 wet sumped and I had a massive oil leak. Two questions.

Joined
Feb 24, 2020
Messages
12
Country flag
1973 850. I forgot to check my oil tank and must have wet sumped. I only discovered this after coming back from a 40 mile ride and watched oil puddle on my garage floor. Not drops, a large puddle about 4 inches across. All from the left side of the bike. There was oil dripping off the chain, swingarm and even some off the fender on the left side. So much, that it was impossible to identify where it came from. I drained my primary and got about twice the amount of oil out that should be in there. But my oil tank was about a quart low and there was oil all over the left side of the bike. I decided to go ahead and drain all of the oil out of the primary, the oil tank, the crank case and pulled my oil filter. I went ahead and removed my rear tire and rear fender so I could give a close look to the oil lines. I checked all of my oil lines and they look fine. So here are two questions:

1. How did all of the oil escape out of the primary? I did some research and understand there was a felt seal behind the clutch where oil can escape if the primary gets overfilled. But can it really be that much? Is there anywhere else the oil could have escaped on the left side? My oil lines all appear to be in good condition and tightly fastened.

2. To drain the rest of the oil out of the crank case I removed the smaller of the two plugs on the bottom. Not the 1&1/2 inch plug, the 9/16 plug. Is there any reason why I should remove the larger plug also? Thanks for everyone’s help and advice.


Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
2,864
Country flag
Likely you've blown out the crank seal in the primary casing side. Had mine split in half from a wet sump situation and like you, had oil spewed out over rear of bike. It escapes from the primary felt 'seal' as it fills up the primary case. Not it doesn't need to fill up to the seal level as it is throw all around by the chain etc. Your clutch plates will also be contaminated.
Need to pull primary out and remove clutch & alt/rotor and sprocket to access the cransk oil seal. It is a simple remove, replace. Some advise a little locktite or epoxy on seal outer edge to help keep it in place. Mine was split in half, so likely old and brittle.
I've since fitted an oil feed manual shut off with ign interrupt to prevent this potentially serious accident inducing situation.

Only other way for oil to fill primary is from the three small bolts holding inner primary to crankcase. These can loosen and fall out, allowing oil into primary and causing damage to primary moving parts like chain and sprockets. Use locktite on these bolts in addition to the locking tab washers for extra insurance.

Last edited:
Joined
Jan 18, 2020
Messages
324
Country flag
Seen the same overfilling of the primary from a blown crank seal on a 650SS. Also due to wet sump. With inspection cap removed I could see a lot of oil whirling around.


ashman

VIP MEMBER
Joined
Jul 11, 2010
Messages
3,988
Country flag
Always check your oil tank before any ride and if the bike has been sitting for some time to drain your crank of any access oil that may have filled up from sitting, I normally do that the night before any big ride but mine only wet sumps if I let it sit for 4 months or more, its all part of owning a Norton and seems like you have blown your crank seal or the bolts that hold your inner primary case could be leaking pull them out and seal the threads before refitting them, remember only 7 floz in the primary for chain lube to splash around on the chain, the felt seal won't stop over oil in the primary and will blow oil out of it when the primary is over filled and make a big mess on your rear end.
A simple check before any ride will save you a lot of pain later.

Ashley

Joined
Jan 12, 2019
Messages
171
Country flag
2. To drain the rest of the oil out of the crank case I removed the smaller of the two plugs on the bottom. Not the 1&1/2 inch plug, the 9/16 plug. Is there any reason why I should remove the larger plug also? Thanks for everyone’s help and advice.
No need to remove the big plug which just contains a wire mesh strainer for the oil scavenge feed to the pump unless you're searching for shrapnel.


RoadScholar

VIP MEMBER
Joined
Dec 28, 2008
Messages
1,870
Country flag
No need to remove the big plug which just contains a wire mesh strainer for the oil scavenge feed to the pump unless you're searching for shrapnel.

I have to disagree on your point, with a degree or deference. If the OP hasn't, yet, then I recommend removal and inspection of the mesh screen. As the scavenge side of the oil pump has greater volume capability then the feed side I'd want to know if the sump mesh filter plug ( the large one) played any part in the OPs chain of events.

Best.

Joined
Feb 24, 2020
Messages
12
Country flag
That’s a good idea to go ahead and check out the mesh screen. Hopefully I don’t find anything other than oil!

I figured as long as I was in there I might as well just replace the clutch plates, install a new felt washer and a new inner primary gasket. I’ll go ahead and seal up the three bolts that hold the inner primary and also seal around where the alternator wire goes through the primary case.

Joined
Nov 26, 2009
Messages
2,603
Country flag

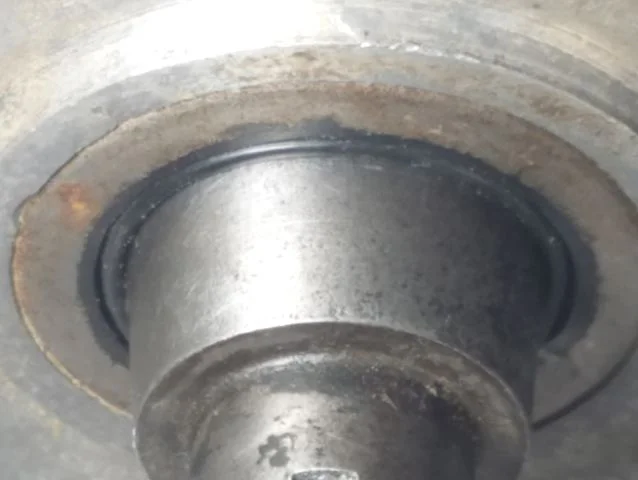

The easiest solution to the mainseal blow out problem is to install a viton Oring between the engine sprocket and the crank main seal as shown below. This prevents the oil seal lip from inverting. The 1/16 x 1-1/8 ID oring restricts the clearance so the seal lip stays where it belongs. With this mod you can forget about wet sumping causing a problem (other than maybe stiff initial kickstart but its never bothered me or kept my bike from starting in a couple kicks). No problems so far.



Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
2,864
Country flag
That’s a good idea to go ahead and check out the mesh screen. Hopefully I don’t find anything other than oil!

I figured as long as I was in there I might as well just replace the clutch plates, install a new felt washer and a new inner primary gasket. I’ll go ahead and seal up the three bolts that hold the inner primary and also seal around where the alternator wire goes through the primary case.
Might want to consider fitting a clutch rod seal (DynoDave can tell you who is supplying them currently) while in there. Eliminates gear box oil getting on plates.
Unless you want different plates, original bronze type do clean up quite well and can be reused.

Joined
Feb 24, 2020
Messages
12
Country flag
The easiest solution to the mainseal blow out problem is to install a viton Oring between the engine sprocket and the crank main seal as shown below. This prevents the oil seal lip from inverting. The 1/16 x 1-1/8 ID oring restricts the clearance so the seal lip stays where it belongs. With this mod you can forget about wet sumping causing a problem (other than maybe stiff initial kickstart but its never bothered me or kept my bike from starting in a couple kicks). No problems so far.

I’ll add the viton o-ring to the list! Thanks!
