Mk3 left side cover bracket
- Thread starter Larry S
- Start date
- Status
- Joined
- Nov 20, 2004
- Messages
- 20,260
Mk3 Left Side Cover mounting without air box?
Hello learned masses, How do you mount the Left Side Cover if the original Mk3 air box isn't used? I've seen pictures of Mk3s using different carbs and air filters, but I'm not sure how the side cover is mounted. Does it require a bracket to be made like an earlier model, which attaches to the...
www.accessnorton.com
The OldBritts bracket I assume is unavailable and I've upgraded the Dzus (to a metal fastener) since I took those pictures.
- Joined
- Jul 24, 2006
- Messages
- 1,066

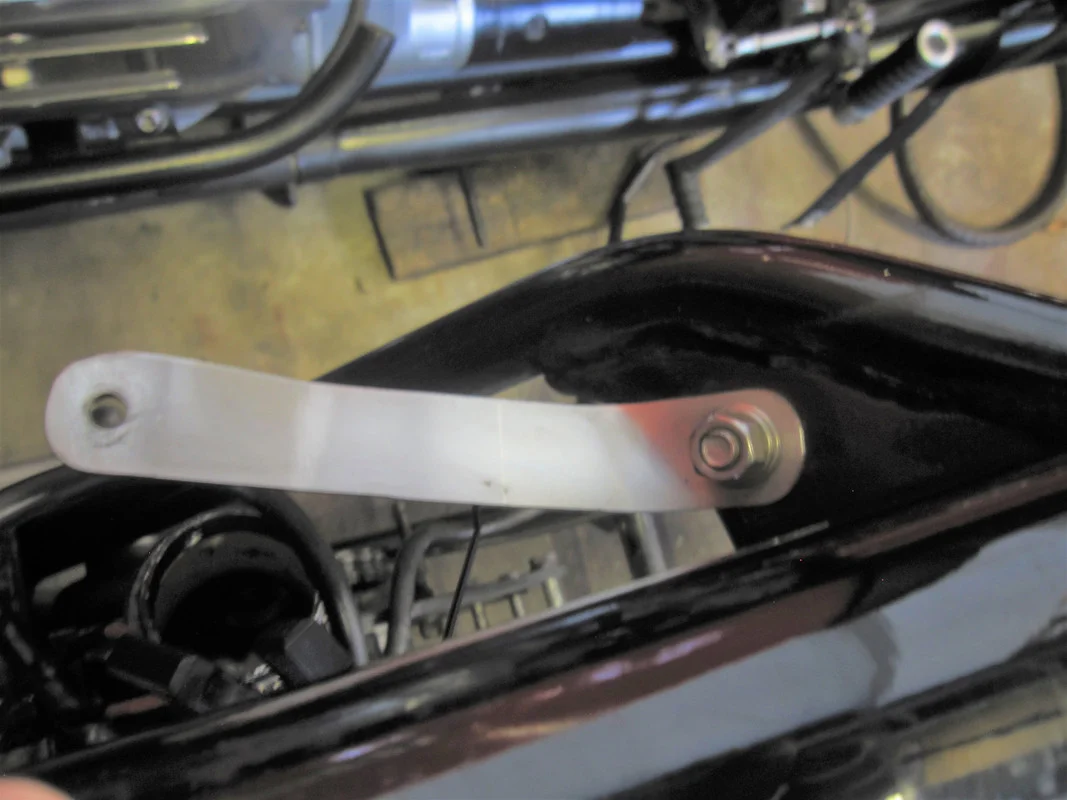

This is what I have made out of stainless plate, and is similar to what "Norvil" used to supply and possibly still do?
As you can see, it mounts to the frame gusset through an existing hole, and where it mounts to the side panel, I have run a tap through the bracket hole to suit a short half inch unf bolt. I fit a rubber grommet into the side panel hole to protect the side panel from damage by the bolt.
As you can see, it mounts to the frame gusset through an existing hole, and where it mounts to the side panel, I have run a tap through the bracket hole to suit a short half inch unf bolt. I fit a rubber grommet into the side panel hole to protect the side panel from damage by the bolt.
Last edited:
- Joined
- Mar 7, 2020
- Messages
- 3,156
Mr Emery's (069110SS)..... In situ
Last edited:
Lineslinger
VIP MEMBER
- Joined
- Feb 26, 2017
- Messages
- 1,742
I used rare earth bar magnets encased in heavy wall heat shrink between the frame and the side cover.
Rock solid with zero abrasion from vibration. I was unsure about this idea but was frustrated with the vibration and flex of the various bracket solutions I had tried.
Rock solid with zero abrasion from vibration. I was unsure about this idea but was frustrated with the vibration and flex of the various bracket solutions I had tried.
Last edited:
