Mk3 gearbox outer cover kickstart bearing/bush renewal.

The yaki

VIP MEMBER
Joined
Feb 7, 2020
Messages
218
Country flag

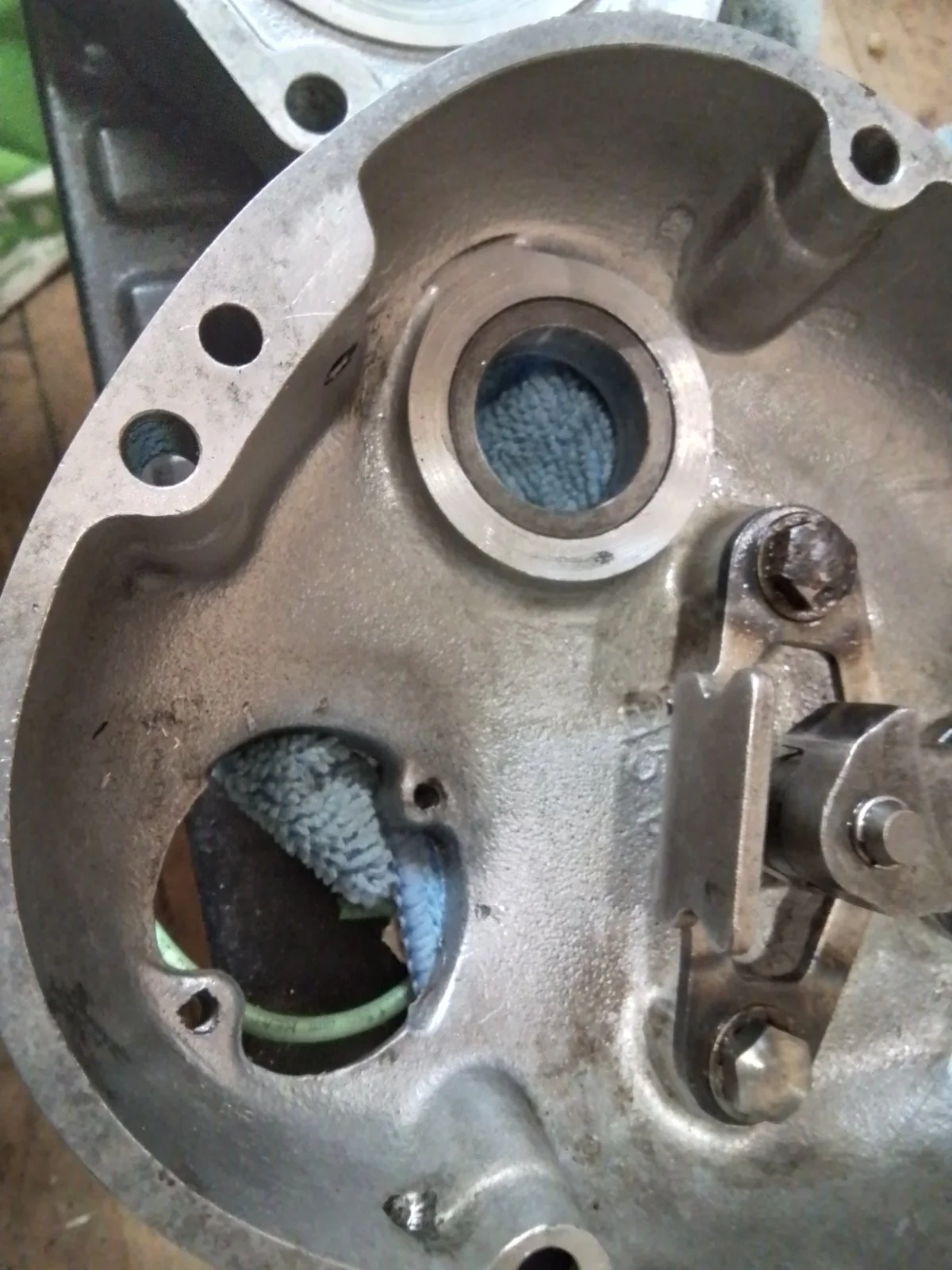

Any tips on the best way to remove it , damage free ? No way to drift it out ? Heat ? Thanks, Roy.


Attachments

  • Mk3 gearbox outer cover kickstart bearing/bush renewal.
    139.4 KB · Views: 87
There's only a very slight lip at one part to catch . Will try gently with a heat. Thanks for that, Roy.

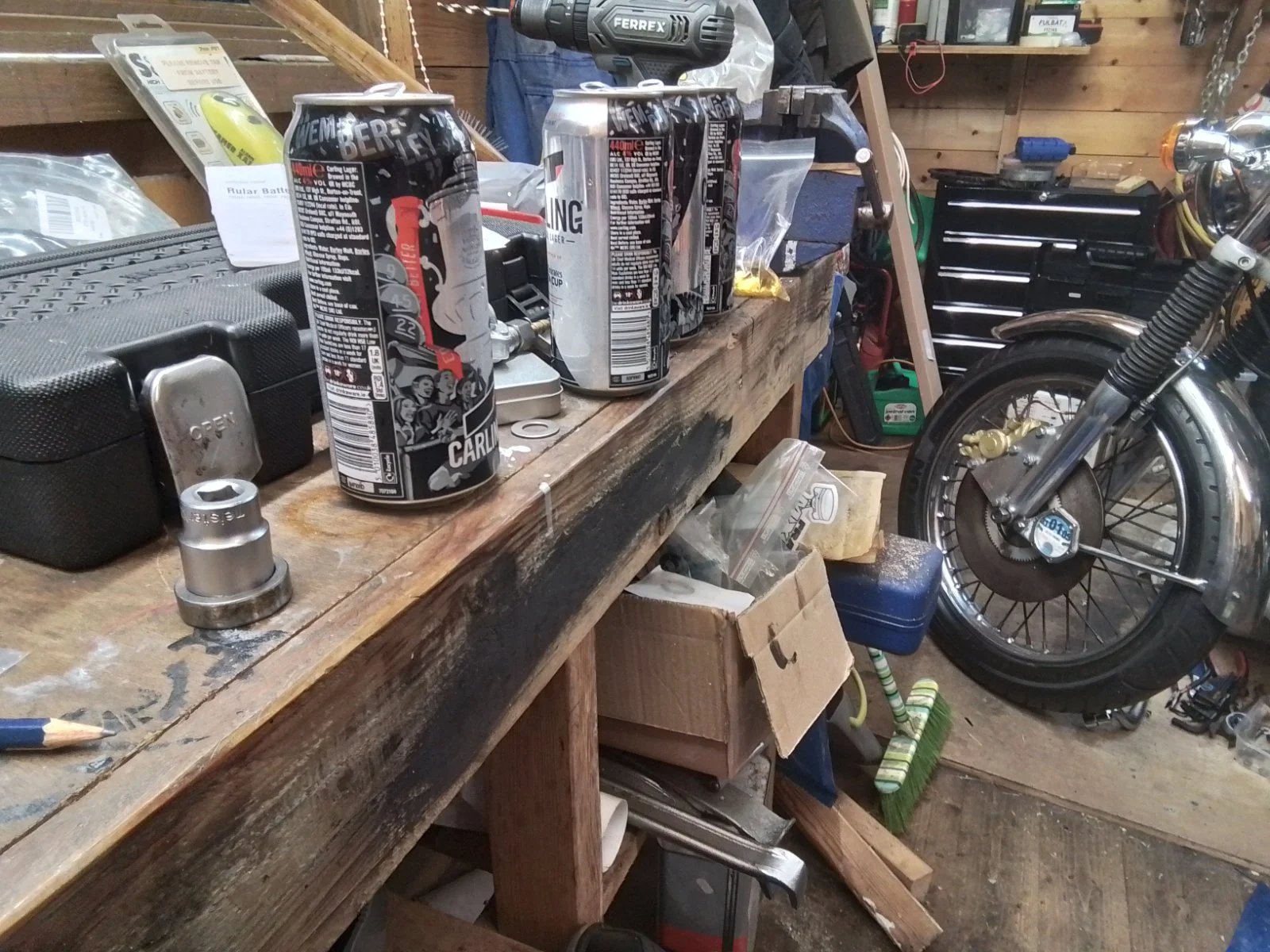

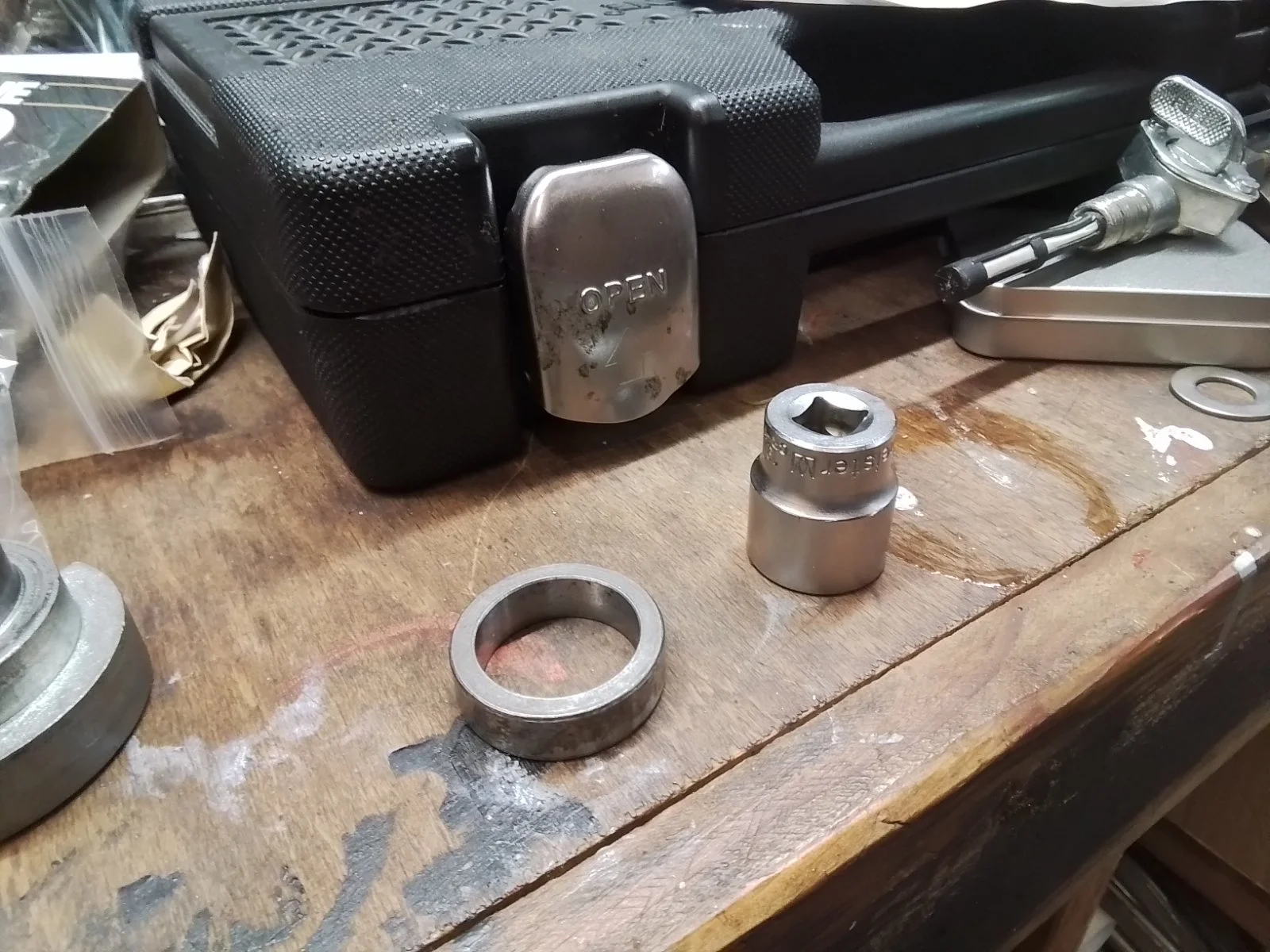

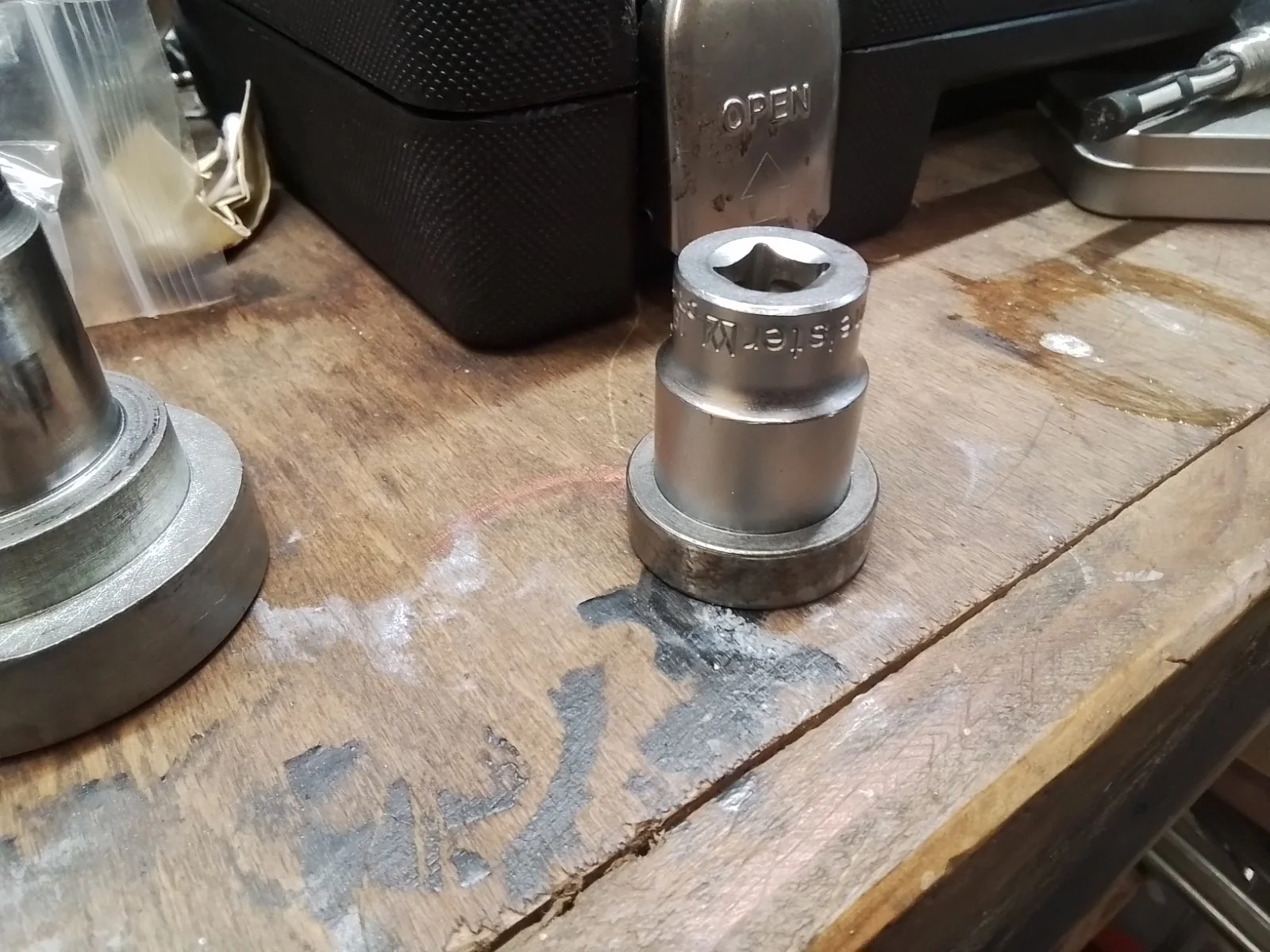

Got the answer by complete fluke last night ! Sitting at the bench with a can or 2 picked up a couple of sockets I hadn't put away . The second one went into the casing hole and caught the slightest of a lip on the bearing !! It worked. Work zone 19mm 3/8 drive. Unbelievable!!! Thanks to all. Ps put in new oil seal and it's too tight on the shaft. Ordered a different make to try. All good fun ! Roy. Ps, socket external diameter, 25.75mm. Internal diameter of bearing, 25.35mm . Pssst goes the next tin .


Attachments

  • Mk3 gearbox outer cover kickstart bearing/bush renewal.
    206.5 KB · Views: 53
  • Mk3 gearbox outer cover kickstart bearing/bush renewal.
    219.5 KB · Views: 69
Got the answer by complete fluke last night ! Sitting at the bench with a can or 2 picked up a couple of sockets I hadn't put away . The second one went into the casing hole and caught the slightest of a lip on the bearing !! It worked. Work zone 19mm 3/8 drive. Unbelievable!!! Thanks to all. Ps put in new oil seal and it's too tight on the shaft. Ordered a different make to try. All good fun ! Roy. Ps, socket external diameter, 25.75mm. Internal diameter of bearing, 25.35mm . Pssst goes the next tin .
Hey! No picture of the beer tin?
