Mk 3? kickstart lever

hayabusaman0 · Apr 17, 2017

Hi All. I believe I have a mk3 kickstart lever fitted to my Hemmings 850 Norvil. When riding, the lever moves out to the "start" position & fouls me leg!
The chrome cap that holds it on has no flats so it's not a nut, could it be a "fast fit" type push on clip?
I didn't want to get brutal with it, yet!!!! :lol:
TIA
Paul

L.A.B. · Apr 17, 2017

hayabusaman0 said:
I believe I have a mk3 kickstart lever fitted to my Hemmings 850 Norvil. When riding, the lever moves out to the "start" position & fouls me leg!
The chrome cap that holds it on has no flats so it's not a nut, could it be a "fast fit" type push on clip?

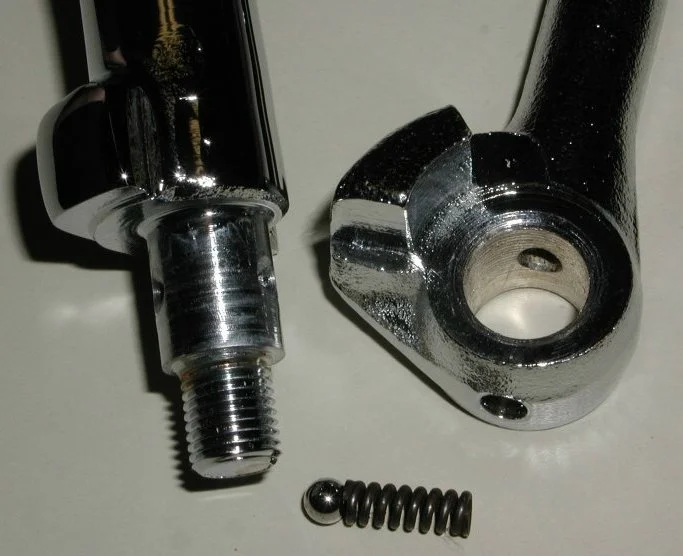

I think you have a pattern kickstart. The genuine Mk3 kickstarts have a dome nut, they also have a ball and spring to stop the arm swinging out as you describe.

https://andover-norton.co.uk/en/shop-dr ... -kickstart

L.A.B. · Apr 17, 2017

hayabusaman0 said:
The chrome cap that holds it on has no flats so it's not a nut, could it be a "fast fit" type push on clip?

Does it look as if there could be a roll pin holding the cap on?

hayabusaman0 · Apr 17, 2017

Hi LAB. No, there is not a roll pin & there is a spring/ball to keep it in position.

L.A.B. · Apr 17, 2017

hayabusaman0 said:
No, there is not a roll pin & there is a spring/ball to keep it in position.

It may just be peened, then?

disassembling-kick-start-lever-t3818.html

kommando · Apr 17, 2017

The chrome cap that holds it on has no flats so it's not a nut

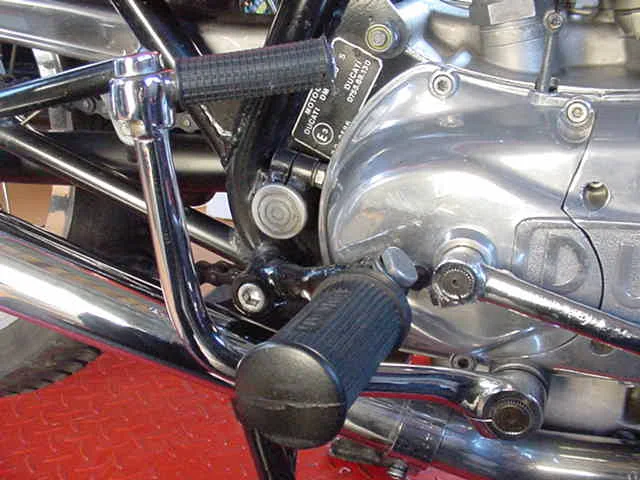

There were some Italian pattern ones made some years ago and they had a round cap with no flats pressed on similar to a Ducati kick lever.

http://www.webgrafex.com/roundcase/duca ... evers.html

hayabusaman0 · Apr 17, 2017

The disassembling-kick-start-lever-t3818.htmlThe photo by arc - last quote on the link is exactly like mine. Do we know if he got it apart?

L.A.B. · Apr 17, 2017

hayabusaman0 said:
The photo by arc - last quote on the link is exactly like mine. Do we know if he got it apart?

I don't remember hearing any more about it.

hayabusaman0 · Apr 17, 2017

Thanks LAB
I've PMd arc.

Cheers
Paul

hayabusaman0 · Apr 18, 2017

Evenin All. The kickstart problem has been solved! I wore a decent pair of glasses(silly ol b'stard as my son says)! :lol: Upon a closer look, there is a circlip under the chrome dished washer, removed that & hey presto all was revealed!
Thanks to everyone for their input.

Paul
