Danno said:
Gives new meaning to "Green Globe".
Click to expand...

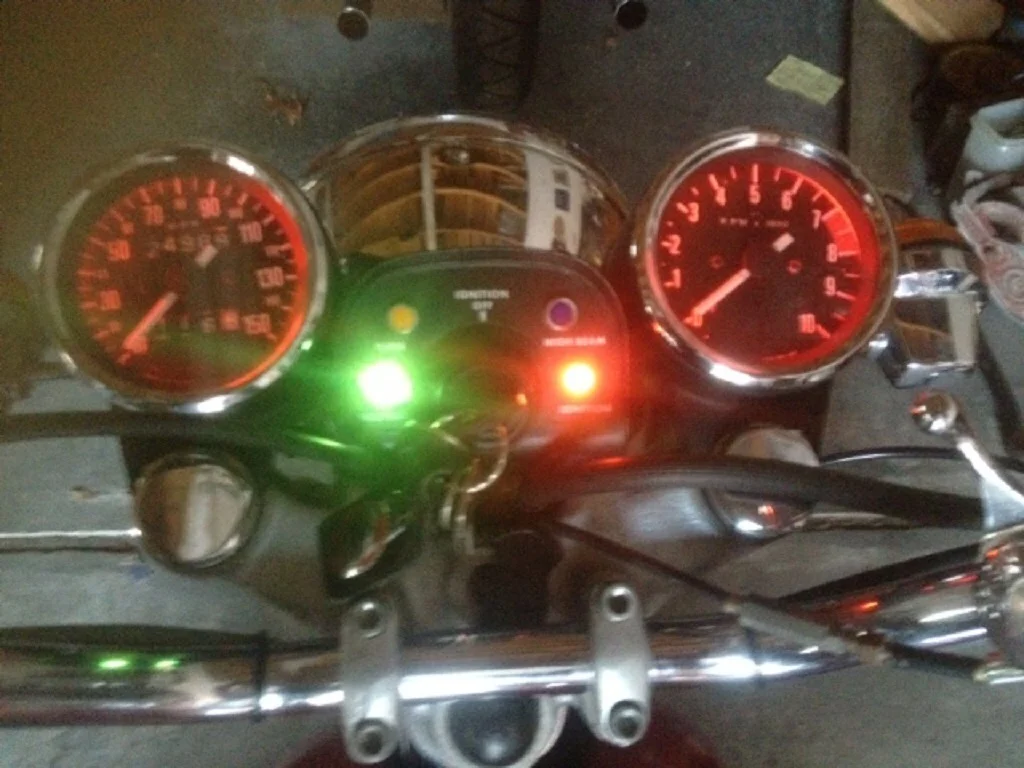

That's what I was trying for. It still shines more on one side than the other though, even with the multi leds
More like a "crescent" of light than a "globe".
It's not bad in the dark though just not as bright as the white leds I tried before I bought the green ones.

Last edited:

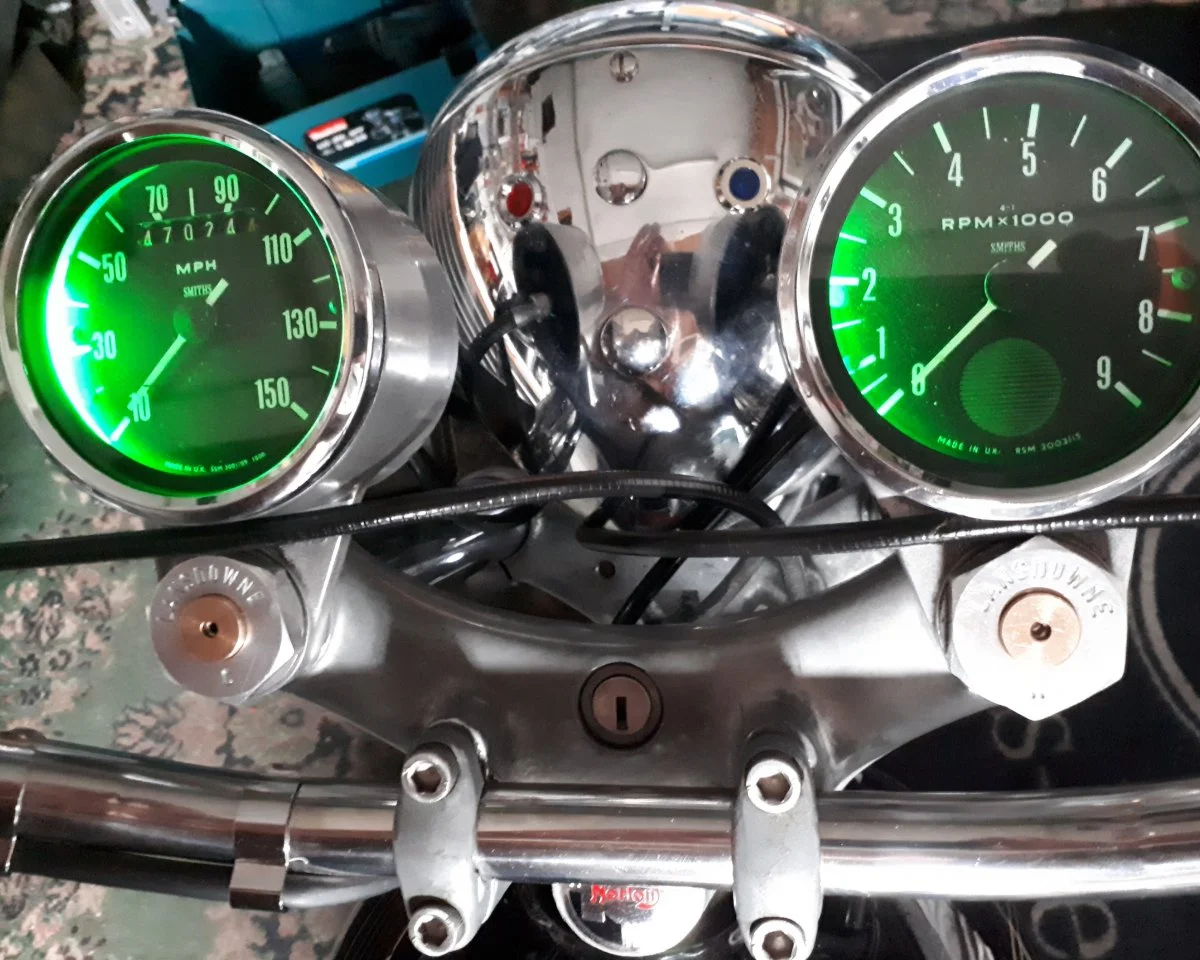

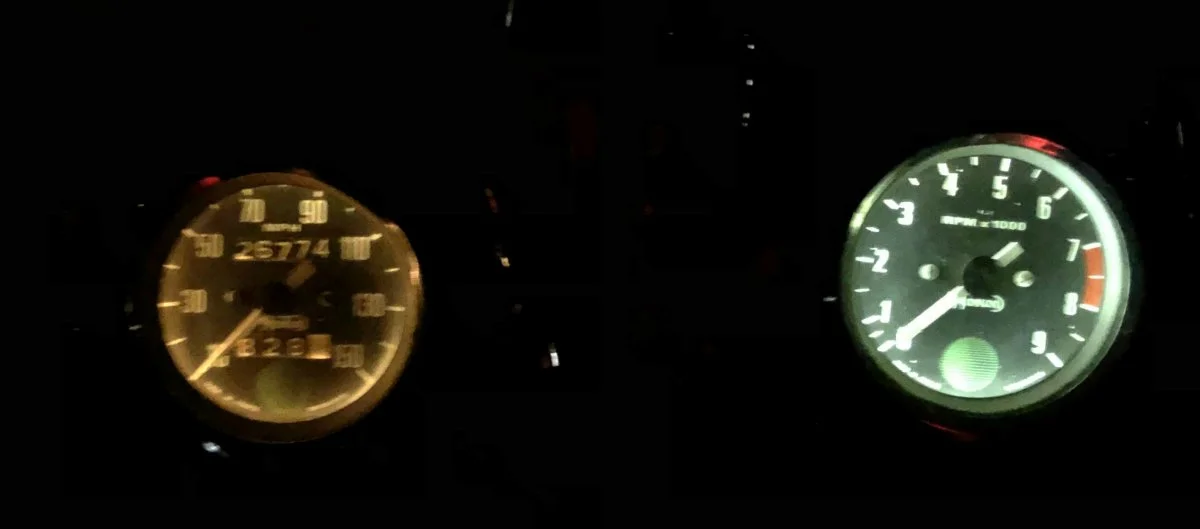

Just added some LED BA9s to brighten the clocks - work well, see pics.

Came from these folks - http://www.dynamoregulatorconversions.com/led-bulbs-especially-for-motorcycles-shop.php

From previous experience fitting LEDs in classic car clocks you need the bright ones with a diffuse spread, hard to tell which will work from the eBay fodder.

Am tempted to go green though...

LED instrument bulbs

Nice. But those BA9's are the bayonet mount while my Smiths speedo uses the wedge mount bulb. Anyone know what the designation for them is?

If they are the T10s ( I'm not sure If they are the fitment for other clocks) they are even easier as you don't have to worry about polarity you can just rotate them.

I am using a Positive earth System.
Doesn’t matter with wedge bulbs, you can just flip them around in the bulb holder as long as the holder doesn’t ground to anything else.

Note there are polarity insensitive LEDs (work in either direction of current flow) for most every application now. Just check the specs on what you're buying.
