Leak proof fork seal which side up?
- Thread starter cbacejr
- Start date
- Status
- Joined
- Sep 26, 2009
- Messages
- 2,210
Up.
- Joined
- Dec 28, 2009
- Messages
- 5,421
Wierd thing is they need to "float " up and down freely in the bore. Just a tad. Mine have never leaked a drop. Filed a few (4) notches in top of the bushing to acomodate oil travels and movement for them. No washers , circlip or paper gasket required. Oil seal and push in gently by hand only.
- Joined
- Sep 26, 2009
- Messages
- 2,210
Makes me smile when i see the discription "leak proof" surly all seals should be "leak proof"? and "stay up floats" compared to what?
Never been in a shop for wellie's and the the guy asked " which sort would sir require...waterproof ones ? :lol: Nar....give me the ones that leak!!
Never been in a shop for wellie's and the the guy asked " which sort would sir require...waterproof ones ? :lol: Nar....give me the ones that leak!!
ashman
VIP MEMBER
- Joined
- Jul 11, 2010
- Messages
- 6,001
Leak proof seals, any seals will leak when they get old and hard or any damage even the leak proof ones, I did use them once and found they failed quicker than nomal fork seals, but since putting gaiters on my forks I haven't had any problems with leaking fork seals.
Ashley
Ashley

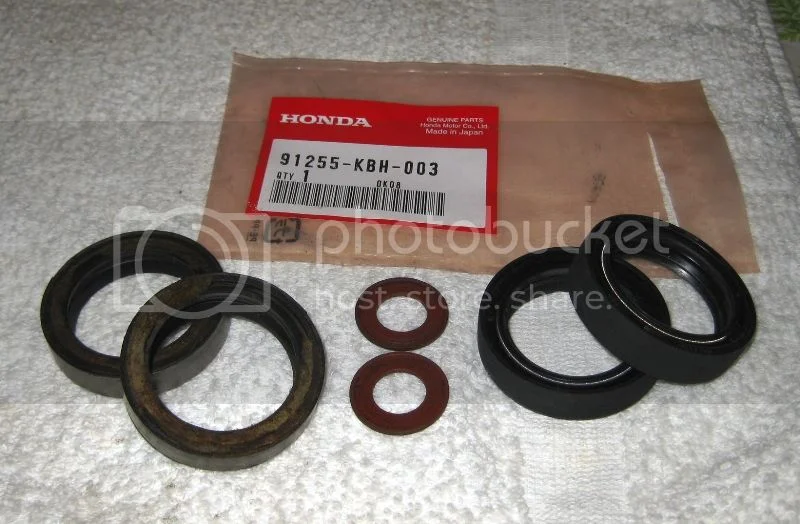

Original seals on the left (see the paper washer), Honda parts on the right.
The Honda seals need to have the outside diameter rubber coating turned down just a bit.
While you are into the forks, check/replace the red fiber washer way down in the bottom of the slider.
The Honda seals need to have the outside diameter rubber coating turned down just a bit.
While you are into the forks, check/replace the red fiber washer way down in the bottom of the slider.
Nater_Potater
VIP MEMBER
- Joined
- Apr 7, 2013
- Messages
- 1,342
john robert bould said:
You make me laugh! Like "New and Improved"; how could it be improved if it's new?
- Joined
- Dec 28, 2009
- Messages
- 5,421
Never found any stiction issues with them ...maybe the extra oil pathways slots I cut into top of the bushes helped. They are designed to move a wee bit up or down in the holder fork leg bores with the compression or relaxations of fork travels. I use Synthetic fork oil now.
- Joined
- Dec 28, 2009
- Messages
- 5,421
I think it was Lucas Synthetic 15W fork oil. 2 years back now , not a drop leaked so far and no stiction issues. These are good seals if left to move on their own.
- Joined
- Sep 26, 2009
- Messages
- 2,210
More often is the wear in the slider ,ie dragging on the "Iron" lower bush that gives the feel of sticking. i have now got all the equipment to ream out the sliders and fit .005 thou oversize bushs in PEEK ..just completed a pair of Seeley forks..must admit they feel good..
Again i repeat...when the sliders wear the lower bush gets trapped in the slider on braking..after 40 years the forks do wear..i have seen 5-8 thou common. You know the score.. New bush tight at the top going in, and slack in the centre. :twisted:
Again i repeat...when the sliders wear the lower bush gets trapped in the slider on braking..after 40 years the forks do wear..i have seen 5-8 thou common. You know the score.. New bush tight at the top going in, and slack in the centre. :twisted:
- Joined
- Feb 12, 2013
- Messages
- 1,559
I last fitted a set of seals provided to me by Bob Nesbit. They were quite soft, with no solid outer and had 2 lips on both ID and OD. They were slightly tricky to fit, but have never leaked. The only problem I found with them was that I ended up with rust spots on my staunchins after a long trip one time and through a small amount of rain. Just goes to show you why the brits designed bikes to leak oil. I run hydraulic oil in both my Commando's.
Dereck
Which reminds me, I have to make up a decent funnel for replacing the oil next time. Could be made using an oil top nut.
Dereck
Which reminds me, I have to make up a decent funnel for replacing the oil next time. Could be made using an oil top nut.
