G15 side stand spring rear point?

Can anyone tell me where the spring attaches to at the rear? Thanks

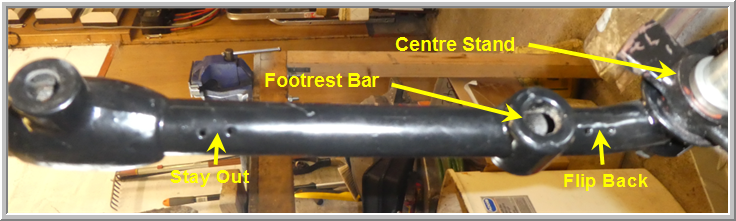

I don't understand your question. Did you mean center stand? The side (prop) stand has one spring only which hooks onto two small holes at the rhs. lower rail just behind the upward bend. The corresponding spring attachment point is at the rhs of the stand, ensuring a CCW force couple at the pivot point.

I hope this helps.

- Knut

(Picture copied from the Forum of AJS/M Owner's Club)

Sorry for the confusion, I'm looking for the point at which the side stand spring connects to. One spring. I can clearly see the point on the stand. My frame does not have those holes in it, this bike (1968) was in boxes when I picked it up. There was a new spring that came with it, but it would be too long to go in that location. I'll look to see if this is the wrong spring.

Hortons Norton said:

Sorry for the confusion, I'm looking for the point at which the side stand spring connects to. One spring. I can clearly see the point on the stand. My frame does not have those holes in it, this bike (1968) was in boxes when I picked it up. There was a new spring that came with it, but it would be too long to go in that location. I'll look to see if this is the wrong spring.

Click to expand...

mdt-sons' picture clearly shows the frame spring mounting holes. Clean this area well and you will uncover the holes which are probably full of road grime. I have never seen a frame with out them. The stock spring has a squared off end to match these holes.

Thanks guys, the holes were hard to see in the garage this morning.
