Fuel pump plate o ring on Norton 961

rod frost

VIP MEMBER
Joined
Nov 9, 2017
Messages
29
Country flag
Where do you find a fuel pump o ring for a 2015 Norton 961 ( with only 420 miles on it) ?
I've been noticing a very small leak around the screws on the fuel pump plate, very small and only after a ride, not when it's setting ... I contacted AF1 Racing on the part and they put a call into Norton ... AF1 are thinking you can't get the o ring separate from the pump? Any help?
Thanks!

Last edited:
Joined
Aug 17, 2015
Messages
552
Country flag
Well, when I changed the fuel pump on my 961 - had an accident and damaged the tank-, I was asking Norton UK for a new gasket and was told that you don’t need to change it. I just reused the old one.
May be your problem will be solved by properly cleaning the gasket?


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,040
Country flag
Perhaps the screws are loose or the fuel line connector is leaking. If it’s not leaking while sitting, I’d think it’s coming from the connector. If the base o ring was leaking it most likely would be leaking all the time. Even when parked.


BLIGHTYBRIT/SF

VIP MEMBER
Joined
Feb 28, 2016
Messages
990
Country flag
Perhaps the screws are loose or the fuel line connector is leaking. If it’s not leaking while sitting, I’d think it’s coming from the connector. If the base o ring was leaking it most likely would be leaking all the time. Even when parked.
I needed the red plastic fuel spigot,only comes with a whole new pump ( over £300 ) , turns out its from a moto guzzi V7 so managed to source one for bout £25 from an independent Italian specialist , so what ever Part u need go down that road ,I agree bout refitting gasket & cleaning it up if req ,but also makes sense that it prob on fuel line connector or some part under pressure

Joined
Jan 16, 2015
Messages
3,240
Country flag

Gasket Fuel Pump Assembly
FUA01490 £31.10 INC VAT
£25.92 EX VAT


Rubber gasket for sealing fuel pump to fuel tank



quantity
add to basket
1 in stock

01107490 GU01107490 01 10 74 90
0110 7490 0110.7490 01.10.74.90

Also fits Aprilia Dordsoduro (2008-2015), Aprilia Shiver (2007-)



Is this it ? I went to Gutsibits in UK for the spare spigot like Blightybrit suggested . Send in a picture of the o-ring and go to gutsibits in uk website.

Last edited:
Joined
Jan 16, 2015
Messages
3,240
Country flag
| Used Fuel Pump Assembly
FUG06200 £168.00 INC VAT
£140.00 EX VAT

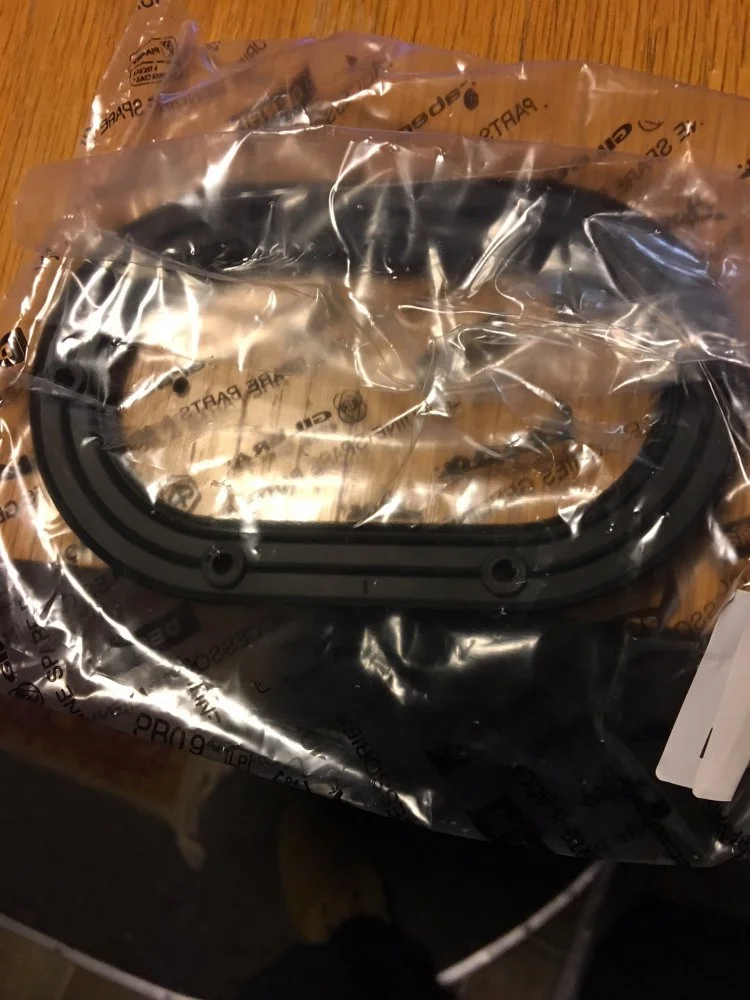

Example photo for illustration only Complete fuel pump assembly including the plate that mounts to the fuel tank


6 month warranty on this part We are still working on listing our used stock, please call or enquire to check availability of this part

06107200 GU06107200 06 10 72 00
0610 7200 0610.7200 06.10.72.00

Does this match your pump ? Send some photos . Contact Gutsibits


rod frost

VIP MEMBER
Joined
Nov 9, 2017
Messages
29
Country flag

Gasket Fuel Pump Assembly
FUA01490 £31.10 INC VAT
£25.92 EX VAT


Rubber gasket for sealing fuel pump to fuel tank



quantity
add to basket
1 in stock

01107490 GU01107490 01 10 74 90
0110 7490 0110.7490 01.10.74.90

Also fits Aprilia Dordsoduro (2008-2015), Aprilia Shiver (2007-)



Is this it ? I went to Gutsibits in UK for the spare spigot like Blightybrit suggested . Send in a picture of the o-ring and go to gutsibits in uk website.
Wow Thanks! that sure looks like the o-ring. I've never had a low mile bike with a problem, so I'm thinking this is a small thing... Again it only happens after a ride and only a few drops and that's it, the corrections look dry just the screws are a little wet.

Last edited:
Joined
Jan 16, 2015
Messages
3,240
Country flag
Wow Thanks! that sure looks like the o-ring. I've never had a low mile bike with a problem, so I'm thinking this is a small thing... Again it only happens after a ride and only a few drops and that's it, the corrections look dry just the screws are a little wet.
You may want to apply some Blue Hylomar to the o-ring joint (both sides) before assembly .

Joined
Sep 26, 2017
Messages
180
Country flag
Where do you find a fuel pump o ring for a 2015 Norton 961 ( with only 420 miles on it) ?
I've been noticing a very small leak around the screws on the fuel pump plate, very small and only after a ride, not when it's setting ... I contacted AF1 Racing on the part and they put a call into Norton ... AF1 are thinking you can't get the o ring separate from the pump? Any help?
Thanks!
Is it a unique shaped ring? Never had mine off.

Joined
Jul 27, 2006
Messages
7
Country flag
My 2015 did the same with 1100 miles. After removing the tank and the pump Assy. I noticed the tank warped between two of the bolts causing a low spot. I built the area up with some sealant we use on fuel systems in the aviation field. The gasket was still good. Looking at the photo my gasket was a thick single o'ring that fits in a recessed channel on the pump housing.

2018 CVO RoadGlide
2015 Yellow 961
1973 750 Commando

Joined
Jan 16, 2015
Messages
3,240
Country flag
Does it look like the one in the picture above ? Can you tell us what the sealant was and where to get it ? I suggested to use Blue Hylomar .

Joined
Jul 27, 2006
Messages
7
Country flag
Does it look like the one in the picture above ? Can you tell us what the sealant was and where to get it ? I suggested to use Blue Hylomar .
No it's a circular ring O'ring that is oval shaped to the shape of the fuel pump housing. The sealant I used is made by PPG and goes by the part # PRC 1422 B2. This is used in aircraft fuel tanks to seal the joints.I know Aircraft Spruce has it and I'm sure you can locate it locally. It has a shelf life and most repair stations like mine dispose of it after its self date.That being said check around your local maintenance shops at the airport. It may be had for next to nothing.

Joined
Jan 16, 2015
Messages
3,240
Country flag
Circular in section . OK , Maybe Gutsibits will have that one as well . Does this sealant harden ? Can it be applied and then disassembled again later. Thanks for the information .

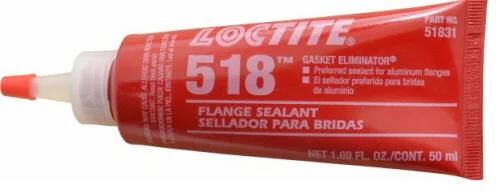

Loctite 518 Flange Sealant for Fuel Pump O-Ring (MSC88546148)

Loctite 518 Flange Sealant for Fuel Pump O-Ring 50mL.

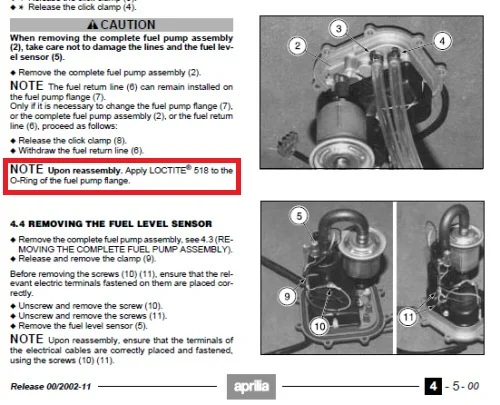

This is the Aprilia recommended material to put on the fuel pump flange O-ring anytime you have to remove your fuel pump from any of the following models:

  • '09-'17 RSV4 (all variants)
  • '16-'17 Tuono V4 1100 (all variants)
  • '11-'15 Tuono V4
  • '06-'10 Tuono
  • '04-'09 RSVR, RSVR Factory
  • '00-'03 Falco
  • '01-'04 Futura
  • '01-'07 CapoNord
  • '14-'17 Caponord 1200
  • '16-'17 Caponord 1200 Rally
  • '18 Dorsoduro 900
  • '09-'16 Dorsoduro 750
  • '11-'13 Dorsoduro 1200
  • '02-'05 Tuono
  • '98-'03 Mille, Mille-R
  • '06-'11 SXV, RXV 4.5 / 5.5
  • '18 Shiver 900
  • '07-'15 Shiver
Please note that this sealant can not take up gaps greater than 0.50mm. If you apply this sealant and the fuel tank leaks, you probably have a warped fuel tank.




From AF1 website..

Last edited:

rod frost

VIP MEMBER
Joined
Nov 9, 2017
Messages
29
Country flag
I'm a little confused, isn't the O ring in question, the (oval) rubber ring seated by the screws?

Joined
Jan 16, 2015
Messages
3,240
Country flag
Yes , But the use of this sealant may be a good idea when you reassemble , fills gaps etc.

Last edited:
Joined
Jul 27, 2006
Messages
7
Country flag
If you would like a good picture of the fuel pump seal,go to the 961 work shop manuals on the Colorado Norton works page. Select fuel tank components and scroll down. It's just a circular oval shaped seal in a machined groove.


2018 cvo RoadGlide
2015 961 SF Yellow
1973 750 Commando Roadster


rod frost

VIP MEMBER
Joined
Nov 9, 2017
Messages
29
Country flag
Thanks Tony, I picked up an O ring but it doesn't look the same... I got a hold of AF1 parts, they called Norton but got no help from them. I'm going to send him this Fuel Pump photo of Richard-7 and see what they find.
.


rod frost

VIP MEMBER
Joined
Nov 9, 2017
Messages
29
Country flag
AF1 Parts said this is the O ring .

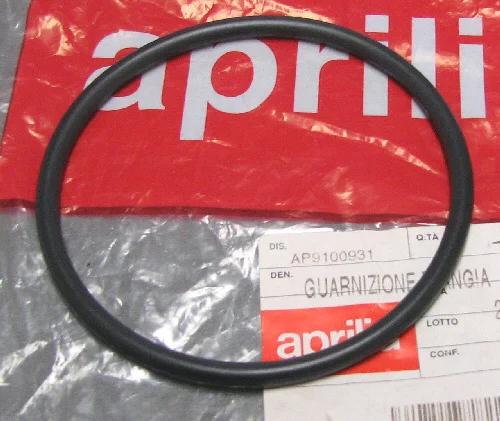

OEM Aprilia O-Ring -9100931 (AP9100931) $50.14!! I rode the bike yesterday no drip all went well,hope it just goes away, but whats the odds of that happening...
