fuel line fittings

maylar

VIP MEMBER
Joined
May 13, 2007
Messages
3,842
Country flag
Is there such a thing as a fitting that will attach to the carb fuel line connectors, with a 1/4" barb on the other end? I'm looking to connect an auxiliary fuel supply to my carbs without taking the fuel lines off.

TIA


Derek Wilson

VIP MEMBER
Joined
Jun 25, 2004
Messages
460
Country flag
Check here - couple of different barb sizes available. You want 1/4" BSP.



marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
1,387
Country flag
Check here - couple of different barb sizes available. You want 1/4" BSP.

Am I reading it right that 545K116 is for ~5/16" ID (8mm) hose and the threads are the same as those on a petcock? Also, 545K114 is the same except for ~1/4" ID (6mm) hose?


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
16,886
Country flag
I'm looking to connect an auxiliary fuel supply to my carbs without taking the fuel lines off.

How, exactly?

Do you mean a fitting that can be attached to the fuel line tap/petcock 1/4 BSP nut (it isn't BSPT) after the nut has been disconnected?


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
3,842
Country flag
How, exactly?

Do you mean a fitting that can be attached to the fuel line tap/petcock 1/4 BSP nut (it isn't BSPT) after the nut has been disconnected?
Yes. Disconnect the nuts from the tank, remove the tank, and connect hoses with (BSP?) fittings to the carb lines.


Derek Wilson

VIP MEMBER
Joined
Jun 25, 2004
Messages
460
Country flag
Yes. Disconnect the nuts from the tank, remove the tank, and connect hoses with (BSP?) fittings to the carb lines.
I had a second look, these might work better - They are BSPP, like the petcocks



marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
1,387
Country flag
Fortunately, I called McMaster-Carr, cancelled the wrong ones and added the right ones. The are twice as expensive but I will finally have the temp gas tank I've been wanting! Ordered a "Y" adapter too so now I'll be able to connect a standard remote tank to the two fuel lines.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
15,764
Country flag
These fittings should really have a female taper. If they haven’t they’ll most likely still work, with care. But do ensure you don’t over tighten them otherwise you could easily damage the male taper on your fuel line fitting and cause leaks when the tank is fitted.

Last edited:

maylar

VIP MEMBER
Joined
May 13, 2007
Messages
3,842
Country flag
Fortunately, I called McMaster-Carr, cancelled the wrong ones and added the right ones. The are twice as expensive but I will finally have the temp gas tank I've been wanting! Ordered a "Y" adapter too so now I'll be able to connect a standard remote tank to the two fuel lines.
What did you get for the Y adapter?


marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
1,387
Country flag
A 1/4" plastic "T" Supposed to arrive today from McMaster-Carr and the aux tank from Amazon tomorrow. I'll report what works and what doesn't.

Joined
Mar 14, 2021
Messages
64

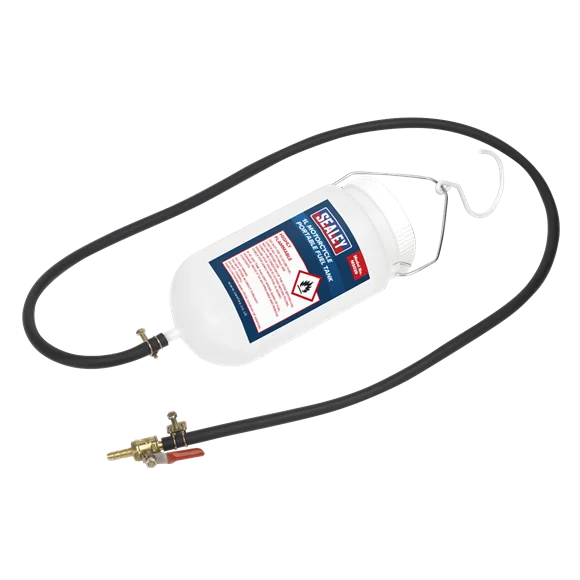

I have one of these:






I took the silly little valve they supply it with off, and fitted a standard petcock the same as I have on the bike.
So I just screw the 1/4" BSP connector straight on.

The fuel flow is enough to feed both carbs, so if the tank is still on, I can just leave the other petcock attached but turned off.

If the tank is off, I just connect a spare petcock to the other side and leave it closed.


marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
1,387
Country flag
I have one of these:






I took the silly little valve they supply it with off, and fitted a standard petcock the same as I have on the bike.
So I just screw the 1/4" BSP connector straight on.

The fuel flow is enough to feed both carbs, so if the tank is still on, I can just leave the other petcock attached but turned off.

If the tank is off, I just connect a spare petcock to the other side and leave it closed.
Crap! Simple solutions sometimes escape me! Oh well, I'll have a fancy version soon.
