Hi all

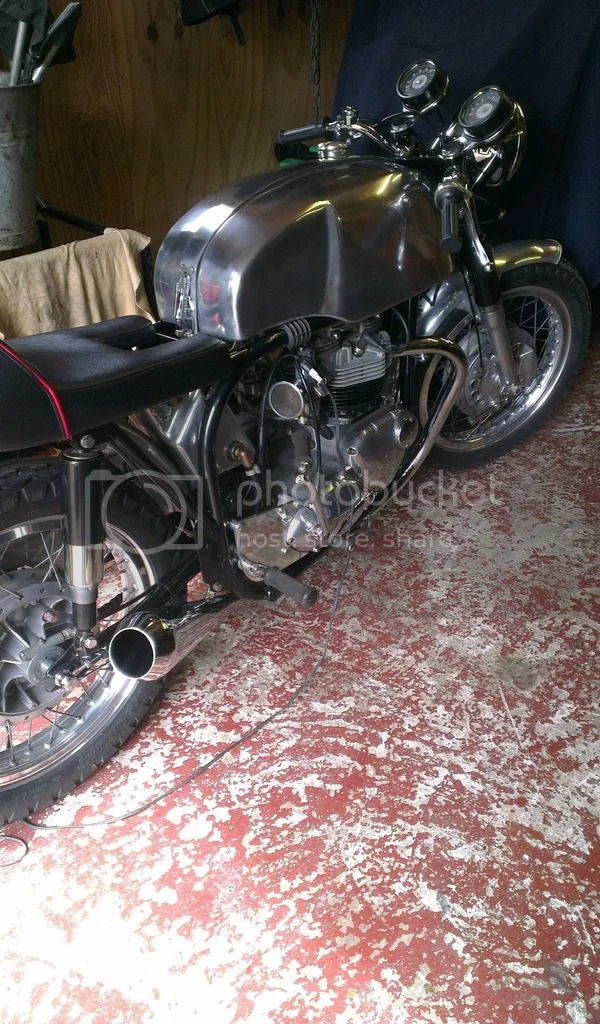

I'm new here finally got myself a Triton :D

Finally got one


Will do some better pictures on a sunny day later 8)

As with everything you buy there's always problems, most niggly and I've sorted them,
but the front mudguard was rubbing on the tyre so took it off to investigate and noticed she's got odd fork legs on :roll: :roll: :evil: didn't notice when I made the purchase :oops:
So has anyone got a leg kicking about (no pun intended)

Finally got one

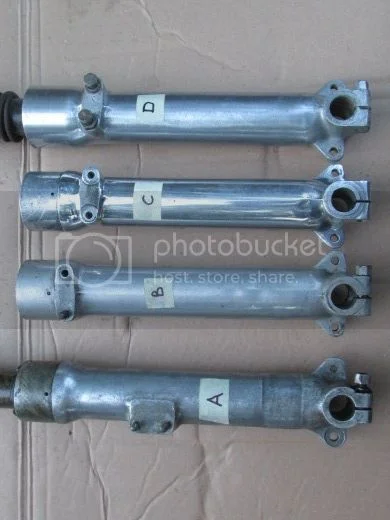

I have type B on the brake side (right) and type C pinch bolt side (left) I would prefer to change the pinch bolt side for a type B or change them both for the type D.

Many thanks in advance I'm based near Sudbury in Suffolk

The tea-strainer gauze on the bellmouth looks restrictive.

Could lead to gross richness at full throttle at high rpm.

Triton Thrasher said:
The tea-strainer gauze on the bellmouth looks restrictive.

Could lead to gross richness at full throttle at high rpm.

Cheers I will bear it in mind and check :D

Rocker said:
Hi all
I'm new here finally got myself a Triton :D

Will do some better pictures on a sunny day later 8)
As with everything you buy there's always problems, most niggly and I've sorted them,
but the front mudguard was rubbing on the tyre so took it off to investigate and noticed she's got odd fork legs on :roll: :roll: :evil: didn't notice when I made the purchase :oops:
So has anyone got a leg kicking about (no pun intended)
Finally got one


I have type B on the brake side (right) and type C pinch bolt side (left) I would prefer to change the pinch bolt side for a type B or change them both for the type D.
Many thanks in advance I'm based near Sudbury in Suffolk
You should have only ONE pinch bolt fork leg on the front forks.

Bernhard said:
Rocker said:
Hi all
I'm new here finally got myself a Triton :D

Will do some better pictures on a sunny day later 8)
As with everything you buy there's always problems, most niggly and I've sorted them,
but the front mudguard was rubbing on the tyre so took it off to investigate and noticed she's got odd fork legs on :roll: :roll: :evil: didn't notice when I made the purchase :oops:
So has anyone got a leg kicking about (no pun intended)
Finally got one


I have type B on the brake side (right) and type C pinch bolt side (left) I would prefer to change the pinch bolt side for a type B or change them both for the type D.
Many thanks in advance I'm based near Sudbury in Suffolk
You should have only ONE pinch bolt fork leg on the front forks.

Hi Bernhard thanks for the reply but just to clear up any confusion the picture is from the internet showing the different types, they are not mine.
I was using the picture to show the two sliders I have fitted :mrgreen:

Maybe "recent" pattern parts was the wrong thing to say.

I bought them in the early 1990s, from Les Emery's catalogue. They were in Norton packaging and full of swarf. At that time, I had to buy those and file the brake side slider to make room for the wheel of a 1957 99. It was something like they only had one sort of slider set to fit forks of different yoke width.

It was something like that, my memory isn't perfect.
