ever had this happen?

clutch basket with the thick bottom plate held in by 4 roll pins.
one roll pin begins to work it's way out and begins to tear up the aluminum Barnett plate like it's a milling cutter. Aluminum particles everywhere.

seattle##gs said:

4 roll pins.

Click to expand...

Normally 2 roll pins.

seattle##gs said:

one roll pin begins to work it's way out and begins to tear up the aluminum Barnett plate like it's a milling cutter. Aluminum particles everywhere.

Click to expand...

Probably one of the reasons why later back plates were riveted.

definitely 4 pins in this one. If I can figure a way to lock them in permanently it is still a good basket. I replaced it with the riveted variety.

seattle##gs said:

definitely 4 pins in this one. If I can figure a way to lock them in permanently it is still a good basket. I replaced it with the riveted variety.

Click to expand...

It is normally an easy fix if worn with oversize 3.5 mm roll pins to replace the stock 1/8" / 3.175 mm items , clamp the plate at installation and Loctite.

This is a repaired early basket, good for another 50 years.

Roll pin basket.


Rivet basket (which has the early plate anyway)

Time Warp said:

It is normally an easy fix if worn with oversize 3.5 mm roll pins to replace the stock 1/8" / 3.175 mm items , clamp the plate at installation and Loctite.

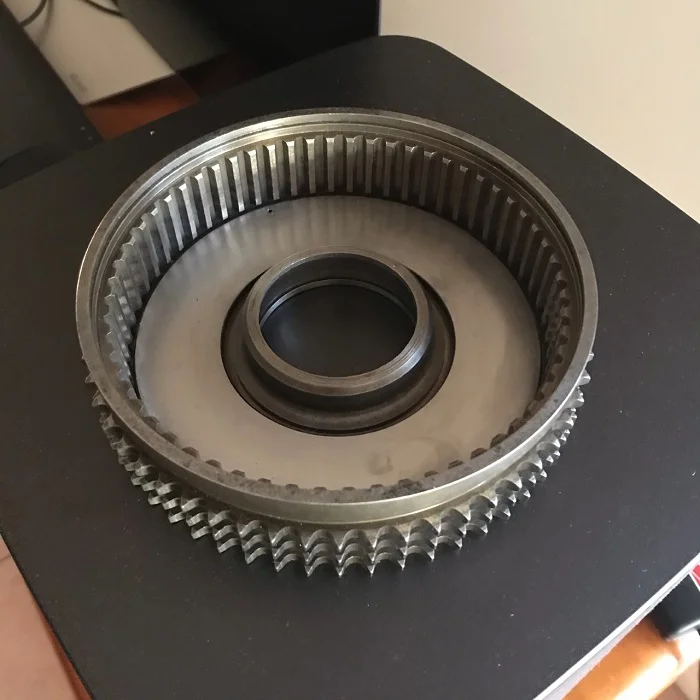

This is a repaired early basket, good for another 50 years.
View attachment 79761

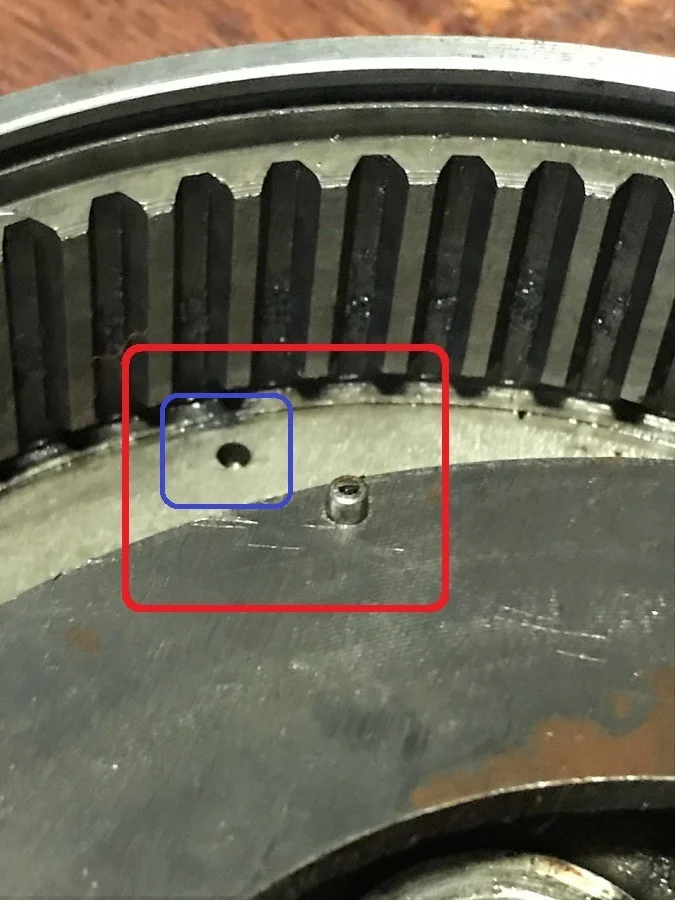

Roll pin basket.
View attachment 79759

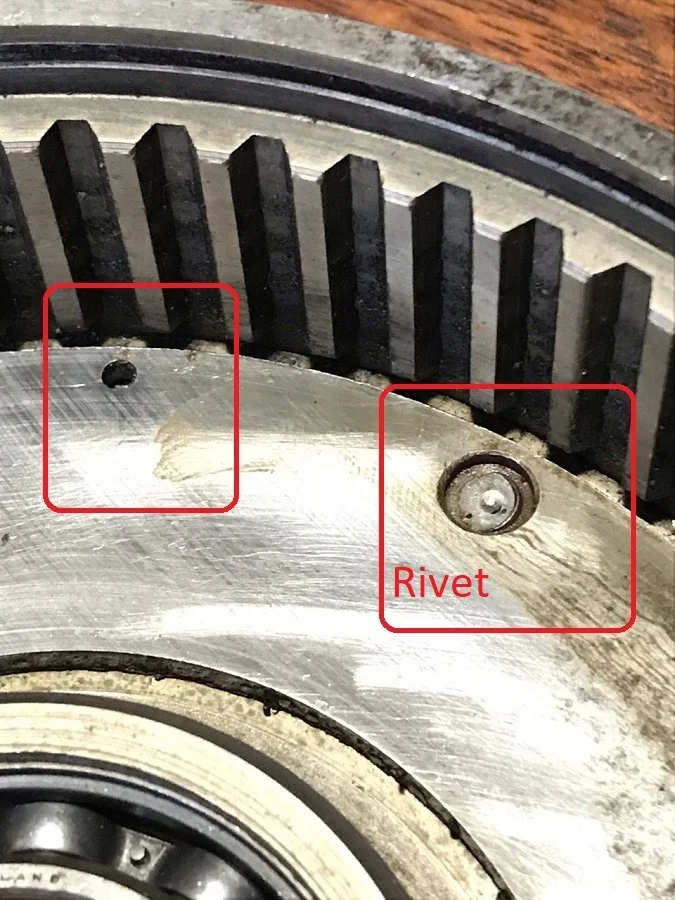

Rivet basket (which has the early plate anyway)
View attachment 79760

Click to expand...

Hi This happened to my 1969 F/B many years ago before computers made parts easy to find. I just put the plate in the correct position using the old roll pins ( you can`t drill through the basket easily as the back/outside is flame hardened and will destroy your drill bit trying to break through) clamped it with 3 good boilermaker clamps and put 3 welding tacks on the inside (just little ones) ,placed it in a 3 jaw chuck in the lathe and skimmed it with a boring bar almost flush (just leaving a witness mark). I doubt i removed any more than 0.004 thou off. Still good 30 plus years on. Cheers.

Why not use the holes to locate the plate and J-B weld it on. with proper surface prep it would be easy. Cleaned and roughened surfaces with J-B weld ( not the quick setting type) will hold up to oil and the small amount of heat the drum will get to.

When I was drag racing I had a broken away plate, at a bout 90 MPH the My S model was going into a high speed wobble. Luckily I over heard another racer talking about a wobble he had and he said it was due to his clutch being out of balance, So I picked up on the info and had it welded it in. But It is hard to do with the limited room and dealing with the hardened materials.

I use J-B on all sorts of things and save time and money on the repairs. And it works like a champ. . Carl H

It looks doable. I certainly won't throw it away.

What ever you do don't bodge it with JB Weld, all you need is new roll pins. (stock or oversize)

There are a lot of riveted baskets out there (I have 3) for sale. I would update that so you aren't forced to fix it when you don't want to!

Time Warp said:

What ever you do don't bodge it with JB Weld, all you need is new roll pins. (stock or oversize)

Click to expand...

" ...... all you need is new roll pins. (stock or oversize)" , and red Loctite. If they ever need to be removed, heat to 450F and tap out.

I've got maybe 6 more baskets on the shelf, probably last me a lifetime.
