Domi Naked major service and upgrades

Joined
Feb 10, 2020
Messages
100
Country flag
Hey up Fellas
Hows it going? New Norton Owner here and wanted to introduce myself!

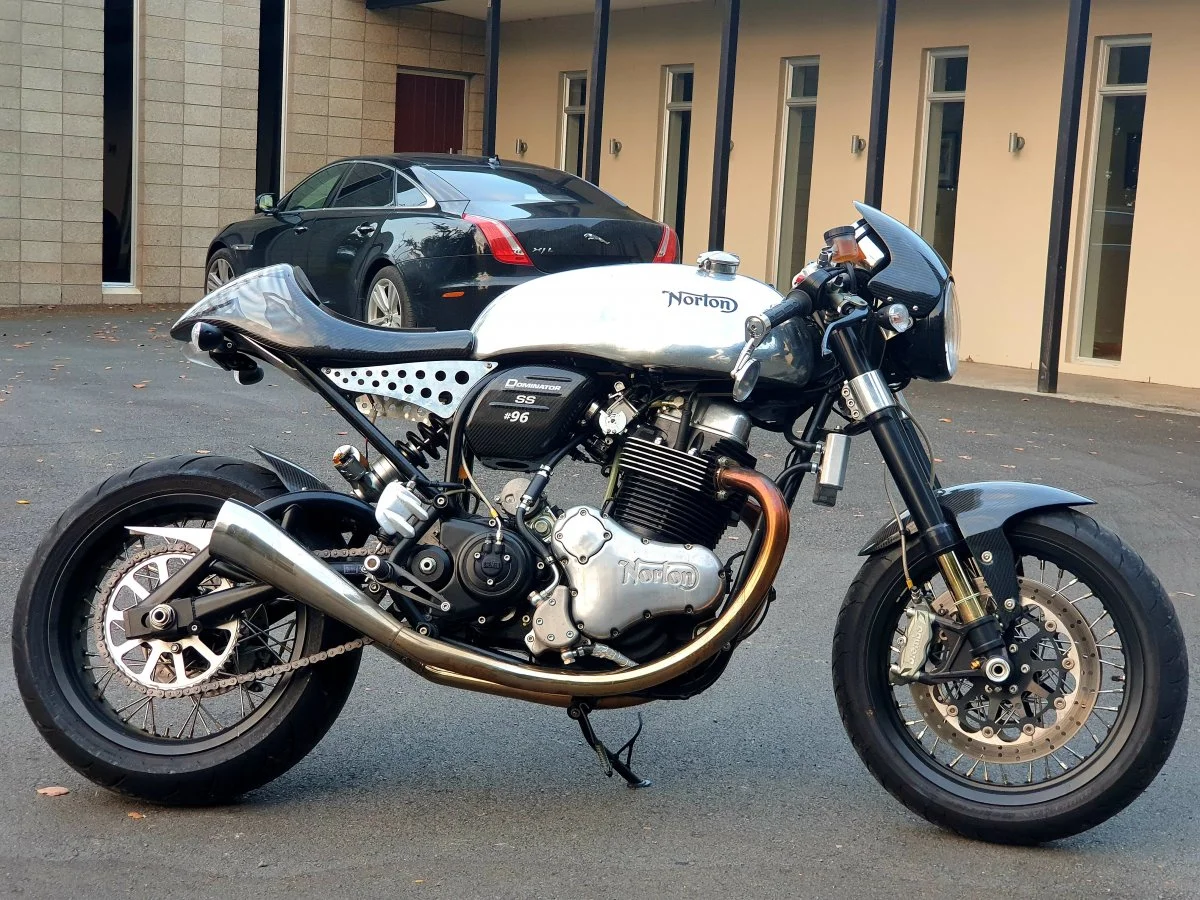

I bought my Domi Naked dream machine a month ago now over here in CA. [even though I couldnt ride it due to having my shoulder surgury] so just been looking at it and figuring out what I have got, and what it needs? The bikes pristine with 800 miles and runs FANTASTIC on the small test ride I managed.
After reading a lot of your storys and tips. [Thanks to Richard, Dave and Scott for advice, John for manual] I'm gonna start work on it this week and do the major first service inc head torque and valves, brake overhaul, fresh rubber, any recommended updates.
Just starting to figure out the parts aint easy to come by with no factory, or parts breakdown or part nos?
Heres my parts list so far, I think I'm right, but feel free to correct me or add anything, So looking for USA suppliers if poss?

4 x10/40 semi syn oil....the one thing thats easy haha!

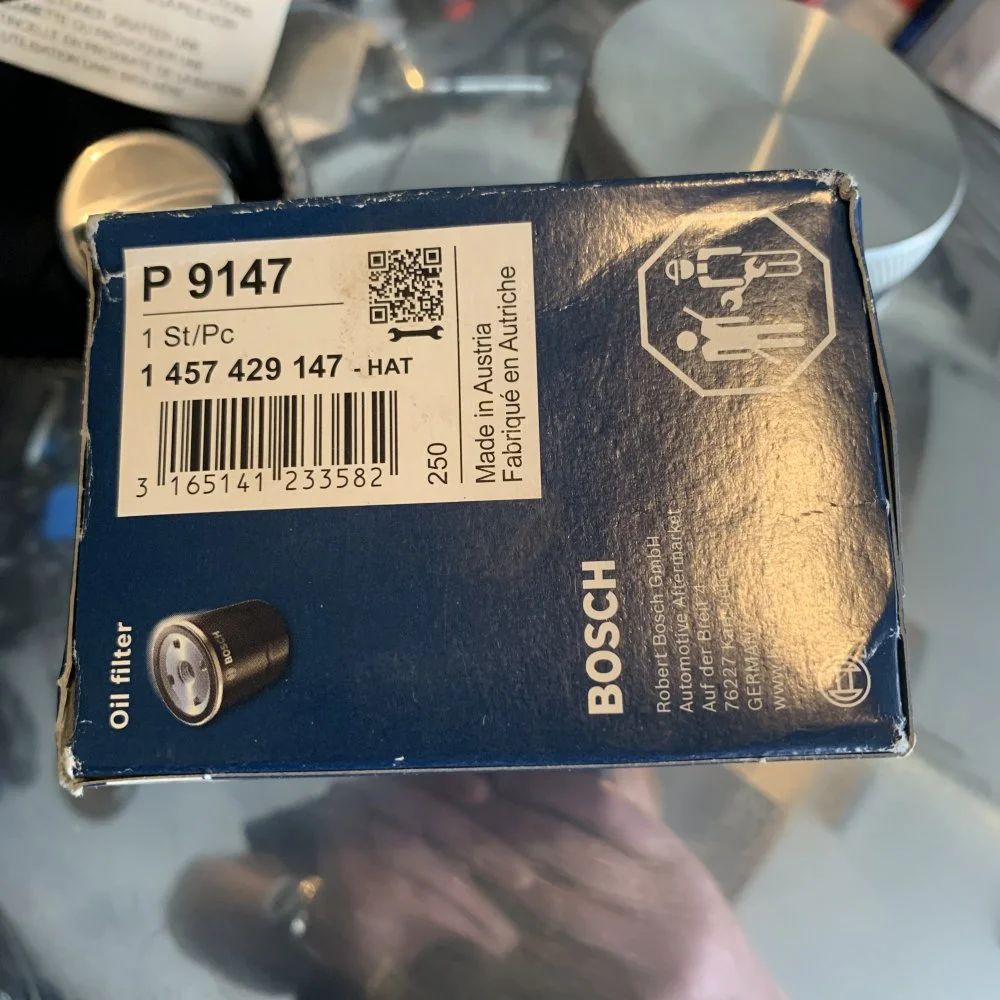

1x oil filter BOSCH P-9147 ?
1 x DPW ?
2 x Trans DPW ?
1 x Valve cover gasket ?
2 x plugs CR9EB? or CR9EIX?
1 x Fuel Filter?
1x Fuel filter O ring?
1x Air Filter?
1x Ex header gaskets?
1 x Battery ? It has Lith Ion, I was gonna go Yuasa YTZ14S?
1 x Clutch cover gasket?
1 x RH Crank gasket?
1x CNW Bosch Coil Pack For 961
1x ONEO7 Spark Plug Leads 96 [any black ones out there?]
1x cam sensor? Bosch 0232103037
1x head temp sensor? Bosch 0280130026
1x oil pressure guage [probably a B/C Triumph one]
1x oil lines are hard and dry. would like to refresh using OEM hose and clips?
1x rear tank mount.
1x rear light [slight crack]

Any leads or tips would be appriciated and hopefully I can help you all as well

Cheers
Adrian
P.S. cant figure how to add pics? but my bike is on our website. canyonmotorcycles.com


Eljahara

VIP MEMBER
Joined
Jul 8, 2018
Messages
1,044
Country flag
Lambda sensors were routinely changed at service on a lot of bikes - alternatively eliminate them (see Lamda delete thread)


BLIGHTYBRIT/SF

VIP MEMBER
Joined
Feb 28, 2016
Messages
1,151
Country flag
You might wanna look at the mounting system of those lovely exhausts of yours , factory standard is too rigid , I know of one bike similar to yours that’s was on it’s 3rd set in less than 3 years , they spilt basically, So other Dommie guys know more bout this issue ( like Mr Wilson)

Joined
Feb 10, 2020
Messages
100
Country flag
You might wanna look at the mounting system of those lovely exhausts of yours , factory standard is too rigid , I know of one bike similar to yours that’s was on it’s 3rd set in less than 3 years , they spilt basically, So other Dommie guys know more bout this issue ( like Mr Wilson)
Hi, yes a couple o folk have said that, looks like they just need a rubber mount making up at the footrest mount? I have a load of Triumph rubber exhaust mounts so should be able to do something nice, thanks man

Joined
Feb 10, 2020
Messages
100
Country flag
Lambda sensors were routinely changed at service on a lot of bikes - alternatively eliminate them (see Lamda delete thread)
Luckily it had the megaphones installed and no O/2 sensors, so looks like its been set up to run without them. Thanks for the info!


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,433
Country flag
Hey up Fellas
Hows it going? New Norton Owner here and wanted to introduce myself!
I bought my Domi Naked dream machine a month ago now over here in CA. [even though I couldnt ride it due to having my shoulder surgury] so just been looking at it and figuring out what I have got, and what it needs? The bikes pristine with 800 miles and runs FANTASTIC on the small test ride I managed.
After reading a lot of your storys and tips. [Thanks to Richard, Dave and Scott for advice, John for manual] I'm gonna start work on it this week and do the major first service inc head torque and valves, brake overhaul, fresh rubber, any recommended updates.
Just starting to figure out the parts aint easy to come by with no factory, or parts breakdown or part nos?
Heres my parts list so far, I think I'm right, but feel free to correct me or add anything, So looking for USA suppliers if poss?

4 x10/40 semi syn oil....the one thing thats easy haha!
1x oil filter BOSCH P-9147 ?
1 x DPW ?
2 x Trans DPW ?
1 x Valve cover gasket ?
2 x plugs CR9EB? or CR9EIX?
1 x Fuel Filter?
1x Fuel filter O ring?
1x Air Filter?
1x Ex header gaskets?
1 x Battery ? It has Lith Ion, I was gonna go Yuasa YTZ14S?
1 x Clutch cover gasket?
1 x RH Crank gasket?
1x CNW Bosch Coil Pack For 961
1x ONEO7 Spark Plug Leads 96 [any black ones out there?]
1x cam sensor? Bosch 0232103037
1x head temp sensor? Bosch 0280130026
1x oil pressure guage [probably a B/C Triumph one]
1x oil lines are hard and dry. would like to refresh using OEM hose and clips?
1x rear tank mount.
1x rear light [slight crack]

Any leads or tips would be appriciated and hopefully I can help you all as well

Cheers
Adrian
P.S. cant figure how to add pics? but my bike is on our website. canyonmotorcycles.com
Fuel filter is in tank and part of the fuel pump assembly.

The oil line clamps are double ear Oetiker clamps.


iwilson

VIP MEMBER
Joined
Nov 6, 2015
Messages
394
Country flag
Hi, yes a couple o folk have said that, looks like they just need a rubber mount making up at the footrest mount? I have a load of Triumph rubber exhaust mounts so should be able to do something nice, thanks man

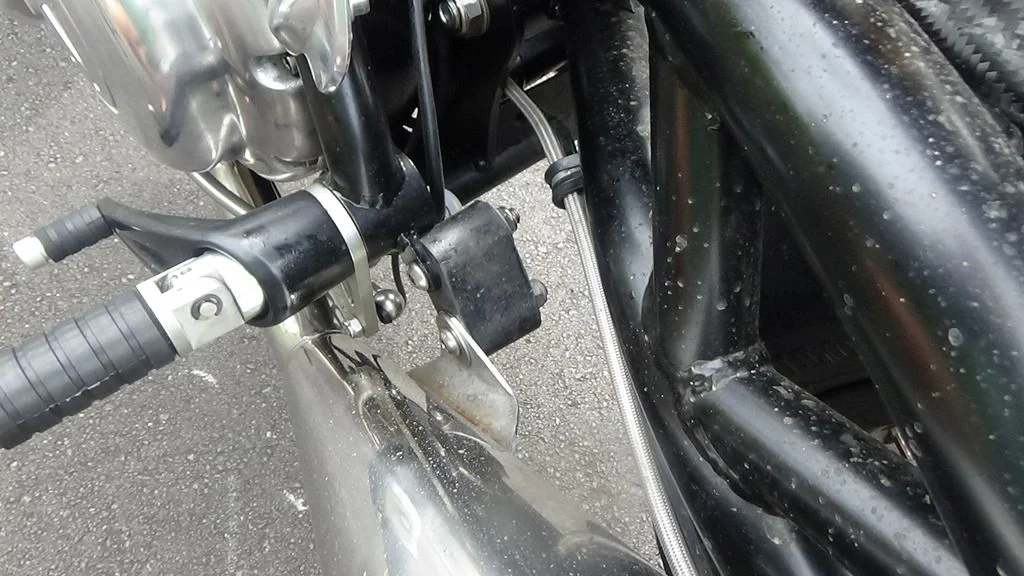

This is what my fabricator fitted. My bike is fitted with a pair of baffled replica megaphones, that were constructed with the rubber bush in mind. When he saw the factory megaphones he immediately told me they would crack - given his 40 years in the trade I wasn’t going to argue!

Pretty happy with the result!


Joined
Feb 10, 2020
Messages
100
Country flag


This is what my fabricator fitted. My bike is fitted with a pair of baffled replica megaphones, that were constructed with the rubber bush in mind. When he saw the factory megaphones he immediately told me they would crack - given his 40 years in the trade I wasn’t going to argue!

Pretty happy with the result!


Joined
Feb 10, 2020
Messages
100
Country flag
Ah yes ok I see now, whereabouts do they crack? at the mount or the header?
Did you make new brackets so the pipes sit lower for that bushing? theres not a lot of room on the RH side to do much.

Joined
Feb 18, 2018
Messages
525
Country flag
Hey up Fellas
Hows it going? New Norton Owner here and wanted to introduce myself!
I bought my Domi Naked dream machine a month ago now over here in CA. [even though I couldnt ride it due to having my shoulder surgury] so just been looking at it and figuring out what I have got, and what it needs? The bikes pristine with 800 miles and runs FANTASTIC on the small test ride I managed.
After reading a lot of your storys and tips. [Thanks to Richard, Dave and Scott for advice, John for manual] I'm gonna start work on it this week and do the major first service inc head torque and valves, brake overhaul, fresh rubber, any recommended updates.
Just starting to figure out the parts aint easy to come by with no factory, or parts breakdown or part nos?
Heres my parts list so far, I think I'm right, but feel free to correct me or add anything, So looking for USA suppliers if poss?

4 x10/40 semi syn oil....the one thing thats easy haha!
1x oil filter BOSCH P-9147 ?
1 x DPW ?
2 x Trans DPW ?
1 x Valve cover gasket ?
2 x plugs CR9EB? or CR9EIX?
1 x Fuel Filter?
1x Fuel filter O ring?
1x Air Filter?
1x Ex header gaskets?
1 x Battery ? It has Lith Ion, I was gonna go Yuasa YTZ14S?
1 x Clutch cover gasket?
1 x RH Crank gasket?
1x CNW Bosch Coil Pack For 961
1x ONEO7 Spark Plug Leads 96 [any black ones out there?]
1x cam sensor? Bosch 0232103037
1x head temp sensor? Bosch 0280130026
1x oil pressure guage [probably a B/C Triumph one]
1x oil lines are hard and dry. would like to refresh using OEM hose and clips?
1x rear tank mount.
1x rear light [slight crack]

Any leads or tips would be appriciated and hopefully I can help you all as well

Cheers
Adrian
P.S. cant figure how to add pics? but my bike is on our website. canyonmotorcycles.com

Try Krazy Horse dealer , the Chipping Norton branch, Oxfordshire, UK.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
15,777
Country flag
I bought my Domi Naked dream machine a month ago now over here in CA. [even though I couldnt ride it due to having my shoulder surgury]

Shoulder issues huh?

With those clip ons?!

You might wanna start checking out top yoke conversions and ‘Sport’ style handle bars...

Joined
Feb 10, 2020
Messages
100
Country flag
Shoulder issues huh?

With those clip ons?!

You might wanna start checking out top yoke conversions and ‘Sport’ style handle bars...
Its not the most comfortable bike with the bars for sure! Yes been a mechanic for 40 years so had a major rebuild in Jan, feelin pretty good now, I'm gonna put some polished LSL clip ons on it, bit higher, more of a neutral position. should fit nice.

Joined
Feb 10, 2020
Messages
100
Country flag
Mornin Fellas.
Couple o questions

1/ My Domi Naked came with the CRG lanesplitters here in the USA and not a fan of them.
I just fitted some LSL clip ons a couple of weeks ago and now on to mirrors at the moment.
Anybody know what the UK factory bike mirror options were? and if any available anywhere?

2/ My rear light has developed a fine crack at the mounting holes and only a matter of time till it busts, is the rear light off some other bike and available anywhere? or anybody managed to find something that fits and works in the factory bracket or any other small custom taillight setup? did the factory have any on there show bikes?

3/ When you ordered your bike from Norton, was the Ohlins suspension sprung for your weight?

Anybody had any luck connecting to Norton for parts just latley?

Cheers Adrian


BLIGHTYBRIT/SF

VIP MEMBER
Joined
Feb 28, 2016
Messages
1,151
Country flag
3/ When you ordered your bike from Norton, was the Ohlins suspension sprung for your weight? All the 961s were set up with this chap in mind “ Chris Walker” the BSB super bike racer , guess the Dom is the same !


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
15,777
Country flag
Factory mirrors were horrid great big chrome things left over from the 1970s. You do NOT want those!

The factory did not fit custom springs for rider weights. They did not set any of the settings for rider weight as a rule AFAIK.

Others have reported success in contending Norton for parts of late.


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,433
Country flag
Mornin Fellas.
Couple o questions

1/ My Domi Naked came with the CRG lanesplitters here in the USA and not a fan of them.
I just fitted some LSL clip ons a couple of weeks ago and now on to mirrors at the moment.
Anybody know what the UK factory bike mirror options were? and if any available anywhere?

2/ My rear light has developed a fine crack at the mounting holes and only a matter of time till it busts, is the rear light off some other bike and available anywhere? or anybody managed to find something that fits and works in the factory bracket or any other small custom taillight setup? did the factory have any on there show bikes?

3/ When you ordered your bike from Norton, was the Ohlins suspension sprung for your weight?

Anybody had any luck connecting to Norton for parts just latley?

Cheers Adrian
Adrian.

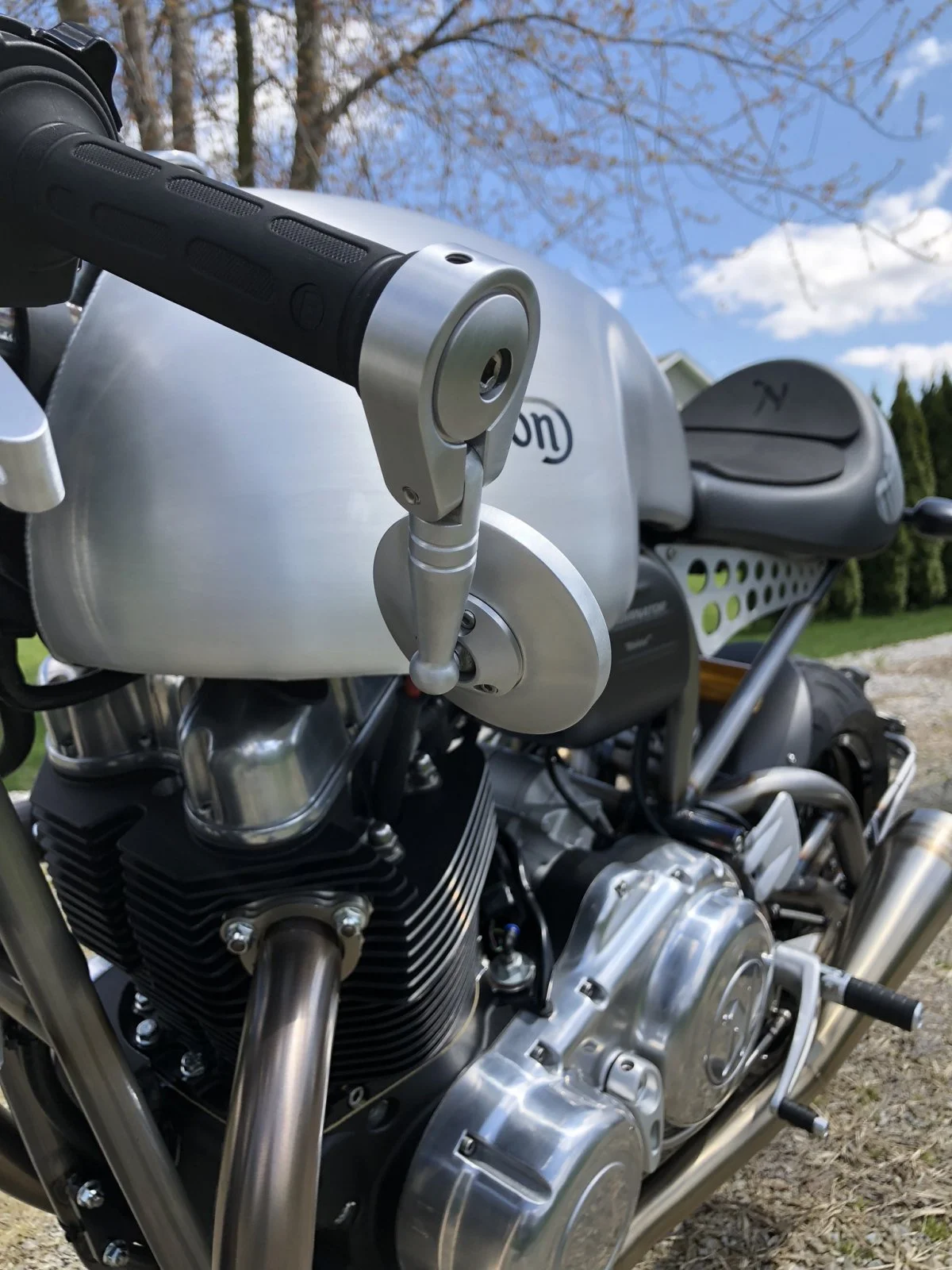

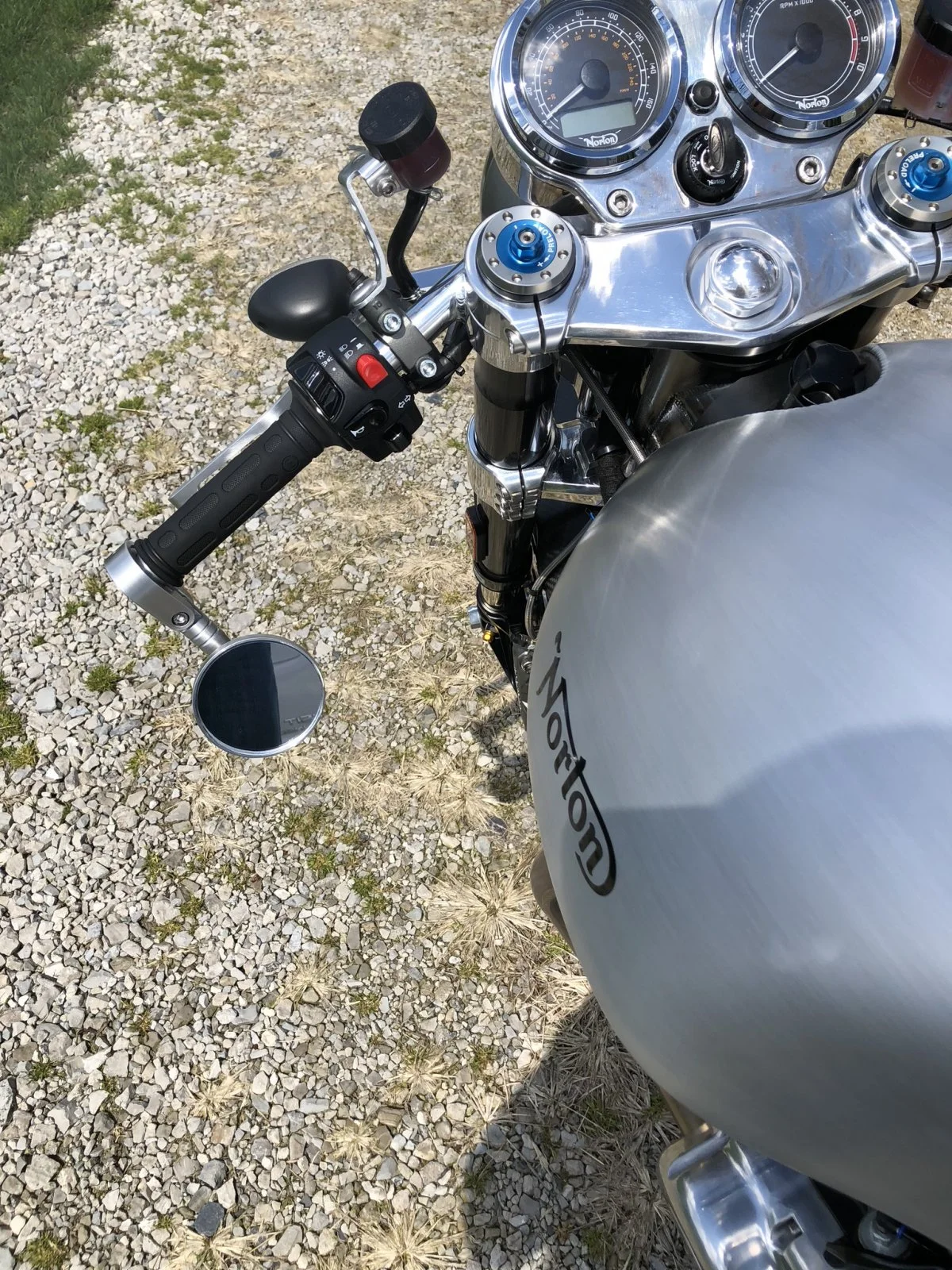

my naked came from the dealer with the box of CRG mirrors as well. I too thought they didn’t fit the style of the bike. I asked norton to sell me the mirrors they have but to brush them to match the bike. As far as quality, they are nice n solid. But the visibility is kinda poor. But I don’t care, they look like they belong on the bike so I like them.

AHhhhhhhh the brake light... Mine was also broken when I took delivery. I ordered a new one from norton and replaced it. Only issue was the harness didn’t plug directly in the original harness. So I found exact matching plug ends and made them fit so it’s plug n play. I try to keep everything looking factory.

I’m 6’ 175 pounds. I played with my suspension, I got it to my liking, but I can’t remember how many turns I did to achieve my liking.
