Does your Tach do this ?

Discussion in 'Norton Motorcycles (Modern)' started by speirmoor, Mar 13, 2019.

  1. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010
    No Key in

  2. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    I have a fix for that.

  3. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010
    Please share Voodoo

  4. Britfan60

    Britfan60 VIP MEMBER

    Joined:
    Jan 5, 2014
    "Doc. It hurts when I do this" Then don't do that.
    I ran right out to try it. Nope. Not at all. Interesting phenomena.

  5. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Hello Speirmoor , Do you also have a high key off current draw like MXMartin does ? (Through the clocks optimate fuse which bypasses the key switch)

  6. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Ok, I gotta ask, as mine doesn’t have one... what is that button?

  7. MxMartin

    MxMartin

    Joined:
    Nov 13, 2017
    Take another look at your dash :)

  8. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Oh... THAT button...:oops:

  9. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010
    I believe I do as the bike wont hold a battery unless on the "Store" while parked. How do I test for this?

  10. BritTwit

    BritTwit VIP MEMBER

    Joined:
    Aug 25, 2009
    It's not a problem, just an undocumented feature that came free with your 961.

  11. Voodooo

    Voodooo VIP MEMBER

    Joined:
    Aug 10, 2016
    The cure is to not press the button. Or else.

    Eljahara likes this.
  12. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Pull the clocks/opimate fuse out from the fuse box , the place your amp meter probes into the connections where the fuse was pulled out. Have the meter set for the milliamp scale and have the probes in the current position ma jacks on the meter (red in ma , black to com , dial set to ma). Then read the current off the meter. Let us know what reading you are getting . MX said his was 19ma . Others have reported 11ma and 9 ma , I have less than 2 ma. Others like FE may have even less , his battery lasts a long time with no maintenance charger. I have gone two weeks without a charge and I can start my bike no issues. Some of these VDO's must be drawing more current than others. Once you get that information , find out which tacho or speedo is the worst offender .

    [​IMG]

    Last edited: Mar 14, 2019
    contours likes this.
  13. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010
    Thanks Tony A
    I'll get on it next time I'm at the bike


  14. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010

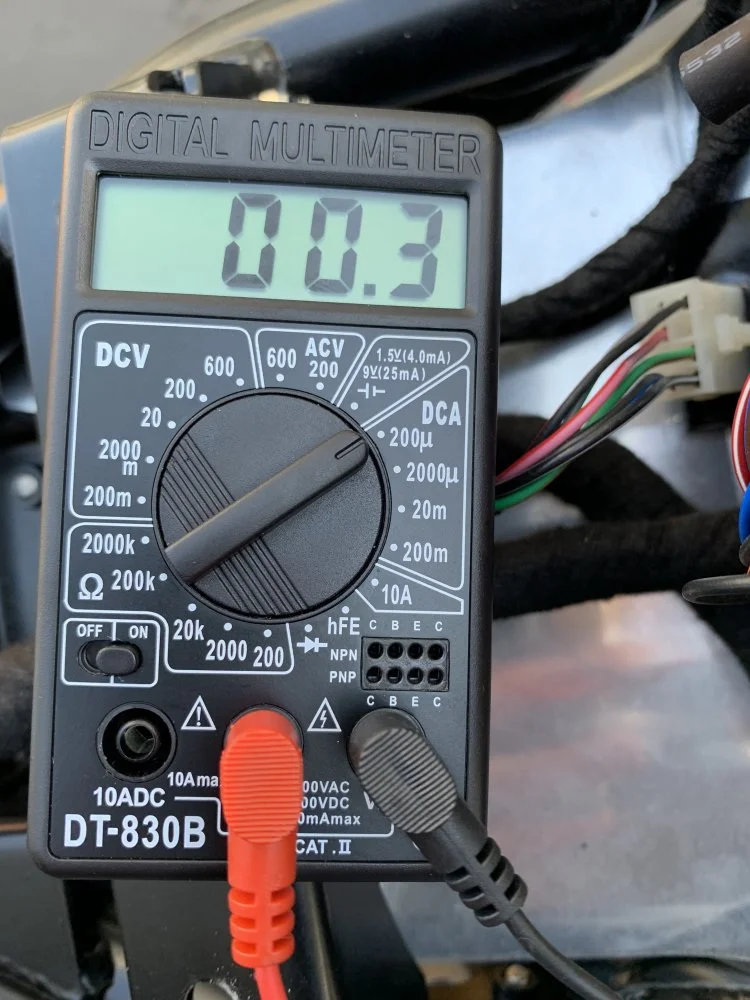

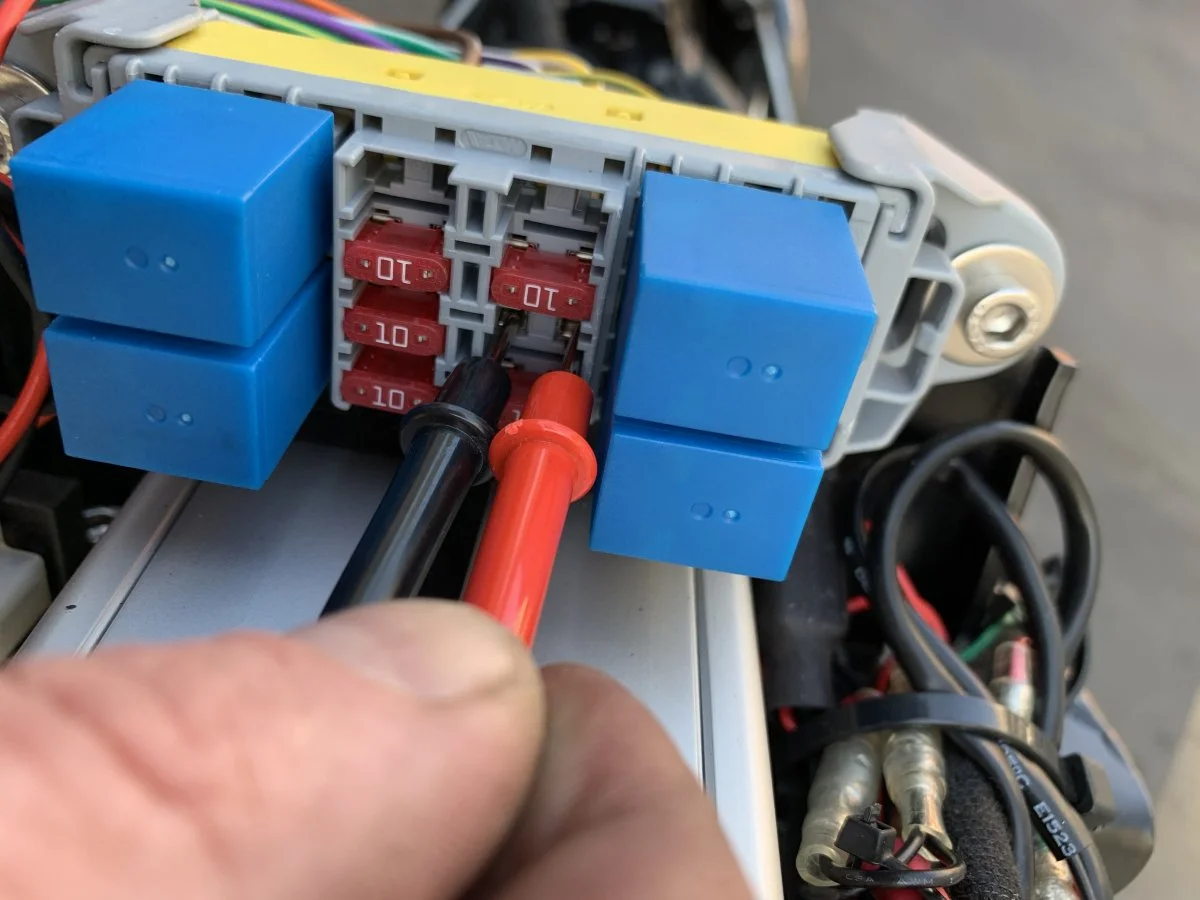

    Does this look right?


    Attached Files:

  15. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015

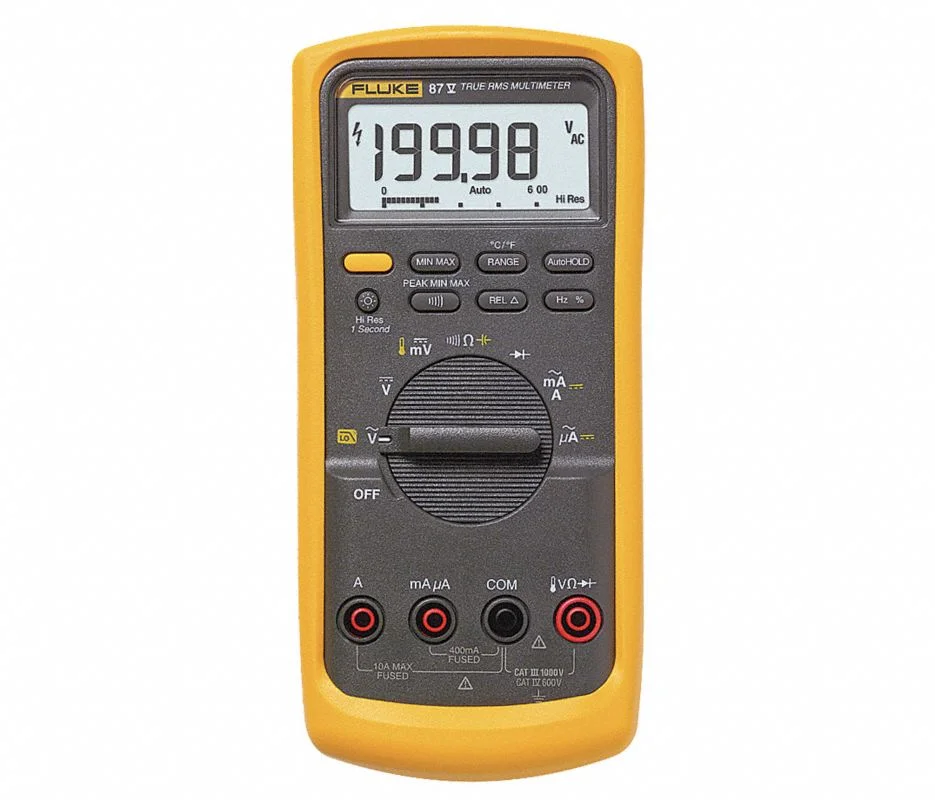

    .3 micro amps ? Show us a picture without the leads in the meter . I want to see what the jacks are labeled. There is current being drawn , I just can't be sure just how much . .3 micro amps is not much or even .3 milli amps . Do you know anybody with a Fluke meter or a different meter to check this against ? Also if you start at the battery you can be sure you are seeing all of your current draw. MXMartin said he narrowed his current draw to this area where you are reading (optimate/clocks) by pulling fuses until he found the fuse that once pulled stopped the current flow. But what you are doing and how looks right.

    Last edited: Apr 3, 2019
  16. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010

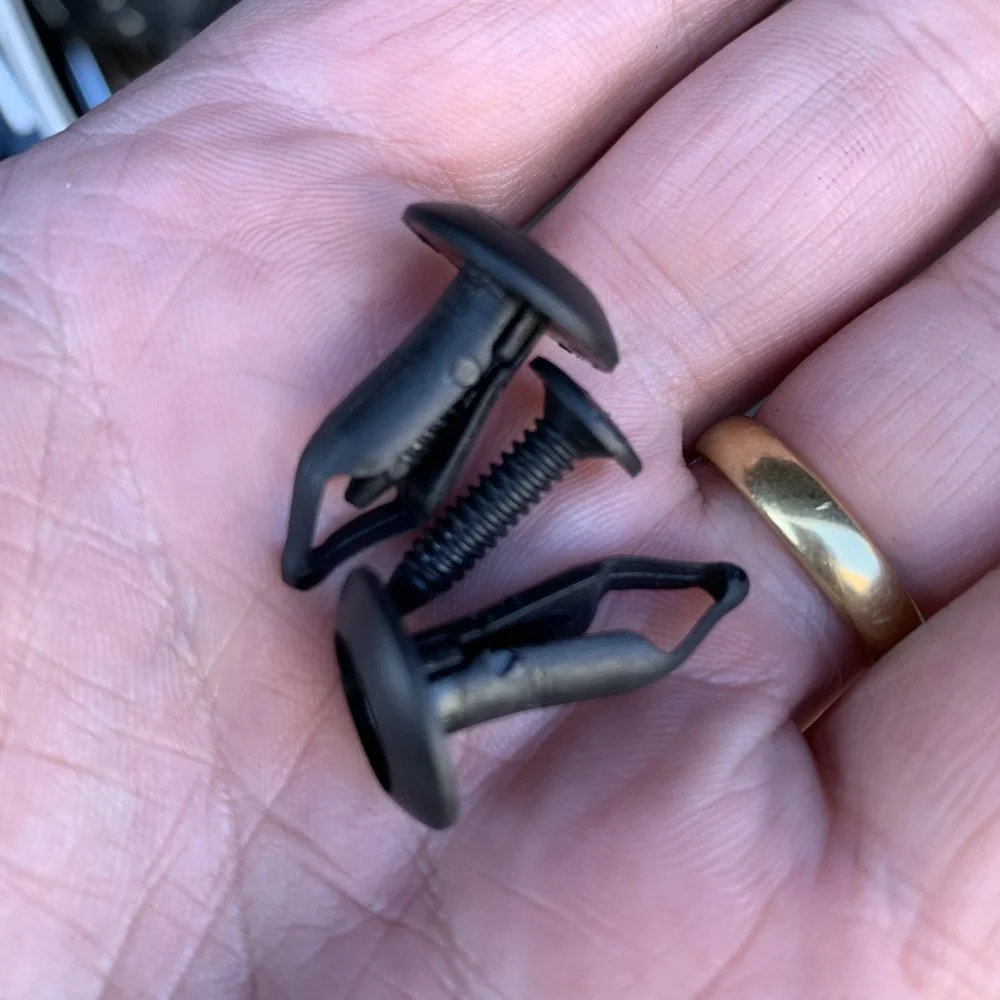

    I’ll have a fluke the next time and check it. Thwarted by two things yesterday. One I didn’t have the manual with me and trying to follow the schematic on the iPhone was too difficult. The other was trying to remove these annoying things. At least 25min cursing and swearing trying to get them off. There must be a better solution surely.


    Attached Files:
