Different kickstarters 750 vs 850
- Thread starter robs ss
- Start date
- Status
- Joined
- Nov 11, 2013
- Messages
- 5,396
The latter is s the mk3 Kickstart, which has a more articulated dog leg to clear the pipes. A bit longer too IIRC.
Last edited:
- Joined
- Nov 11, 2013
- Messages
- 5,396

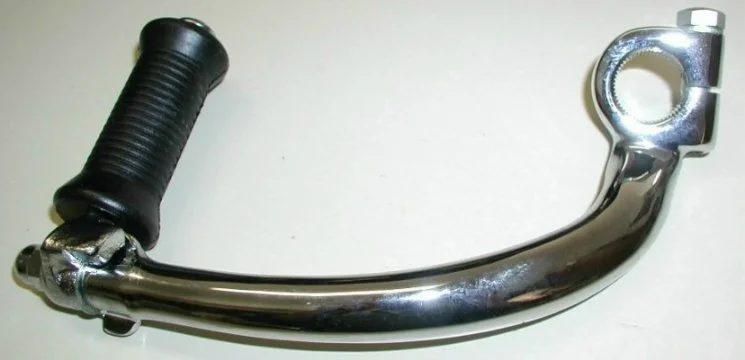

Former

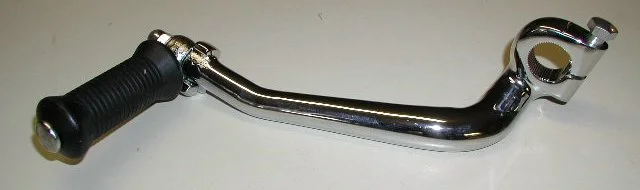

Latter
No really apples for apples angle.
Latter
No really apples for apples angle.
robs ss
VIP MEMBER
- Joined
- Aug 16, 2016
- Messages
- 3,549
No - the AN site has different kickstarters for 750 vs 850 before Mk3.
Can't see a difference in their photos - so?
- Joined
- Nov 20, 2004
- Messages
- 20,415
The 06-1059/06-1464 kickstart lever assembly was fitted to 750s and 850 Mk1 and Mk2.
850 Mk1A and Mk2A had the same pattern kickstart lever as the Mk3 ('A' models having the black cap/bean can silencers) but without the Mk3 lever's spring-loaded pedal ball detent so the 'A' (06-4249) and Mk3 (12-1018) assemblies have different part numbers.
Edit:
The Mk3 12-1018 assembly supersedes 06-4249 and can be fitted to non-'A' models.
850 Mk1A and Mk2A had the same pattern kickstart lever as the Mk3 ('A' models having the black cap/bean can silencers) but without the Mk3 lever's spring-loaded pedal ball detent so the 'A' (06-4249) and Mk3 (12-1018) assemblies have different part numbers.
Edit:
The Mk3 12-1018 assembly supersedes 06-4249 and can be fitted to non-'A' models.
Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
Last edited:
- Joined
- Dec 3, 2012
- Messages
- 3,727
That I can see in person, the Mk2a 850 item (06.4249) is one inch taller (leverage) besides the altered shape over my 750's ((06.1059).
Edit is add the Mk2a part number.
Last edited:
robs ss
VIP MEMBER
- Joined
- Aug 16, 2016
- Messages
- 3,549
Thanks Les - explained well!The 06-1059/06-1464 kickstart lever assembly was fitted to 750s and 850 Mk1 and Mk2.
850 Mk1A and Mk2A had the same pattern kickstart lever as the Mk3 ('A' models having the black cap/bean can silencers) but without the Mk3 lever's spring-loaded pedal ball detent so the 'A' (06-4249) and Mk3 (12-1018) assemblies have different part numbers.
Edit:
The Mk3 12-1018 assembly supersedes 06-4249 and can be fitted to non-'A' models.
Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.andover-norton.co.uk
- Joined
- May 28, 2003
- Messages
- 2,591
The late kicker was a very common "upgrade" when early commando's with "forward skewed" pipes were replaced with the aftermarket "straight out the port" pipes. It adversly affected the lay of the mufflers. I had put stainless Armours pipes/mufflers...
Anyone remember Sonny Collier in Tenn? He sent me one with an enclosed bill and I returned a check. In 1988 a genuine MKIII kicker was $75.
Anyone remember Sonny Collier in Tenn? He sent me one with an enclosed bill and I returned a check. In 1988 a genuine MKIII kicker was $75.
