Hi Piero,
SKF has one with the right specs but polyamide cage: NJ306ECP/C3 SKF Cylindrical Roller Bearing - 30x72x19
Some info on this type of bearing: https://www.nortonownersclub.org/sites/default/files/Main-Bearings-v1.1.compressed.pdf
Regards
Bert
fiatfan
VIP MEMBER
- Joined
- Aug 9, 2015
- Messages
- 524

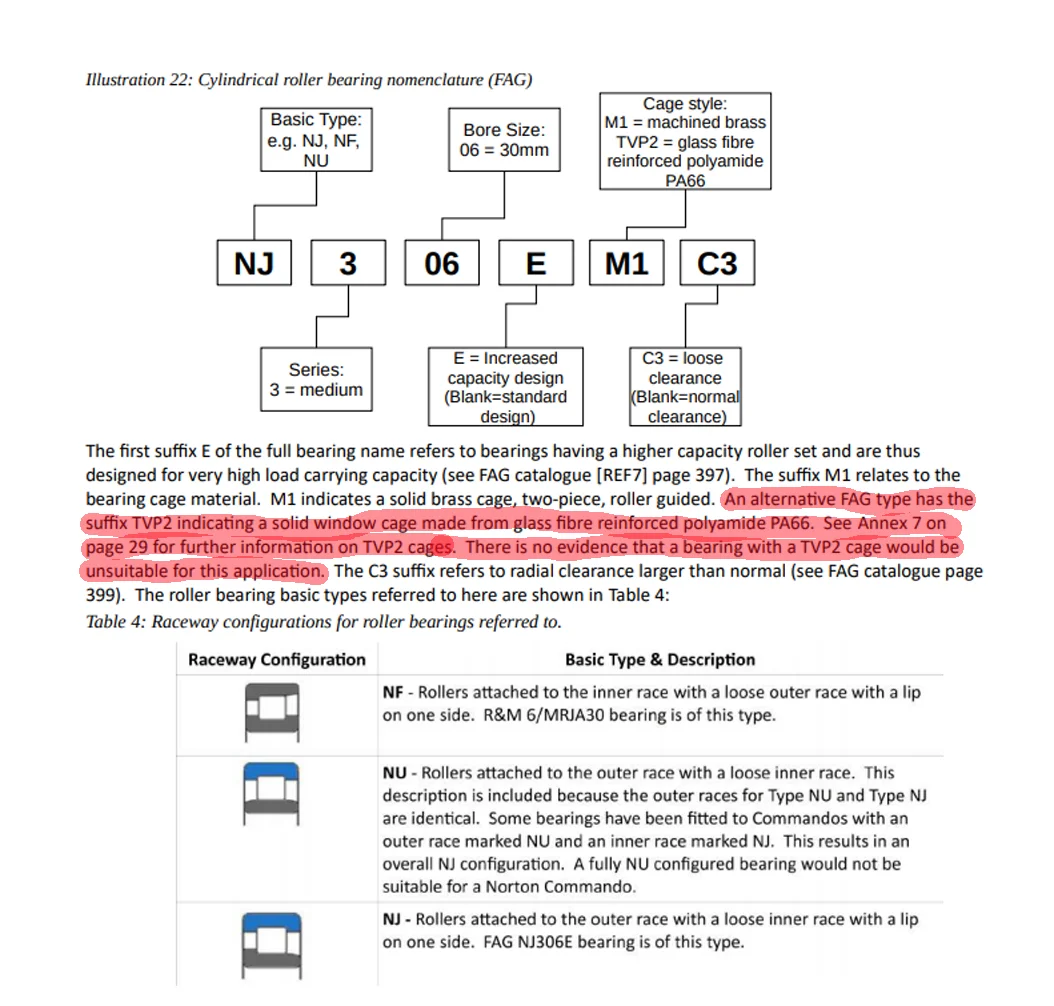

I found this in a very interesting document on the "Superblend" bearings. Would be interesting to hear if anyone have tried these bearings.
Here is the full document: ( It´s a lot of information but absolutely worth the time reading it through.)
On a side note the bearings in my 850 was composed of a NU outer race with a NJ inner race, which seems to be an ok mix.
- Joined
- Nov 20, 2004
- Messages
- 20,423
NJ306E bearings can have an NU-marked outer race as NJ-NU outer races are identical.
- Joined
- May 7, 2005
- Messages
- 7,163
Brass has a higher temperature rating than polymide, so the risk is the hot oil distorting a polymide cage and the bearing failing if the rollers break loose. I have fitted polymide caged roller bearing mains to a B44 engine and not had any issues in 5 years, but ask me in another 5 years and then I can tell you if it has worked or not.
- Joined
- May 28, 2003
- Messages
- 2,591
In our local club we have used 4 sets of these:
NTN NJ306EG1C3 = brass cage
NTN Japan/Bower USA
Offered on ebay, sold out off their New York distributor. Around $60 ea
NTN/Bower
From their site, found this interesting in their history page
Important "firsts" in cylindrical and tapered roller bearings include:
NTN NJ306EG1C3 = brass cage
NTN Japan/Bower USA
Offered on ebay, sold out off their New York distributor. Around $60 ea
NTN/Bower
From their site, found this interesting in their history page
Important "firsts" in cylindrical and tapered roller bearings include:
- Honing of raceways
- Spherical roller heads for tapered roller bearings
- Crowned cylindrical and tapered rollers
- Cold-formed tapered roller bearing rings
- Electron beam welded one-piece steel cages for cylindrical roller bearings
- Two piece, ultrasonically joined Fibron cages for cylindrical roller bearings
- Hot forged powder metal bearing components
- Hot pressed silicon nitride cylindrical roller bearings
- Signature bearings
- Joined
- Nov 4, 2007
- Messages
- 1,414
Hi , did you mean those one ??
NJ306EG1C3 NTN Cylindrical Roller Bearing - 30 mm ID x 72 mm OD x 19 mm W, Open | eBay
Find many great new & used options and get the best deals for NJ306EG1C3 NTN Cylindrical Roller Bearing - 30 mm ID x 72 mm OD x 19 mm W, Open at the best online prices at eBay! Free shipping for many products!
www.ebay.com
