Completed Chain Rubbing Strip Upgrade

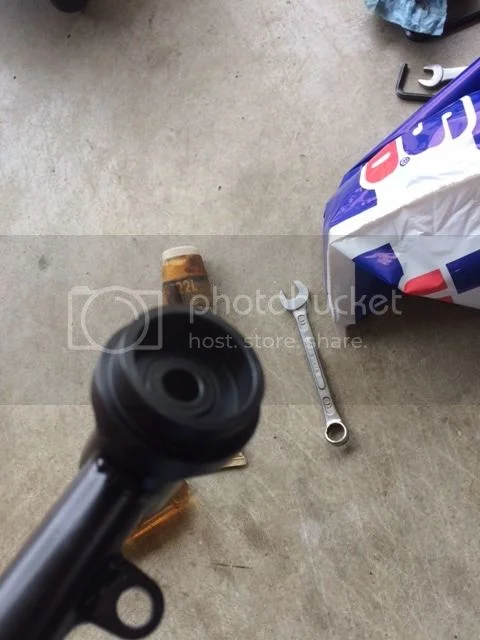

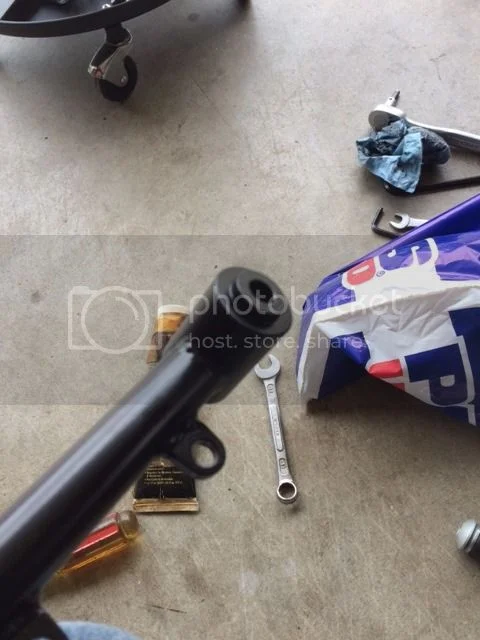

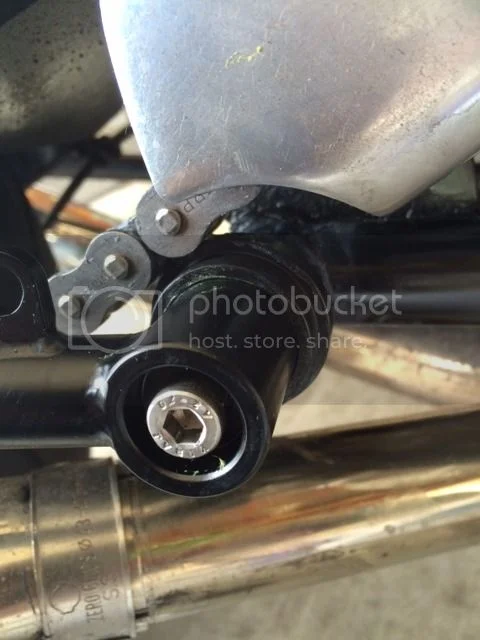

Here is the completed Chain Rubbing Strip Upgrade. This will be on all New Bikes from the factory. As you can see the chain will contact the rubbing strip when necessary as you ride. The most costly part was the new muffler mounting frame , but the rubbing strip very reasonable cost . I ordered 3 of them up front. There is a protruding boss on the lower mount where the strip rides to accommodate the rubbing strip. I also took the opportunity to order a new set of rear wheel sprocket carrier rubbers . So when the need arises I am not waiting for them . $50. for the set of 5 . Tony

Do you have part numbers you can share? It sure makes it easier when ordering from the dealer.

Hello Gordon28 , Theses are the numbers I have but check with the dealer as well .
Foot Control Frame 6080048
Chain Slider 6080124
Rubber Cush Drive 6010067 need 5

Mine came with the rubbing strips, but the frame sliders would sure be a nice addition. Good job, Tony!

Hello Contours , I should have called it the chain slider upgrade...

Gotcha. Thanks for the clarification.
