This is a list we should work on asap... The crank sensor I have but was OEM supplied. I will take photos and others can also help searching for them. Same thing with throttle position sensor. This should all be available somehow/somewhere. TPS is very similar to HD .. If Norton sourced it , its out there.
Wonder how the British motorcycle industry got by before they had to fit sensors - Oh! I know, they saved several hundred pounds on the price and didn't fit any at all. . . . .

Joined
Jan 16, 2015
Messages
3,240
Country flag

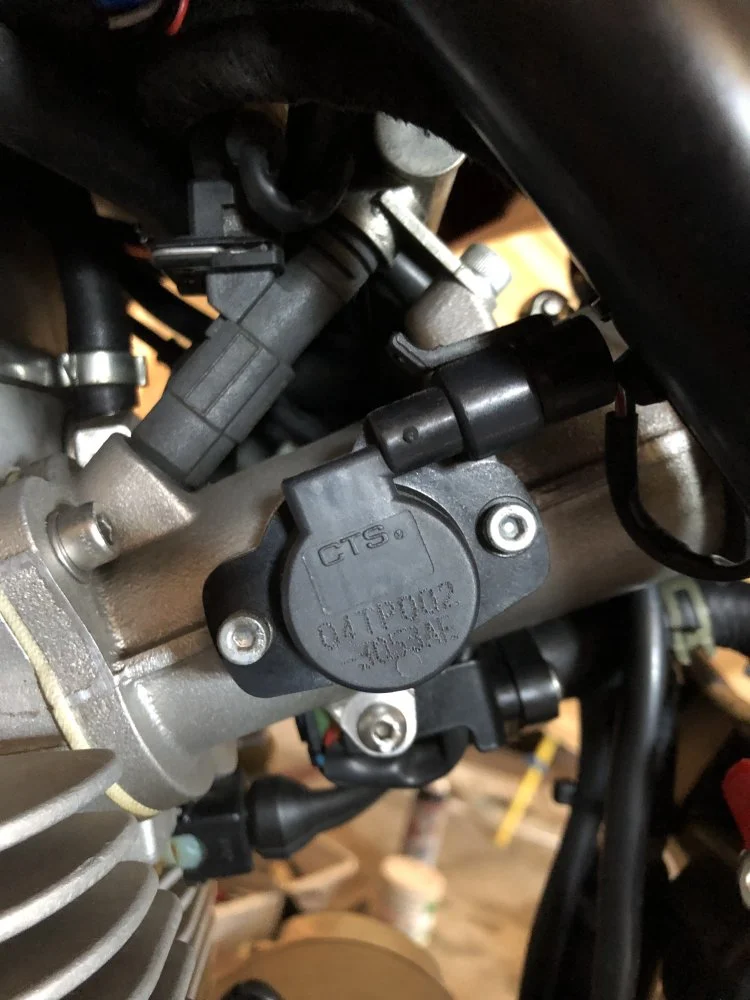

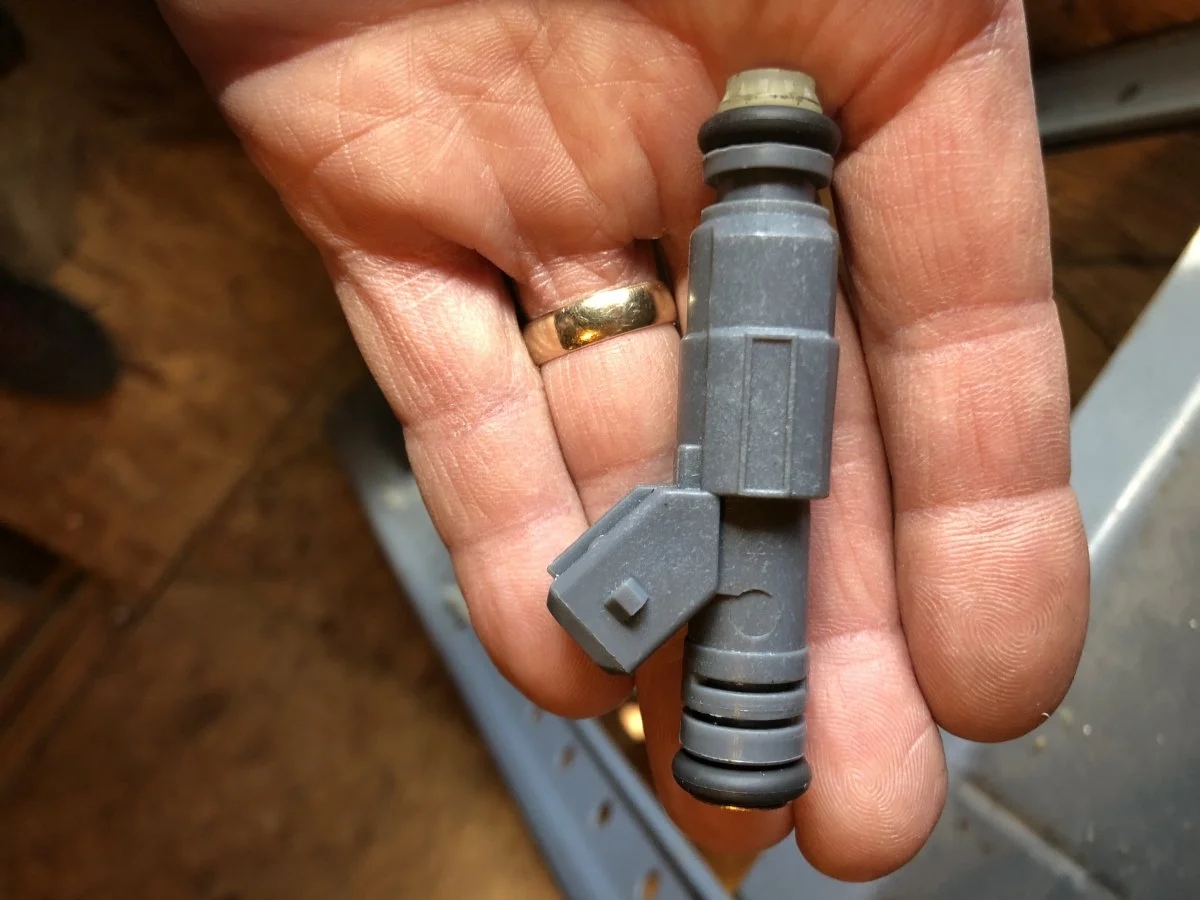

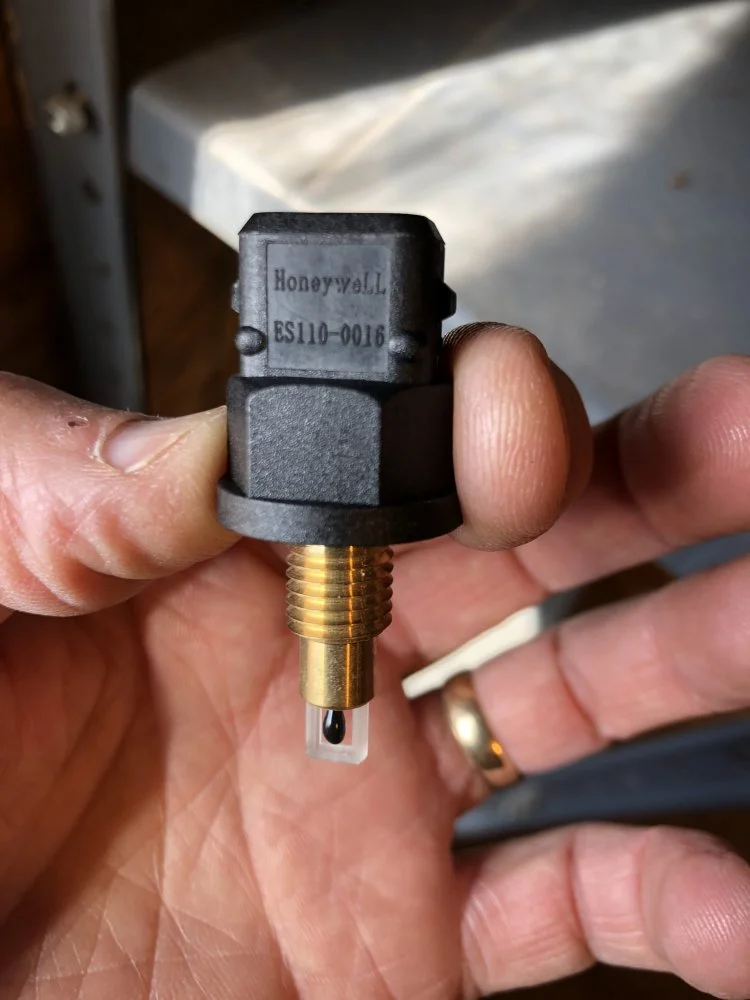

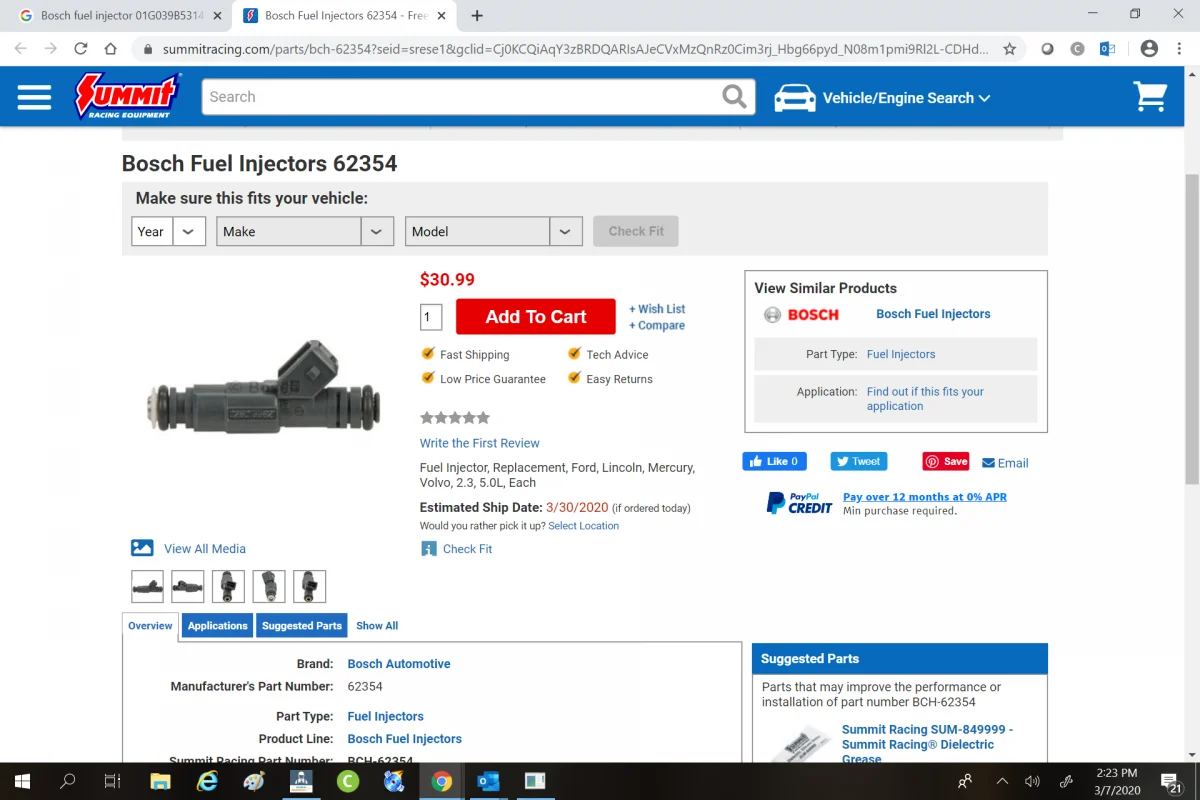

Here are some images of sensors with part numbers if I can see them. Bottom is air box air temp sensor .mI think SCS Delta can help us tremendously with sensor part numbers and compatibility.


Attachments

Last edited:
Joined
Apr 20, 2011
Messages
4,608
Country flag
Re TonyA images. Here is the quandary, if any one of these sensors plays up or shut down, the whole engine misbehaves or shuts down, and it's you the bike owner who picks up the (sometimes expensive) tab!


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,040
Country flag
Joined
Jan 5, 2014
Messages
2,491
Country flag
View attachment 14784 View attachment 14785 View attachment 14786 View attachment 14787 View attachment 14788 Here are some images of sensors with part numbers if I can see them. Bottom is air box air temp sensor .mI think SCS Delta can help us tremendously with sensor part numbers and compatibility.View attachment 14788
View attachment 14784 View attachment 14785 View attachment 14786
Great post, Tony. Haven't seen the word "Smashing!" lately. Is that taboo in the motorcycle universe?

Joined
Jan 16, 2015
Messages
3,240
Country flag

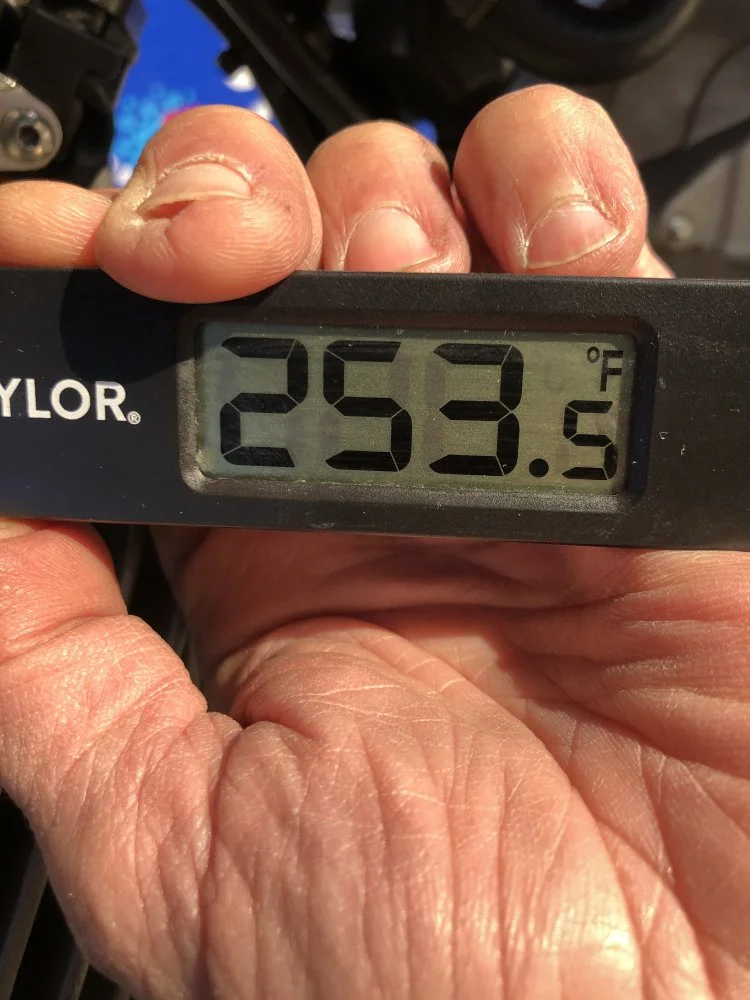

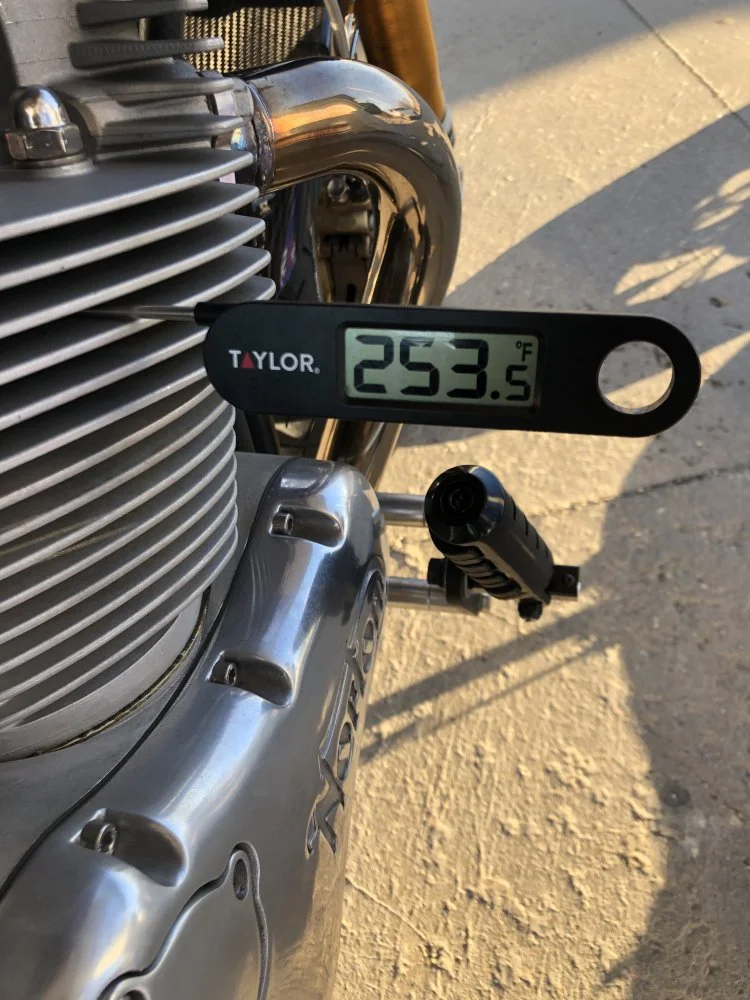

For those that need to know : 253.5 Deg F = 123.06 Deg C
Outside Air temp = 63 Deg F , 60 miles driven at 60 to 75 mph , both left and right side exactly the same .


Last edited:
Joined
Dec 3, 2018
Messages
73
Country flag
I went 20 miles on Saturday and the new Bosch sensor was 115 C °
Outdoor temperature around 14 ° C


Bluey72e

VIP MEMBER
Joined
May 8, 2019
Messages
248
Country flag
View attachment 14784 View attachment 14785 View attachment 14786 View attachment 14787 View attachment 14788 Here are some images of sensors with part numbers if I can see them. Bottom is air box air temp sensor .mI think SCS Delta can help us tremendously with sensor part numbers and compatibility.View attachment 14788
View attachment 14784 View attachment 14785 View attachment 14786
So do I take it that the original injectors are not BOSCH but copy's ?

I've had issue reading the 02 sensors as well, if anyone has those we pretty much have all sensors covered

Joined
Nov 13, 2017
Messages
1,150
Country flag
So do I take it that the original injectors are not BOSCH but copy's ?
I have no idea, Tony put up pics, presumably of the injectors on his bike, but no idea if they are oem or replacements... or if the Bosch ones are a compatible replacement! I guess I will find out when/if I need to remove mine.

Joined
Jan 16, 2015
Messages
3,240
Country flag
Bosch Injector png.png
They appear to be Bosch knock offs to me. The exact Bosch part number I do not have . If we search maybe we can find it. Maybe SCS Delta knows what Bosch Injector part number it would be. I will get the ohms reading tomorrow on the coil. Its a Jetronic/minitimer plug connector , EV6 Type body , Grey color code signifies the flow rate I read.

Last edited:

Bluey72e

VIP MEMBER
Joined
May 8, 2019
Messages
248
Country flag

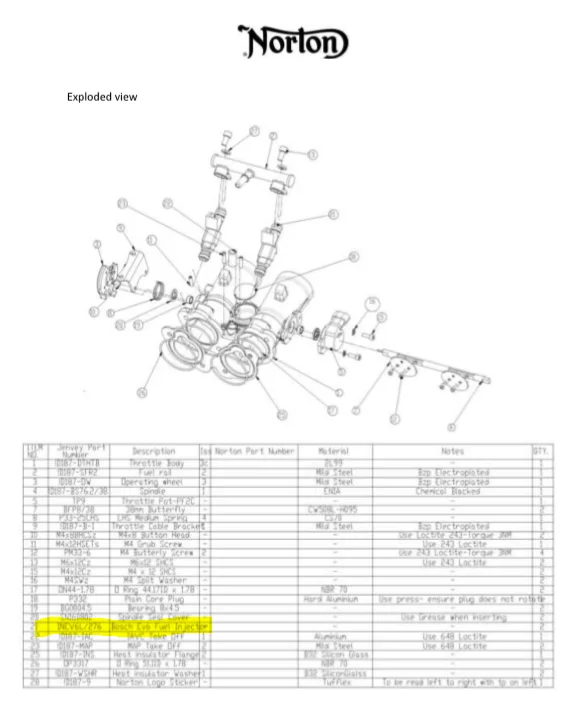

OEM is "supposed" to be BOSCH EV6

Says its "Jenvey part No INEV6L/276"

I have emailed Jenvey and will post the response here.





iwilson

VIP MEMBER
Joined
Nov 6, 2015
Messages
345
Country flag
I have no idea, Tony put up pics, presumably of the injectors on his bike, but no idea if they are oem or replacements... or if the Bosch ones are a compatible replacement! I guess I will find out when/if I need to remove mine.
Pretty sure they’re genuine. I had mine sent to a specialist for testing and cleaning when I was trying to figure out the idle problems. If they were fakes he never noticed and indicated they were working perfectly.


comet

VIP MEMBER
Joined
Aug 23, 2016
Messages
135
Country flag
For those that need to know : 253.5 Deg F = 123.06 Deg C
Outside Air temp = 63 Deg F , 60 miles driven at 60 to 75 mph , both left and right side exactly the same .
That's useful info. If the ambient temperature was higher would you expect the head temp reading to reflect that? I'm thinking that if you went out in 80 Deg F that would be 10 Deg C higher, so would that raise the head temp to 133 Deg C ? Given that the Bosch sensor is rated to 130 Deg C it could be pushing it if that were the case.

In the Bosch catalogue the section about the design and operation of the temp sensors says "Depending on the housing design, the sensors are suitable for measuring temperatures in liquids and gases. In motor vehicles they are used to measure the temperature of the intake air, i.e. in the range -40…130 °"

So it might be safer to use the Jumo which is rated to 150 Deg C.

Joined
Jan 16, 2015
Messages
3,240
Country flag
OEM is "supposed" to be BOSCH EV6

Says its "Jenvey part No INEV6L/276"

I have emailed Jenvey and will post the response here.



View attachment 14836

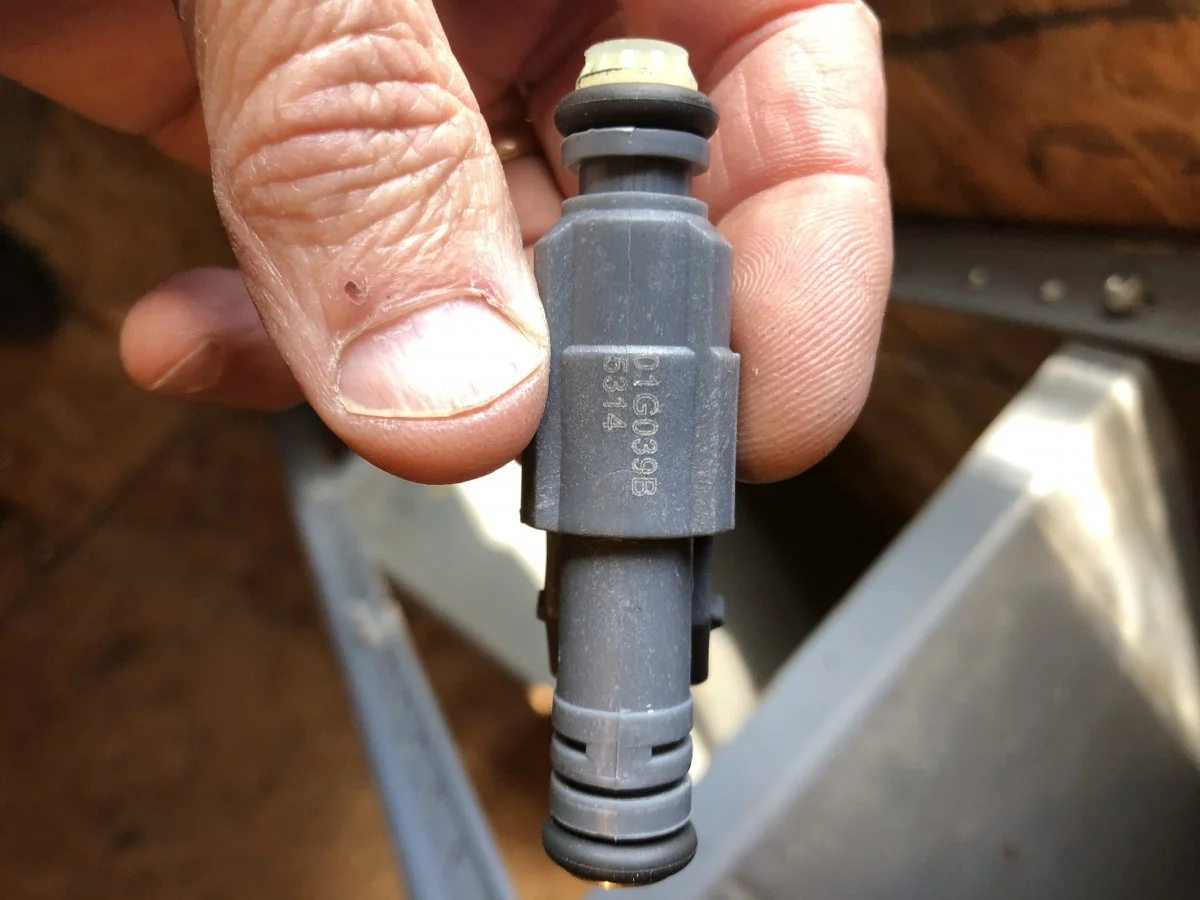

That would be great ! The part number written on the fuel injector , I cannot find any information on. ( 01 G039B 5314 )
On the two I ordered from Norton I am reading : 11 Ohms on both with an analog meter . If I use digital Fluke I read : 11.4 ohms and 11.8 ohms . So this is the coil resistance which may be helpful to know.

Last edited:
Joined
Jan 16, 2015
Messages
3,240
Country flag
I hope Jenvey replies . They may give that cannot give information at this time answer.
