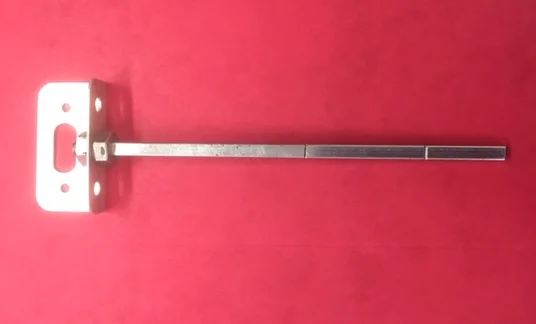

If anyone wishes to make a dipstick for an Atlas or Dommie oil tank, here are some dimensions:

In use, the short cross bar rests across the oil tank filler neck. Distance from cross bar to the full mark - 2.825 in.
Distance from 'Full' mark to 1 qt low mark - 1.55 in.
Overall length of stick - 5.4 in.

The 'Full' mark represents 2.3 liters (2.5 qts) in the tank.

By using 3/16" square keystock for the stick, one can have up to four sticks on one in the event one had several bikes with different oil tanks.



Slick
