Anyone put a single seat tail on a dual seat frame?
- Thread starter GKRyder
- Start date
- Joined
- Nov 29, 2013
- Messages
- 798
I don't tink its that simple, I think the frame is altered Ifirk! I'm sure Richard will chime in on this!,
- Joined
- Feb 24, 2014
- Messages
- 1,761
I'm sure it would work. But the tail cap that replaces the pillion is actually really well done. Plus it comes with the bike so no cost or work. If you really wanted to limit the look of a pillion bike then remove the rear foot pegs. I wish my bike was dual seat. But I would need a different frame. My dad is convincing me to weld in gussets and buy a dual tail section but I'm not doing it.
V
Voodooo
Guest
Richard,
Do you have a manual for the single seat tail section R&R
Do you have a manual for the single seat tail section R&R
- Joined
- Aug 17, 2015
- Messages
- 553

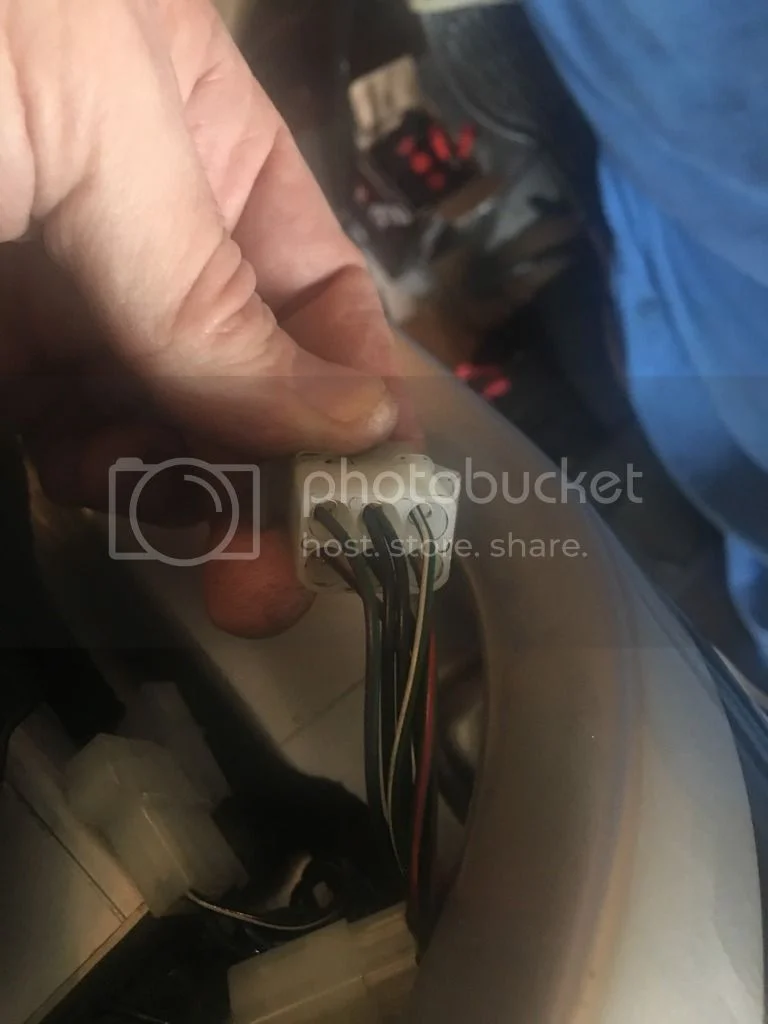

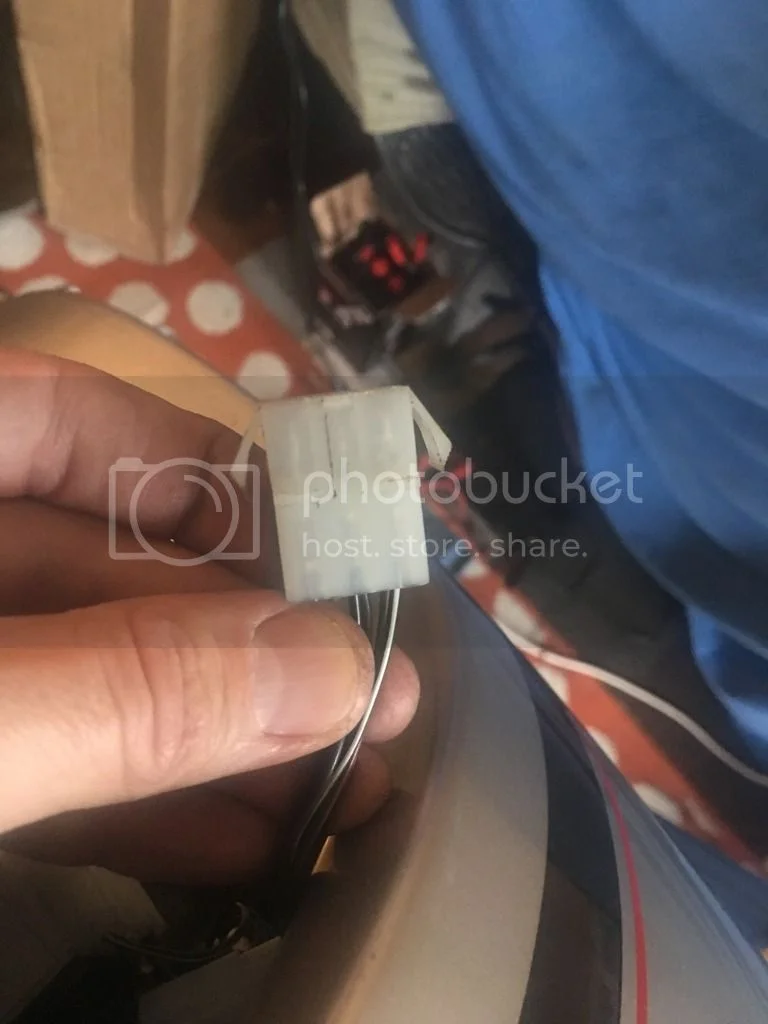

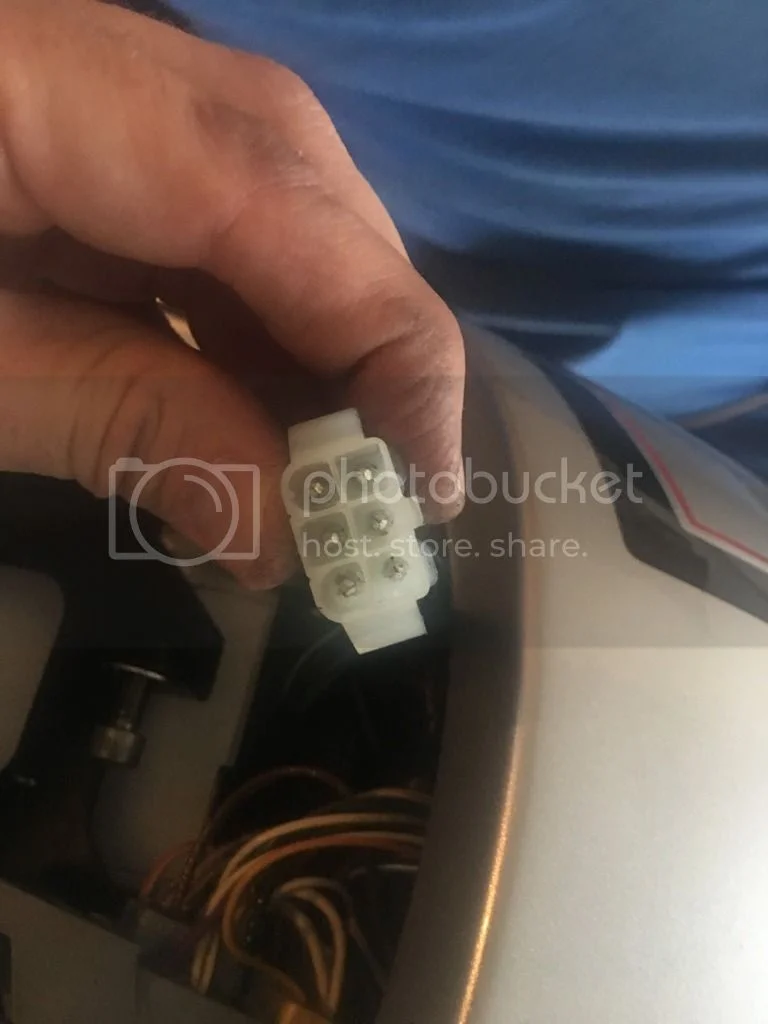

According to the question about a manual for tail section removal I have a specific request. I am trying to remove the plug shown in following pictures. It is the connection to the number plate illumination and rear indicators.
Does anybody know, if it is possible to remove the wires and reuse this plug or has it to be replaced after removal?
Thanks for any suggestions.
Does anybody know, if it is possible to remove the wires and reuse this plug or has it to be replaced after removal?
Thanks for any suggestions.
- Joined
- Jan 16, 2015
- Messages
- 5,832
Raphi said:According to the question about a manual for tail section removal I have a specific request. I am trying to remove the plug shown in following pictures. It is the connection to the number plate illumination and rear indicators.
Does anybody know, if it is possible to remove the wires and reuse this plug or has it to be replaced after removal?
Thanks for any suggestions.
There should be a pin extractor available . I say this because the plug looks very familiar to me working in the electronics industry. There should be a tool that pushes out the pins after the little lock tabs are compressed. I will send along a picture of the tool I have . Unable to send pictures right now. I have an AMP (brand name) p/n 305183 . Looks like it will work for those pins.
- Joined
- Sep 28, 2015
- Messages
- 131
The rear sub loom can be removed by removing the rear tail light, and disconnecting the wires from it. Then disconnect the indicators and rear number plate light, the sub loom will then remove from the tail unit without the need to de pin the 6 way molex plug you have photoed.
V
Voodooo
Guest
NortonFactoryUK said:
So what you are saying is no wires need to be cut and no wires need to be removed from the plug connector itself?
How about the select button on the instrument (Speedometer / Tack Gauge panel) Do those wires to the select button unplug without cutting?
I'm swapping the original anodize instrument panel and yolks to the polished pieces.
Thank you!
- Joined
- Sep 28, 2015
- Messages
- 131
So what you are saying is no wires need to be cut and no wires need to be removed from the plug connector itself? = Correct
How about the select button on the instrument (Speedometer / Tack Gauge panel) Do those wires to the select button unplug without cutting? = yes
How about the select button on the instrument (Speedometer / Tack Gauge panel) Do those wires to the select button unplug without cutting? = yes
Sooooo......
It all fit. Single tail unit on dual seat frame.
No cutting wires or de-pinning connectors etc.
But...It is not a 20 minute job and care needs to be taken to route the major wiring loom parts into seat channels which may or may not go easily as they are tied to suit the 'ease' of building with a dual seat unit and all the space it has. (Well my bike seemed like that).
Dual seat is done well but for me...I just love that single seat look - like what I originally fell in love with circa 2008.
Going back would take me about and hour with a beer pausing too look at the bike.
No piccies coz I know you guys know how it looks.
Just has pillion peg brackets as well
It all fit. Single tail unit on dual seat frame.
No cutting wires or de-pinning connectors etc.
But...It is not a 20 minute job and care needs to be taken to route the major wiring loom parts into seat channels which may or may not go easily as they are tied to suit the 'ease' of building with a dual seat unit and all the space it has. (Well my bike seemed like that).
Dual seat is done well but for me...I just love that single seat look - like what I originally fell in love with circa 2008.
Going back would take me about and hour with a beer pausing too look at the bike.
No piccies coz I know you guys know how it looks.
Just has pillion peg brackets as well
- Joined
- Aug 24, 2011
- Messages
- 121
Sooooo......
It all fit. Single tail unit on dual seat frame.
No cutting wires or de-pinning connectors etc.
But...It is not a 20 minute job and care needs to be taken to route the major wiring loom parts into seat channels which may or may not go easily as they are tied to suit the 'ease' of building with a dual seat unit and all the space it has. (Well my bike seemed like that).
Dual seat is done well but for me...I just love that single seat look - like what I originally fell in love with circa 2008.
Going back would take me about and hour with a beer pausing too look at the bike.
No piccies coz I know you guys know how it looks.
Just has pillion peg brackets as well
** Hello GKRyder, where did you get your single seat from? I was going to start a new thread, but think this covers it. My thread opener was going to be........ **
Hi all, quick question and a request
Question; My Manx Silver 961 is fitted with a dual seat but I’d like to fit a single seat (I’d leave the foot-pegs or blank the hole). Is it a straight forward swap? I heard there may be some complications due to ABS units, but my 961 doesn’t have ABS.
Request; Has anybody got a single seat for a Commando that they would like to sell me? Or if you have a single seat and you’d like a dual seat I’d be prepared to do a swap, pegs and all.
Cheers
Ben
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,523
Sooooo......
It all fit. Single tail unit on dual seat frame.
No cutting wires or de-pinning connectors etc.
But...It is not a 20 minute job and care needs to be taken to route the major wiring loom parts into seat channels which may or may not go easily as they are tied to suit the 'ease' of building with a dual seat unit and all the space it has. (Well my bike seemed like that).
Dual seat is done well but for me...I just love that single seat look - like what I originally fell in love with circa 2008.
Going back would take me about and hour with a beer pausing too look at the bike.
No piccies coz I know you guys know how it looks.
Just has pillion peg brackets as well
Well done with this he swap over GKRyder.
Is it possible to post some pics please, of the fitment, or under the hump, etc?
Sorry gents for tardy reply timing.
Fitment is fine all round.
Obviously you still see the gusseting/extra frame as with the dual seat.
Will get more pics of under seat but you buy the matching bracket for single seat that take ECU and electronics as per factory.
All purchased directly from Norton. (Tailpiece, Seat , bracket).
Fitment is fine all round.
Obviously you still see the gusseting/extra frame as with the dual seat.
Will get more pics of under seat but you buy the matching bracket for single seat that take ECU and electronics as per factory.
All purchased directly from Norton. (Tailpiece, Seat , bracket).
Last edited:
- Joined
- Aug 24, 2011
- Messages
- 121
Cool, I'll request a single seat from the factory. Keep you posted on cost
Cool, you'll love it.
I just took care routing the cables into the channels/indents in the new seat unit.
I recall Norton (Callum) asking which ECU I had as the correct bracket had to be ordered.
In total I ordered:
RCU Bracket
Single Seat Rear Tail Single Seat Black/Gold
MK1 Seat
It took 2 weeks to get the unit painted at the time.
All the best!
I just took care routing the cables into the channels/indents in the new seat unit.
I recall Norton (Callum) asking which ECU I had as the correct bracket had to be ordered.
In total I ordered:
RCU Bracket
Single Seat Rear Tail Single Seat Black/Gold
MK1 Seat
It took 2 weeks to get the unit painted at the time.
All the best!
- Joined
- Aug 24, 2011
- Messages
- 121
Hey All,
I’ve managed to get myself a single seat from the factory. It’s taken alot of badgering but we’ve finally got there. Not sure how many they have as this particular one was dig out from the bottom of an old store cupboard. However, I’ve hit an obstacle; Under the seat unit we have a number of boxes and connectors. Boxes I’m identifying as Large ECU box, fuse box, tip sensor and little small box which is mounted on rubber band type thing. Please correct me if wrong.
The Norton factory also supplied me with a bracket to mount all these boxes on.
My issue is, I can’t seem to fit it all in under the seat ( hilarious really, if you think of all the dual seat volume vs single seat volume conversations had). I have the non ABS Commando. The issue seems to be around the big ECU box. Anyone got any tips or thoughts on this? Has anybody had to do any grinding. Maybe I don't have the right bracket?
Cheers
Ben
I'll try and post some pics once I've worked out how to embed pics.
I’ve managed to get myself a single seat from the factory. It’s taken alot of badgering but we’ve finally got there. Not sure how many they have as this particular one was dig out from the bottom of an old store cupboard. However, I’ve hit an obstacle; Under the seat unit we have a number of boxes and connectors. Boxes I’m identifying as Large ECU box, fuse box, tip sensor and little small box which is mounted on rubber band type thing. Please correct me if wrong.
The Norton factory also supplied me with a bracket to mount all these boxes on.
My issue is, I can’t seem to fit it all in under the seat ( hilarious really, if you think of all the dual seat volume vs single seat volume conversations had). I have the non ABS Commando. The issue seems to be around the big ECU box. Anyone got any tips or thoughts on this? Has anybody had to do any grinding. Maybe I don't have the right bracket?
Cheers
Ben
I'll try and post some pics once I've worked out how to embed pics.
