The cheapo starter solenoid from the 1970s was the reason it got a bad reputation, or was it the motor?
after market starters
- Thread starter KeithS
- Start date
- Status
Deets55
VIP MEMBER
- Joined
- Oct 3, 2013
- Messages
- 1,584
I’m still using the original solenoid, which probably has solid copper contacts. Unless you really look around most of the newer ones are only plated. Seeing how the ES system was joking called “ starter assist “ by many and now looks like they can be made reliable by simply upgrading the wiring and battery I’m going to guess the high amp, small package battery solved the problem for many.
Pete
- Joined
- Jun 25, 2004
- Messages
- 929
I installed an Alton this earlier this year. Had already installed a Mk4 Boyer and an LED battery status monitor. I had a Sparx 3 phase prior to this, and was removed when the Alton was installed. I now use a Podtronics for my regulation/rectification needs. I am running an 11.2 Ah battery with 230CCA - starts the bike with ease. It is the same battery used in 1200cc Hondas and others. I also had to install switch gear for the starter - I am using an XS650 Yamaha LHS SG and had no RHS SG. I found a simple compact unit on Amazon, which also embodies a kill switch, which I wired to my Boyer.
My bike is equipped with all LED lighting, and the lesser output Alton alternator seems to keep up no problem.
Other than some initial charging system issues, which were eventually narrowed down to a faulty alternator rotor (which Alton were very cooperative in diagnosing and providing replacement parts - free of charge), I have had no issues with the Alton. I have not used my kickstart even once after the Alton was installed.
Alton builds a quality product that is easy to install, and their service support is great. Very pleased.
Hope this helps.
My bike is equipped with all LED lighting, and the lesser output Alton alternator seems to keep up no problem.
Other than some initial charging system issues, which were eventually narrowed down to a faulty alternator rotor (which Alton were very cooperative in diagnosing and providing replacement parts - free of charge), I have had no issues with the Alton. I have not used my kickstart even once after the Alton was installed.
Alton builds a quality product that is easy to install, and their service support is great. Very pleased.
Hope this helps.
Last edited:
Still have original on mine and it's working well.
- Joined
- Nov 20, 2004
- Messages
- 20,415

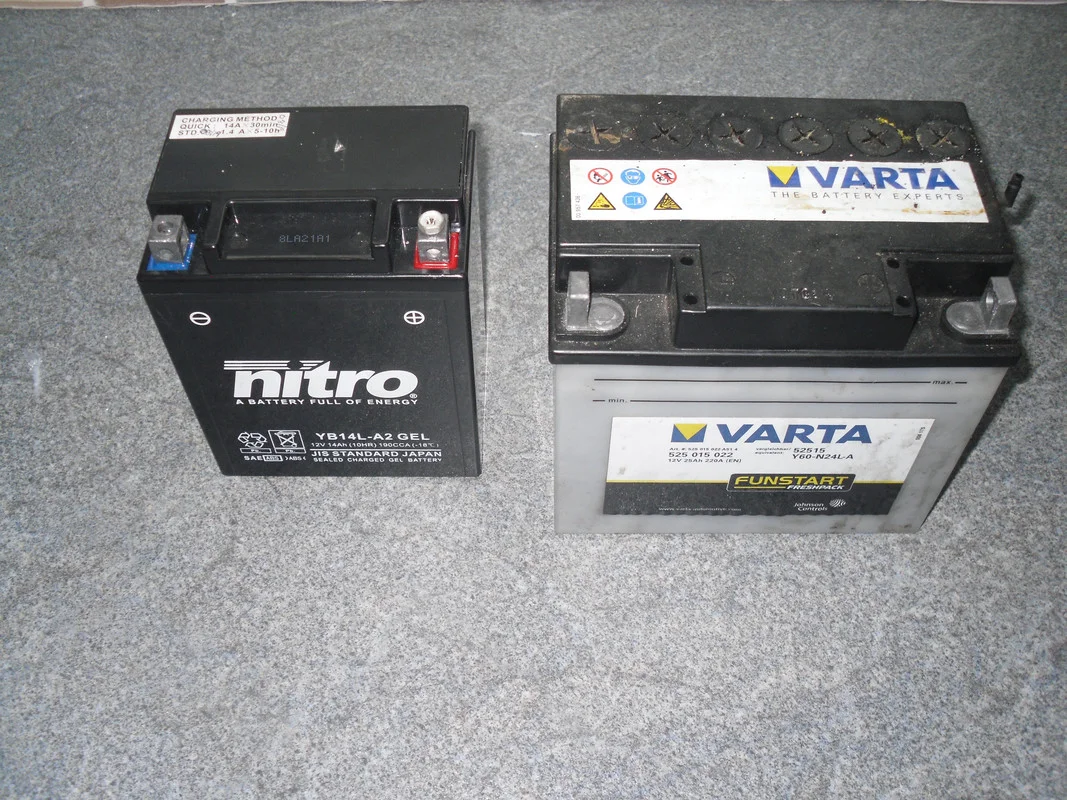

A standard size 850 Mk3 battery (left) next to a BMW flat twin battery from the same period and even that would occasionally struggle to start my little BMW 750 R75/7 on a frosty morning after being left outside all night but is yet another example of why the Mk3 starter didn't perform too well.
I suspect it wasn't just a bad sprag but the mating surfaces may have been soft. The sprag completely locked on my last failure with the Boyer firing way advanced and a good close inspection revealed the surfaces were damaged in more than just the place where it was jammed at the time. New parts from AN and a sprag from VXB have proved totally reliable. I have a sneaking suspicion that QC may have been poor back in the day
. Poorly charged battery and way undersized cables undoubtedly contributed.
- Joined
- Jun 25, 2004
- Messages
- 929
Noticed the same thing with my R100RT - hard cranking old brute. Be interesting to see what a gear reduction starter would do on an airhead....A standard size 850 Mk3 battery (left) next to a BMW flat twin battery from the same period and even that would occasionally struggle to start my little BMW 750 R75/7 on a frosty morning after being left outside all night but is yet another example of why the Mk3 starter didn't perform too well.
- Joined
- Nov 20, 2004
- Messages
- 20,415
My R75/7 (owned for 39 years) now has a more powerful (1.2 kW but lighter and more compact) Arrowhead starter motor which has no trouble cranking it at all. Edit: Although it's garaged and sub-zero (°C) early morning starts, thankfully, are a thing of the past.
(Apologies for drifting off-topic).
Last edited:
Lineslinger
VIP MEMBER
- Joined
- Feb 26, 2017
- Messages
- 1,781
A standard size 850 Mk3 battery (left) next to a BMW flat twin battery from the same period and even that would occasionally struggle to start my little BMW 750 R75/7 on a frosty morning after being left outside all night but is yet another example of why the Mk3 starter didn't perform too well.
In other words applicable AMPS?
- Joined
- Aug 25, 2020
- Messages
- 211
I just ordered a CNW starter kit , electronic ignition , single 12 volt coil with wires .
i think they have a good system ,
i am sure the Alton system is good as well .
i have ordered a lot of parts lately so when I start the rebuild I have most items here ....
i think they have a good system ,
i am sure the Alton system is good as well .
i have ordered a lot of parts lately so when I start the rebuild I have most items here ....
- Joined
- Jan 31, 2010
- Messages
- 3,099
I removed my kick start lever in '14, two years after I installed the Alton, and put a back plastic cap on the splined shaft. The kickstart lever is in the same storage box as the chain lubrication system.
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,594
You will not be in any way disappointed...
- Joined
- Dec 28, 2009
- Messages
- 5,421
Thanks. Ordered in.Looks like it's available now...
Mk3 Starter Drive Upgrade
Extremely high quality steel Vaccum heat treated for best uniform strength all the way through the core No modifications needed to install. Parts will drop in as stock Kit includes a front sprocket, drive gear with needle bearing and a sprag gear/clutch There is a 5 year conditional warranty on...coloradonortonworks.net
Fitted an Alton 3 years ago. I have the standard triplex primary so no issues there.
Replaced the complete ignition system as I had an old Boyer.
Bigger battery.
No issues until recently I have fitted a relay as the standard switchgear wasn’t working properly
It doesn’t seem that many other people have this issue. Will revisit it over the winter.
Given the same circumstances I’d buy the Alton again, no problem.
Replaced the complete ignition system as I had an old Boyer.
Bigger battery.
No issues until recently I have fitted a relay as the standard switchgear wasn’t working properly
It doesn’t seem that many other people have this issue. Will revisit it over the winter.
Given the same circumstances I’d buy the Alton again, no problem.
grandpaul
VIP MEMBER
- Joined
- Jan 15, 2008
- Messages
- 13,585

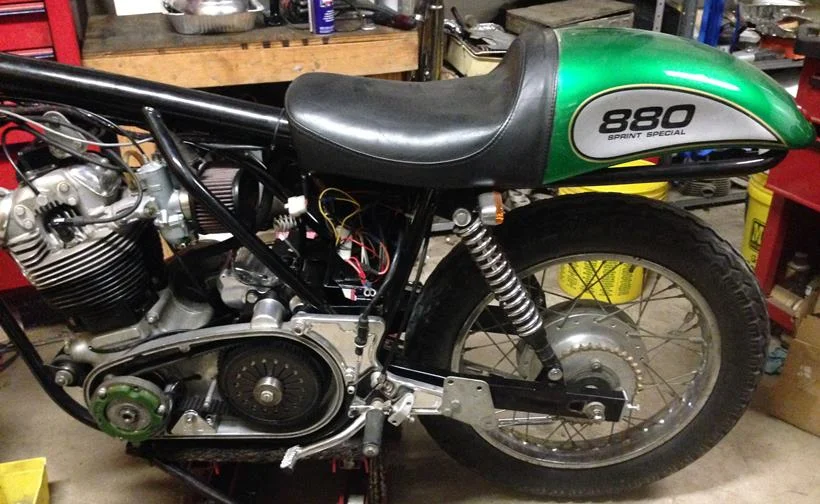

I always thought the VR880 starters done by Tom Reid for Kenny Dreer was the simplest answer: One modification to the inner primary cover, one bracket, slightly modify and drill the transmission cradle, bolt a ring gear to a belt drive clutch basket, install an OldBritts belt tensioner and a Sportster starter with a half-handful of hardware, and you're all set.
The biggest issue is ensuring your clutch basket is as near-perfectly centered as possible (highly dependent on a perfectly true mainshaft).
If you have a mill and lathe, it can all be done for well under a grand, the biggest chunk of that being the ring gear and belt drive setup.
The biggest issue is ensuring your clutch basket is as near-perfectly centered as possible (highly dependent on a perfectly true mainshaft).
If you have a mill and lathe, it can all be done for well under a grand, the biggest chunk of that being the ring gear and belt drive setup.
Last edited:
- Joined
- Jan 31, 2010
- Messages
- 3,099
I think the Alton is easier.
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,594
And cNw and Alton cater for those who don’t...
grandpaul
VIP MEMBER
- Joined
- Jan 15, 2008
- Messages
- 13,585
I'll bet I could get a small/cheap lathe & mill at Harbor Freight for about a grand...
hee hee
"A man's got to know his limitations"
-"Dirty" Harry Callaghan, in Magnum Force
