961 not starting after winter layup

TonyA said:

Is this the actual tip over sensor ? Not the solid state multi pin flat pack ? The tip over sensor uses a 3 pin/wire connector and has a plastic body with up written on it. This device has a pendulum magnet arm and IC's inside so without having it powered on the readings may not be useful. It is held on with two bolts and may be covered from sight by the OMEX ecu on your newer bike. The flat pack takes inputs from the stand switch and neutral switch etc to provide power to the power down relay on the OMEX bikes along with inputs from the tip over sensor. I want to say that the red wire supplies the 12v all good power to that power down relay. Not sure though. I have successfully cheated the tip over sensor with 2 resistors 100 to 150 ohms each and they tie back to the center pin on the tip over sensor. It works the same way with OMEX or SC ecu. Do a search for tip over sensor . Better yet , bring your bike to a reputable Norton shop that has the OMEX cable and software to analyze the system . I only say this because I would like it if you kept the bike and liked it rather than become frustrated or angry and hate it. If anyone has a source for this tip over sensor could they let us know ? If mine goes bad again I will be forced to cheat it for good this time because I can't find the spares source.

Click to expand...

Madbiker1981 said:

Hi there,

Thanks for your message! It is the actually sensor with UP on it.

The side stand and clutch are ok as its cranking over and i tested the switches.

I spoke to Krazy Horse in welling and he wasn't sure what it could be. But said they couldn't really help without support from the Norton Factory.

I do like the bike, but it is starting to frustrate me.

Click to expand...

Madbiker1981 said:

Hi all,

Good news! Shes running like a tiger!!

I went through all the electrics and powered up the fuel pump off the bike, put it back together and shes running!

It turns out it was a relay, so my question is, where can i buy one from? Its blue and has o/e/n 730-1c-1201-dt coil 110 on it

Thanks for all your help! What a great bunch you are!

Andrew

Click to expand...

speirmoor said:

Got a picture?

Click to expand...

Madbiker1981 said:

Hi all,

Good news! Shes running like a tiger!!

I went through all the electrics and powered up the fuel pump off the bike, put it back together and shes running!

It turns out it was a relay, so my question is, where can i buy one from? Its blue and has o/e/n 730-1c-1201-dt coil 110 on it

Thanks for all your help! What a great bunch you are!

Andrew

Click to expand...

Madbiker1981 said:

I
I do but how do i upload onto here?

Click to expand...

speirmoor said:

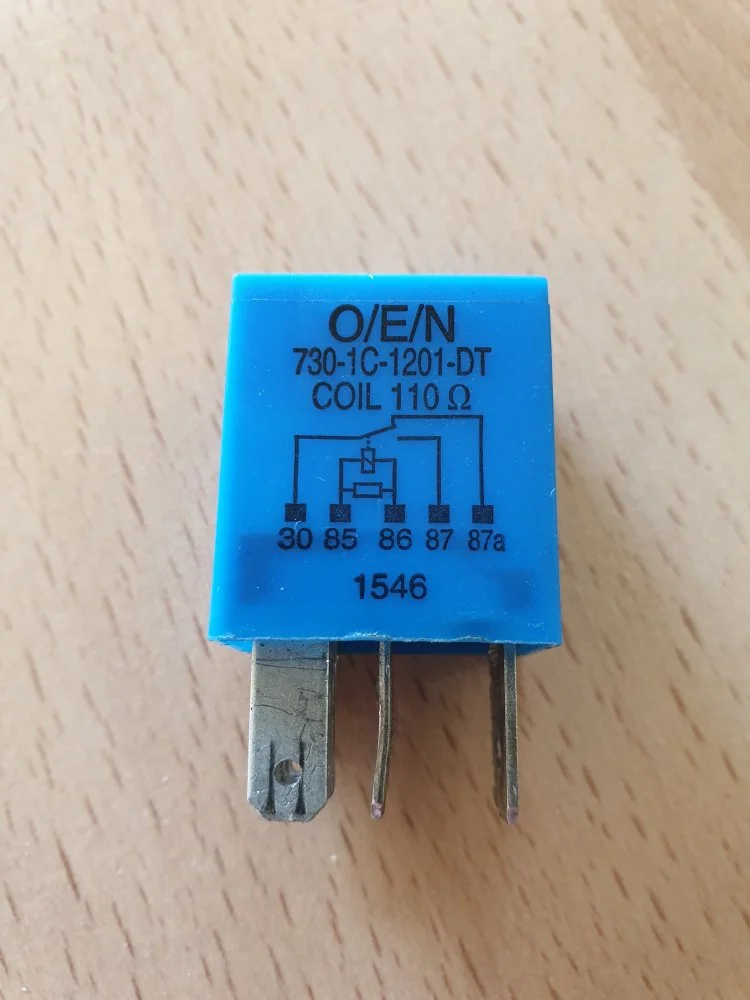

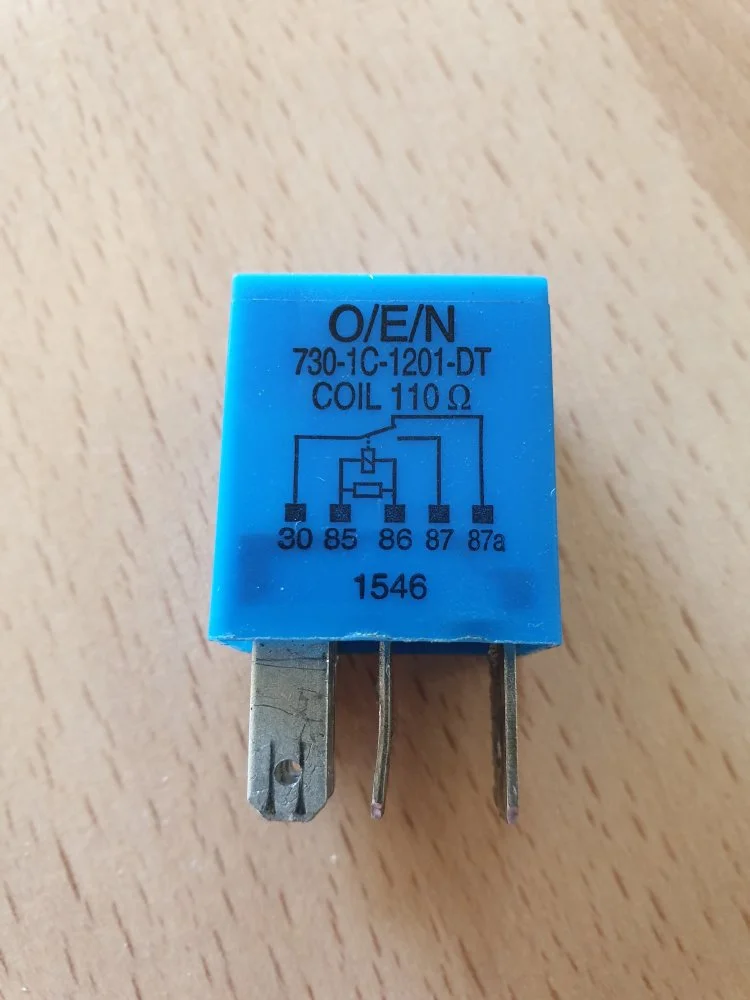

Madbiker1981’s Relay
View attachment 15043

Click to expand...

Madbiker1981 said:

Does anyone know the amp rating of this relay?

Click to expand...

kommando said:

The 1C version is 20A/10A depending on if the load is resistive or inductive, no idea if a fuel pump is resistive or inductive.

https://pdf1.alldatasheet.com/datasheet-pdf/view/308898/OENINDIA/730-1C-1201-PC.html

Click to expand...

Madbiker1981 said:

Any idea where i can get one in the UK?

Click to expand...

TonyA said:

Or this:

https://i.vgy.me/AN7aNv.jpg

Click to expand...

Madbiker1981 said:

Any idea where i can get one in the UK?

Click to expand...
