1970 Commando Coil Mounting Brackets

Status
Not open for further replies.
C

Crockett23

Joined
Jan 3, 2017
Messages
18
Country flag
Could anyone share a picture of how the coils were mounted on my 1970 Commando as I believe it was pre the U-shaped bracket, judging by the few parts I have and I suspect just one right angle bracket was used but I can't seem to find any images. Also could anyone share the dimensions of the u-shaped bracket, mainly the width, length and height as I am considering making one from alloy and nesting the Boyer module between the coils and using as a heat sink. Any help and ideas would be appreciated. Thanks

www.accessnorton.com

New Member, with questions.....

Josh, I see you have the 71 coil bracket and coil rings. The 69/70 had a different bracket and the coil holder rings had a little bracket off to the side that held the condensers on. The 71 had a central condenser unit. That's definitely a 69/70 frame and cradle, the prop stand is off a lug...
www.accessnorton.com www.accessnorton.com

AN show the 'U bracket on the Interim 1970 but could not see what was on the 68 to 70 model.

It might be noted there would need to be something as it reinforces the fuel tank wings which can crack without something across them.
Maybe that is why the later coil bracket version was added ?

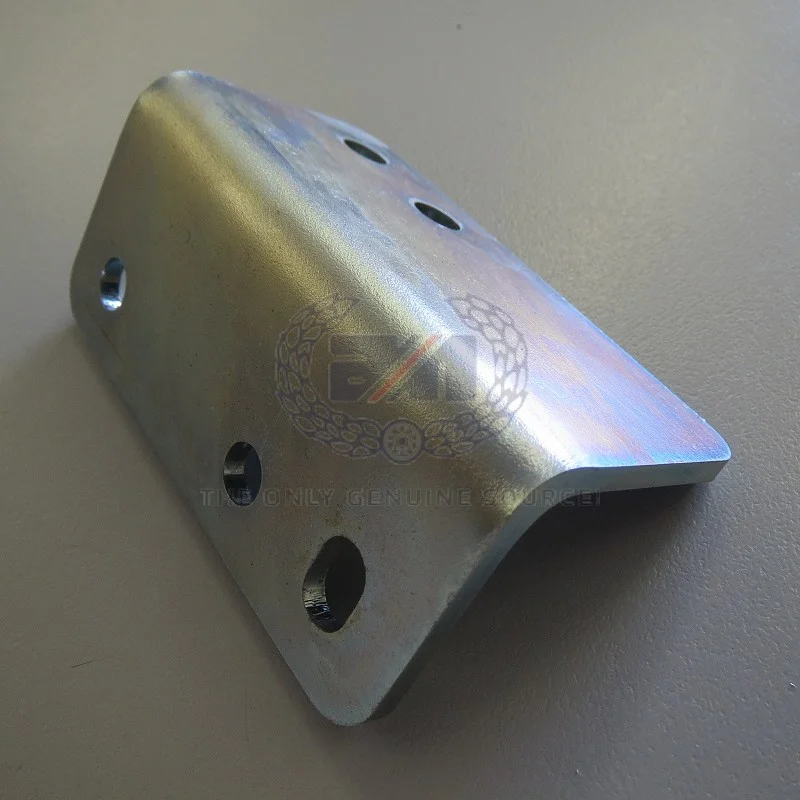

The 1970 Interim parts list on Andover is confusing to me. It shows the late style frame which uses the U-shaped bracket. The early style '68-'70 frame uses the 'L' shaped bracket.

1970 Commando Coil Mounting Brackets


andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

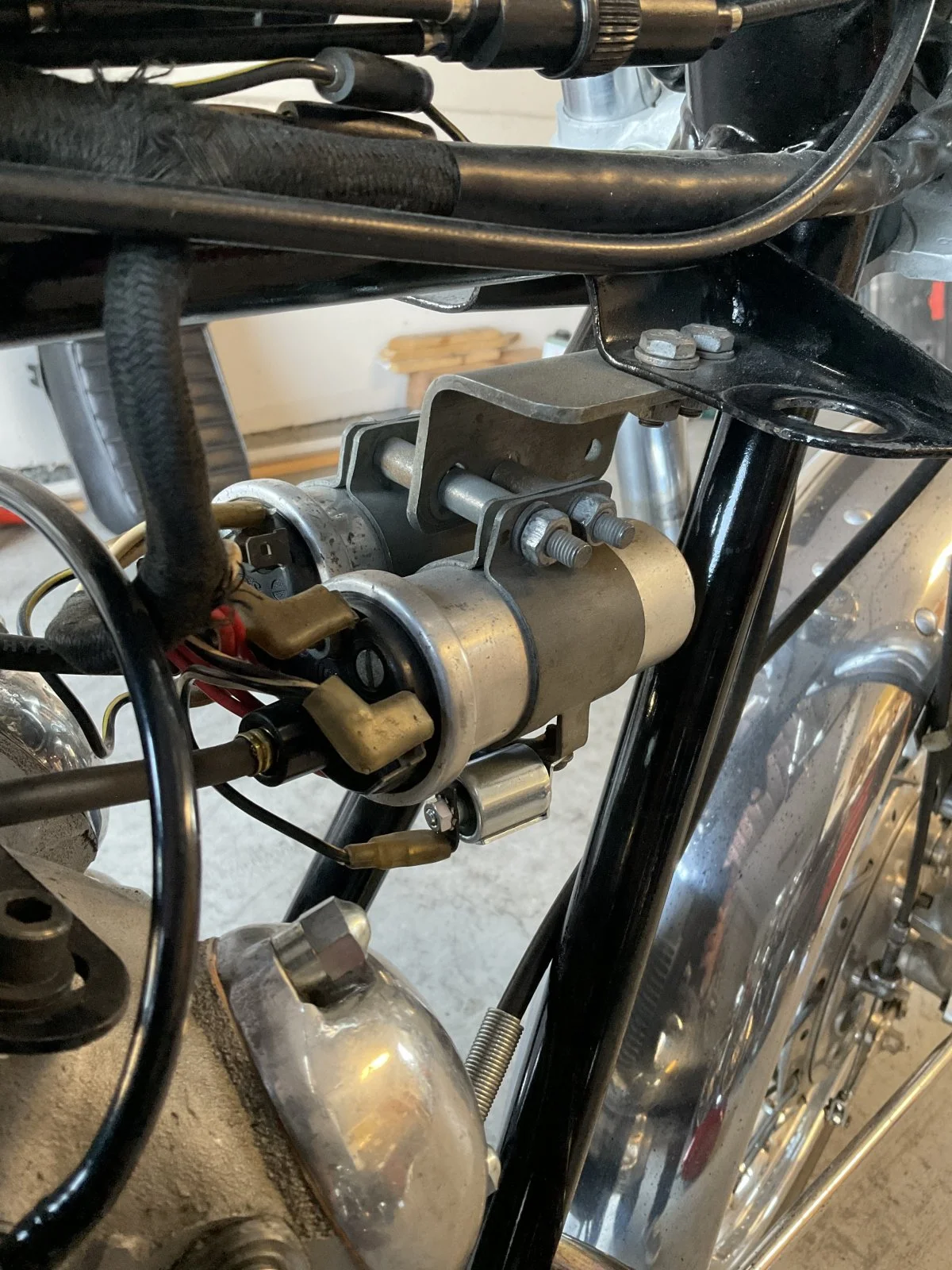

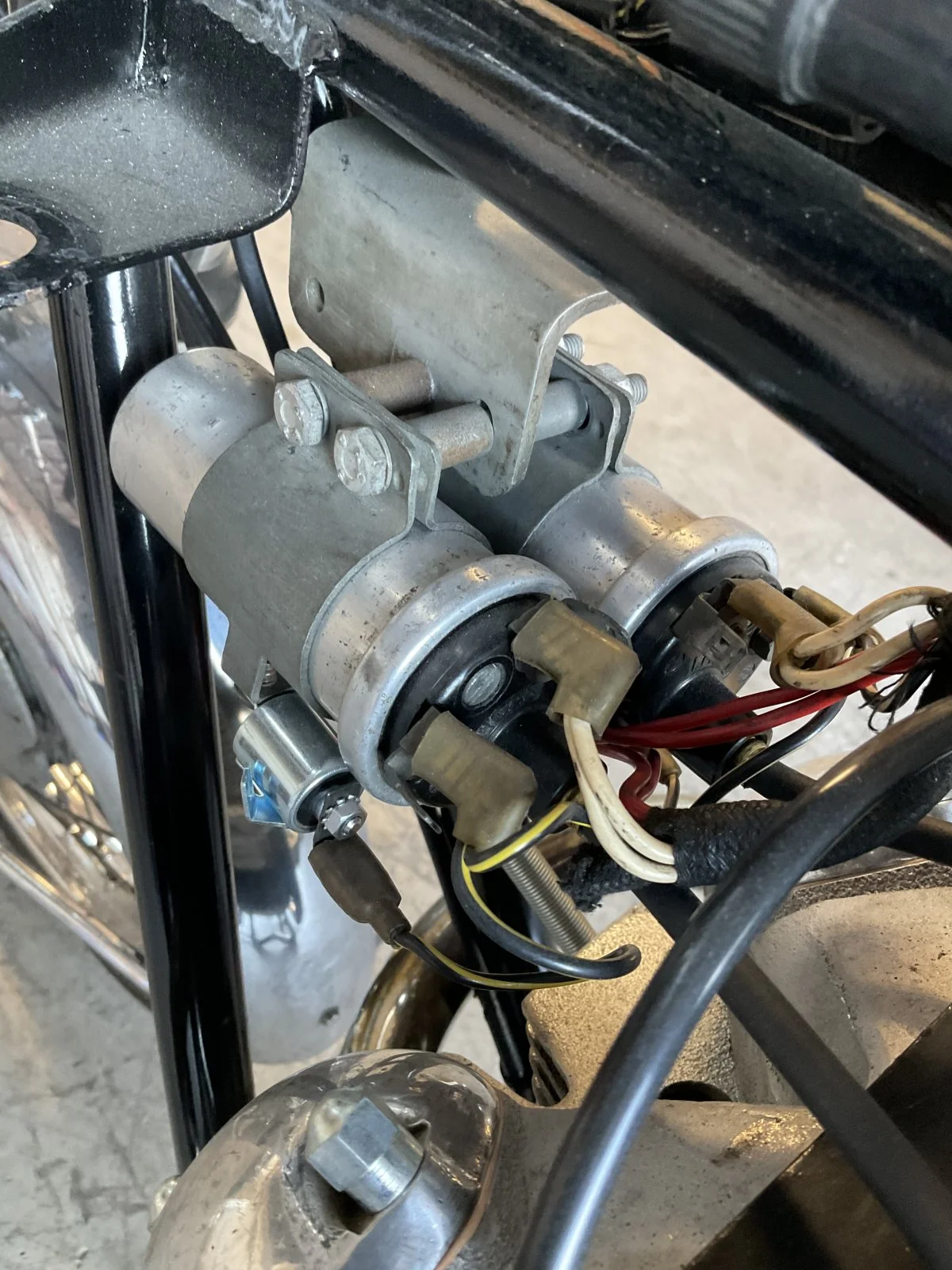

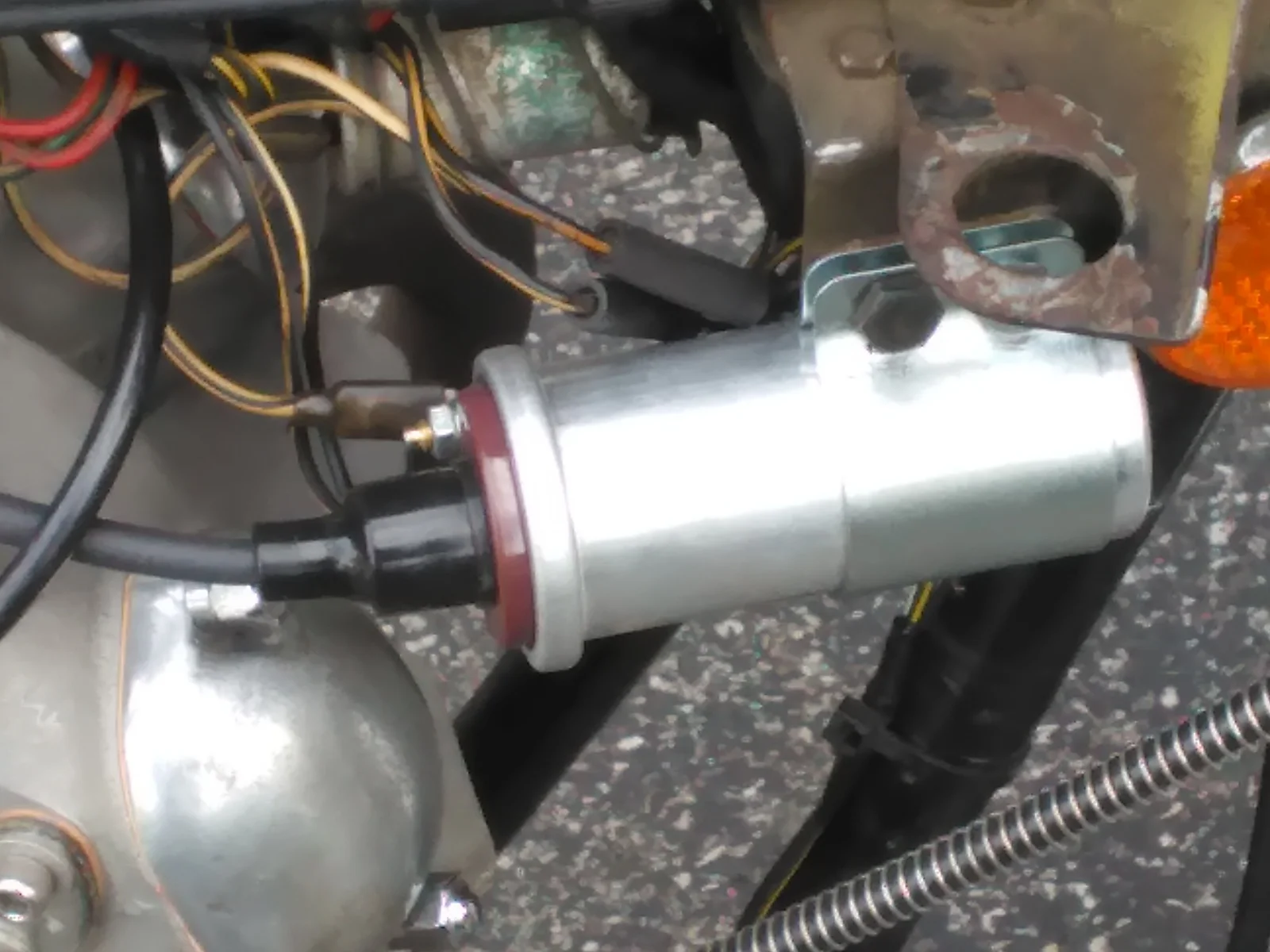

Above is the bracket the coil clamps mount to. There is no space between the coils to mount your Boyer module. It’s so tight the coils have to be one slightly forward of the other. To get a good photo I would have to remove my gas tank. If you really need it I’m willing.

illf8ed said:
Above is the bracket the coil clamps mount to. There is no space between the coils to mount your Boyer module. It’s so tight the coils have to be one slightly forward of the other. To get a good photo I would have to remove my gas tank. If you really need it I’m willing.
Click to expand...
Thanks for the offer but with your input and others I have an idea now, cheers

It certainly is nice to know the options for your Series 1 commando.
illf8ed shows the correct S 1 commando coil mount but it's best for points/coil only with the little caps hanging below.
The actual easiest for a boyer box which requires/prefers 2- 6 volt or a single 12v dual output coil and the S2 type coil mount is likely better.
If interested I have a print of a neat boyer box mount that is easily fabricated and mounts under the late S2 coil mount in the cold air stream.

dynodave said:
It certainly is nice to know the options for your Series 1 commando.
illf8ed shows the correct S 1 commando coil mount but it's best for points/coil only with the little caps hanging below.
The actual easiest for a boyer box which requires/prefers 2- 6 volt or a single 12v dual output coil and the S2 type coil mount is likely better.
If interested I have a print of a neat boyer box mount that is easily fabricated and mounts under the late S2 coil mount in the cold air stream.
Click to expand...
I’m interested in this Boyer box setup. Also what exactly is the S2 type coil mount?
